| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006008_44656cztM0_level2.fits | modeM0/AS1A13_072T01_9000006008_44656cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,023,456,960 | 222,952,320 |
| Size | 976.0 MB | 212.6 MB |
| Events in quadrant A | 11,901,035 | 1,482,924 |
| Events in quadrant B | 6,651,209 | 1,545,637 |
| Events in quadrant C | 6,687,464 | 1,463,708 |
| Events in quadrant D | 11,529,109 | 1,261,780 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47140 | 1 |
| B | 0 | 30215 | 1 |
| C | 0 | 30659 | 1 |
| D | 0 | 44296 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 290 | 0 |
| B | 0 | 290 | 0 |
| C | 0 | 290 | 0 |
| D | 0 | 290 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14427 | 456 | 3.160740% |
| B | 14427 | 278 | 1.926943% |
| C | 14428 | 166 | 1.150541% |
| D | 14427 | 1126 | 7.804810% |

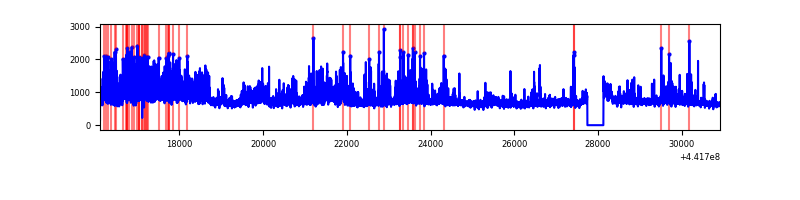

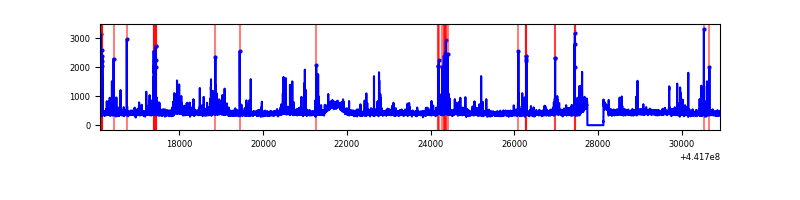

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14812 | 14428 | 54 | 54 | 0.36% | 0.37% |  |
| B | 14812 | 14428 | 17 | 17 | 0.11% | 0.12% |  |
| C | 14813 | 14429 | 42 | 42 | 0.28% | 0.29% |  |
| D | 14812 | 14428 | 904 | 904 | 6.10% | 6.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3775648 | 11581.6 | 1575 | 1544 | 325.9 |
| A | 15 | 223 | 1761714 | 5401.44 | 1575 | 1544 | 325.9 |
| A | 13 | 248 | 126104 | 382.24 | 1575 | 1544 | 325.9 |
| B | 0 | 183 | 123773 | 395.43 | 1573 | 1522 | 309.2 |
| B | 0 | 186 | 122703 | 391.96 | 1573 | 1522 | 309.2 |
| B | 5 | 172 | 66498 | 210.17 | 1573 | 1522 | 309.2 |
| C | 12 | 2 | 314873 | 874.47 | 1543 | 1548 | 358.3 |
| C | 14 | 254 | 183519 | 507.87 | 1543 | 1548 | 358.3 |
| C | 2 | 14 | 57297 | 155.59 | 1543 | 1548 | 358.3 |
| D | 1 | 52 | 2105431 | 5528.22 | 1510 | 1461 | 380.6 |
| D | 13 | 249 | 1136481 | 2982.28 | 1510 | 1461 | 380.6 |
| D | 13 | 153 | 694836 | 1821.85 | 1510 | 1461 | 380.6 |

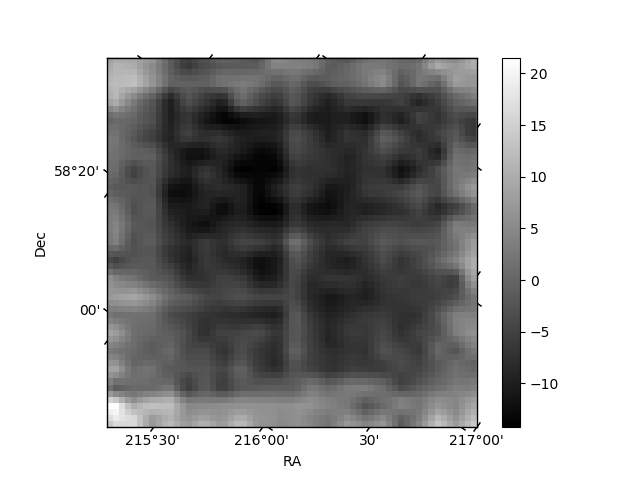

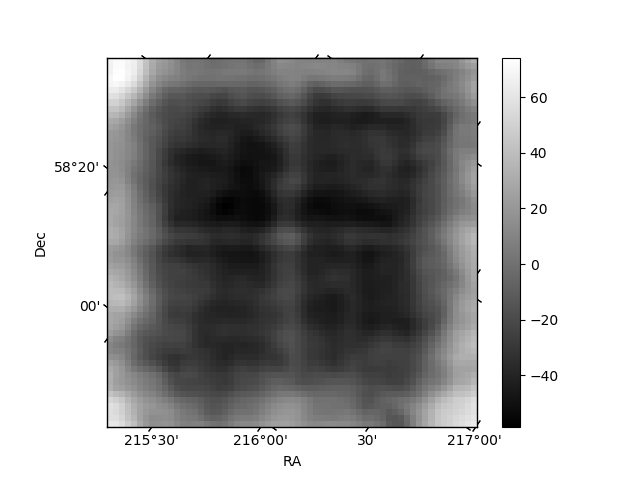

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

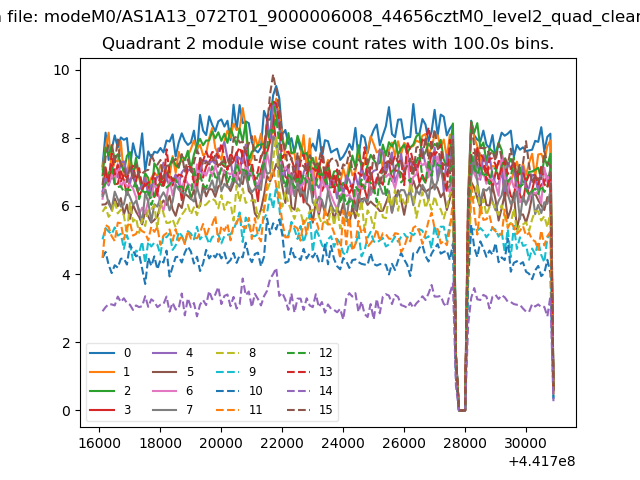

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

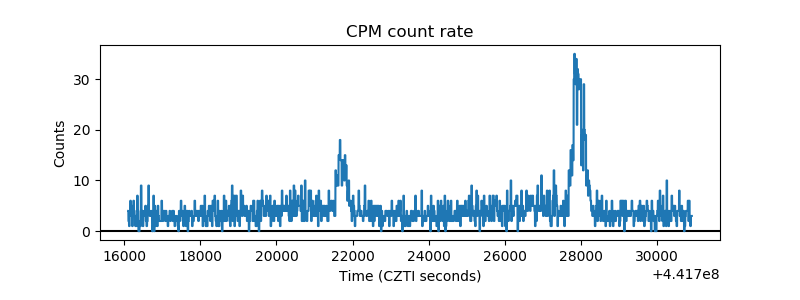

| _CPM_Rate |  |

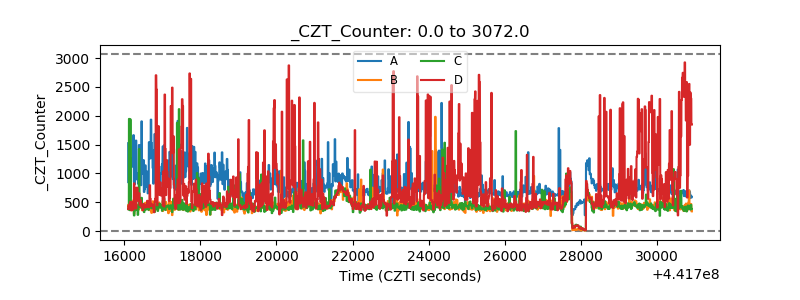

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

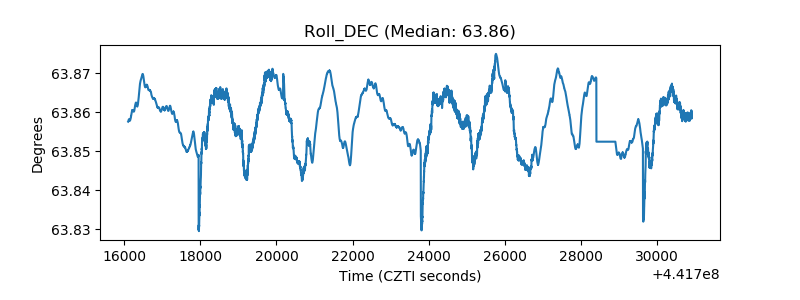

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
