| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006008_44675cztM0_level2.fits | modeM0/AS1A13_072T01_9000006008_44675cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,868,480 | 105,079,680 |
| Size | 440.5 MB | 100.2 MB |
| Events in quadrant A | 4,829,321 | 716,285 |
| Events in quadrant B | 3,302,617 | 745,116 |
| Events in quadrant C | 2,924,607 | 716,072 |
| Events in quadrant D | 5,547,339 | 561,656 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19687 | 2 |
| B | 0 | 14229 | 2 |
| C | 0 | 13239 | 2 |
| D | 0 | 21009 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6342 | 136 | 2.144434% |
| B | 6342 | 106 | 1.671397% |
| C | 6342 | 26 | 0.409965% |
| D | 6341 | 909 | 14.335278% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7537 | 6343 | 19 | 19 | 0.25% | 0.30% |  |
| B | 7537 | 6343 | 47 | 47 | 0.62% | 0.74% |  |
| C | 7537 | 6343 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7536 | 6342 | 780 | 780 | 10.35% | 12.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1959494 | 13270.69 | 716 | 700 | 147.6 |
| A | 13 | 248 | 84878 | 570.3 | 716 | 700 | 147.6 |
| A | 3 | 137 | 8132 | 50.35 | 716 | 700 | 147.6 |
| B | 0 | 189 | 143603 | 1030.92 | 716 | 694 | 138.6 |
| B | 4 | 171 | 113917 | 816.77 | 716 | 694 | 138.6 |
| B | 7 | 221 | 55911 | 398.33 | 716 | 694 | 138.6 |
| C | 3 | 233 | 65120 | 387.37 | 713 | 717 | 166.3 |
| C | 14 | 254 | 59758 | 355.11 | 713 | 717 | 166.3 |
| C | 2 | 14 | 7362 | 39.97 | 713 | 717 | 166.3 |
| D | 1 | 52 | 2357668 | 14594.42 | 639 | 619 | 161.5 |
| D | 2 | 249 | 203200 | 1254.34 | 639 | 619 | 161.5 |
| D | 13 | 171 | 132060 | 813.86 | 639 | 619 | 161.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

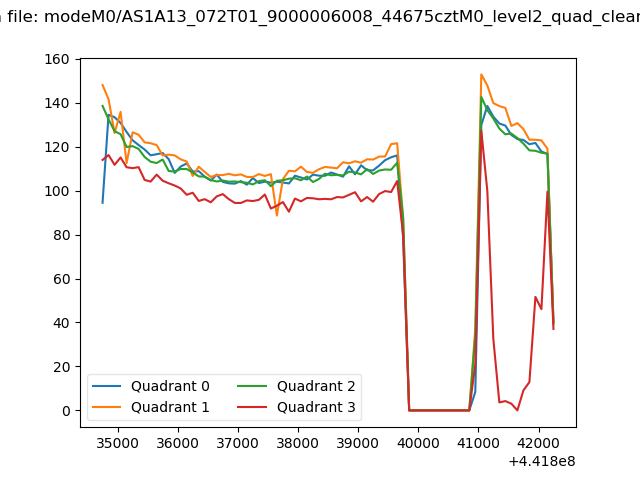

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

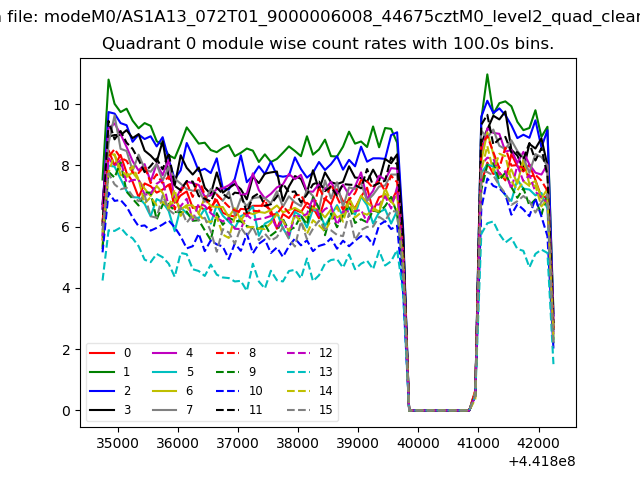

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

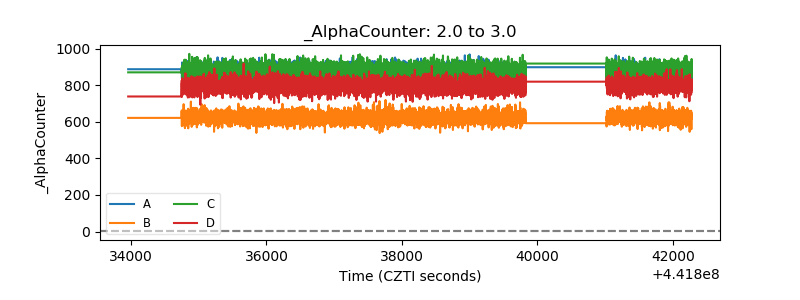

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

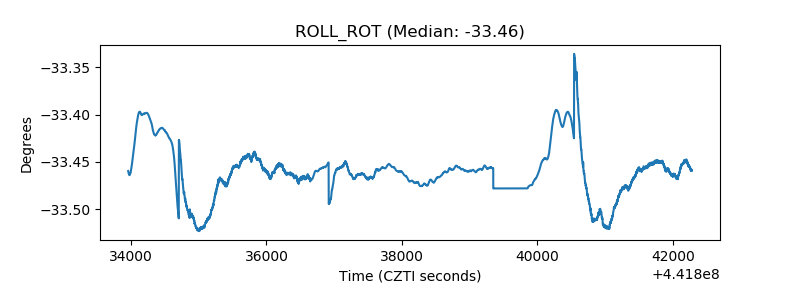

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

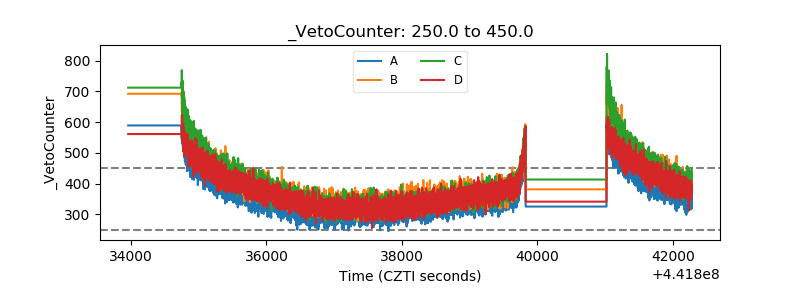

| Veto Counter |  |
