| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006008_44678cztM0_level2.fits | modeM0/AS1A13_072T01_9000006008_44678cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,970,880 | 109,549,440 |
| Size | 408.1 MB | 104.5 MB |
| Events in quadrant A | 4,892,449 | 731,623 |
| Events in quadrant B | 3,065,558 | 771,477 |
| Events in quadrant C | 3,078,880 | 727,485 |
| Events in quadrant D | 4,303,159 | 636,318 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19901 | 2 |
| B | 0 | 13667 | 2 |
| C | 0 | 13797 | 2 |
| D | 0 | 17510 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6459 | 136 | 2.105589% |
| B | 6459 | 53 | 0.820560% |
| C | 6459 | 50 | 0.774114% |
| D | 6459 | 311 | 4.814987% |

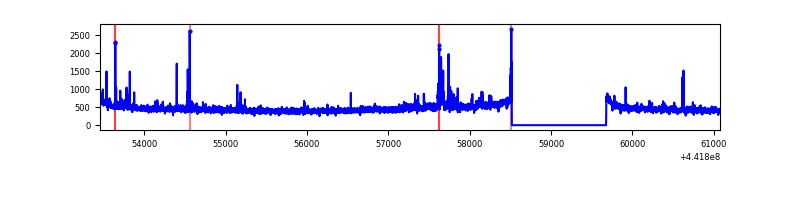

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7619 | 6460 | 13 | 13 | 0.17% | 0.20% |  |
| B | 7619 | 6460 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7619 | 6460 | 27 | 27 | 0.35% | 0.42% |  |
| D | 7619 | 6460 | 189 | 189 | 2.48% | 2.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1988943 | 13305.65 | 723 | 708 | 149.4 |
| A | 13 | 248 | 96658 | 642.12 | 723 | 708 | 149.4 |
| A | 3 | 137 | 8148 | 49.79 | 723 | 708 | 149.4 |
| B | 5 | 255 | 63529 | 441.89 | 731 | 707 | 142.2 |
| B | 7 | 221 | 35620 | 245.58 | 731 | 707 | 142.2 |
| B | 4 | 171 | 29202 | 200.43 | 731 | 707 | 142.2 |
| C | 2 | 14 | 117328 | 701.29 | 710 | 713 | 166.3 |
| C | 14 | 254 | 79682 | 474.9 | 710 | 713 | 166.3 |
| C | 14 | 206 | 68586 | 408.17 | 710 | 713 | 166.3 |
| D | 13 | 249 | 657784 | 3843.58 | 686 | 667 | 171.0 |
| D | 1 | 52 | 357378 | 2086.46 | 686 | 667 | 171.0 |
| D | 13 | 174 | 313963 | 1832.52 | 686 | 667 | 171.0 |

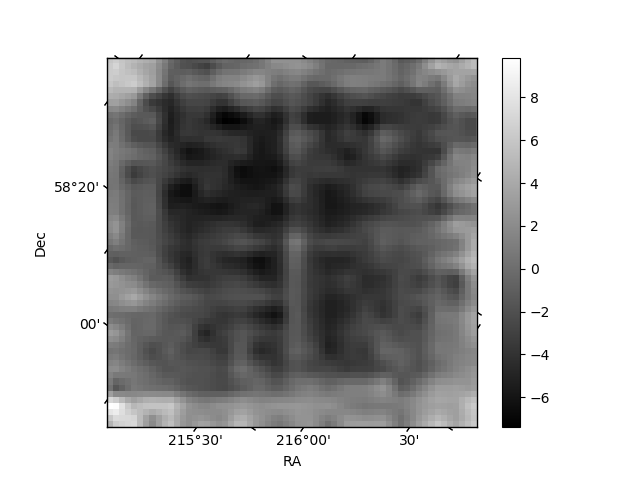

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

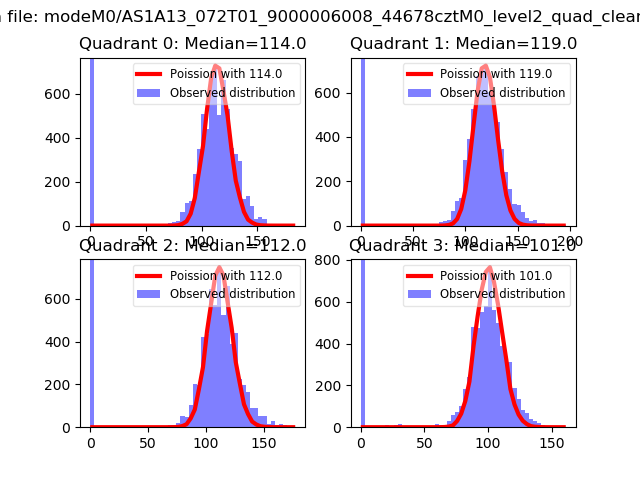

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

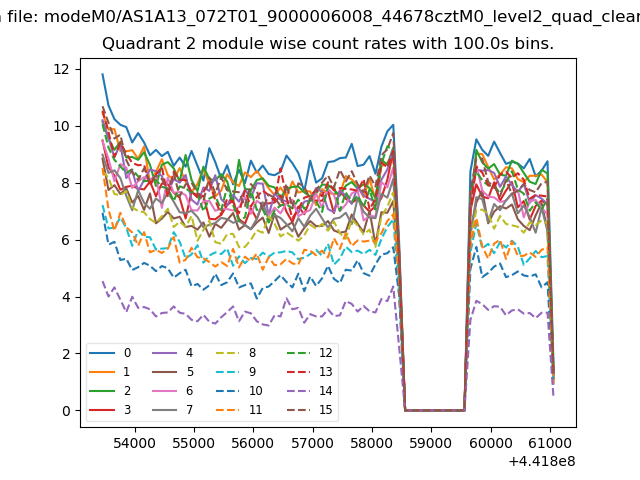

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

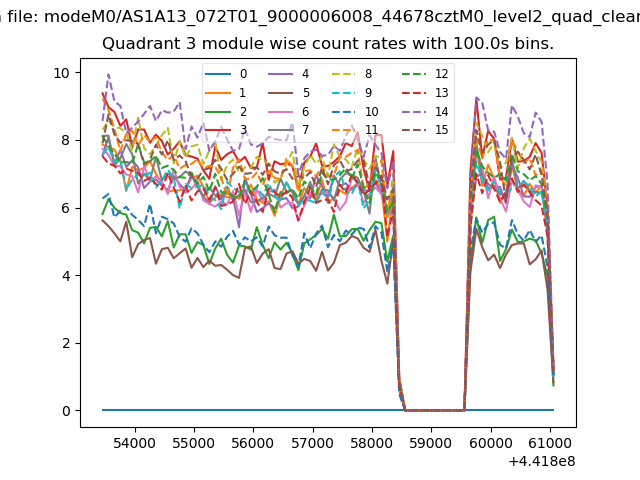

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

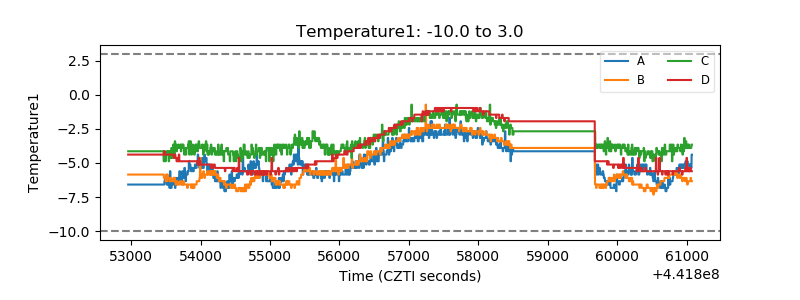

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
