| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_073T04_9000006010_44695cztM0_level2.fits | modeM0/AS1A13_073T04_9000006010_44695cztM0_level2_quad_clean.evt |
| Size (bytes) | 801,452,160 | 113,918,400 |
| Size | 764.3 MB | 108.6 MB |
| Events in quadrant A | 7,774,359 | 773,411 |
| Events in quadrant B | 4,996,057 | 818,980 |
| Events in quadrant C | 3,645,438 | 841,673 |
| Events in quadrant D | 12,634,205 | 461,293 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29080 | 2 |
| B | 0 | 20205 | 2 |
| C | 0 | 16769 | 2 |
| D | 0 | 43135 | 15 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7962 | 906 | 11.379050% |
| B | 7962 | 660 | 8.289375% |
| C | 7963 | 174 | 2.185106% |
| D | 7959 | 3452 | 43.372283% |

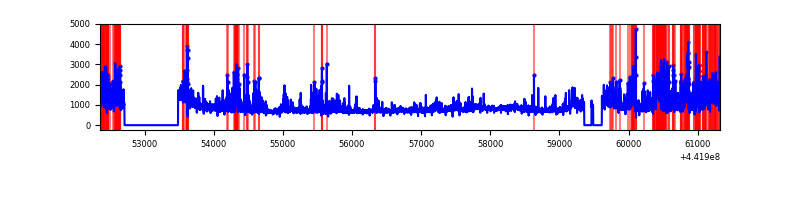

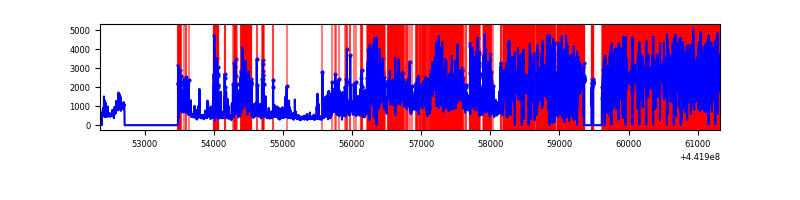

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8967 | 7965 | 299 | 299 | 3.33% | 3.75% |  |
| B | 8967 | 7964 | 172 | 172 | 1.92% | 2.16% |  |
| C | 8968 | 7966 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8966 | 7960 | 2950 | 2950 | 32.90% | 37.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2154772 | 11539.16 | 896 | 873 | 186.7 |
| A | 15 | 223 | 1653326 | 8852.75 | 896 | 873 | 186.7 |
| A | 10 | 248 | 236658 | 1263.18 | 896 | 873 | 186.7 |
| B | 5 | 255 | 1021079 | 5629.93 | 906 | 875 | 181.2 |
| B | 0 | 189 | 250518 | 1377.64 | 906 | 875 | 181.2 |
| B | 0 | 183 | 44022 | 238.1 | 906 | 875 | 181.2 |
| C | 14 | 254 | 25653 | 115.29 | 914 | 915 | 214.6 |
| C | 2 | 14 | 20870 | 93.0 | 914 | 915 | 214.6 |
| C | 3 | 233 | 11305 | 48.42 | 914 | 915 | 214.6 |
| D | 1 | 52 | 7037349 | 43310.53 | 642 | 621 | 162.5 |
| D | 11 | 241 | 2141543 | 13177.21 | 642 | 621 | 162.5 |
| D | 13 | 249 | 338184 | 2077.67 | 642 | 621 | 162.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

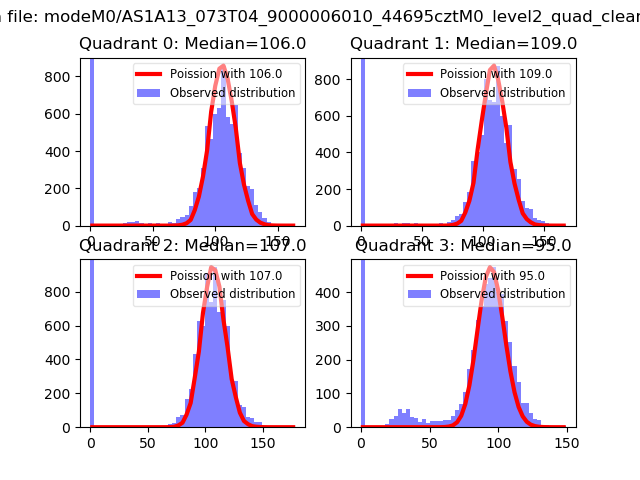

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

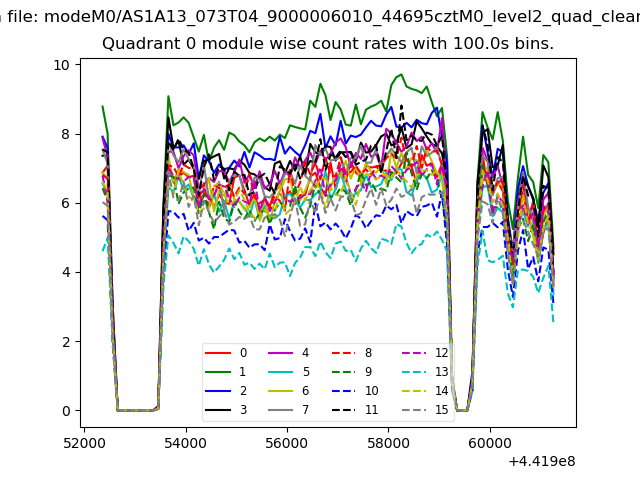

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

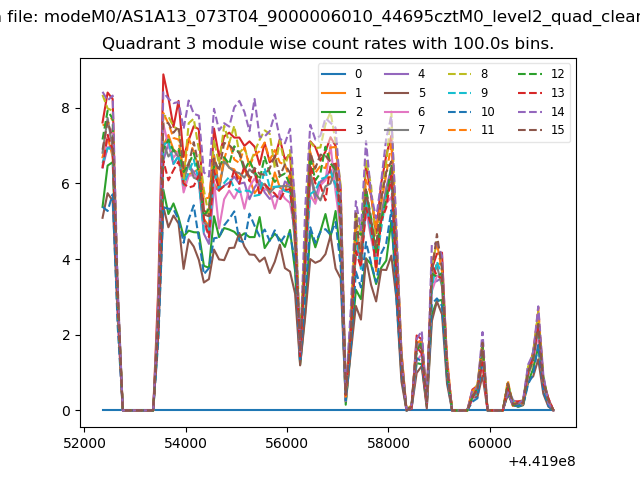

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

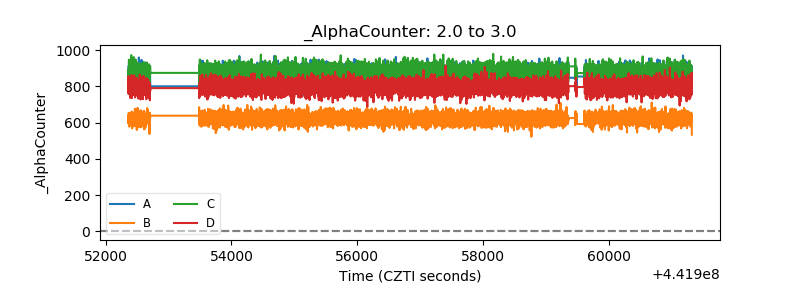

| Alpha Counter |  |
| _CPM_Rate |  |

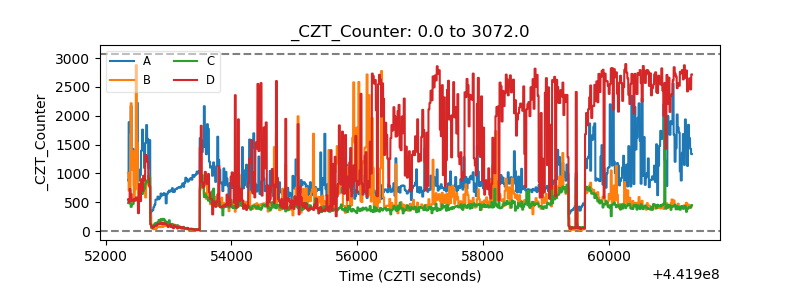

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

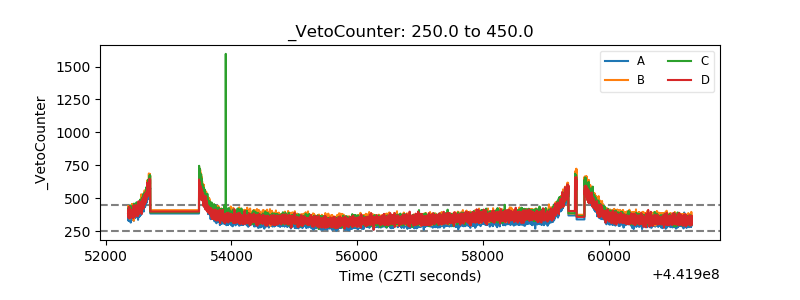

| Veto Counter |  |
