| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_009T01_9000006016_44721cztM0_level2.fits | modeM0/AS1A13_009T01_9000006016_44721cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,611,520 | 109,183,680 |
| Size | 501.3 MB | 104.1 MB |
| Events in quadrant A | 5,103,818 | 739,656 |
| Events in quadrant B | 3,630,382 | 772,615 |
| Events in quadrant C | 3,019,428 | 745,501 |
| Events in quadrant D | 7,202,182 | 597,853 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20642 | 2 |
| B | 0 | 15176 | 2 |
| C | 0 | 13487 | 2 |
| D | 0 | 25904 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6455 | 195 | 3.020914% |
| B | 6455 | 200 | 3.098373% |
| C | 6455 | 23 | 0.356313% |
| D | 6455 | 919 | 14.237026% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7670 | 6456 | 11 | 11 | 0.14% | 0.17% |  |
| B | 7670 | 6456 | 72 | 72 | 0.94% | 1.12% |  |
| C | 7670 | 6456 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7670 | 6456 | 783 | 783 | 10.21% | 12.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2045861 | 13160.39 | 750 | 736 | 155.4 |
| A | 15 | 223 | 83108 | 530.06 | 750 | 736 | 155.4 |
| A | 13 | 248 | 48153 | 305.13 | 750 | 736 | 155.4 |
| B | 0 | 189 | 272765 | 1835.6 | 755 | 733 | 148.2 |
| B | 5 | 255 | 114539 | 767.93 | 755 | 733 | 148.2 |
| B | 5 | 172 | 72895 | 486.93 | 755 | 733 | 148.2 |
| C | 14 | 254 | 67238 | 377.15 | 745 | 753 | 176.3 |
| C | 0 | 207 | 19760 | 107.82 | 745 | 753 | 176.3 |
| C | 1 | 3 | 11182 | 59.16 | 745 | 753 | 176.3 |
| D | 1 | 52 | 1044852 | 5973.71 | 694 | 674 | 174.8 |
| D | 13 | 174 | 904628 | 5171.49 | 694 | 674 | 174.8 |
| D | 3 | 13 | 717559 | 4101.27 | 694 | 674 | 174.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

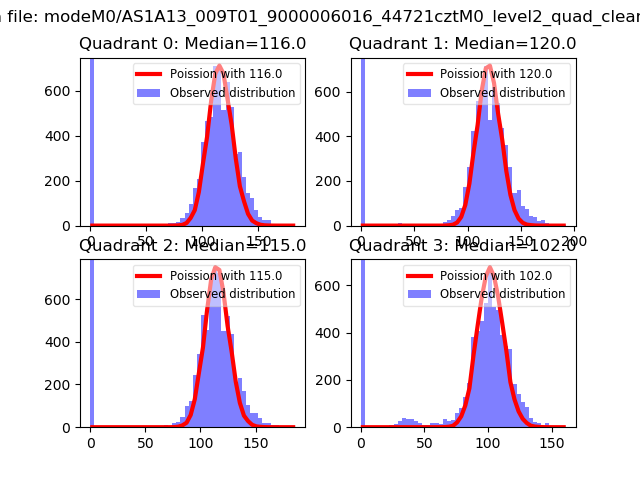

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

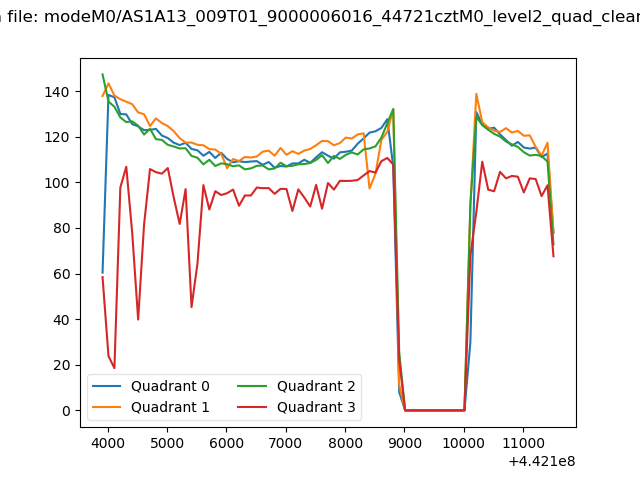

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

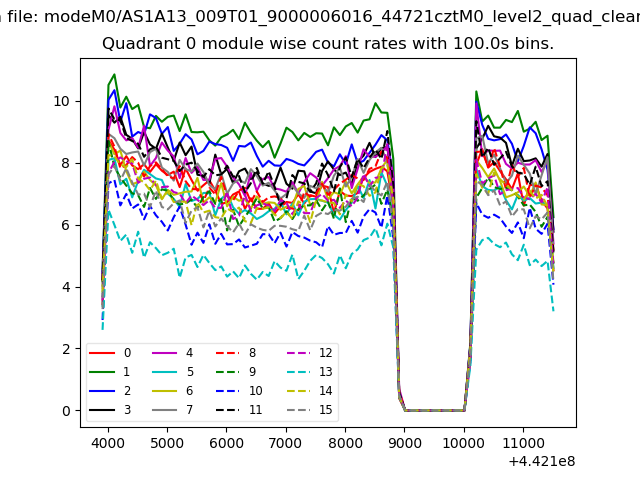

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

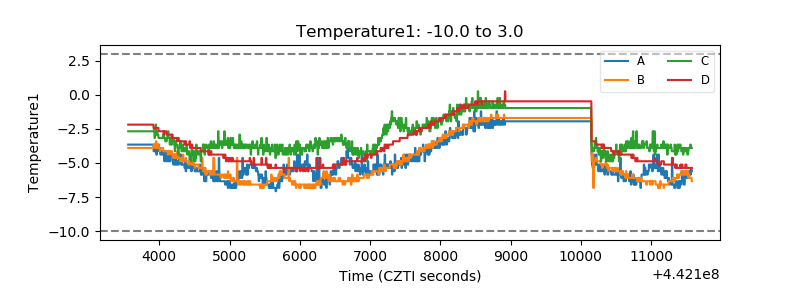

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

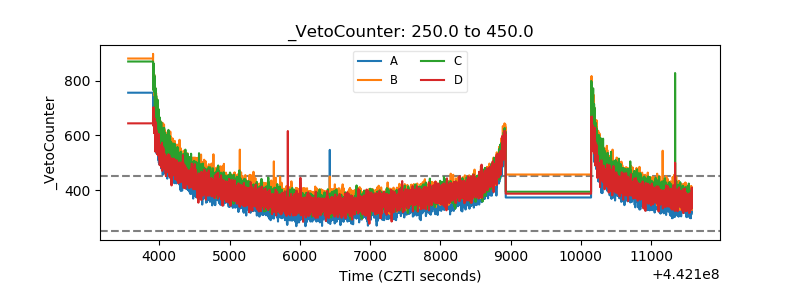

| Veto Counter |  |
