| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T11_9000006018_44750cztM0_level2.fits | modeM0/AS1A13_004T11_9000006018_44750cztM0_level2_quad_clean.evt |
| Size (bytes) | 632,684,160 | 95,106,240 |
| Size | 603.4 MB | 90.7 MB |
| Events in quadrant A | 6,652,540 | 654,077 |
| Events in quadrant B | 3,636,758 | 719,595 |
| Events in quadrant C | 3,050,944 | 695,744 |
| Events in quadrant D | 9,600,182 | 378,499 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24489 | 1 |
| B | 0 | 14978 | 1 |
| C | 0 | 13449 | 1 |
| D | 0 | 32819 | 8 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6182 | 737 | 11.921708% |
| B | 6183 | 189 | 3.056769% |
| C | 6183 | 81 | 1.310044% |
| D | 6182 | 2608 | 42.186995% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7387 | 6183 | 555 | 555 | 7.51% | 8.98% |  |
| B | 7388 | 6184 | 110 | 110 | 1.49% | 1.78% |  |
| C | 7388 | 6184 | 50 | 50 | 0.68% | 0.81% |  |
| D | 7387 | 6183 | 2357 | 2357 | 31.91% | 38.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 2161018 | 15764.69 | 667 | 653 | 137.0 |
| A | 10 | 83 | 1819583 | 13273.16 | 667 | 653 | 137.0 |
| A | 13 | 248 | 86765 | 628.38 | 667 | 653 | 137.0 |
| B | 0 | 189 | 317513 | 2367.67 | 695 | 676 | 133.8 |
| B | 5 | 255 | 232478 | 1732.21 | 695 | 676 | 133.8 |
| B | 5 | 172 | 153143 | 1139.36 | 695 | 676 | 133.8 |
| C | 14 | 254 | 269846 | 1639.58 | 693 | 696 | 164.2 |
| C | 12 | 2 | 62307 | 375.32 | 693 | 696 | 164.2 |
| C | 1 | 3 | 12182 | 69.97 | 693 | 696 | 164.2 |
| D | 8 | 129 | 4083461 | 32213.26 | 499 | 484 | 126.7 |
| D | 9 | 49 | 2743286 | 21639.75 | 499 | 484 | 126.7 |
| D | 3 | 13 | 228072 | 1795.59 | 499 | 484 | 126.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

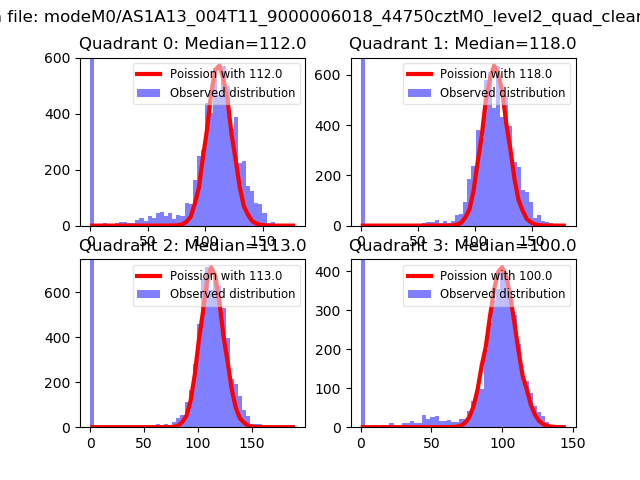

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

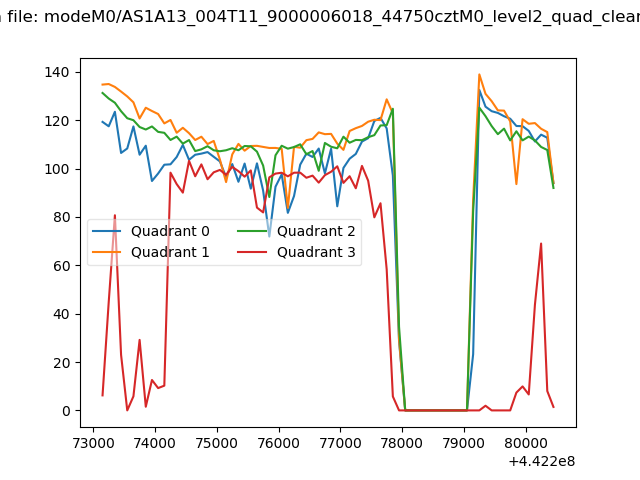

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

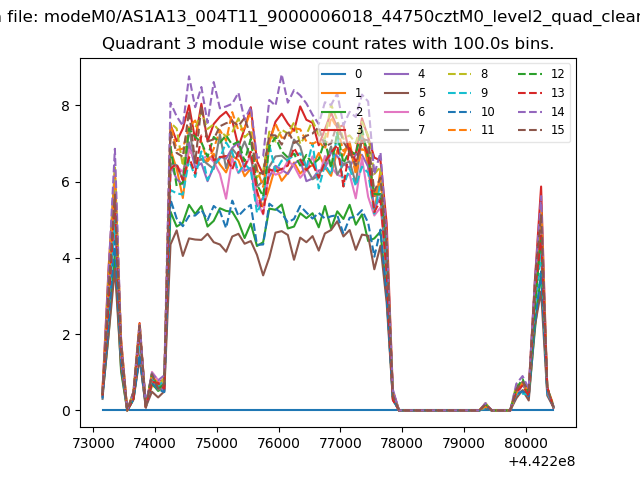

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

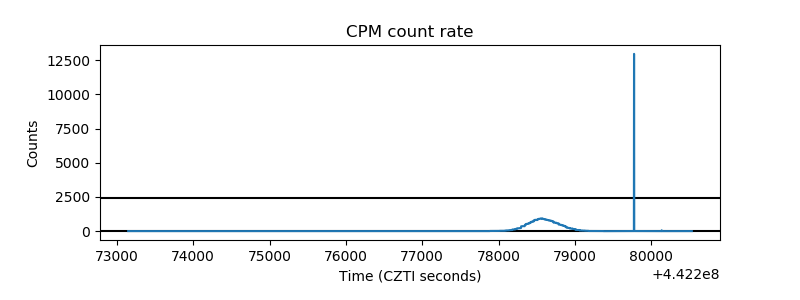

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

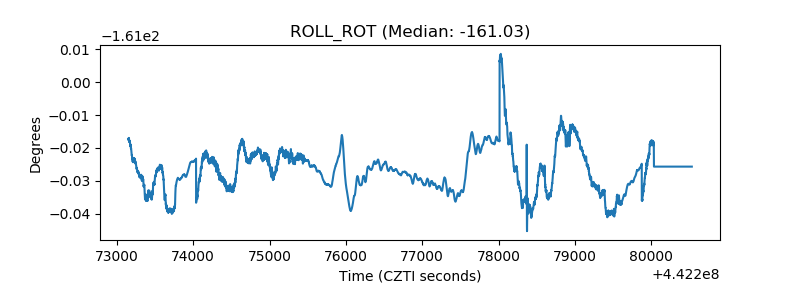

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

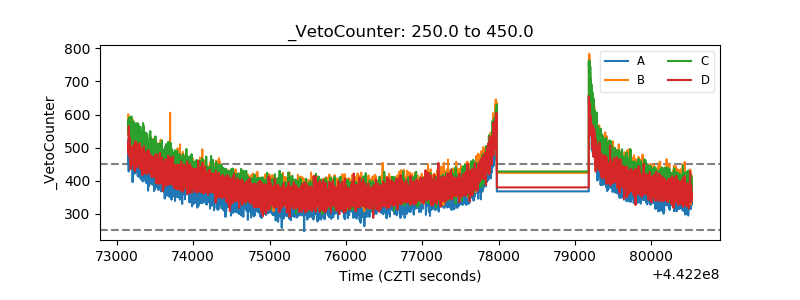

| Veto Counter |  |
