| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44755cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44755cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,311,040 | 123,223,680 |
| Size | 523.9 MB | 117.5 MB |
| Events in quadrant A | 6,228,472 | 795,381 |
| Events in quadrant B | 4,716,848 | 830,924 |
| Events in quadrant C | 3,713,697 | 820,092 |
| Events in quadrant D | 5,062,329 | 735,995 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25315 | 0 |
| B | 0 | 19480 | 0 |
| C | 0 | 16921 | 0 |
| D | 0 | 20668 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7888 | 481 | 6.097870% |
| B | 7888 | 363 | 4.601927% |
| C | 7889 | 84 | 1.064774% |
| D | 7889 | 337 | 4.271771% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7888 | 7888 | 114 | 114 | 1.45% | 1.45% |  |
| B | 7888 | 7888 | 151 | 151 | 1.91% | 1.91% |  |
| C | 7889 | 7889 | 44 | 44 | 0.56% | 0.56% |  |
| D | 7889 | 7889 | 248 | 248 | 3.14% | 3.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2038843 | 11294.68 | 864 | 845 | 180.4 |
| A | 15 | 223 | 826374 | 4575.12 | 864 | 845 | 180.4 |
| A | 13 | 248 | 22404 | 119.48 | 864 | 845 | 180.4 |
| B | 0 | 189 | 847533 | 4878.82 | 869 | 840 | 173.5 |
| B | 5 | 255 | 349828 | 2010.94 | 869 | 840 | 173.5 |
| B | 0 | 190 | 41887 | 236.52 | 869 | 840 | 173.5 |
| C | 14 | 254 | 164398 | 808.68 | 862 | 866 | 202.2 |
| C | 1 | 3 | 152169 | 748.2 | 862 | 866 | 202.2 |
| C | 0 | 207 | 13218 | 61.08 | 862 | 866 | 202.2 |
| D | 13 | 249 | 647183 | 3039.78 | 851 | 820 | 212.6 |
| D | 4 | 221 | 482521 | 2265.39 | 851 | 820 | 212.6 |
| D | 5 | 235 | 226092 | 1059.43 | 851 | 820 | 212.6 |

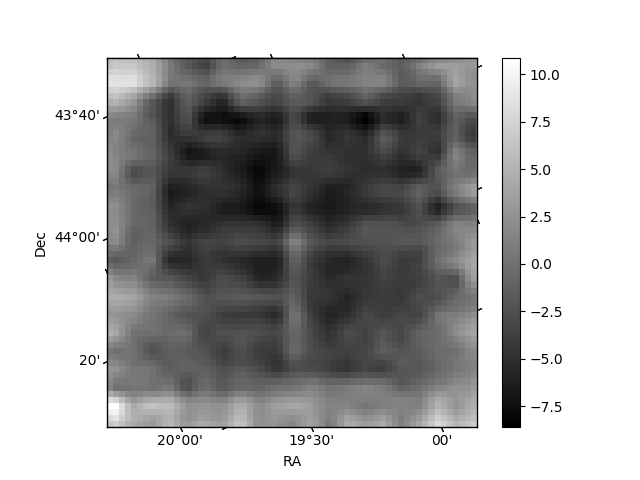

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

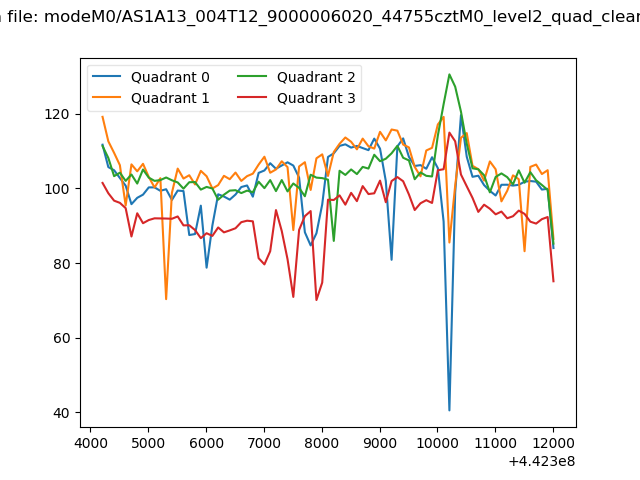

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

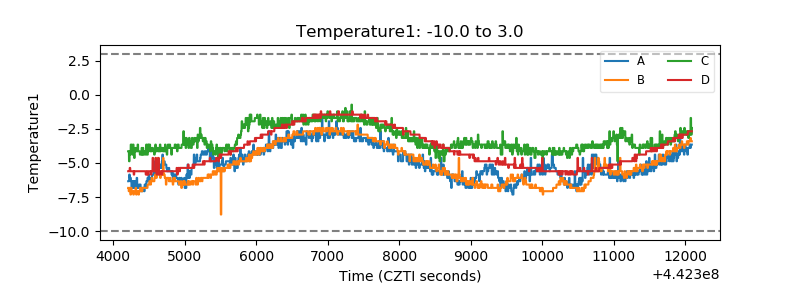

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

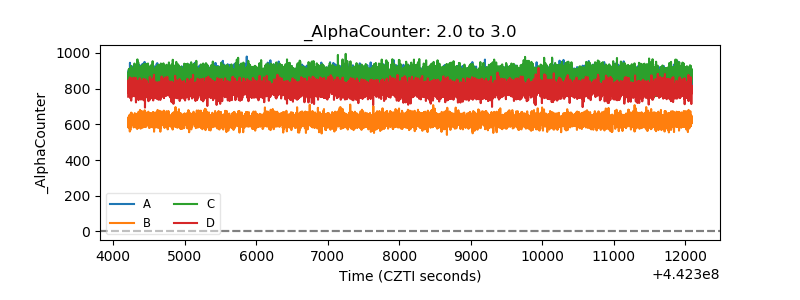

| Alpha Counter |  |

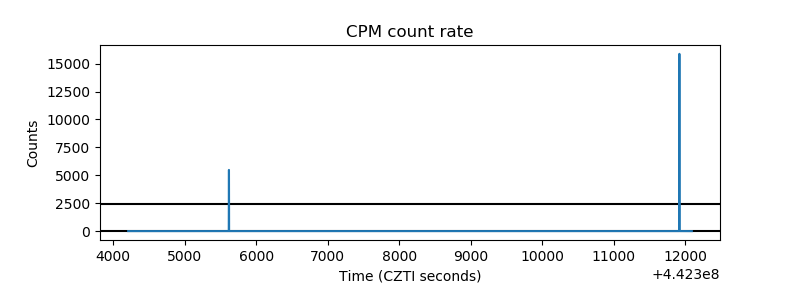

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

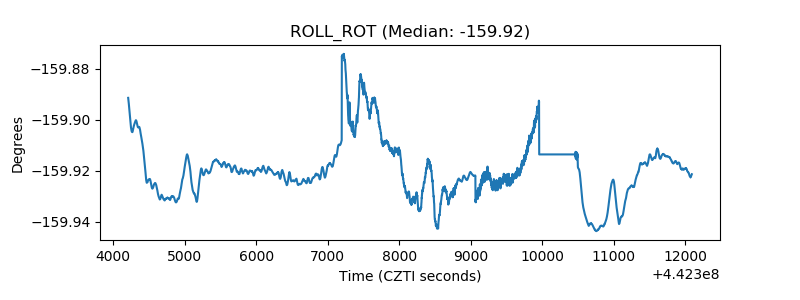

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

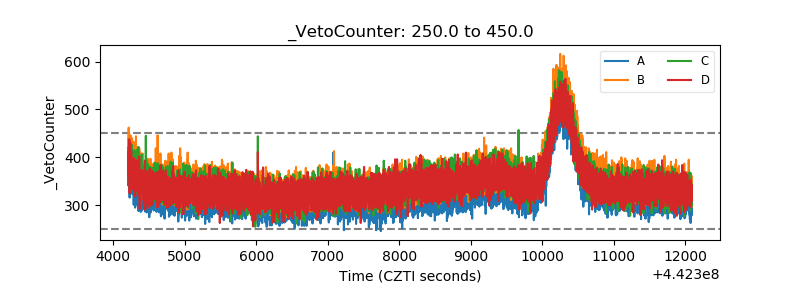

| Veto Counter |  |
