| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44759cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44759cztM0_level2_quad_clean.evt |
| Size (bytes) | 618,641,280 | 93,496,320 |
| Size | 590.0 MB | 89.2 MB |
| Events in quadrant A | 9,821,169 | 515,018 |
| Events in quadrant B | 3,596,197 | 667,937 |
| Events in quadrant C | 3,367,083 | 630,391 |
| Events in quadrant D | 5,628,584 | 578,392 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33490 | 1 |
| B | 0 | 15099 | 1 |
| C | 0 | 14548 | 1 |
| D | 0 | 21174 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6285 | 1902 | 30.262530% |
| B | 6285 | 259 | 4.120923% |
| C | 6286 | 292 | 4.645243% |
| D | 6285 | 520 | 8.273667% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7205 | 6286 | 1669 | 1669 | 23.16% | 26.55% |  |
| B | 7205 | 6286 | 144 | 144 | 2.00% | 2.29% |  |
| C | 7206 | 6287 | 162 | 162 | 2.25% | 2.58% |  |
| D | 7205 | 6286 | 498 | 498 | 6.91% | 7.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 5457563 | 42782.64 | 620 | 605 | 127.6 |
| A | 10 | 83 | 1772077 | 13888.37 | 620 | 605 | 127.6 |
| A | 13 | 248 | 162186 | 1266.8 | 620 | 605 | 127.6 |
| B | 0 | 189 | 500418 | 3728.44 | 675 | 652 | 134.0 |
| B | 5 | 255 | 224602 | 1670.75 | 675 | 652 | 134.0 |
| B | 15 | 36 | 76971 | 569.37 | 675 | 652 | 134.0 |
| C | 14 | 254 | 731492 | 4714.59 | 655 | 658 | 155.0 |
| C | 1 | 3 | 61773 | 394.25 | 655 | 658 | 155.0 |
| C | 12 | 250 | 9256 | 55.47 | 655 | 658 | 155.0 |
| D | 1 | 52 | 2070058 | 12459.43 | 662 | 642 | 166.1 |
| D | 13 | 249 | 295706 | 1776.51 | 662 | 642 | 166.1 |
| D | 2 | 249 | 229414 | 1377.38 | 662 | 642 | 166.1 |

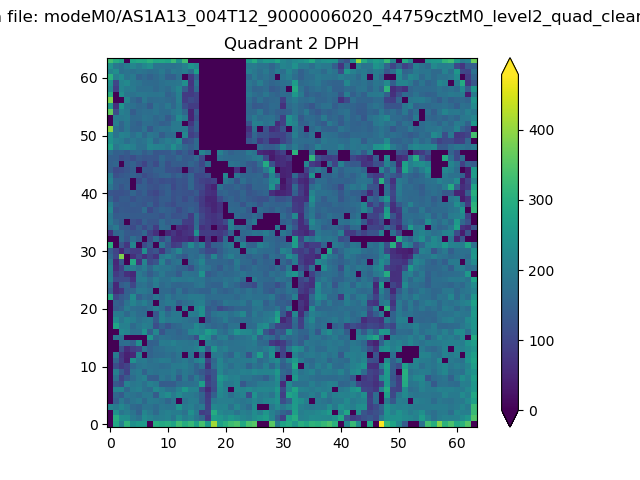

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

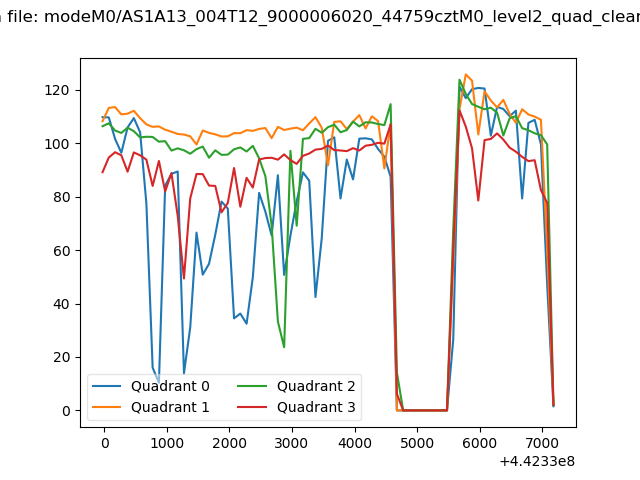

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

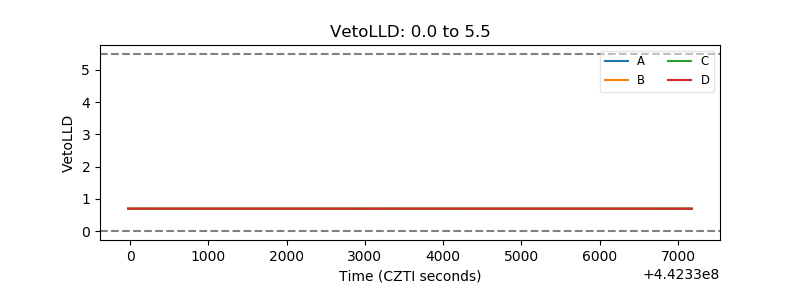

| Veto LLD |  |

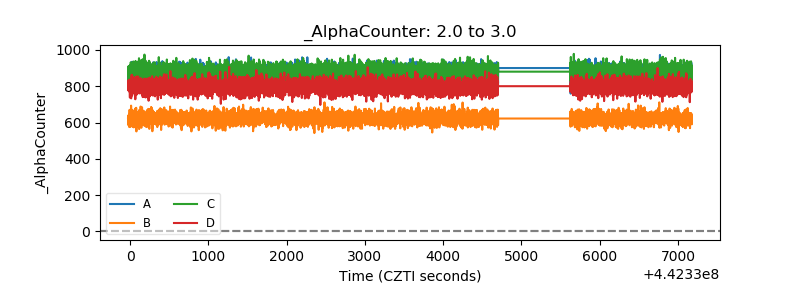

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

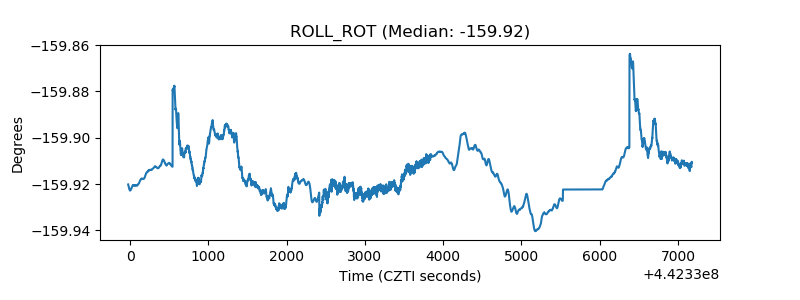

| _ROLL_ROT |  |

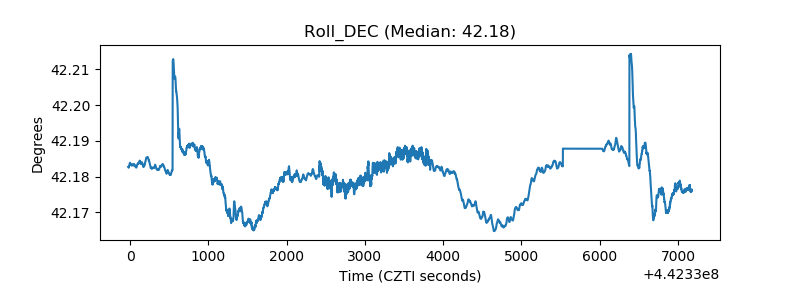

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
