| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44762cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44762cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,643,200 | 98,328,960 |
| Size | 501.3 MB | 93.8 MB |
| Events in quadrant A | 7,328,697 | 599,118 |
| Events in quadrant B | 3,614,133 | 693,479 |
| Events in quadrant C | 2,890,433 | 682,106 |
| Events in quadrant D | 5,152,130 | 577,492 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26350 | 1 |
| B | 0 | 14773 | 1 |
| C | 0 | 12952 | 2 |
| D | 0 | 19516 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6085 | 1068 | 17.551356% |
| B | 6086 | 238 | 3.910615% |
| C | 6085 | 54 | 0.887428% |
| D | 6085 | 608 | 9.991783% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 6086 | 872 | 872 | 12.06% | 14.33% |  |
| B | 7231 | 6087 | 143 | 143 | 1.98% | 2.35% |  |
| C | 7230 | 6086 | 23 | 23 | 0.32% | 0.38% |  |
| D | 7230 | 6086 | 524 | 524 | 7.25% | 8.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 3005855 | 22459.24 | 643 | 631 | 133.8 |
| A | 10 | 83 | 1766031 | 13193.54 | 643 | 631 | 133.8 |
| A | 13 | 248 | 62148 | 459.74 | 643 | 631 | 133.8 |
| B | 0 | 189 | 383861 | 2912.28 | 676 | 658 | 131.6 |
| B | 0 | 219 | 284357 | 2156.07 | 676 | 658 | 131.6 |
| B | 5 | 255 | 140689 | 1064.21 | 676 | 658 | 131.6 |
| C | 14 | 254 | 129837 | 811.57 | 679 | 682 | 159.1 |
| C | 1 | 3 | 93841 | 585.38 | 679 | 682 | 159.1 |
| C | 3 | 233 | 10004 | 58.58 | 679 | 682 | 159.1 |
| D | 1 | 52 | 1047240 | 6505.16 | 652 | 633 | 160.9 |
| D | 13 | 249 | 313070 | 1941.94 | 652 | 633 | 160.9 |
| D | 7 | 38 | 255605 | 1584.77 | 652 | 633 | 160.9 |

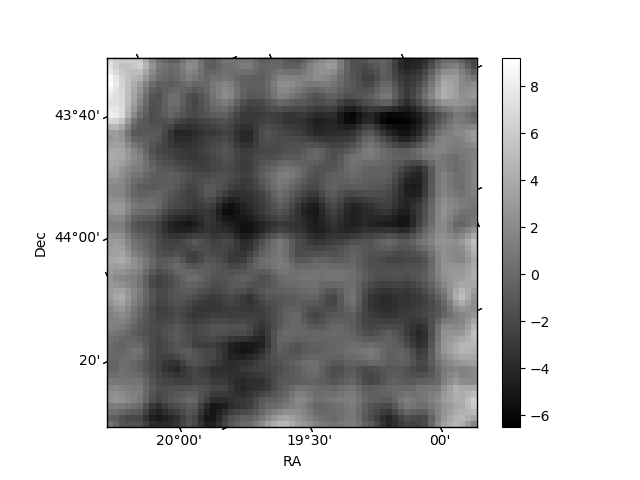

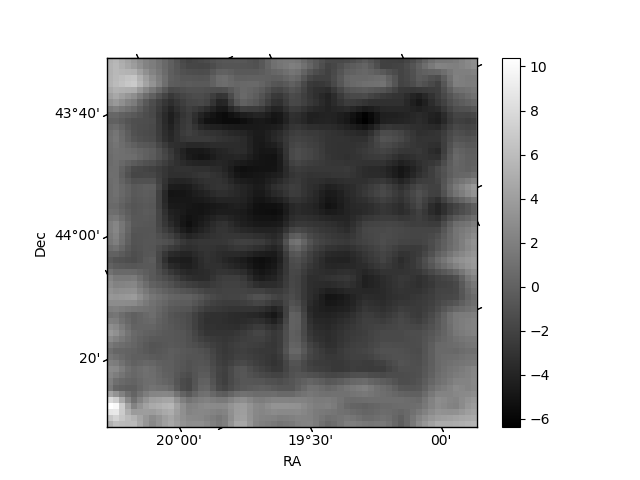

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

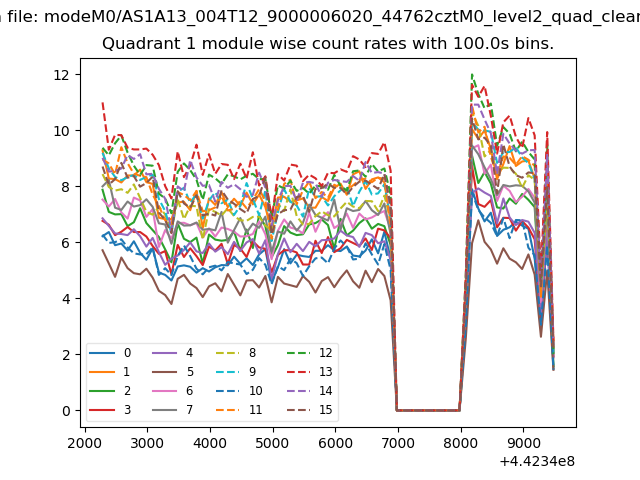

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

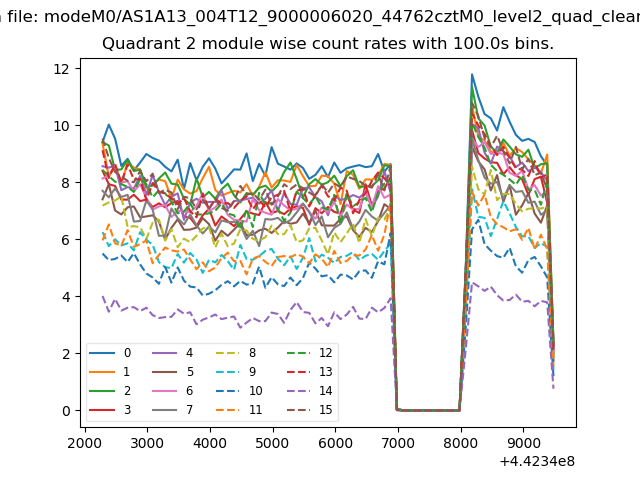

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

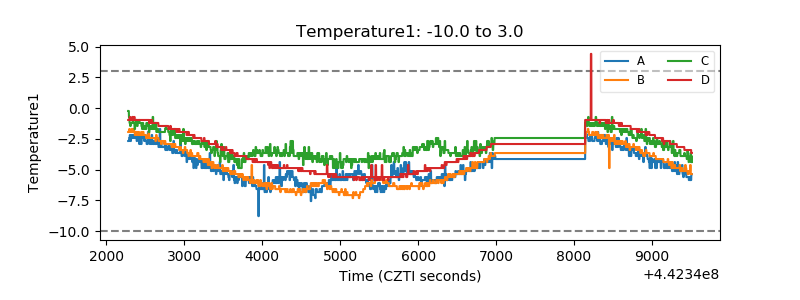

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

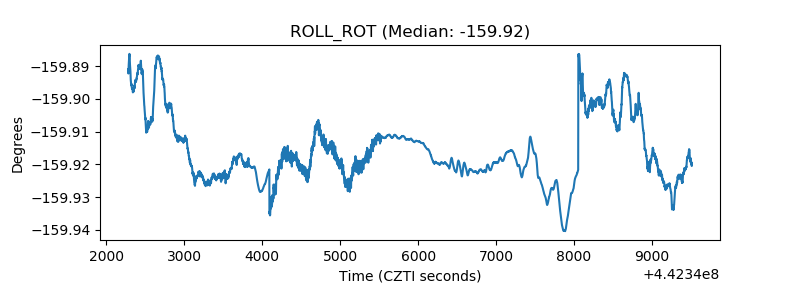

| _ROLL_ROT |  |

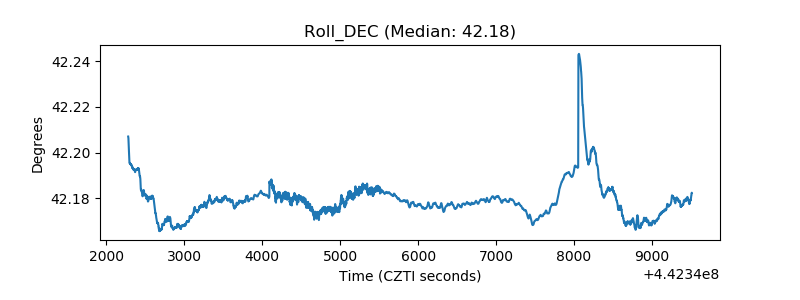

| _Roll_DEC |  |
| _Roll_RA |  |

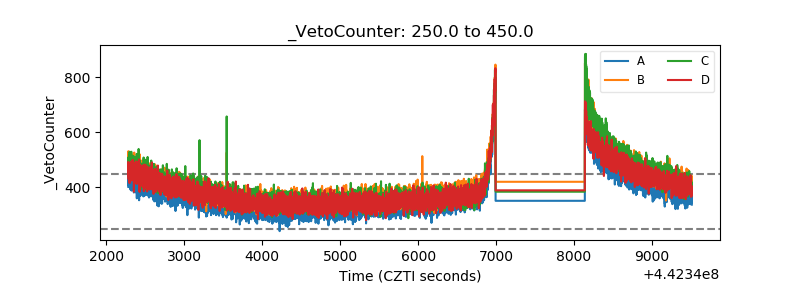

| Veto Counter |  |
