| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44763cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44763cztM0_level2_quad_clean.evt |
| Size (bytes) | 651,029,760 | 97,977,600 |
| Size | 620.9 MB | 93.4 MB |
| Events in quadrant A | 12,278,084 | 384,895 |
| Events in quadrant B | 3,529,802 | 759,261 |
| Events in quadrant C | 3,104,959 | 738,286 |
| Events in quadrant D | 4,695,732 | 643,238 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40866 | 2 |
| B | 0 | 14783 | 2 |
| C | 0 | 13594 | 2 |
| D | 0 | 18293 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6318 | 3540 | 56.030389% |
| B | 6317 | 162 | 2.564508% |
| C | 6317 | 57 | 0.902327% |
| D | 6317 | 382 | 6.047174% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7498 | 6318 | 3013 | 3013 | 40.18% | 47.69% |  |
| B | 7497 | 6318 | 75 | 75 | 1.00% | 1.19% |  |
| C | 7497 | 6318 | 21 | 21 | 0.28% | 0.33% |  |
| D | 7497 | 6318 | 289 | 289 | 3.85% | 4.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 8330874 | 71074.83 | 563 | 552 | 117.2 |
| A | 10 | 83 | 1667131 | 14219.36 | 563 | 552 | 117.2 |
| A | 13 | 248 | 89483 | 758.76 | 563 | 552 | 117.2 |
| B | 0 | 219 | 218423 | 1553.71 | 728 | 706 | 140.1 |
| B | 0 | 189 | 138052 | 980.15 | 728 | 706 | 140.1 |
| B | 5 | 255 | 106867 | 757.6 | 728 | 706 | 140.1 |
| C | 14 | 254 | 122753 | 719.03 | 729 | 734 | 169.7 |
| C | 1 | 3 | 65303 | 380.49 | 729 | 734 | 169.7 |
| C | 0 | 207 | 40618 | 235.03 | 729 | 734 | 169.7 |
| D | 1 | 52 | 585247 | 3298.03 | 709 | 689 | 177.2 |
| D | 5 | 235 | 359678 | 2025.38 | 709 | 689 | 177.2 |
| D | 5 | 222 | 252895 | 1422.92 | 709 | 689 | 177.2 |

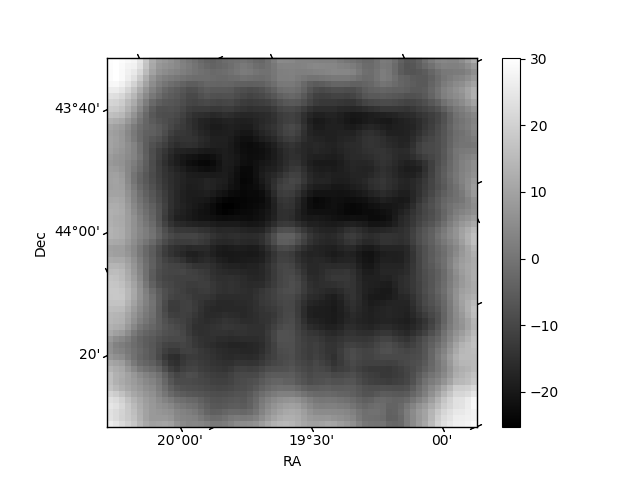

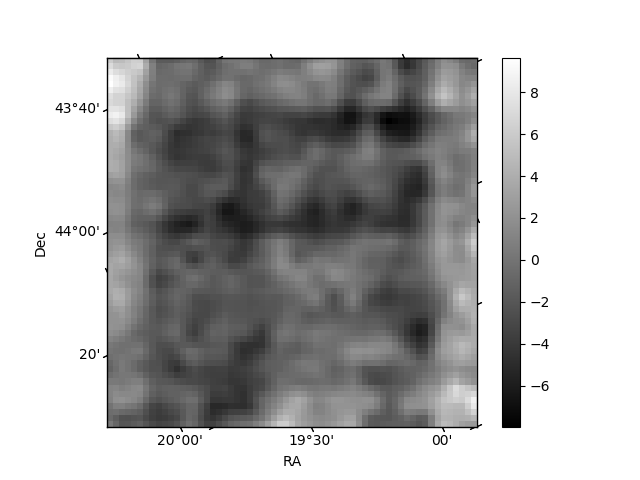

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

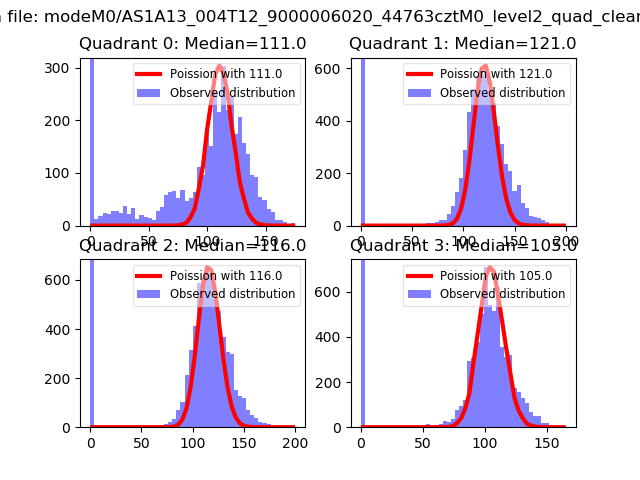

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

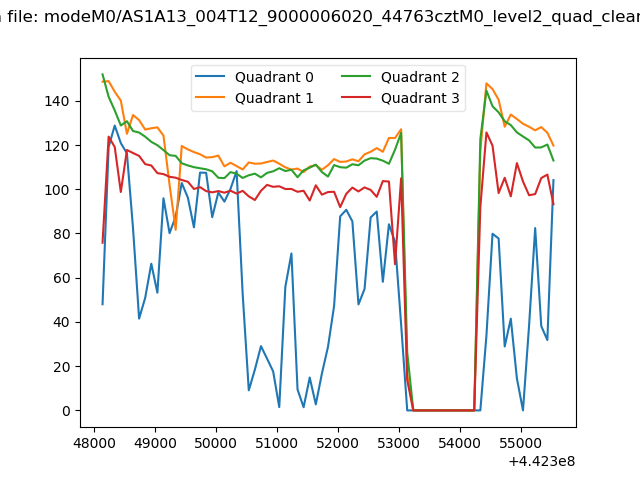

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

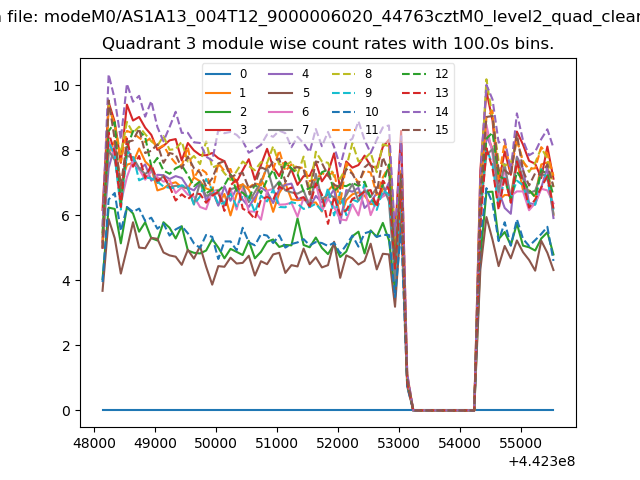

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

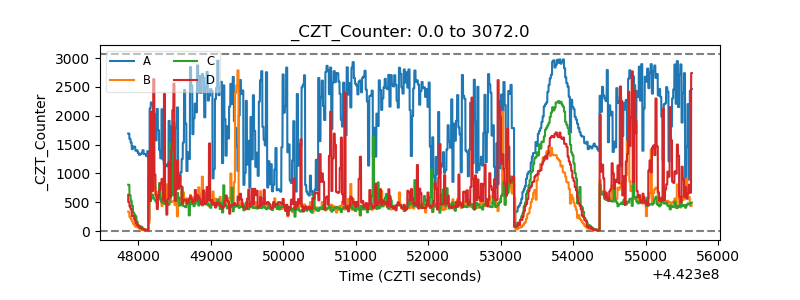

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

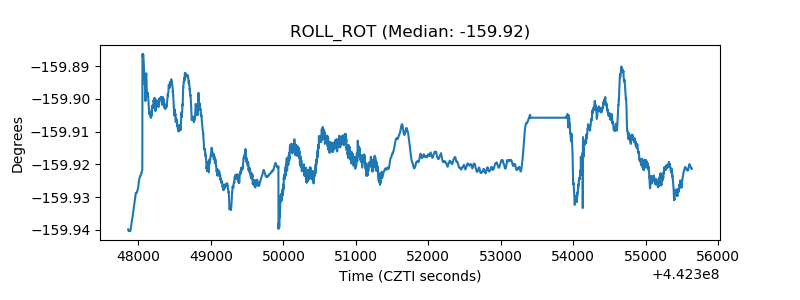

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
