| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44765cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44765cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,720,640 | 104,307,840 |
| Size | 540.5 MB | 99.5 MB |
| Events in quadrant A | 8,134,987 | 617,975 |
| Events in quadrant B | 3,673,345 | 750,571 |
| Events in quadrant C | 3,187,325 | 726,977 |
| Events in quadrant D | 5,482,347 | 612,765 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29159 | 2 |
| B | 0 | 15243 | 2 |
| C | 0 | 14087 | 2 |
| D | 0 | 20780 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6449 | 1287 | 19.956582% |
| B | 6448 | 128 | 1.985112% |
| C | 6448 | 58 | 0.899504% |
| D | 6448 | 619 | 9.599876% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7634 | 6450 | 1077 | 1077 | 14.11% | 16.70% |  |
| B | 7633 | 6449 | 55 | 55 | 0.72% | 0.85% |  |
| C | 7633 | 6449 | 40 | 40 | 0.52% | 0.62% |  |
| D | 7633 | 6449 | 518 | 518 | 6.79% | 8.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 3501552 | 25088.06 | 679 | 664 | 139.5 |
| A | 10 | 83 | 1956662 | 14017.07 | 679 | 664 | 139.5 |
| A | 13 | 248 | 38113 | 268.37 | 679 | 664 | 139.5 |
| B | 0 | 189 | 325232 | 2309.46 | 725 | 704 | 140.5 |
| B | 5 | 255 | 150826 | 1068.32 | 725 | 704 | 140.5 |
| B | 0 | 219 | 99589 | 703.7 | 725 | 704 | 140.5 |
| C | 14 | 254 | 135217 | 796.06 | 722 | 726 | 168.9 |
| C | 12 | 2 | 112357 | 660.75 | 722 | 726 | 168.9 |
| C | 1 | 3 | 84896 | 498.21 | 722 | 726 | 168.9 |
| D | 1 | 52 | 1091928 | 6392.56 | 682 | 662 | 170.7 |
| D | 2 | 249 | 694730 | 4065.8 | 682 | 662 | 170.7 |
| D | 13 | 249 | 273205 | 1596.54 | 682 | 662 | 170.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

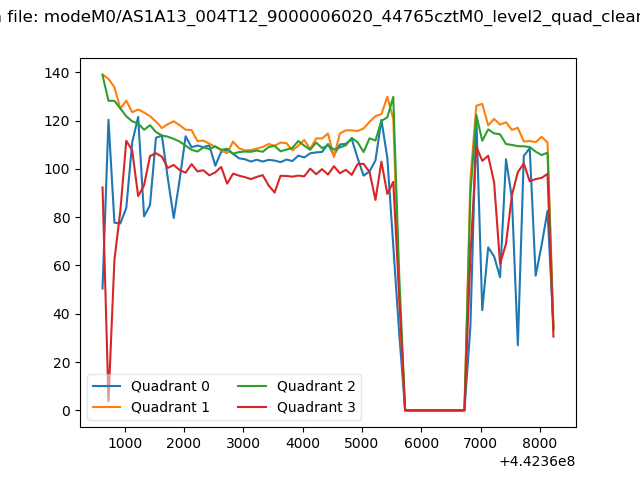

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

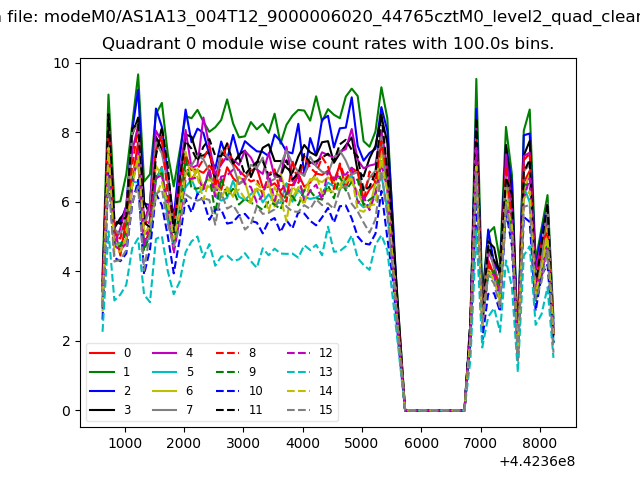

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

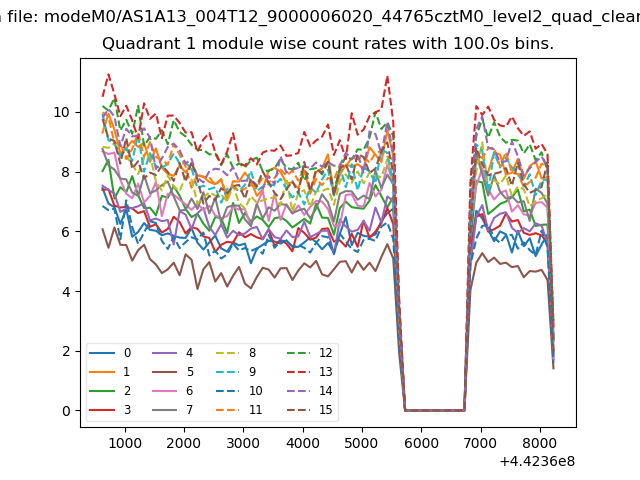

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

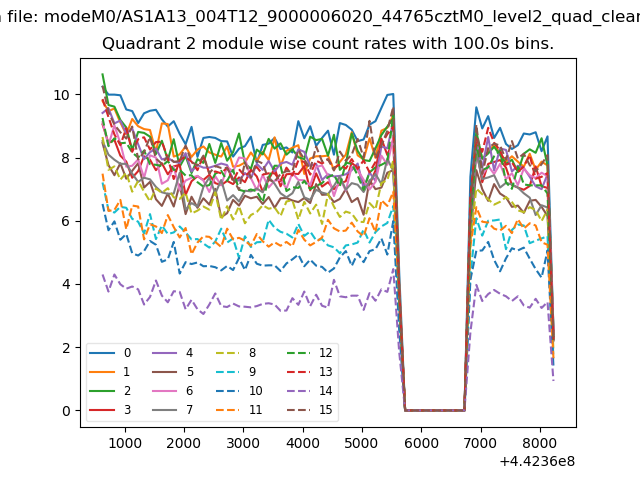

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

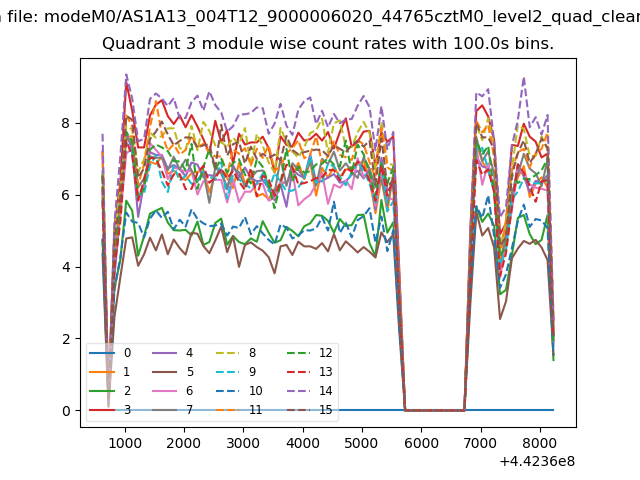

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

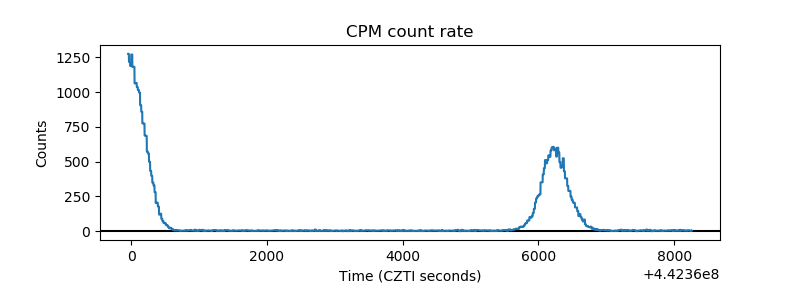

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

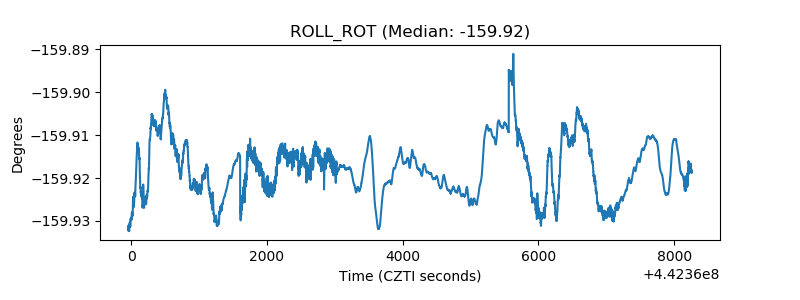

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

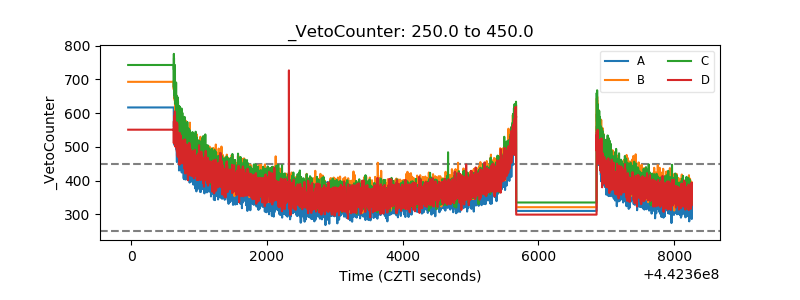

| Veto Counter |  |
