| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44772cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44772cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,199,272,320 | 268,824,960 |
| Size | 1.1 GB | 256.4 MB |
| Events in quadrant A | 12,884,086 | 1,779,605 |
| Events in quadrant B | 9,988,723 | 1,775,040 |
| Events in quadrant C | 8,240,222 | 1,782,317 |
| Events in quadrant D | 11,931,870 | 1,600,761 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 352 | 0 |
| B | 0 | 352 | 0 |
| C | 0 | 352 | 0 |
| D | 0 | 352 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53856 | 2 |
| B | 0 | 41724 | 2 |
| C | 0 | 37273 | 2 |
| D | 0 | 47118 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17425 | 609 | 3.494978% |
| B | 17425 | 1043 | 5.985653% |
| C | 17426 | 283 | 1.624010% |
| D | 17426 | 747 | 4.286698% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17890 | 17426 | 85 | 85 | 0.48% | 0.49% |  |
| B | 17890 | 17426 | 504 | 504 | 2.82% | 2.89% |  |
| C | 17892 | 17429 | 89 | 89 | 0.50% | 0.51% |  |
| D | 17891 | 17428 | 417 | 417 | 2.33% | 2.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4739011 | 11890.01 | 1923 | 1876 | 398.4 |
| A | 15 | 223 | 556154 | 1391.21 | 1923 | 1876 | 398.4 |
| A | 13 | 248 | 165349 | 410.31 | 1923 | 1876 | 398.4 |
| B | 0 | 189 | 2004049 | 5404.77 | 1888 | 1827 | 370.5 |
| B | 5 | 255 | 168374 | 449.57 | 1888 | 1827 | 370.5 |
| B | 0 | 219 | 99138 | 262.68 | 1888 | 1827 | 370.5 |
| C | 1 | 3 | 308503 | 690.76 | 1896 | 1906 | 443.9 |
| C | 14 | 254 | 219245 | 489.66 | 1896 | 1906 | 443.9 |
| C | 2 | 14 | 87756 | 193.42 | 1896 | 1906 | 443.9 |
| D | 1 | 52 | 1546181 | 3295.67 | 1880 | 1825 | 468.6 |
| D | 2 | 249 | 935649 | 1992.79 | 1880 | 1825 | 468.6 |
| D | 5 | 235 | 526123 | 1118.86 | 1880 | 1825 | 468.6 |

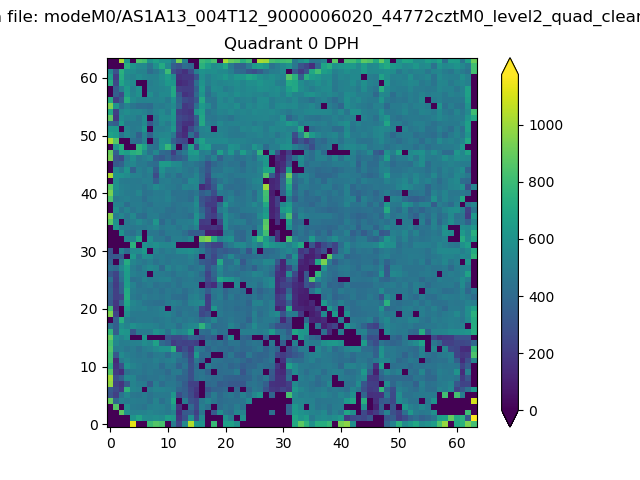

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

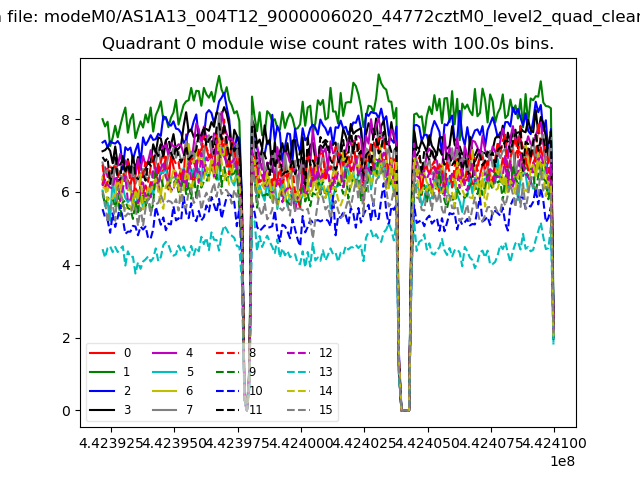

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

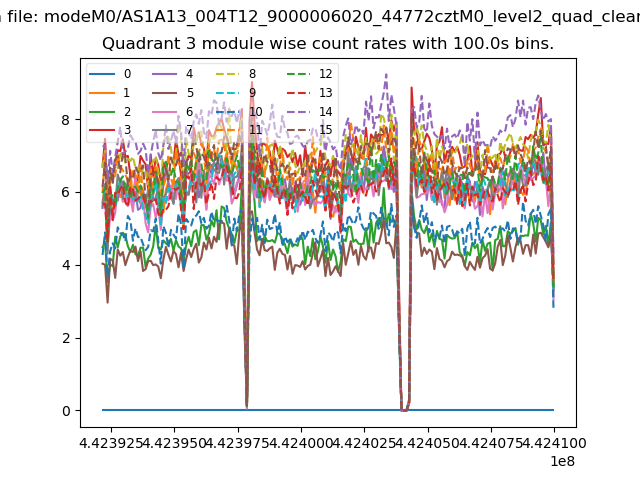

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

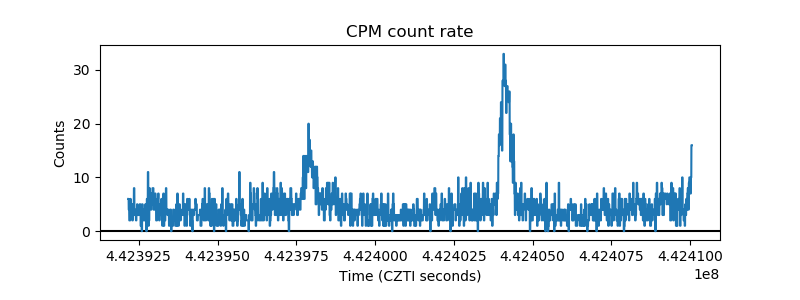

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

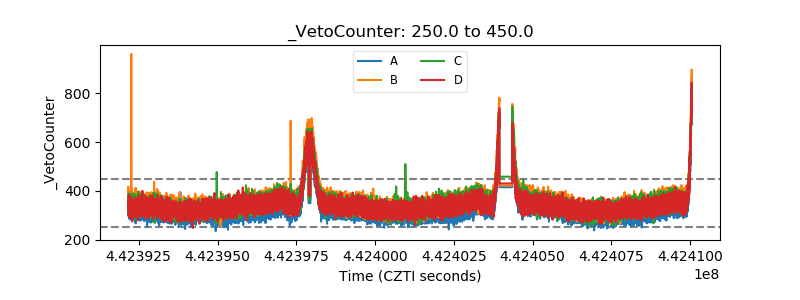

| Veto Counter |  |
