| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44776cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44776cztM0_level2_quad_clean.evt |
| Size (bytes) | 647,366,400 | 103,118,400 |
| Size | 617.4 MB | 98.3 MB |
| Events in quadrant A | 9,642,787 | 600,873 |
| Events in quadrant B | 4,438,899 | 735,193 |
| Events in quadrant C | 3,084,215 | 727,111 |
| Events in quadrant D | 6,290,528 | 601,888 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33212 | 1 |
| B | 0 | 17552 | 1 |
| C | 0 | 13876 | 1 |
| D | 0 | 23238 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6546 | 1738 | 26.550565% |
| B | 6546 | 337 | 5.148182% |
| C | 6547 | 38 | 0.580419% |
| D | 6547 | 822 | 12.555369% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

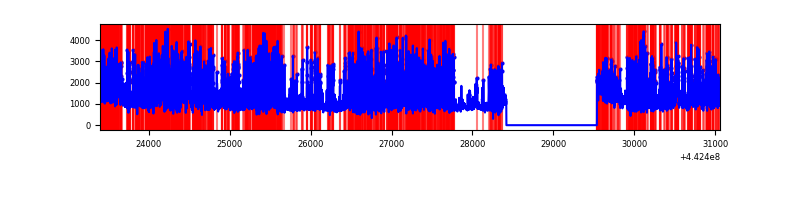

| A | 7666 | 6547 | 1462 | 1462 | 19.07% | 22.33% |  |
| B | 7666 | 6547 | 222 | 222 | 2.90% | 3.39% |  |

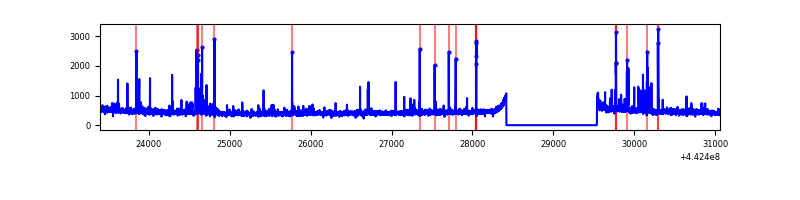

| C | 7667 | 6548 | 22 | 22 | 0.29% | 0.34% |  |

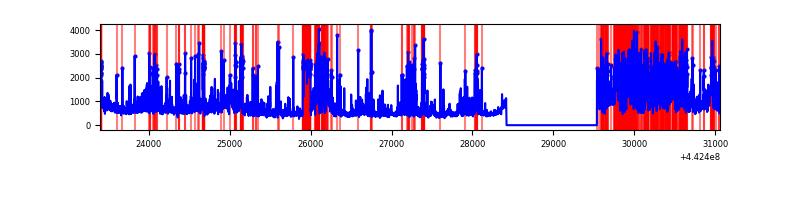

| D | 7667 | 6548 | 680 | 680 | 8.87% | 10.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 4880862 | 35186.41 | 670 | 655 | 138.7 |
| A | 10 | 83 | 1962443 | 14144.54 | 670 | 655 | 138.7 |
| A | 13 | 248 | 169060 | 1214.2 | 670 | 655 | 138.7 |
| B | 0 | 189 | 1062056 | 7427.9 | 724 | 702 | 142.9 |
| B | 5 | 255 | 224302 | 1564.87 | 724 | 702 | 142.9 |
| B | 0 | 219 | 71522 | 495.63 | 724 | 702 | 142.9 |
| C | 14 | 254 | 123867 | 729.67 | 723 | 726 | 168.8 |
| C | 12 | 250 | 82824 | 486.47 | 723 | 726 | 168.8 |
| C | 12 | 249 | 34796 | 201.88 | 723 | 726 | 168.8 |
| D | 13 | 174 | 1539581 | 8884.04 | 690 | 667 | 173.2 |
| D | 13 | 249 | 577433 | 3329.63 | 690 | 667 | 173.2 |
| D | 5 | 235 | 515118 | 2969.89 | 690 | 667 | 173.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

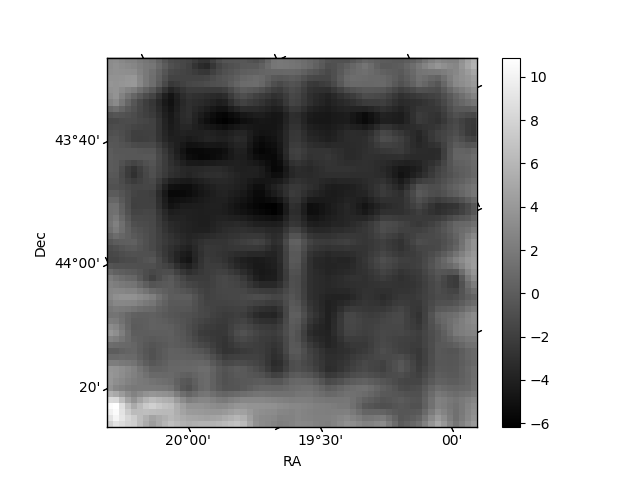

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

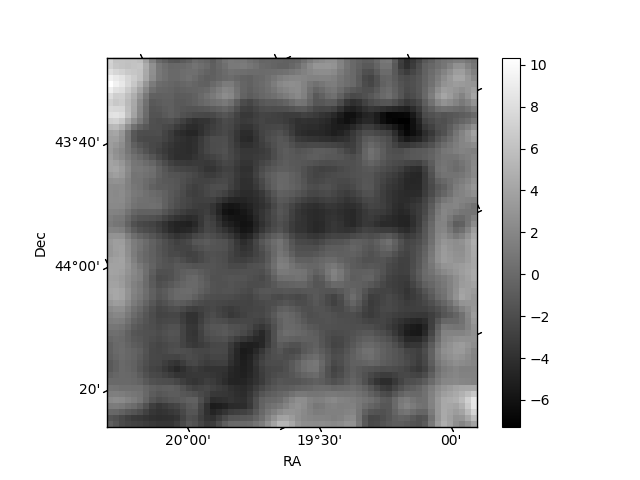

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

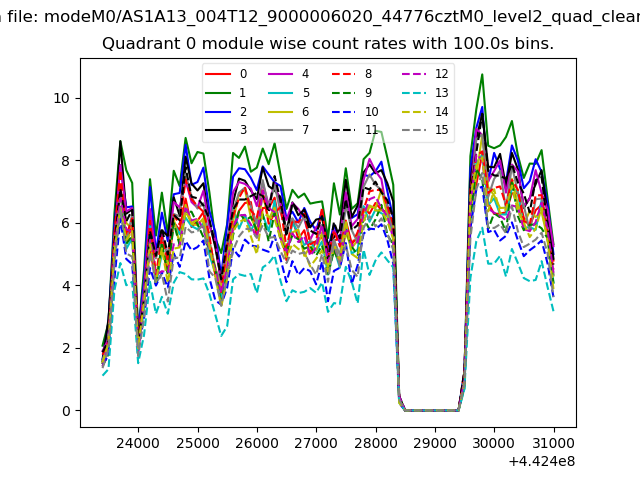

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

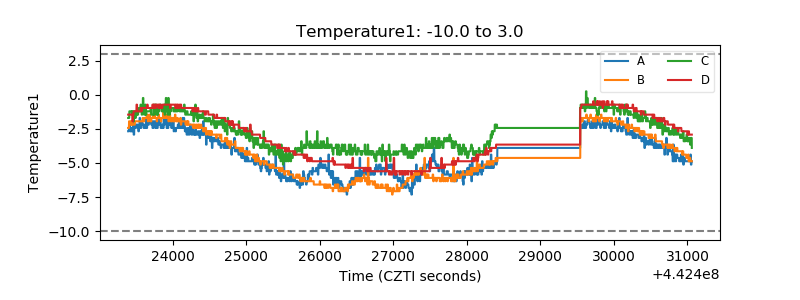

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

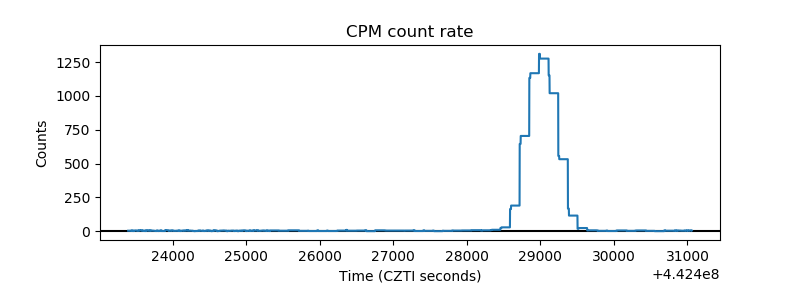

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
