| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T12_9000006020_44777cztM0_level2.fits | modeM0/AS1A13_004T12_9000006020_44777cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,775,360 | 103,363,200 |
| Size | 592.0 MB | 98.6 MB |
| Events in quadrant A | 7,616,581 | 694,551 |
| Events in quadrant B | 3,952,615 | 754,056 |
| Events in quadrant C | 3,102,989 | 738,367 |
| Events in quadrant D | 7,811,954 | 496,875 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27314 | 4 |
| B | 0 | 16031 | 1 |
| C | 0 | 13696 | 1 |
| D | 0 | 27623 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6386 | 785 | 12.292515% |
| B | 6387 | 239 | 3.741976% |
| C | 6387 | 33 | 0.516674% |
| D | 6387 | 1767 | 27.665571% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

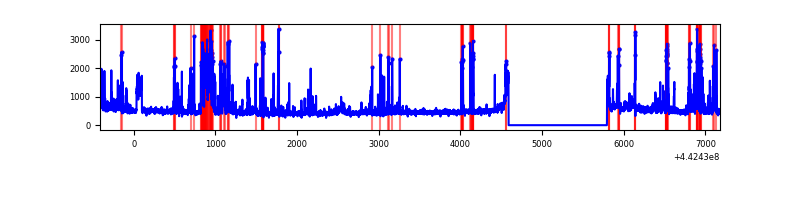

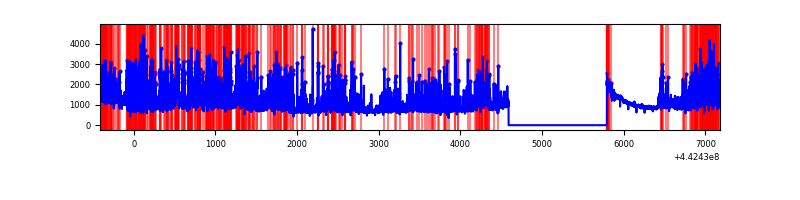

| A | 7590 | 6385 | 640 | 640 | 8.43% | 10.02% |  |

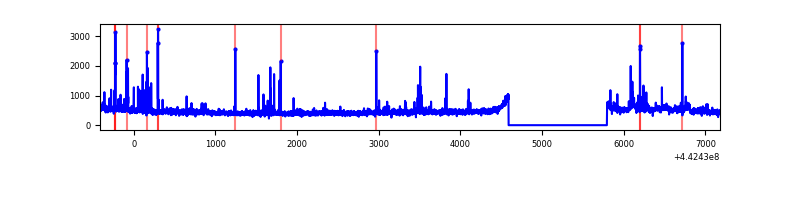

| B | 7592 | 6387 | 151 | 151 | 1.99% | 2.36% |  |
| C | 7592 | 6388 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7591 | 6387 | 1469 | 1469 | 19.35% | 23.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 2330894 | 15933.54 | 706 | 691 | 146.2 |
| A | 10 | 83 | 2098227 | 14342.6 | 706 | 691 | 146.2 |
| A | 13 | 248 | 383293 | 2616.17 | 706 | 691 | 146.2 |
| B | 0 | 189 | 510290 | 3616.67 | 724 | 701 | 140.9 |
| B | 5 | 255 | 238674 | 1688.95 | 724 | 701 | 140.9 |
| B | 0 | 219 | 166781 | 1178.71 | 724 | 701 | 140.9 |
| C | 12 | 250 | 99809 | 585.58 | 727 | 731 | 169.2 |
| C | 2 | 16 | 74376 | 435.26 | 727 | 731 | 169.2 |
| C | 14 | 254 | 55234 | 322.13 | 727 | 731 | 169.2 |
| D | 13 | 174 | 2765441 | 17491.57 | 629 | 611 | 158.1 |
| D | 2 | 249 | 710325 | 4489.97 | 629 | 611 | 158.1 |
| D | 13 | 249 | 441809 | 2791.22 | 629 | 611 | 158.1 |

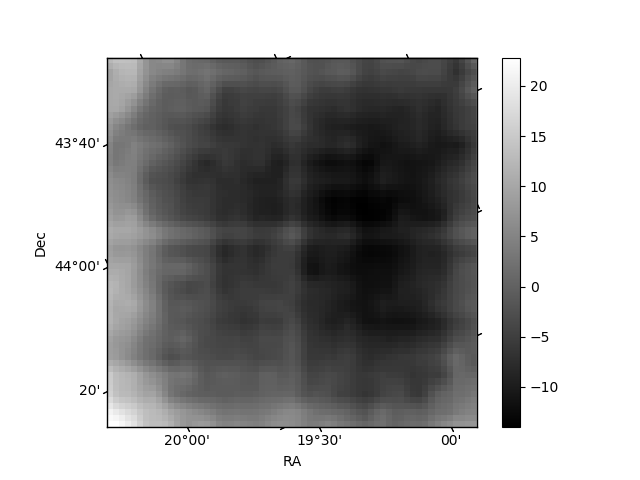

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

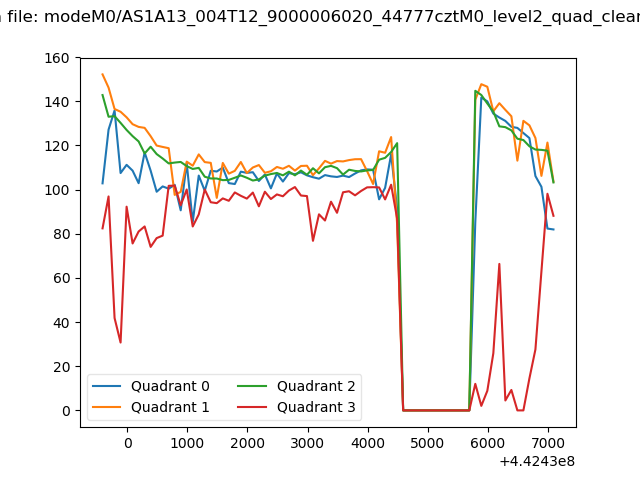

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

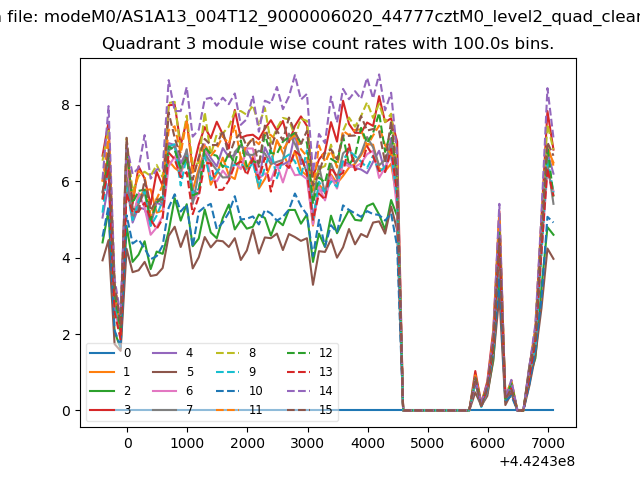

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

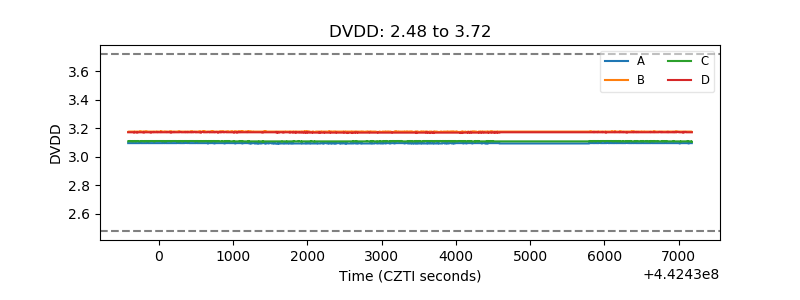

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

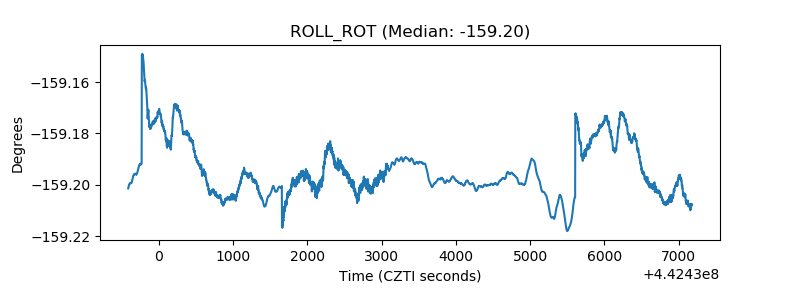

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
