| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T13_9000006022_44790cztM0_level2.fits | modeM0/AS1A13_004T13_9000006022_44790cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,688,640 | 104,443,200 |
| Size | 493.7 MB | 99.6 MB |
| Events in quadrant A | 5,145,190 | 710,619 |
| Events in quadrant B | 4,306,657 | 705,477 |
| Events in quadrant C | 2,979,402 | 699,178 |
| Events in quadrant D | 6,230,886 | 596,198 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20532 | 1 |
| B | 0 | 17157 | 8 |
| C | 0 | 13600 | 1 |
| D | 0 | 22822 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6459 | 157 | 2.430717% |
| B | 6458 | 336 | 5.202849% |
| C | 6458 | 58 | 0.898111% |
| D | 6458 | 695 | 10.761846% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7534 | 6459 | 56 | 56 | 0.74% | 0.87% |  |
| B | 7532 | 6457 | 200 | 200 | 2.66% | 3.10% |  |
| C | 7533 | 6459 | 32 | 32 | 0.42% | 0.50% |  |
| D | 7532 | 6457 | 688 | 688 | 9.13% | 10.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2078284 | 13982.53 | 713 | 697 | 148.6 |
| A | 13 | 248 | 282818 | 1898.72 | 713 | 697 | 148.6 |
| A | 15 | 223 | 14232 | 91.09 | 713 | 697 | 148.6 |
| B | 0 | 189 | 591308 | 4284.89 | 699 | 676 | 137.8 |
| B | 0 | 155 | 228148 | 1650.25 | 699 | 676 | 137.8 |
| B | 5 | 172 | 152658 | 1102.59 | 699 | 676 | 137.8 |
| C | 14 | 254 | 139008 | 843.43 | 702 | 706 | 164.0 |
| C | 12 | 249 | 24814 | 147.02 | 702 | 706 | 164.0 |
| C | 1 | 3 | 22105 | 130.5 | 702 | 706 | 164.0 |
| D | 13 | 249 | 1153850 | 6815.49 | 681 | 660 | 169.2 |
| D | 13 | 187 | 510444 | 3012.88 | 681 | 660 | 169.2 |
| D | 5 | 235 | 473299 | 2793.35 | 681 | 660 | 169.2 |

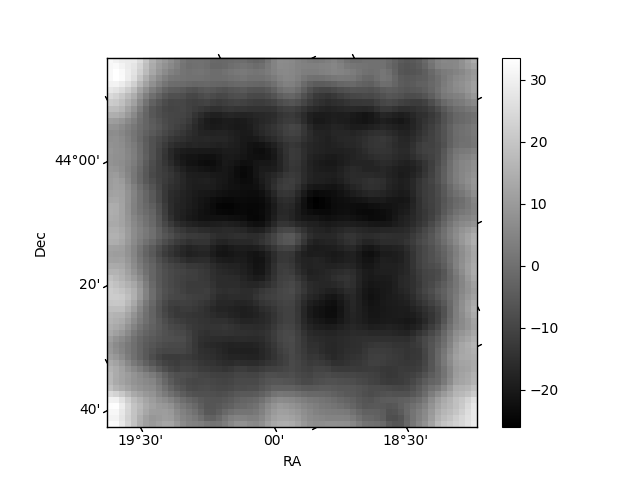

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

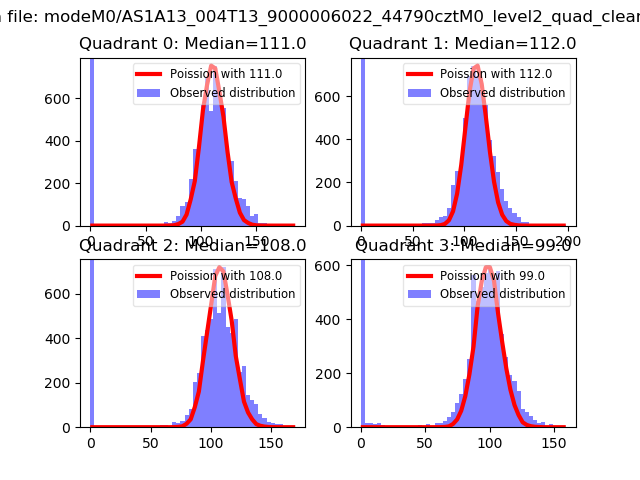

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

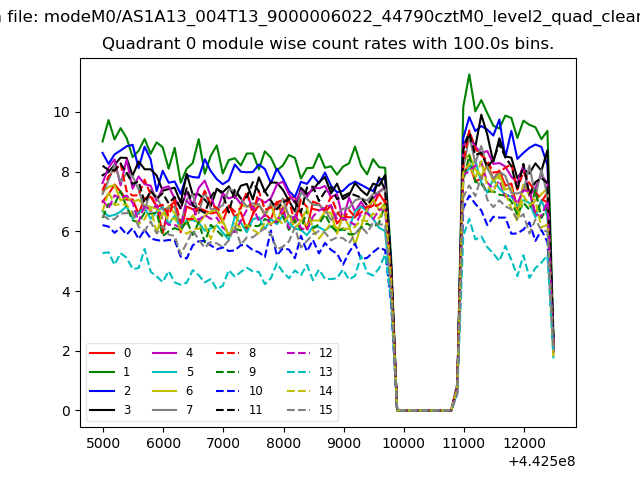

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

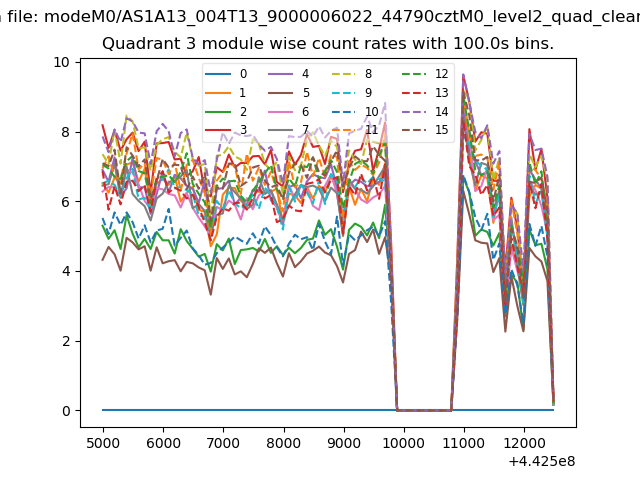

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

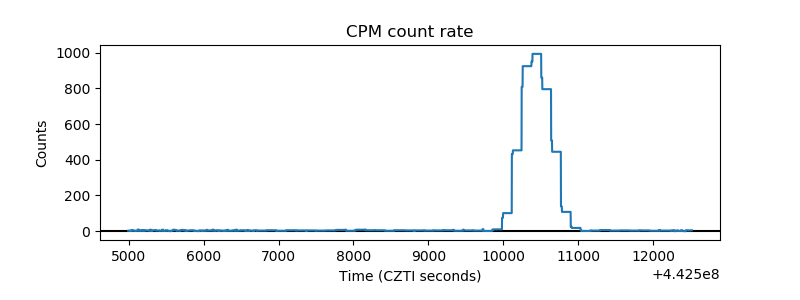

| _CPM_Rate |  |

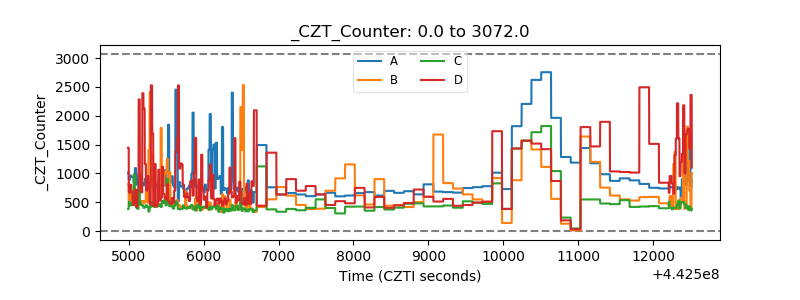

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

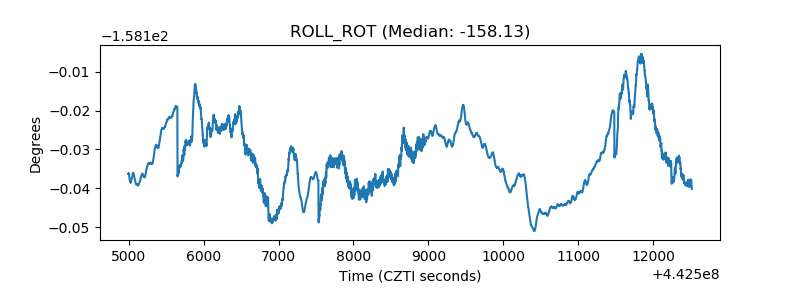

| _ROLL_ROT |  |

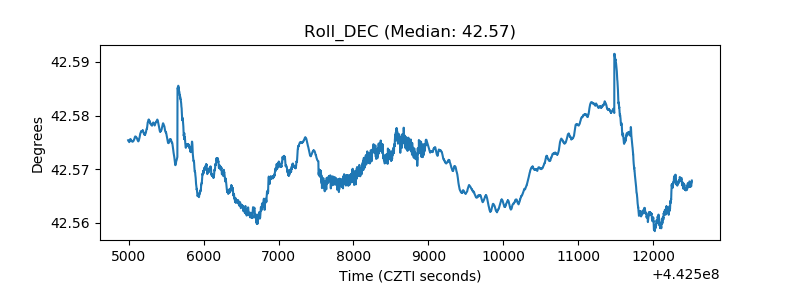

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
