| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_012T01_9000006024_44808cztM0_level2.fits | modeM0/AS1A13_012T01_9000006024_44808cztM0_level2_quad_clean.evt |
| Size (bytes) | 742,495,680 | 94,366,080 |
| Size | 708.1 MB | 90.0 MB |
| Events in quadrant A | 13,314,088 | 327,589 |
| Events in quadrant B | 3,549,850 | 757,190 |
| Events in quadrant C | 2,936,958 | 726,307 |
| Events in quadrant D | 7,190,202 | 601,575 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43907 | 5 |
| B | 0 | 14834 | 2 |
| C | 0 | 13309 | 2 |
| D | 0 | 25913 | 8 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6373 | 4035 | 63.313981% |
| B | 6373 | 151 | 2.369371% |
| C | 6373 | 21 | 0.329515% |
| D | 6372 | 779 | 12.225361% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

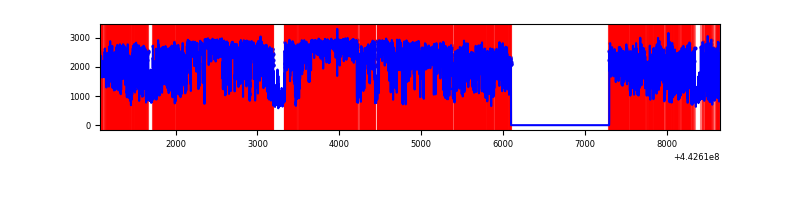

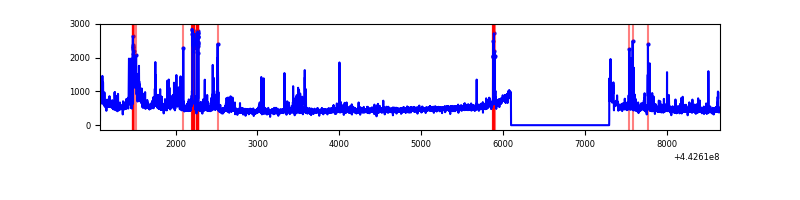

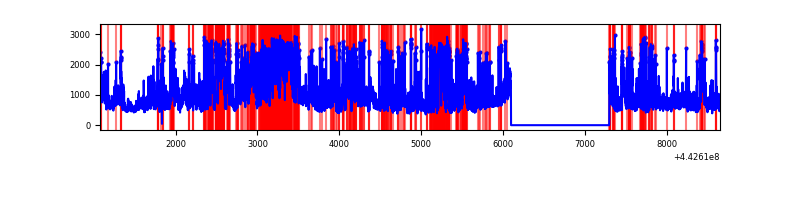

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7573 | 6373 | 3898 | 3898 | 51.47% | 61.16% |  |
| B | 7573 | 6373 | 66 | 66 | 0.87% | 1.04% |  |
| C | 7573 | 6374 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7573 | 6373 | 850 | 850 | 11.22% | 13.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 9517944 | 85946.27 | 534 | 525 | 110.7 |
| A | 10 | 83 | 1633628 | 14747.6 | 534 | 525 | 110.7 |
| A | 13 | 248 | 56115 | 502.0 | 534 | 525 | 110.7 |
| B | 0 | 189 | 194974 | 1323.1 | 739 | 717 | 146.8 |
| B | 0 | 155 | 128074 | 867.44 | 739 | 717 | 146.8 |
| B | 5 | 255 | 69506 | 468.53 | 739 | 717 | 146.8 |
| C | 1 | 3 | 53227 | 308.61 | 722 | 726 | 170.1 |
| C | 14 | 254 | 23063 | 131.3 | 722 | 726 | 170.1 |
| C | 3 | 233 | 16827 | 94.64 | 722 | 726 | 170.1 |
| D | 1 | 52 | 2167343 | 12521.86 | 681 | 660 | 173.0 |
| D | 11 | 241 | 701509 | 4050.4 | 681 | 660 | 173.0 |
| D | 6 | 239 | 404706 | 2335.09 | 681 | 660 | 173.0 |

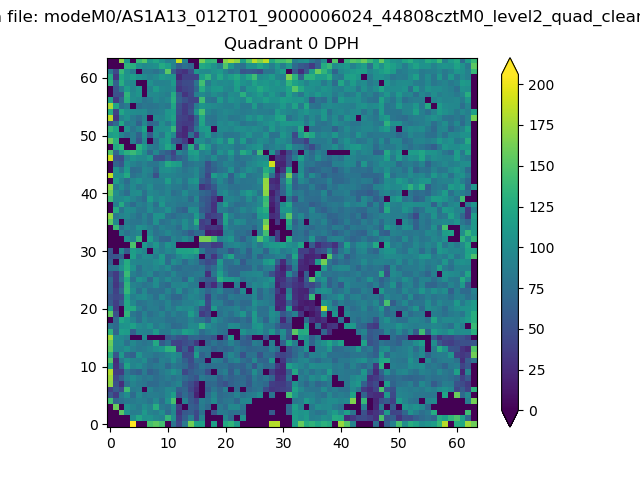

Histogram calculated using DETX and DETY for each event in the final _common_clean file

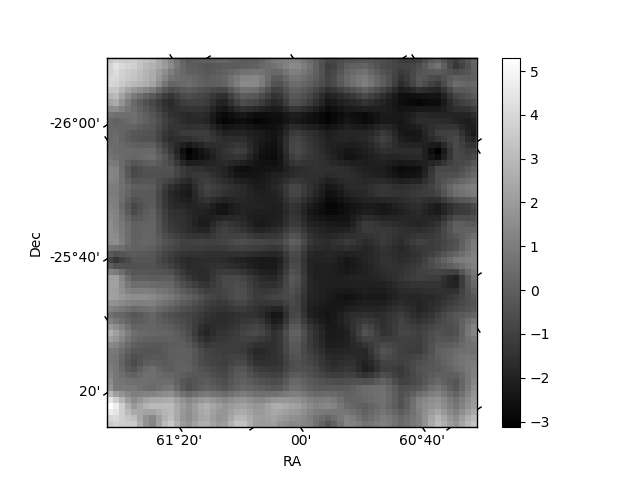

| Quadrant A |  |
 |

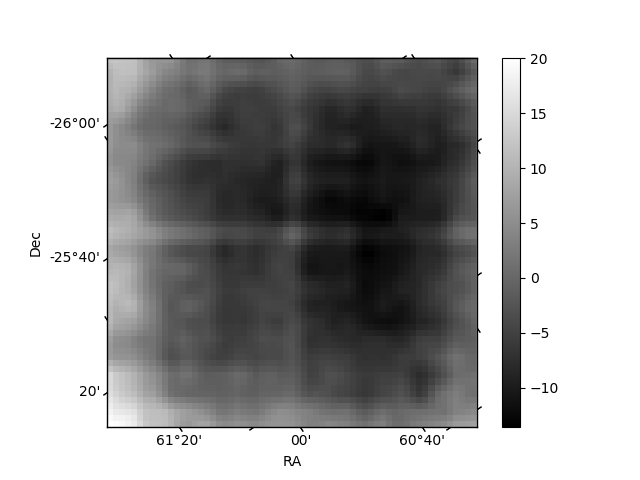

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

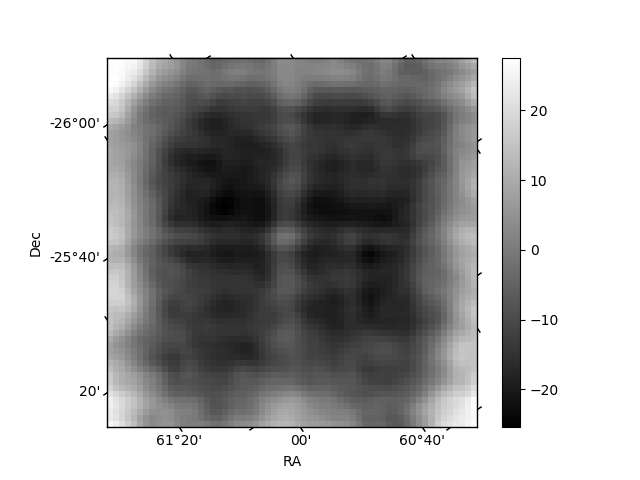

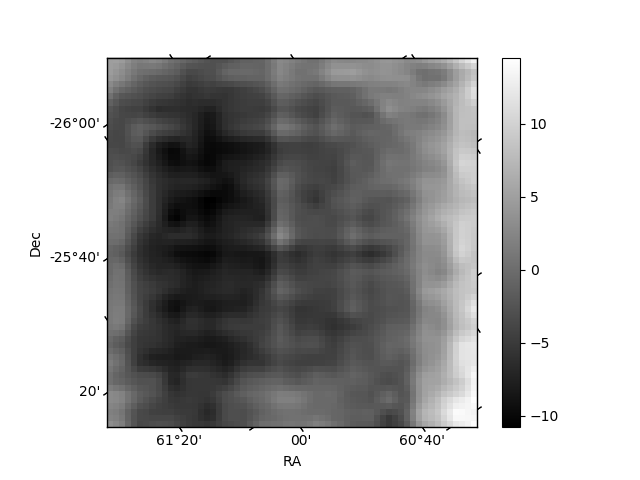

| Plot type | Count rate plots | Images |
|---|---|---|

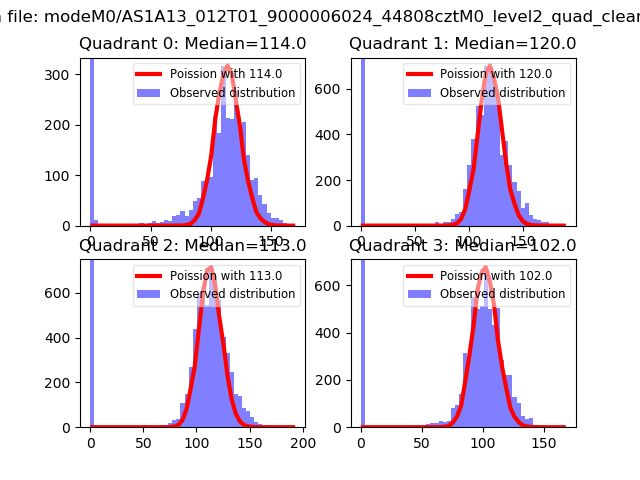

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

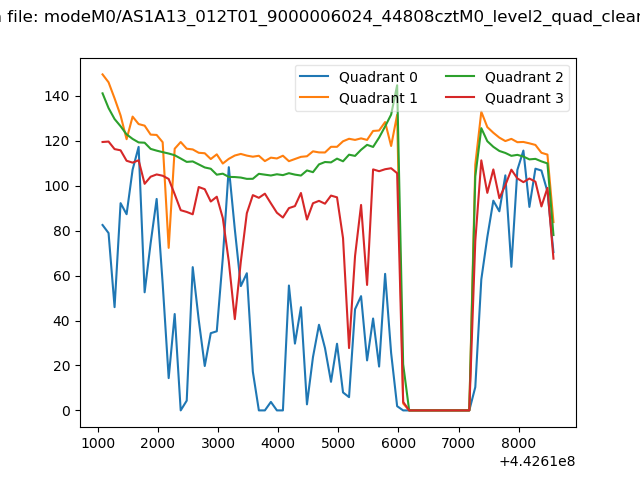

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

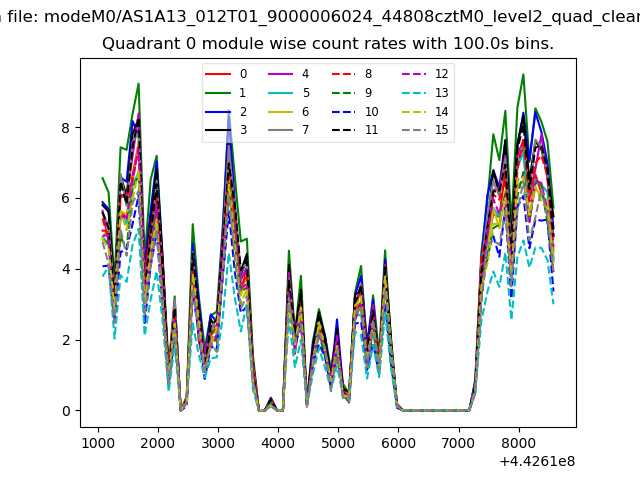

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

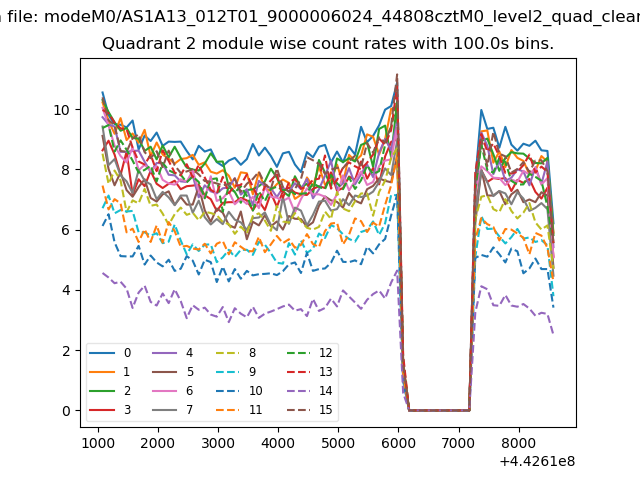

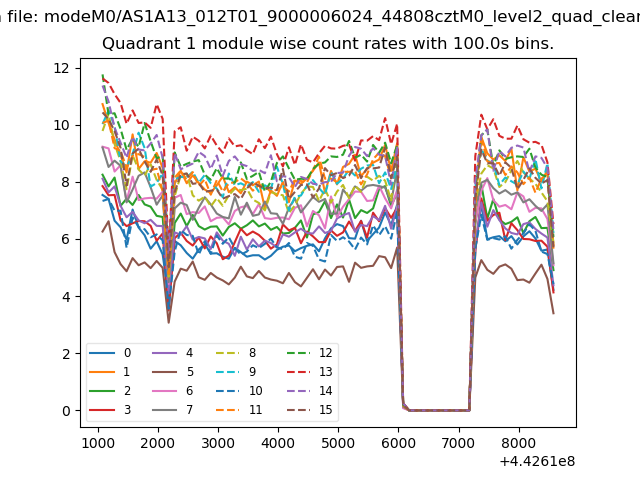

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

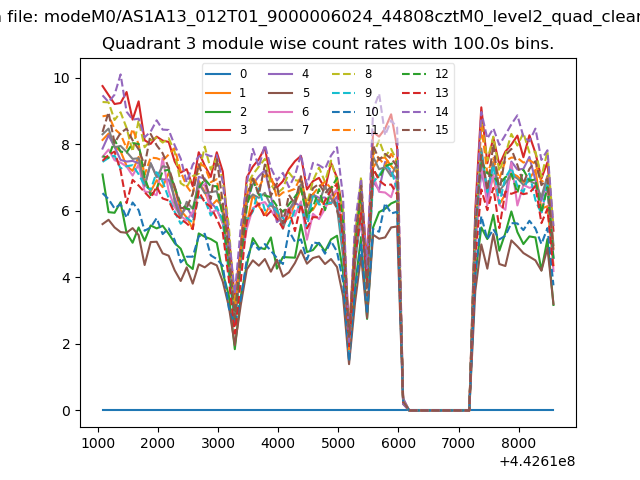

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

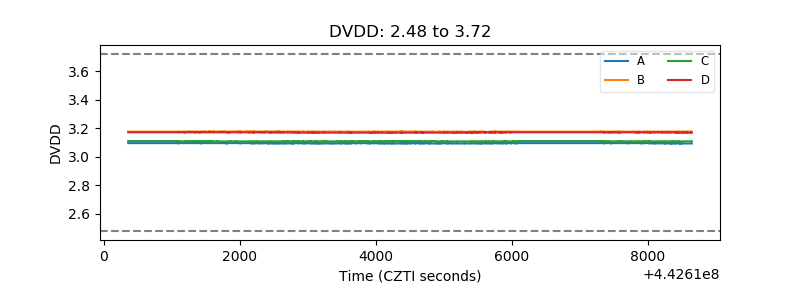

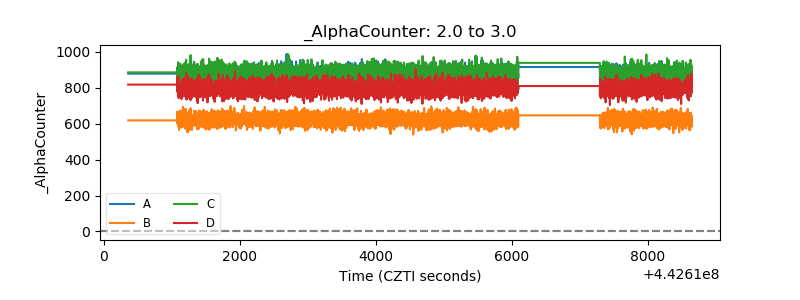

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

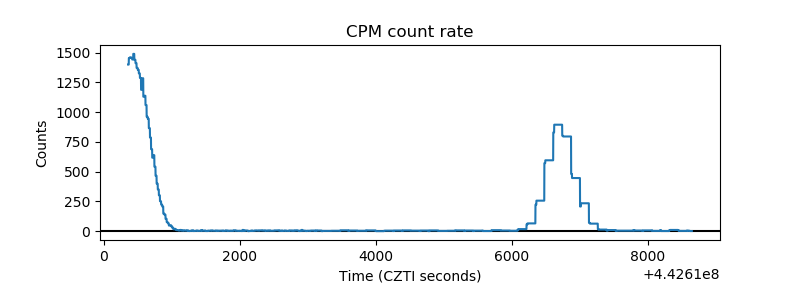

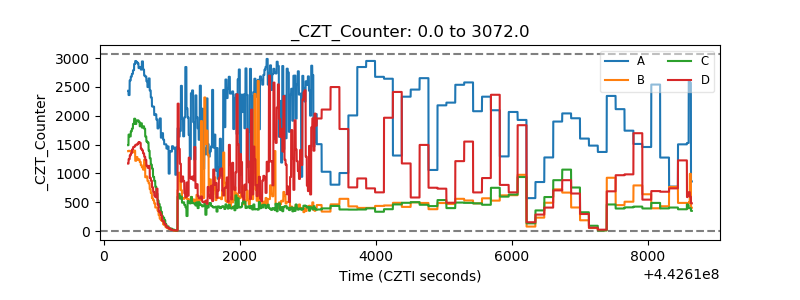

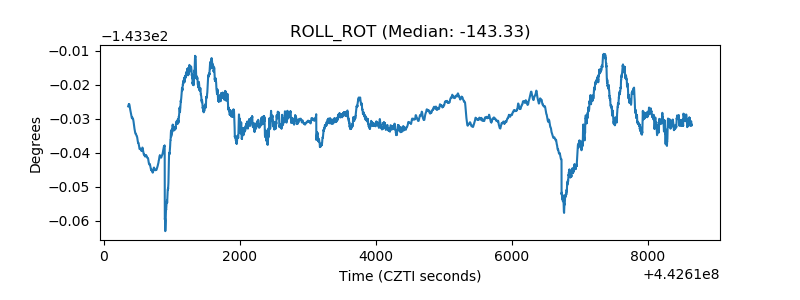

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

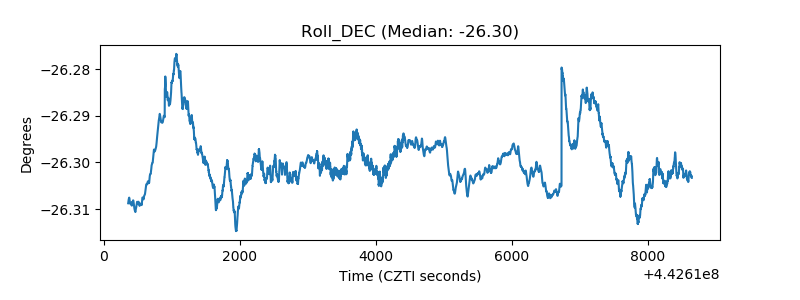

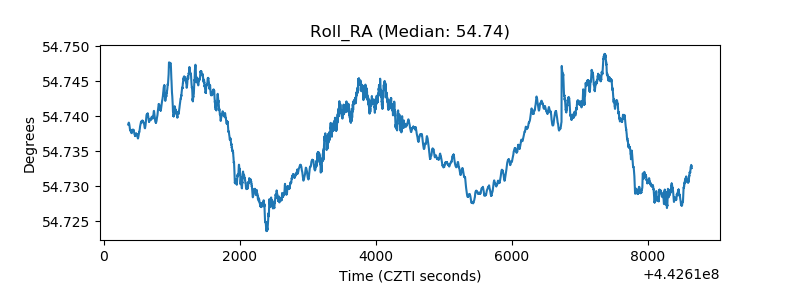

| _Roll_DEC |  |
| _Roll_RA |  |

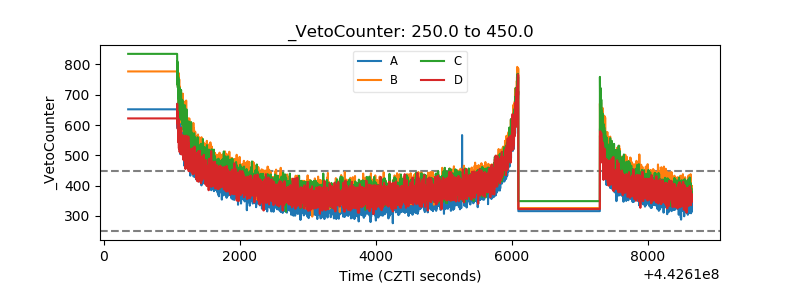

| Veto Counter |  |
