| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_012T01_9000006024_44809cztM0_level2.fits | modeM0/AS1A13_012T01_9000006024_44809cztM0_level2_quad_clean.evt |
| Size (bytes) | 693,432,000 | 103,222,080 |
| Size | 661.3 MB | 98.4 MB |
| Events in quadrant A | 12,011,300 | 491,925 |
| Events in quadrant B | 3,528,119 | 775,880 |
| Events in quadrant C | 3,116,824 | 736,971 |
| Events in quadrant D | 6,489,977 | 650,420 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40301 | 2 |
| B | 0 | 15118 | 2 |
| C | 0 | 14188 | 2 |
| D | 0 | 24112 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6746 | 2845 | 42.173140% |
| B | 6746 | 108 | 1.600949% |
| C | 6746 | 31 | 0.459532% |
| D | 6746 | 346 | 5.128965% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7831 | 6746 | 2767 | 2767 | 35.33% | 41.02% |  |
| B | 7831 | 6747 | 33 | 33 | 0.42% | 0.49% |  |
| C | 7831 | 6747 | 13 | 13 | 0.17% | 0.19% |  |
| D | 7831 | 6747 | 364 | 364 | 4.65% | 5.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 7564682 | 57574.02 | 633 | 621 | 131.4 |
| A | 10 | 83 | 1860100 | 14153.46 | 633 | 621 | 131.4 |
| A | 13 | 248 | 69773 | 526.35 | 633 | 621 | 131.4 |
| B | 5 | 255 | 176210 | 1160.58 | 762 | 740 | 151.2 |
| B | 4 | 171 | 65262 | 426.76 | 762 | 740 | 151.2 |
| B | 0 | 189 | 63615 | 415.86 | 762 | 740 | 151.2 |
| C | 1 | 3 | 97945 | 553.17 | 745 | 750 | 175.7 |
| C | 14 | 254 | 48411 | 271.26 | 745 | 750 | 175.7 |
| C | 12 | 2 | 34180 | 190.26 | 745 | 750 | 175.7 |
| D | 11 | 241 | 930833 | 5049.95 | 726 | 704 | 184.2 |
| D | 13 | 187 | 904226 | 4905.49 | 726 | 704 | 184.2 |
| D | 1 | 52 | 504500 | 2735.26 | 726 | 704 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

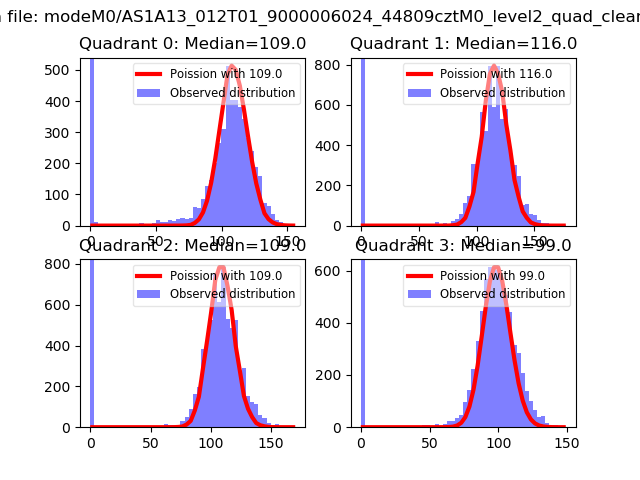

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

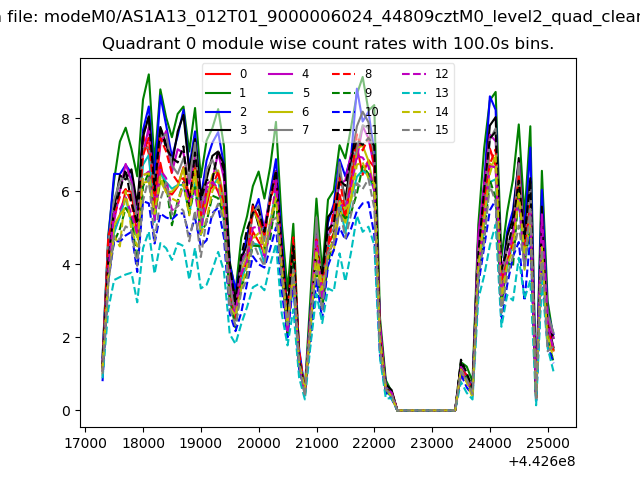

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
