| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006028_44842cztM0_level2.fits | modeM0/AS1A13_017T01_9000006028_44842cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,833,280 | 116,228,160 |
| Size | 535.8 MB | 110.8 MB |
| Events in quadrant A | 5,276,089 | 784,552 |
| Events in quadrant B | 4,021,149 | 806,438 |
| Events in quadrant C | 4,493,700 | 734,340 |
| Events in quadrant D | 6,430,497 | 677,410 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22212 | 1 |
| B | 0 | 17071 | 1 |
| C | 0 | 19013 | 1 |
| D | 0 | 24383 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7428 | 73 | 0.982768% |
| B | 7428 | 105 | 1.413570% |
| C | 7428 | 402 | 5.411955% |
| D | 7428 | 502 | 6.758212% |

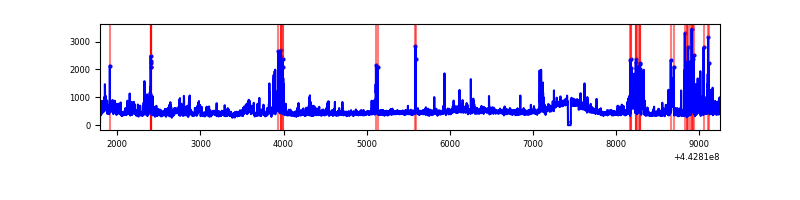

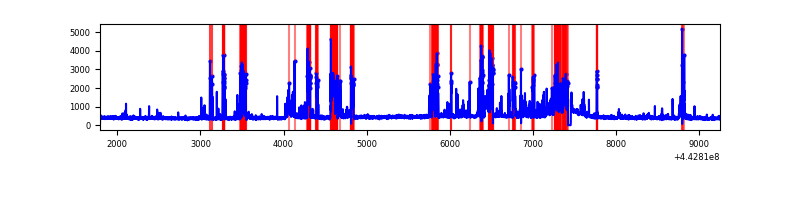

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

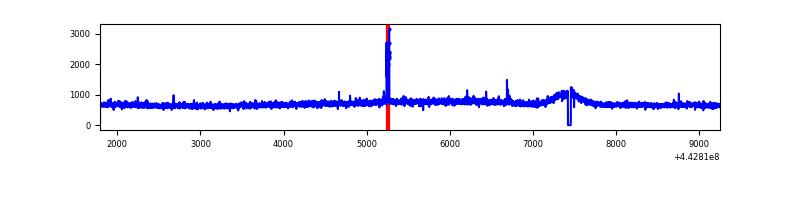

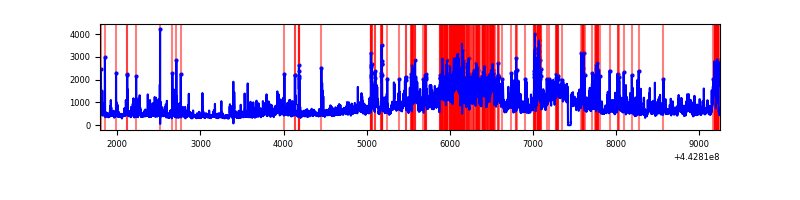

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7463 | 7429 | 13 | 13 | 0.17% | 0.17% |  |
| B | 7463 | 7429 | 40 | 40 | 0.54% | 0.54% |  |
| C | 7463 | 7429 | 290 | 290 | 3.89% | 3.90% |  |
| D | 7463 | 7429 | 374 | 374 | 5.01% | 5.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2078646 | 12217.17 | 810 | 792 | 170.1 |
| A | 13 | 248 | 46310 | 267.63 | 810 | 792 | 170.1 |
| A | 13 | 254 | 9698 | 52.36 | 810 | 792 | 170.1 |
| B | 5 | 255 | 406331 | 2499.02 | 809 | 781 | 162.3 |
| B | 0 | 155 | 297181 | 1826.43 | 809 | 781 | 162.3 |
| B | 5 | 172 | 27721 | 166.01 | 809 | 781 | 162.3 |
| C | 12 | 2 | 921857 | 5088.8 | 769 | 774 | 181.0 |
| C | 14 | 254 | 541455 | 2987.15 | 769 | 774 | 181.0 |
| C | 9 | 54 | 10308 | 52.67 | 769 | 774 | 181.0 |
| D | 11 | 241 | 1818758 | 9330.66 | 771 | 745 | 194.8 |
| D | 1 | 52 | 496258 | 2543.14 | 771 | 745 | 194.8 |
| D | 5 | 235 | 415317 | 2127.72 | 771 | 745 | 194.8 |

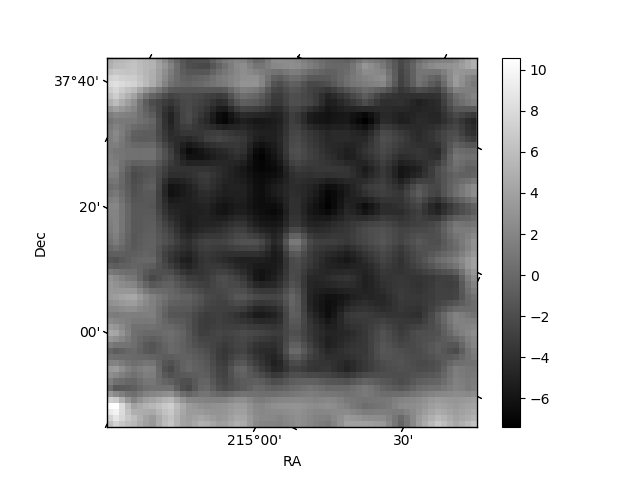

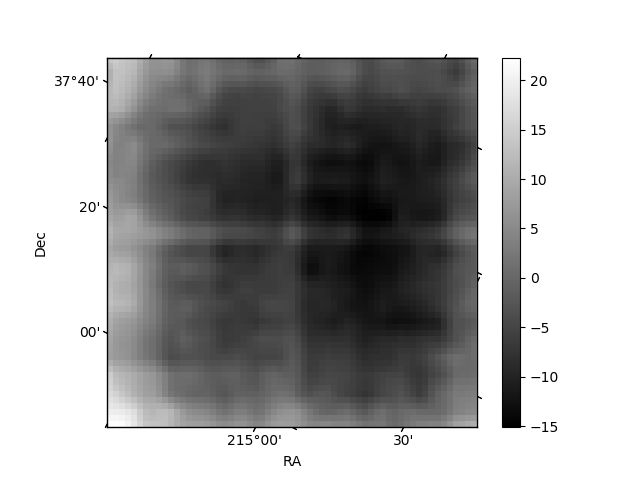

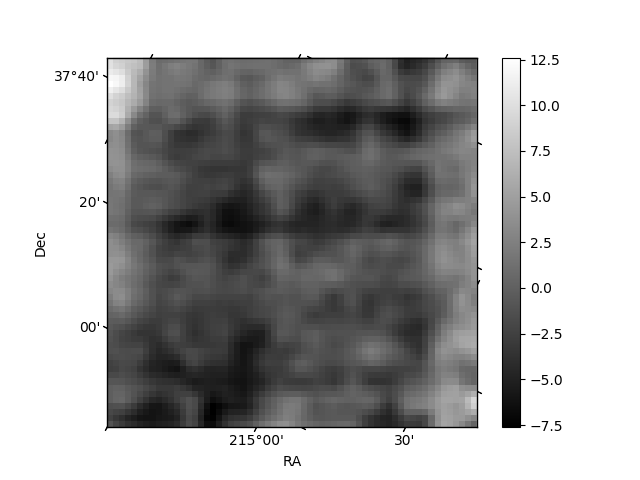

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

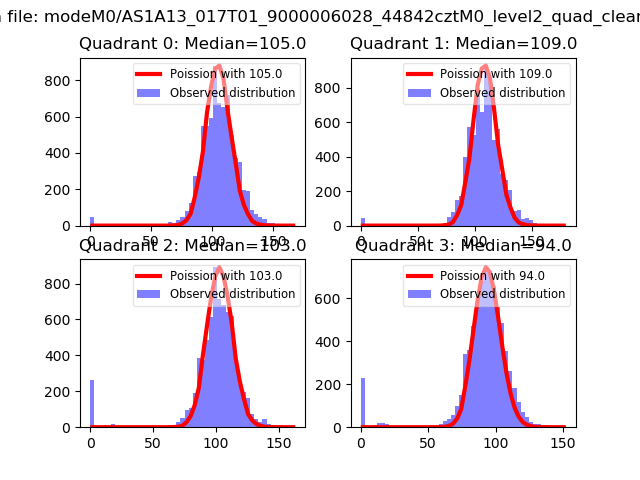

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

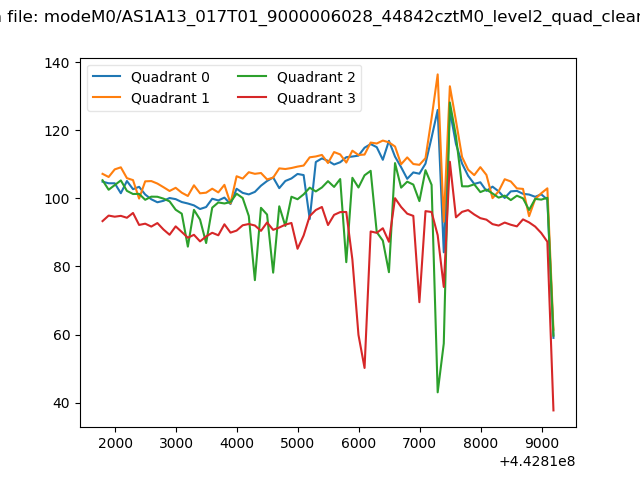

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

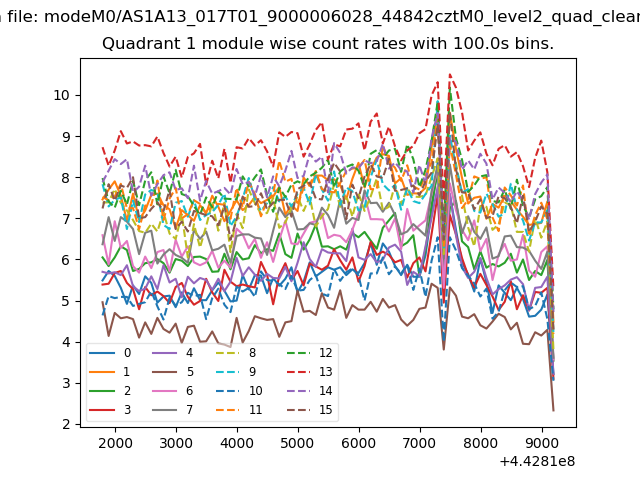

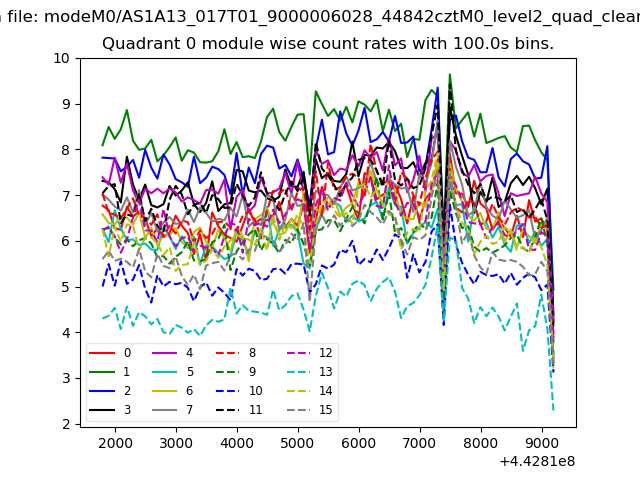

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

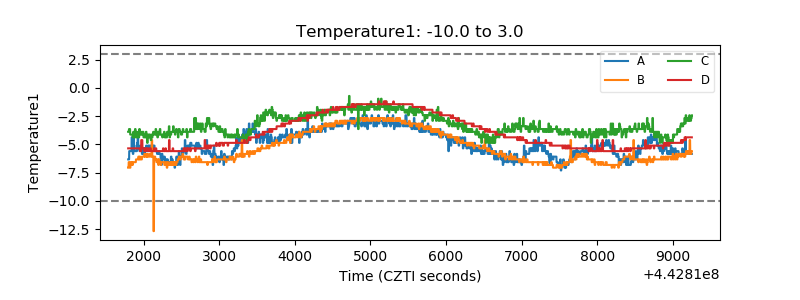

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

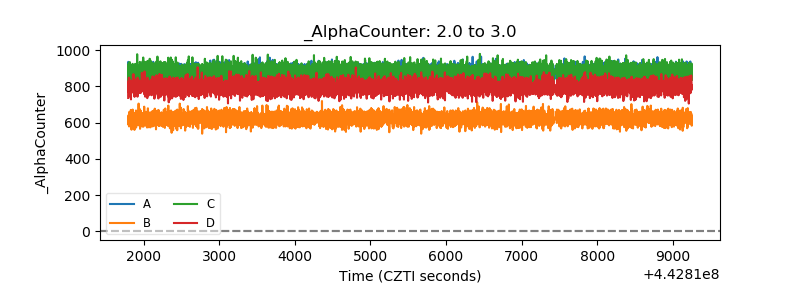

| Alpha Counter |  |

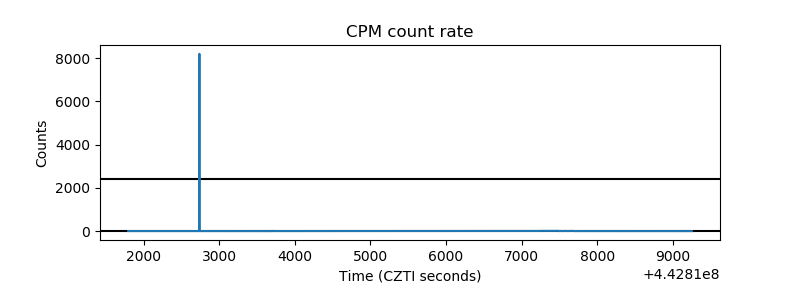

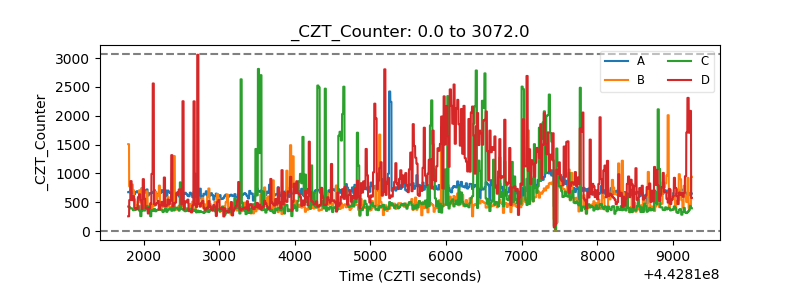

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

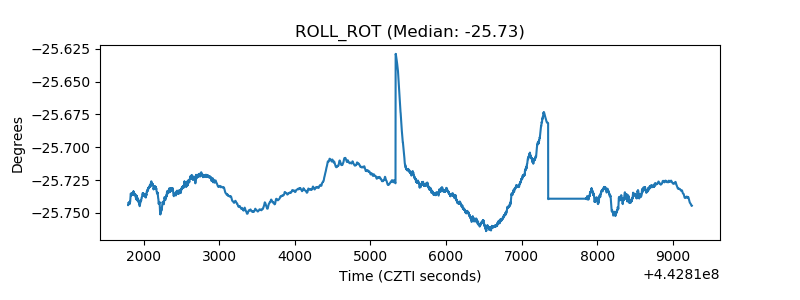

| _ROLL_ROT |  |

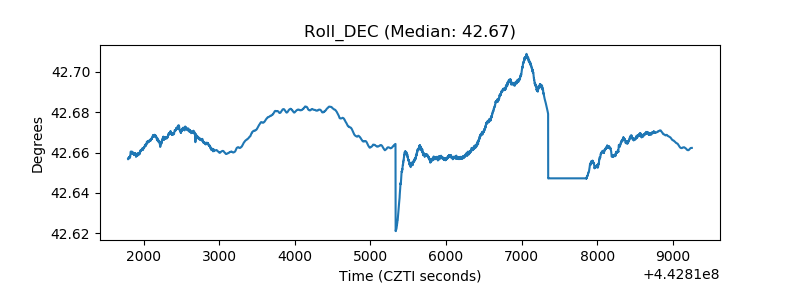

| _Roll_DEC |  |

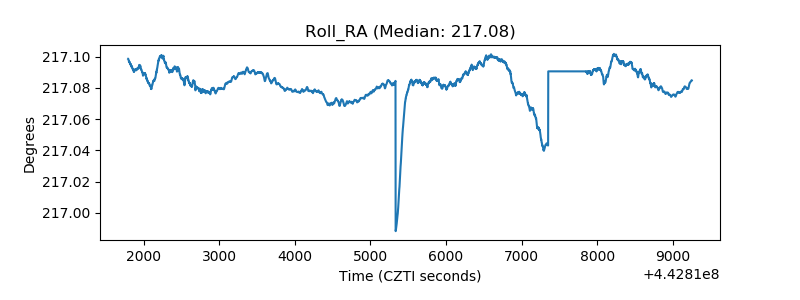

| _Roll_RA |  |

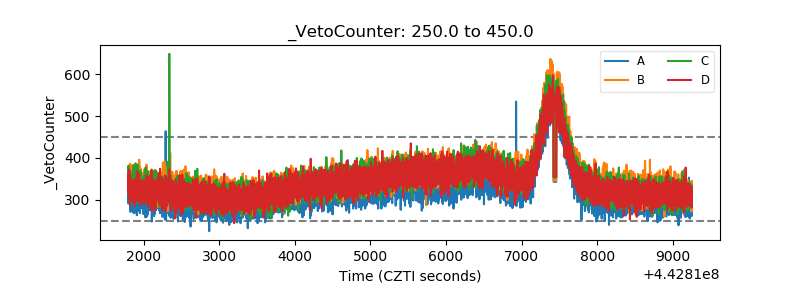

| Veto Counter |  |
