| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006028_44846cztM0_level2.fits | modeM0/AS1A13_017T01_9000006028_44846cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,170,135,360 | 269,688,960 |
| Size | 1.1 GB | 257.2 MB |
| Events in quadrant A | 12,671,336 | 1,806,952 |
| Events in quadrant B | 8,316,638 | 1,860,123 |
| Events in quadrant C | 7,661,123 | 1,763,624 |
| Events in quadrant D | 13,329,575 | 1,544,052 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52673 | 3 |
| B | 0 | 36693 | 3 |
| C | 0 | 35570 | 3 |
| D | 0 | 51630 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 350 | 0 |
| B | 0 | 350 | 0 |
| C | 0 | 350 | 0 |
| D | 0 | 350 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17272 | 306 | 1.771654% |
| B | 17273 | 247 | 1.429977% |
| C | 17273 | 132 | 0.764198% |
| D | 17273 | 1079 | 6.246743% |

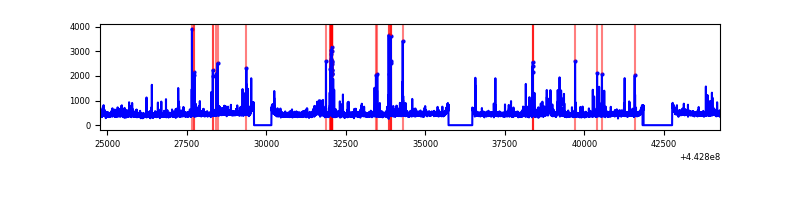

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19487 | 17275 | 1 | 1 | 0.01% | 0.01% |  |
| B | 19488 | 17276 | 53 | 53 | 0.27% | 0.31% |  |
| C | 19488 | 17276 | 22 | 22 | 0.11% | 0.13% |  |
| D | 19488 | 17276 | 921 | 921 | 4.73% | 5.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5272666 | 13387.6 | 1903 | 1861 | 393.7 |
| A | 13 | 248 | 23419 | 54.76 | 1903 | 1861 | 393.7 |
| A | 3 | 137 | 22050 | 51.28 | 1903 | 1861 | 393.7 |
| B | 5 | 255 | 194434 | 520.48 | 1891 | 1836 | 370.0 |
| B | 0 | 155 | 156306 | 417.45 | 1891 | 1836 | 370.0 |
| B | 0 | 183 | 154992 | 413.89 | 1891 | 1836 | 370.0 |
| C | 12 | 2 | 176763 | 399.93 | 1863 | 1870 | 437.3 |
| C | 14 | 254 | 98833 | 221.73 | 1863 | 1870 | 437.3 |
| C | 3 | 233 | 59779 | 132.42 | 1863 | 1870 | 437.3 |
| D | 13 | 174 | 3092175 | 6847.4 | 1817 | 1757 | 451.3 |
| D | 2 | 249 | 1076174 | 2380.57 | 1817 | 1757 | 451.3 |
| D | 5 | 235 | 641246 | 1416.91 | 1817 | 1757 | 451.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

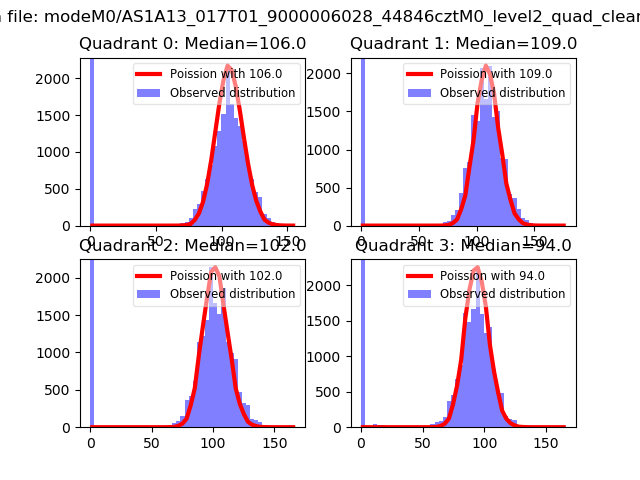

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

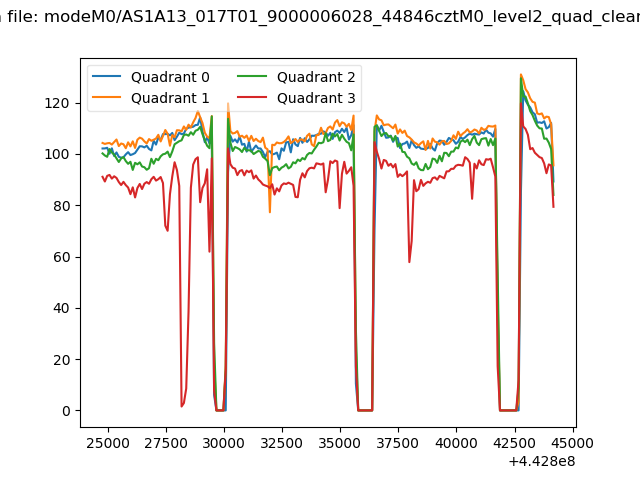

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

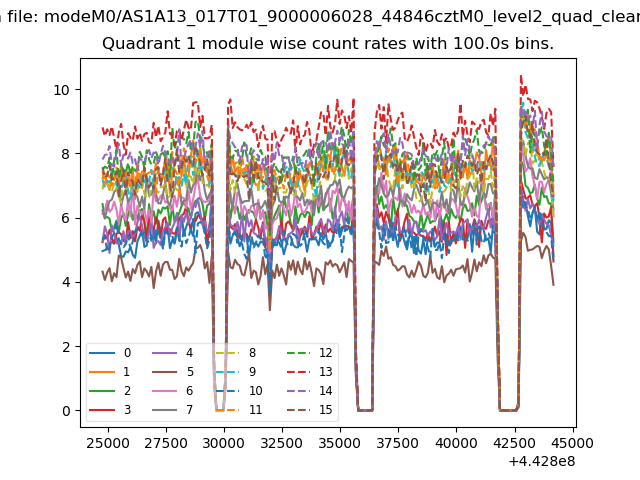

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

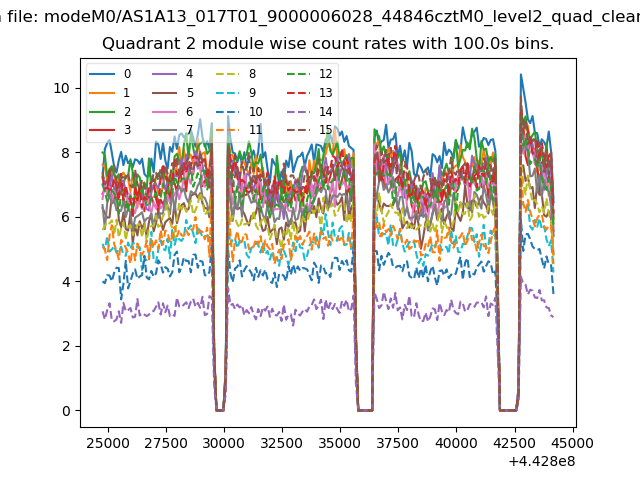

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

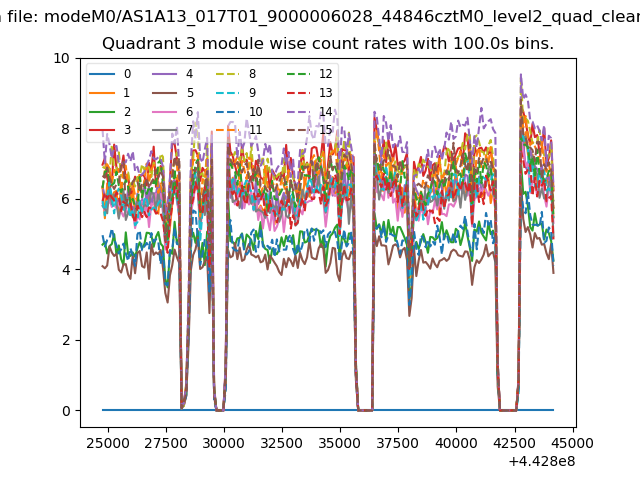

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

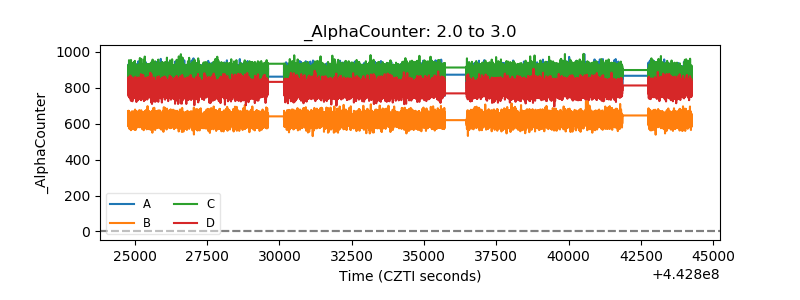

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
