| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006028_44863cztM0_level2.fits | modeM0/AS1A13_017T01_9000006028_44863cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,142,720 | 110,174,400 |
| Size | 577.1 MB | 105.1 MB |
| Events in quadrant A | 5,458,473 | 777,659 |
| Events in quadrant B | 3,569,807 | 805,672 |
| Events in quadrant C | 3,341,540 | 760,930 |
| Events in quadrant D | 9,509,395 | 522,574 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21540 | 2 |
| B | 0 | 15010 | 2 |
| C | 0 | 14420 | 2 |
| D | 0 | 32956 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6727 | 176 | 2.616322% |
| B | 6727 | 106 | 1.575740% |
| C | 6727 | 87 | 1.293296% |
| D | 6727 | 1895 | 28.170061% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7872 | 6728 | 17 | 17 | 0.22% | 0.25% |  |
| B | 7872 | 6728 | 25 | 25 | 0.32% | 0.37% |  |
| C | 7872 | 6728 | 31 | 31 | 0.39% | 0.46% |  |
| D | 7872 | 6728 | 1456 | 1456 | 18.50% | 21.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2278382 | 14001.7 | 789 | 772 | 162.7 |
| A | 13 | 248 | 87674 | 534.23 | 789 | 772 | 162.7 |
| A | 10 | 248 | 17188 | 100.92 | 789 | 772 | 162.7 |
| B | 5 | 255 | 276684 | 1797.66 | 785 | 762 | 153.5 |
| B | 0 | 183 | 71823 | 462.97 | 785 | 762 | 153.5 |
| B | 0 | 190 | 34248 | 218.17 | 785 | 762 | 153.5 |
| C | 12 | 2 | 79784 | 436.11 | 773 | 779 | 181.2 |
| C | 14 | 254 | 59749 | 325.52 | 773 | 779 | 181.2 |
| C | 0 | 64 | 57544 | 313.35 | 773 | 779 | 181.2 |
| D | 5 | 235 | 2943714 | 17623.51 | 665 | 645 | 167.0 |
| D | 13 | 187 | 1397882 | 8366.85 | 665 | 645 | 167.0 |
| D | 1 | 52 | 963085 | 5763.23 | 665 | 645 | 167.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

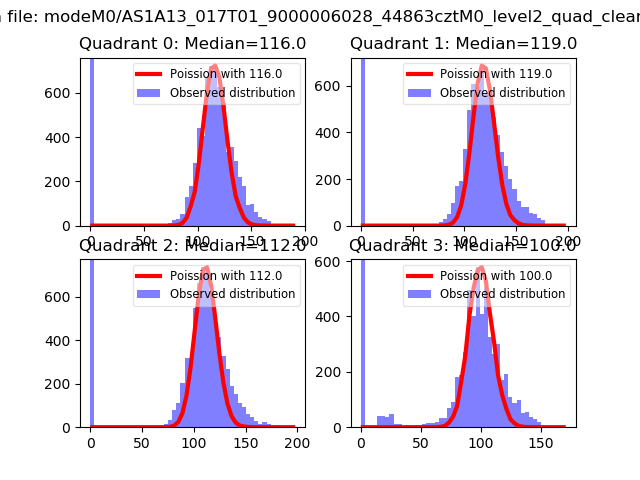

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

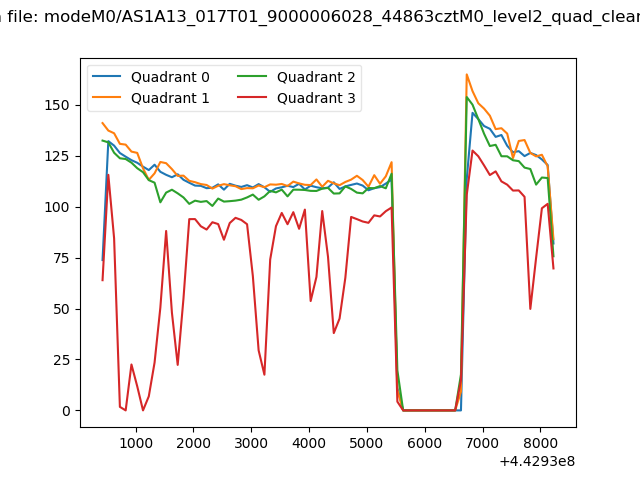

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

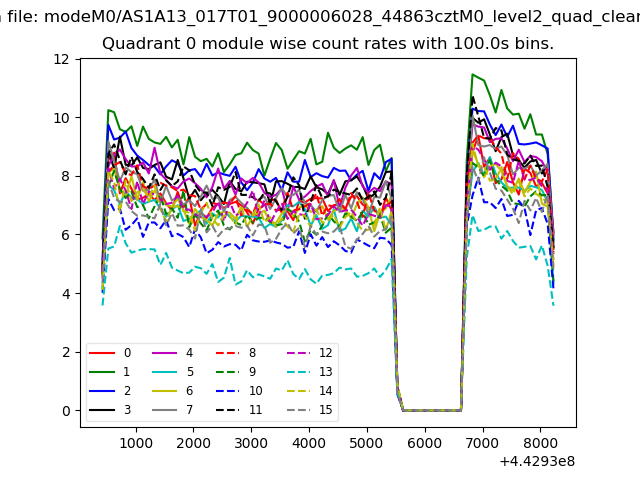

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

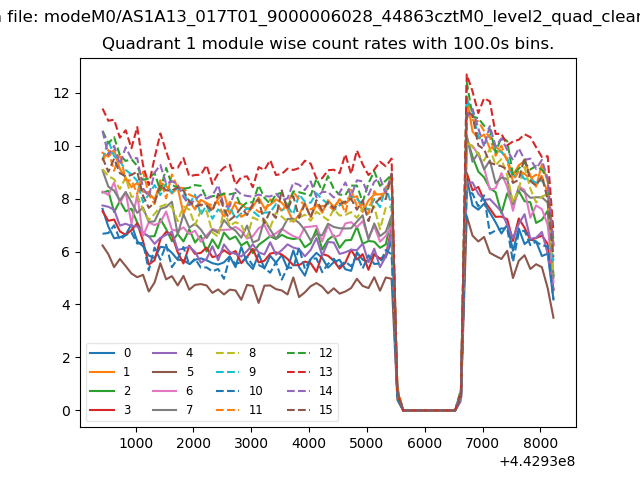

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

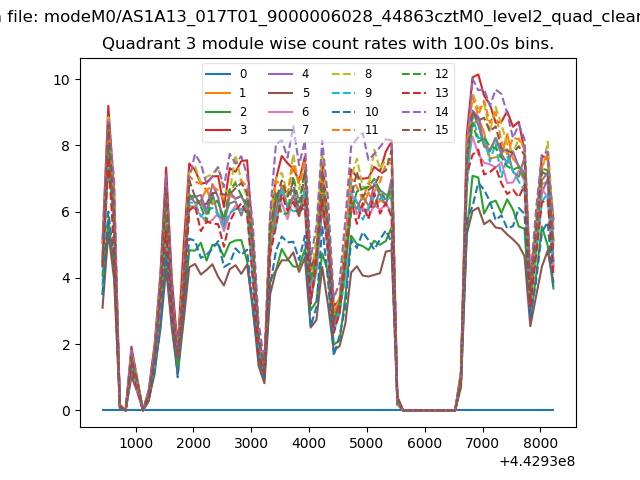

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

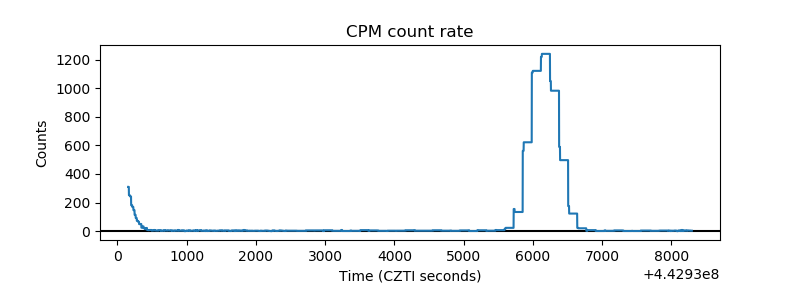

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

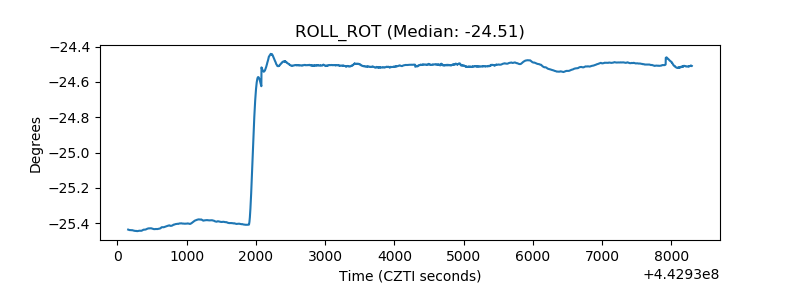

| _ROLL_ROT |  |

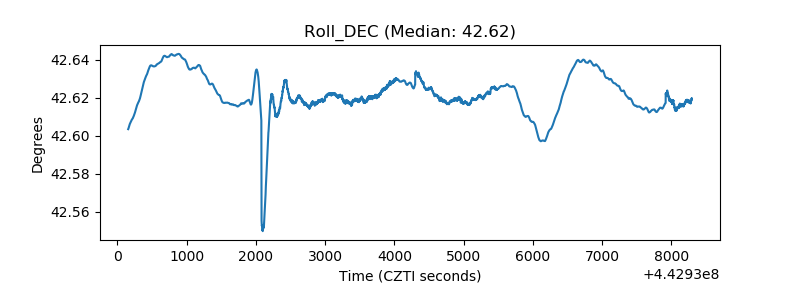

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
