| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T02_9000006032_44912cztM0_level2.fits | modeM0/AS1A13_017T02_9000006032_44912cztM0_level2_quad_clean.evt |
| Size (bytes) | 618,624,000 | 118,114,560 |
| Size | 590.0 MB | 112.6 MB |
| Events in quadrant A | 6,362,567 | 783,176 |
| Events in quadrant B | 4,493,226 | 814,614 |
| Events in quadrant C | 3,647,813 | 809,699 |
| Events in quadrant D | 7,826,569 | 657,008 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24387 | 2 |
| B | 0 | 18310 | 2 |
| C | 0 | 15917 | 2 |
| D | 0 | 28438 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7347 | 436 | 5.934395% |
| B | 7347 | 333 | 4.532462% |
| C | 7347 | 124 | 1.687764% |
| D | 7346 | 1127 | 15.341683% |

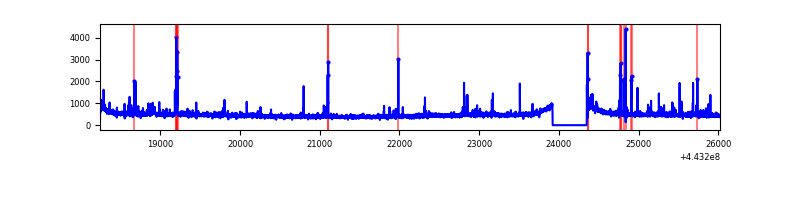

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

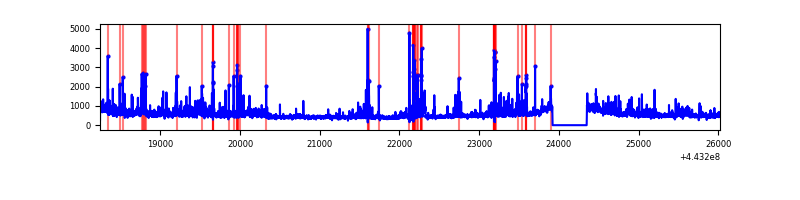

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7777 | 7348 | 69 | 69 | 0.89% | 0.94% |  |
| B | 7777 | 7348 | 67 | 67 | 0.86% | 0.91% |  |
| C | 7777 | 7348 | 19 | 19 | 0.24% | 0.26% |  |
| D | 7776 | 7347 | 698 | 698 | 8.98% | 9.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2736969 | 15205.19 | 858 | 840 | 179.9 |
| A | 13 | 248 | 254848 | 1411.57 | 858 | 840 | 179.9 |
| A | 0 | 247 | 23036 | 123.35 | 858 | 840 | 179.9 |
| B | 5 | 172 | 209467 | 1221.03 | 865 | 839 | 170.9 |
| B | 3 | 112 | 183946 | 1071.66 | 865 | 839 | 170.9 |
| B | 0 | 190 | 124398 | 723.15 | 865 | 839 | 170.9 |
| C | 15 | 208 | 106600 | 520.3 | 858 | 863 | 203.2 |
| C | 12 | 2 | 74734 | 363.5 | 858 | 863 | 203.2 |
| C | 12 | 250 | 29090 | 138.9 | 858 | 863 | 203.2 |
| D | 1 | 52 | 2382366 | 11488.17 | 809 | 785 | 207.3 |
| D | 12 | 33 | 544837 | 2624.37 | 809 | 785 | 207.3 |
| D | 13 | 249 | 372274 | 1791.97 | 809 | 785 | 207.3 |

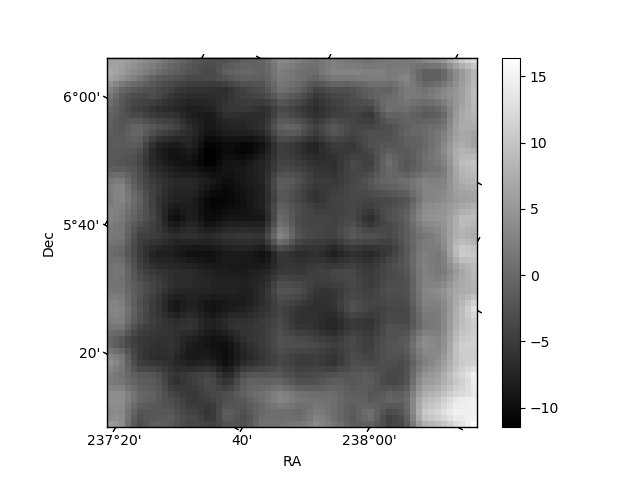

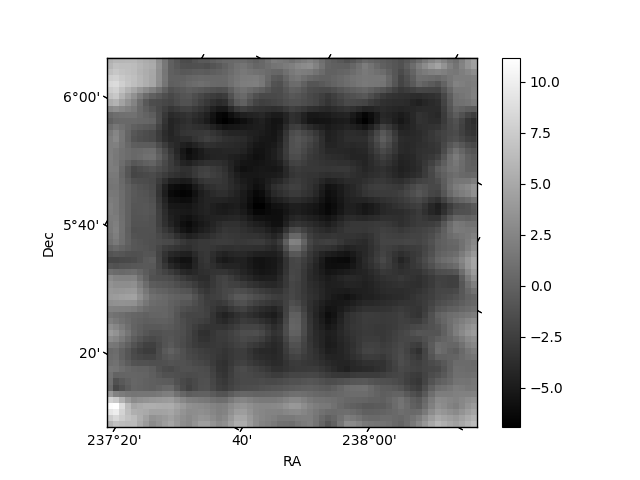

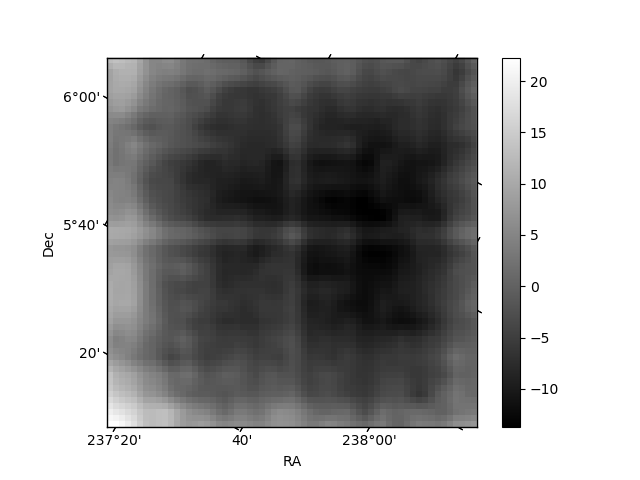

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

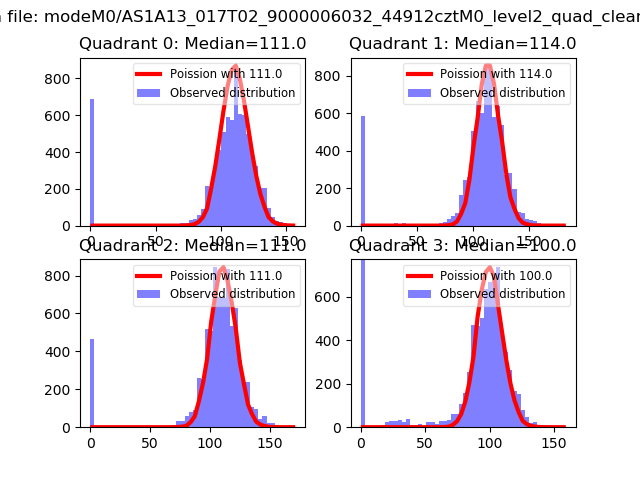

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

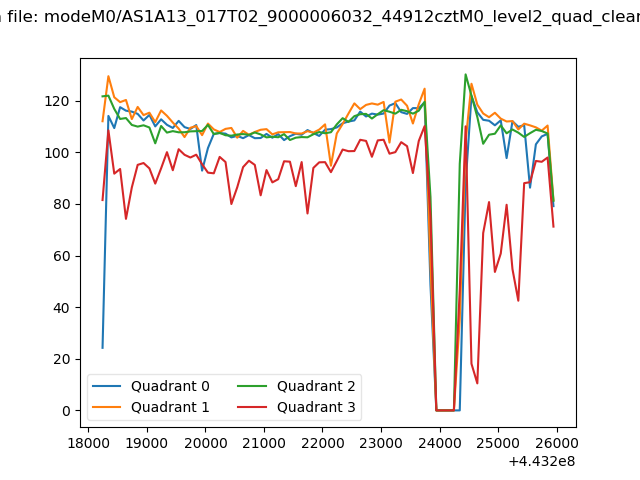

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

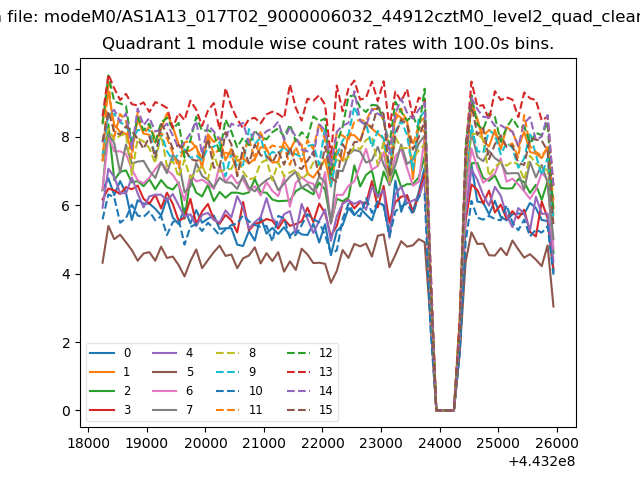

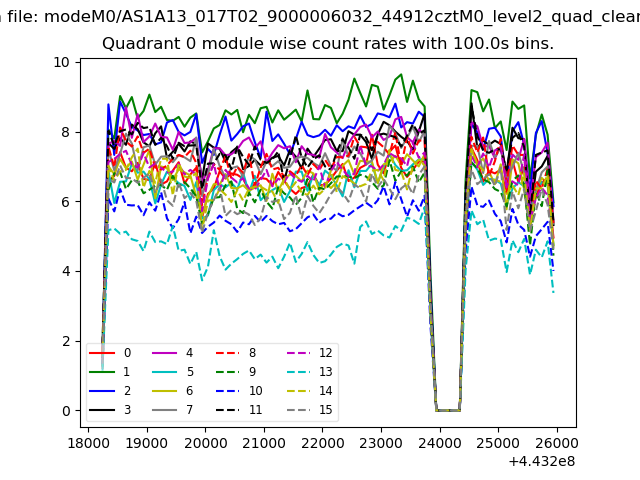

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

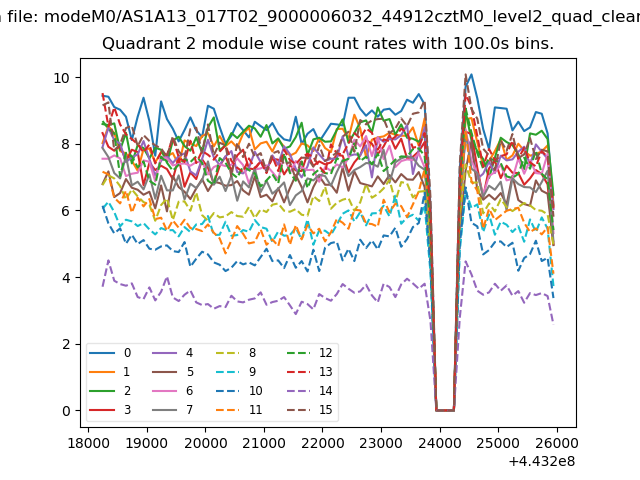

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

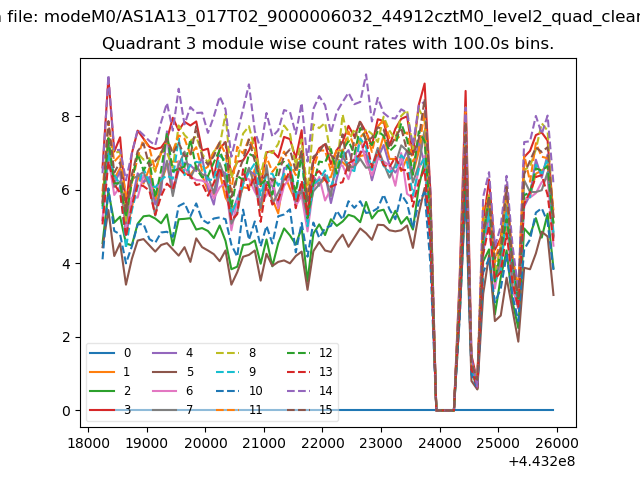

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

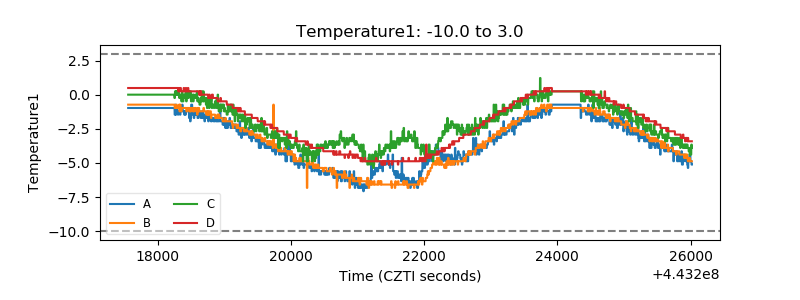

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

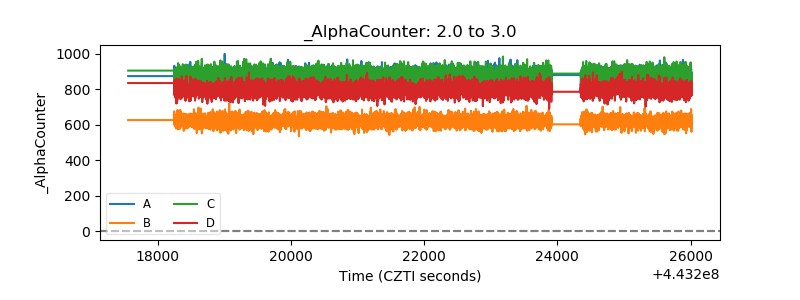

| Alpha Counter |  |

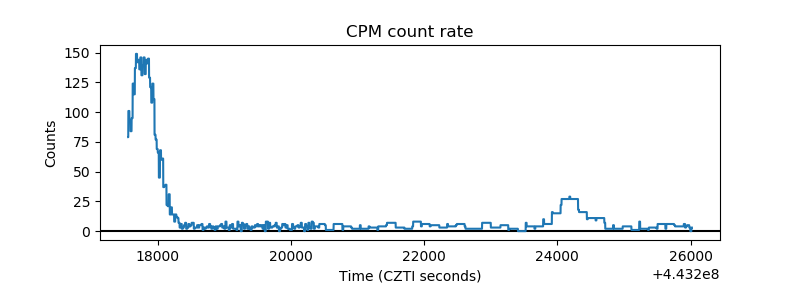

| _CPM_Rate |  |

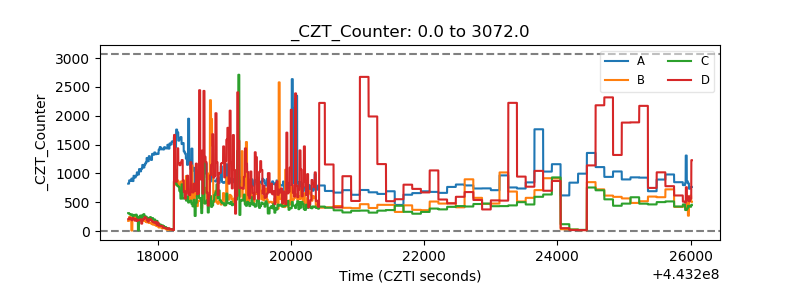

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

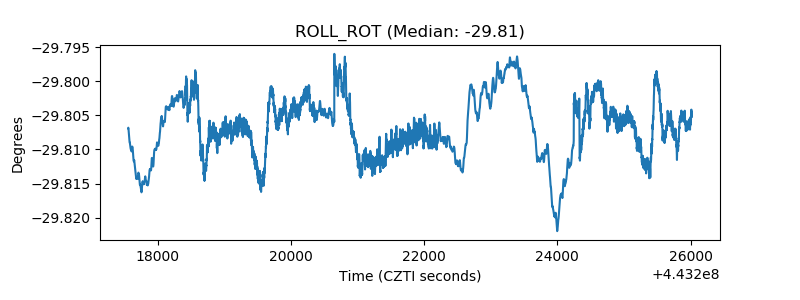

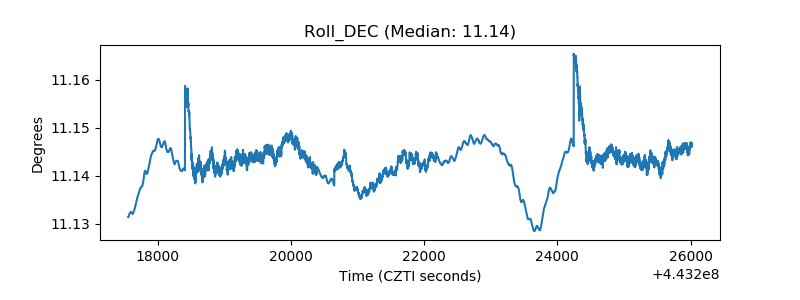

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

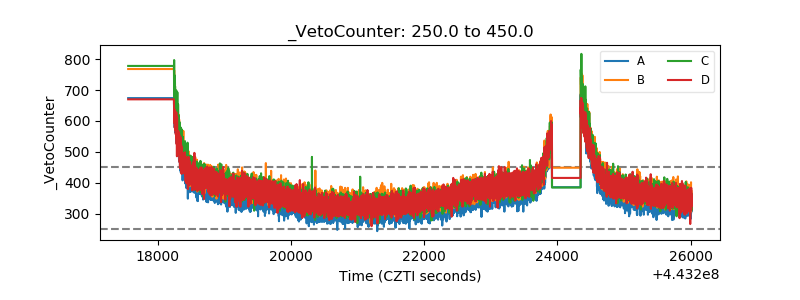

| Veto Counter |  |
