| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T02_9000006032_44951cztM0_level2.fits | modeM0/AS1A13_017T02_9000006032_44951cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,049,920 | 97,819,200 |
| Size | 457.8 MB | 93.3 MB |
| Events in quadrant A | 4,680,596 | 669,309 |
| Events in quadrant B | 3,643,036 | 680,106 |
| Events in quadrant C | 2,731,394 | 667,204 |
| Events in quadrant D | 6,276,414 | 550,108 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17772 | 1 |
| B | 0 | 14372 | 1 |
| C | 0 | 11742 | 1 |
| D | 0 | 22623 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5652 | 133 | 2.353149% |
| B | 5652 | 248 | 4.387827% |
| C | 5653 | 59 | 1.043694% |
| D | 5653 | 801 | 14.169468% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6833 | 5654 | 7 | 7 | 0.10% | 0.12% |  |
| B | 6833 | 5654 | 123 | 123 | 1.80% | 2.18% |  |
| C | 6834 | 5655 | 6 | 6 | 0.09% | 0.11% |  |
| D | 6834 | 5655 | 578 | 578 | 8.46% | 10.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1977597 | 14087.76 | 682 | 668 | 140.3 |
| A | 2 | 79 | 37822 | 264.76 | 682 | 668 | 140.3 |
| A | 13 | 248 | 13817 | 93.7 | 682 | 668 | 140.3 |
| B | 4 | 171 | 553946 | 4185.59 | 672 | 652 | 132.2 |
| B | 5 | 172 | 147229 | 1108.83 | 672 | 652 | 132.2 |
| B | 3 | 112 | 62467 | 467.62 | 672 | 652 | 132.2 |
| C | 0 | 207 | 22214 | 136.16 | 674 | 681 | 158.1 |
| C | 3 | 233 | 21627 | 132.45 | 674 | 681 | 158.1 |
| C | 15 | 208 | 19494 | 118.96 | 674 | 681 | 158.1 |
| D | 12 | 233 | 803018 | 4941.71 | 645 | 628 | 162.4 |
| D | 1 | 52 | 604409 | 3718.53 | 645 | 628 | 162.4 |
| D | 13 | 249 | 508083 | 3125.28 | 645 | 628 | 162.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

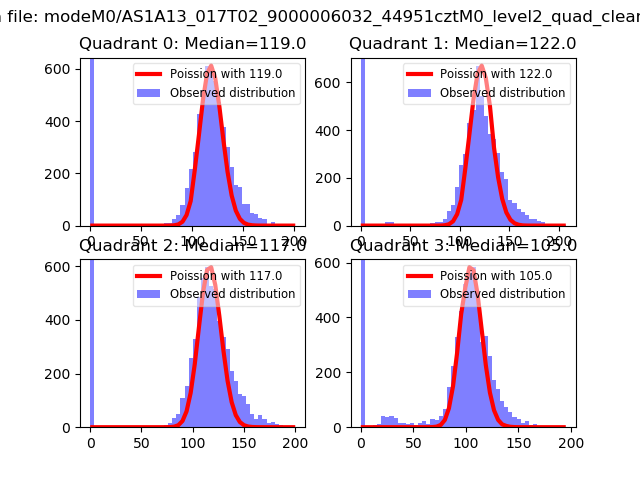

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

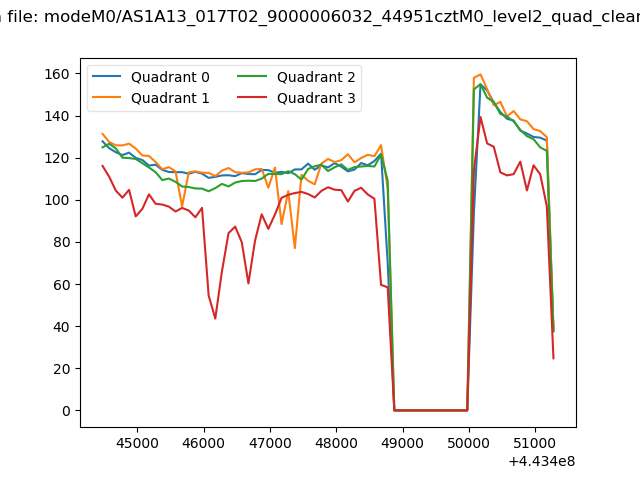

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

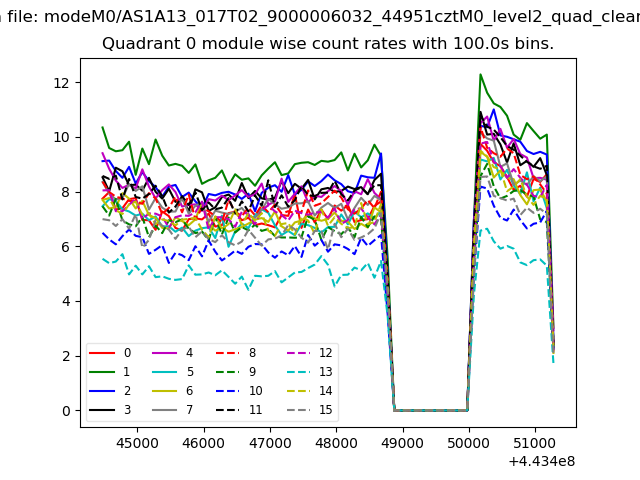

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

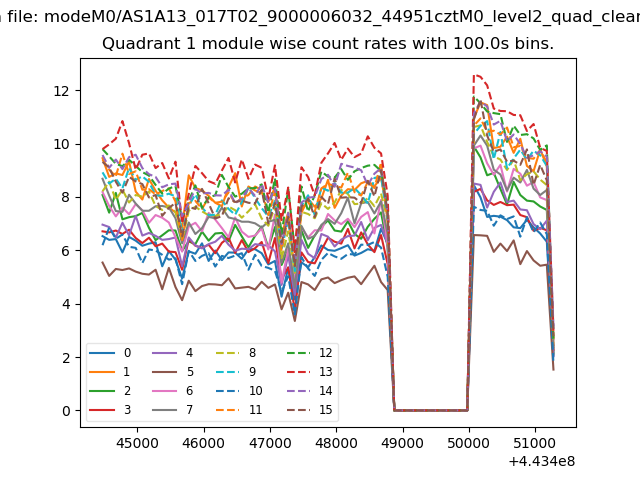

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

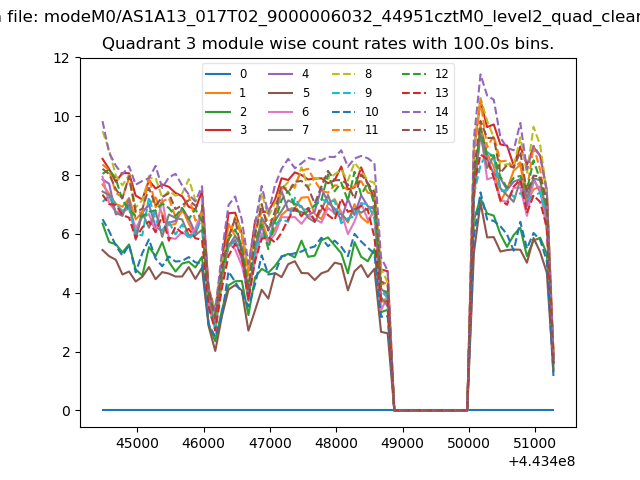

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

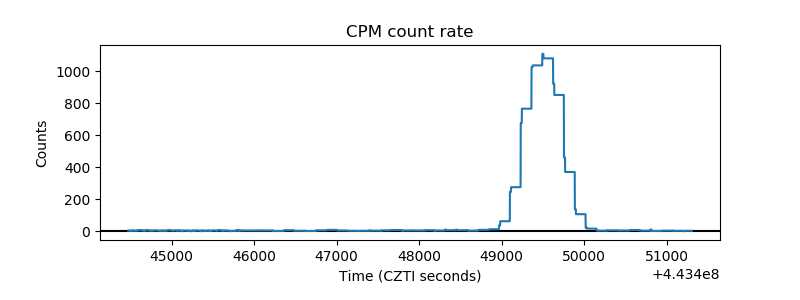

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

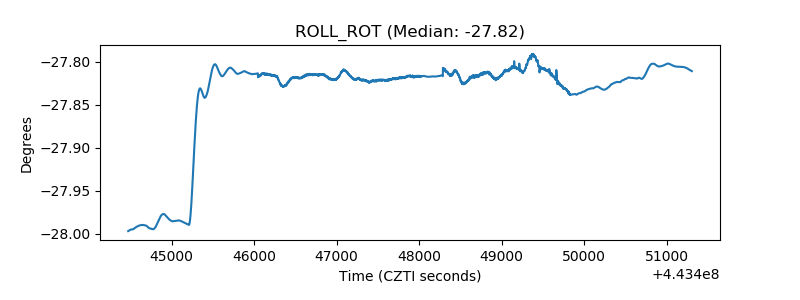

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

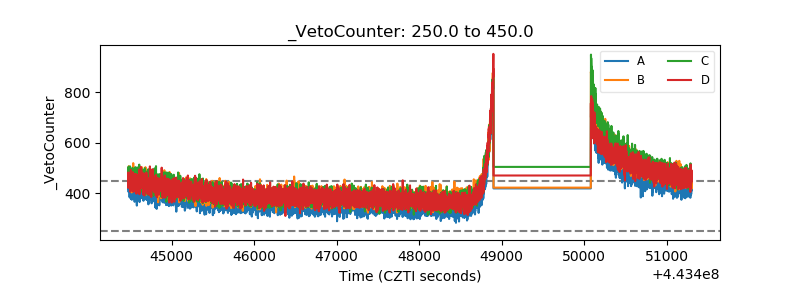

| Veto Counter |  |
