| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T02_9000006032_44953cztM0_level2.fits | modeM0/AS1A13_017T02_9000006032_44953cztM0_level2_quad_clean.evt |
| Size (bytes) | 674,449,920 | 117,311,040 |
| Size | 643.2 MB | 111.9 MB |
| Events in quadrant A | 5,987,394 | 817,277 |
| Events in quadrant B | 4,577,484 | 831,479 |
| Events in quadrant C | 3,534,142 | 825,096 |
| Events in quadrant D | 10,345,311 | 607,520 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22032 | 2 |
| B | 0 | 18042 | 2 |
| C | 0 | 14757 | 2 |
| D | 0 | 35462 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6749 | 232 | 3.437546% |
| B | 6749 | 344 | 5.097051% |
| C | 6749 | 108 | 1.600237% |
| D | 6749 | 1742 | 25.811231% |

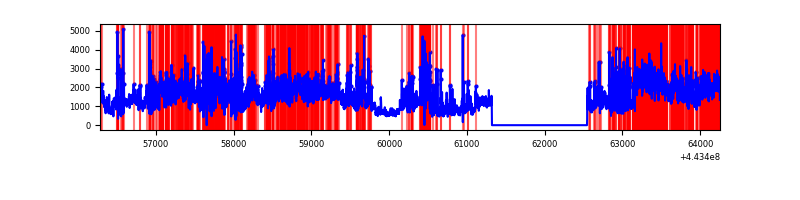

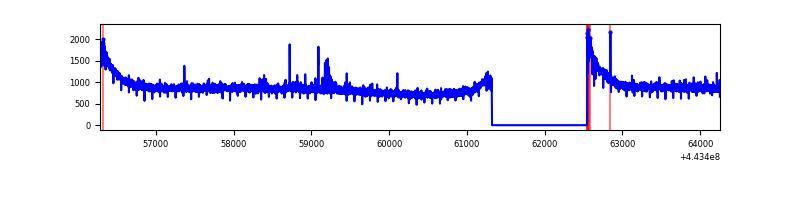

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7974 | 6750 | 9 | 9 | 0.11% | 0.13% |  |
| B | 7974 | 6750 | 160 | 160 | 2.01% | 2.37% |  |
| C | 7974 | 6750 | 28 | 28 | 0.35% | 0.41% |  |
| D | 7974 | 6750 | 1507 | 1507 | 18.90% | 22.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2668639 | 15311.21 | 843 | 828 | 174.2 |
| A | 0 | 243 | 42129 | 237.04 | 843 | 828 | 174.2 |
| A | 0 | 227 | 9741 | 51.15 | 843 | 828 | 174.2 |
| B | 5 | 172 | 437401 | 2709.86 | 831 | 808 | 161.1 |
| B | 0 | 183 | 229049 | 1416.65 | 831 | 808 | 161.1 |
| B | 0 | 219 | 166711 | 1029.73 | 831 | 808 | 161.1 |
| C | 1 | 3 | 96115 | 486.98 | 838 | 845 | 195.6 |
| C | 12 | 250 | 71480 | 361.06 | 838 | 845 | 195.6 |
| C | 12 | 2 | 62328 | 314.28 | 838 | 845 | 195.6 |
| D | 8 | 48 | 3095810 | 15658.12 | 774 | 749 | 197.7 |
| D | 12 | 33 | 1463885 | 7402.1 | 774 | 749 | 197.7 |
| D | 1 | 52 | 567112 | 2865.27 | 774 | 749 | 197.7 |

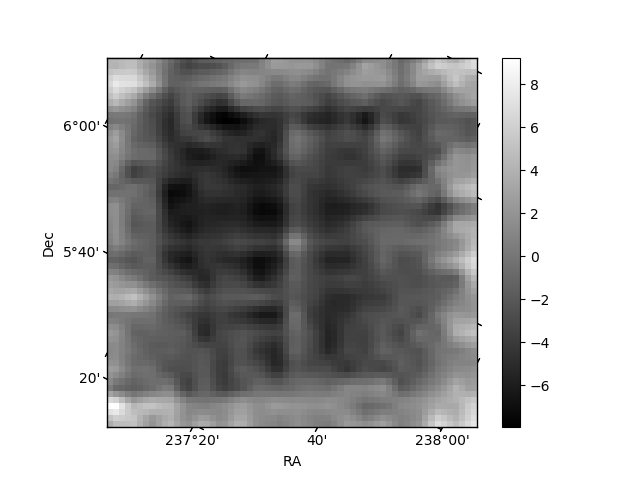

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

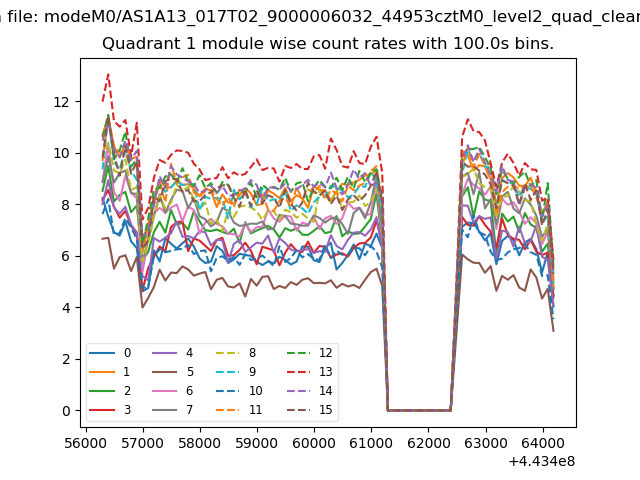

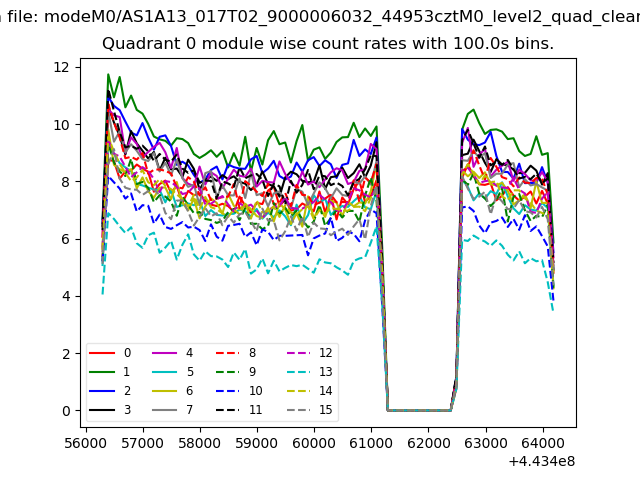

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

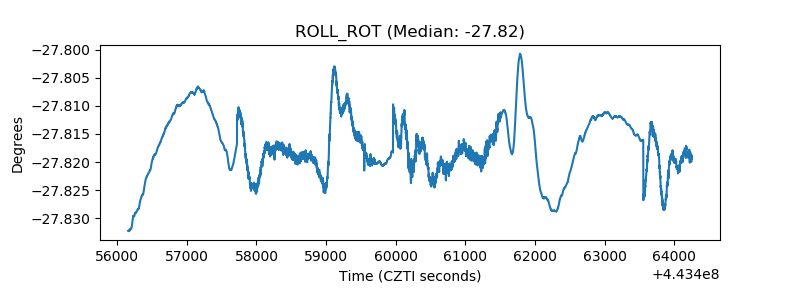

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

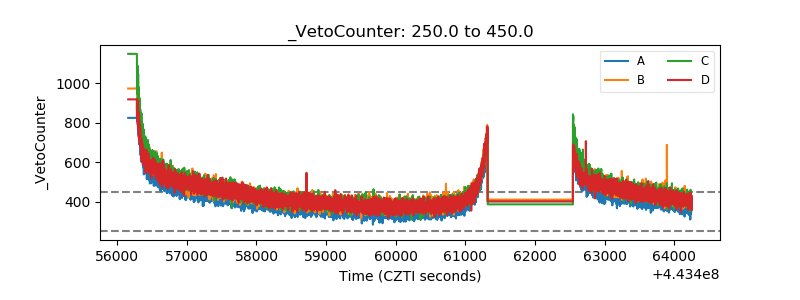

| Veto Counter |  |
