| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T02_9000006032_44956cztM0_level2.fits | modeM0/AS1A13_017T02_9000006032_44956cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,609,920 | 112,466,880 |
| Size | 585.2 MB | 107.3 MB |
| Events in quadrant A | 5,686,619 | 757,823 |
| Events in quadrant B | 4,430,584 | 762,235 |
| Events in quadrant C | 3,385,168 | 773,275 |
| Events in quadrant D | 8,663,993 | 619,146 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22053 | 3 |
| B | 0 | 18018 | 4 |
| C | 0 | 14997 | 3 |
| D | 0 | 30742 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7071 | 244 | 3.450714% |
| B | 7071 | 410 | 5.798331% |
| C | 7071 | 87 | 1.230378% |
| D | 7071 | 1171 | 16.560600% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7206 | 7075 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7206 | 7075 | 97 | 97 | 1.35% | 1.37% |  |
| C | 7206 | 7075 | 7 | 7 | 0.10% | 0.10% |  |
| D | 7206 | 7075 | 845 | 845 | 11.73% | 11.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2433759 | 14100.87 | 828 | 809 | 172.5 |
| A | 0 | 243 | 23524 | 131.65 | 828 | 809 | 172.5 |
| A | 3 | 137 | 9475 | 50.23 | 828 | 809 | 172.5 |
| B | 4 | 171 | 411081 | 2565.71 | 812 | 788 | 159.9 |
| B | 15 | 36 | 153607 | 955.63 | 812 | 788 | 159.9 |
| B | 5 | 255 | 132395 | 822.99 | 812 | 788 | 159.9 |
| C | 12 | 250 | 65698 | 336.42 | 820 | 826 | 192.8 |
| C | 12 | 2 | 65544 | 335.62 | 820 | 826 | 192.8 |
| C | 3 | 233 | 23448 | 117.31 | 820 | 826 | 192.8 |
| D | 12 | 33 | 2346814 | 11755.63 | 778 | 754 | 199.6 |
| D | 5 | 222 | 642181 | 3214.06 | 778 | 754 | 199.6 |
| D | 1 | 52 | 565607 | 2830.36 | 778 | 754 | 199.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

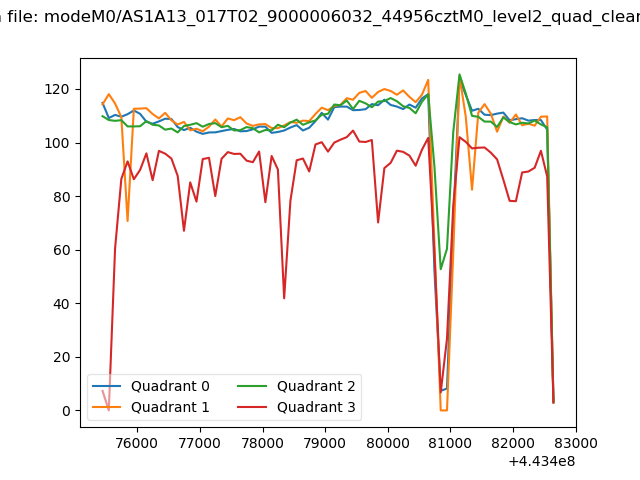

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

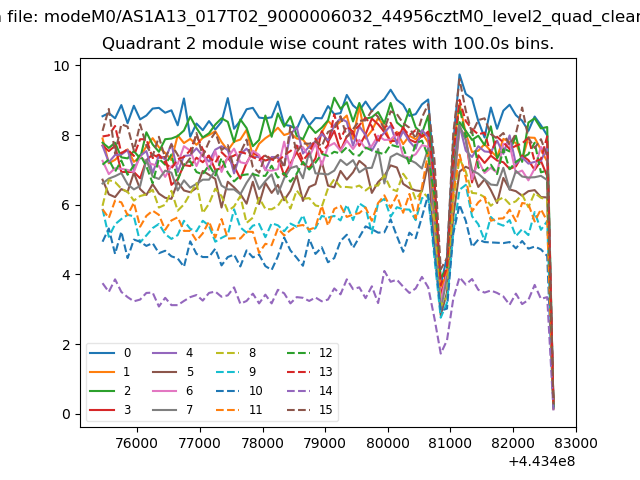

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

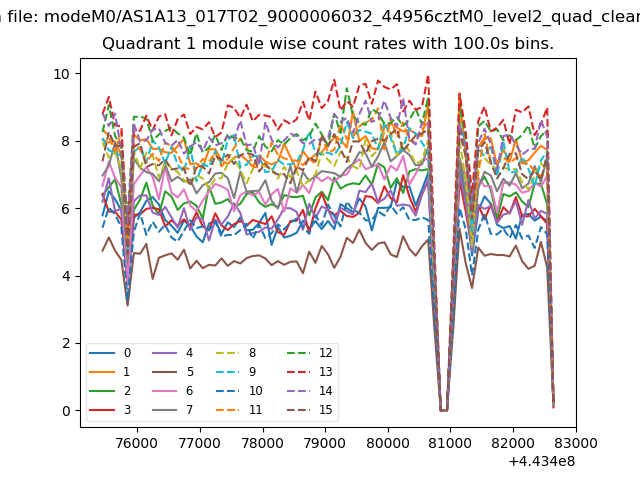

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

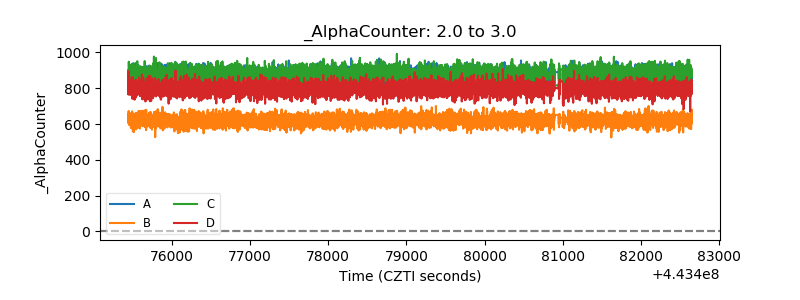

| Alpha Counter |  |

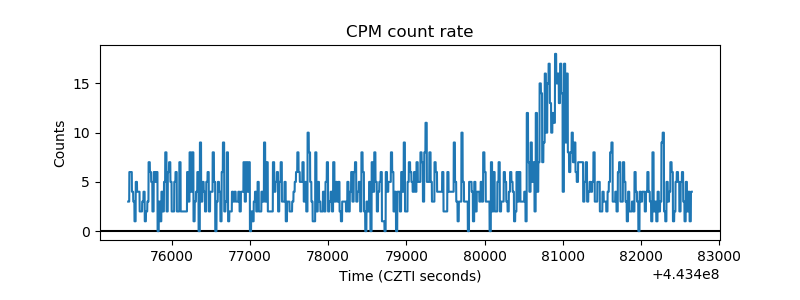

| _CPM_Rate |  |
| CZT Counter |  |

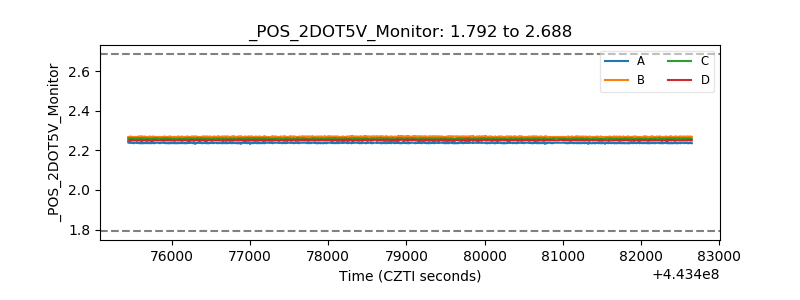

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

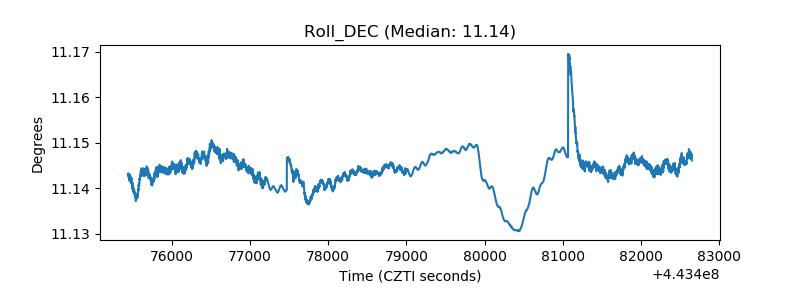

| _Roll_DEC |  |
| _Roll_RA |  |

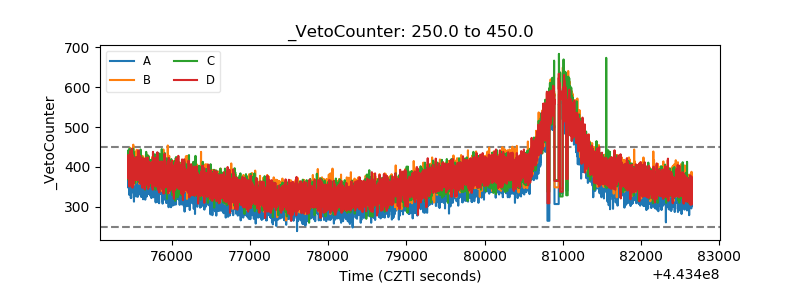

| Veto Counter |  |
