| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_044T01_9000006034_44970cztM0_level2.fits | modeM0/AS1A13_044T01_9000006034_44970cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,894,720 | 110,350,080 |
| Size | 538.7 MB | 105.2 MB |
| Events in quadrant A | 5,669,179 | 748,972 |
| Events in quadrant B | 4,675,960 | 750,969 |
| Events in quadrant C | 3,261,839 | 734,970 |
| Events in quadrant D | 6,769,635 | 625,891 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21990 | 2 |
| B | 0 | 18510 | 1 |
| C | 0 | 14667 | 1 |
| D | 0 | 24885 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6890 | 159 | 2.307692% |
| B | 6891 | 340 | 4.933972% |
| C | 6891 | 50 | 0.725584% |
| D | 6891 | 780 | 11.319112% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7430 | 6892 | 24 | 24 | 0.32% | 0.35% |  |
| B | 7431 | 6893 | 159 | 159 | 2.14% | 2.31% |  |
| C | 7431 | 6893 | 25 | 25 | 0.34% | 0.36% |  |
| D | 7431 | 6893 | 610 | 610 | 8.21% | 8.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2500324 | 15577.29 | 771 | 755 | 160.5 |
| A | 13 | 248 | 63704 | 392.3 | 771 | 755 | 160.5 |
| A | 7 | 16 | 59258 | 364.59 | 771 | 755 | 160.5 |
| B | 0 | 219 | 449013 | 2972.74 | 764 | 740 | 150.8 |
| B | 0 | 155 | 389550 | 2578.41 | 764 | 740 | 150.8 |
| B | 0 | 189 | 256259 | 1694.48 | 764 | 740 | 150.8 |
| C | 12 | 2 | 93928 | 519.31 | 762 | 767 | 179.4 |
| C | 1 | 3 | 63903 | 351.94 | 762 | 767 | 179.4 |
| C | 12 | 250 | 48936 | 268.51 | 762 | 767 | 179.4 |
| D | 13 | 249 | 1278165 | 6973.87 | 733 | 713 | 183.2 |
| D | 1 | 52 | 564827 | 3079.61 | 733 | 713 | 183.2 |
| D | 5 | 235 | 440749 | 2402.25 | 733 | 713 | 183.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

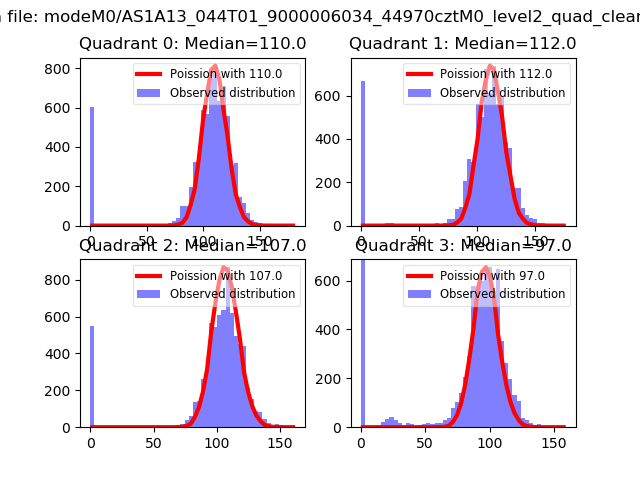

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

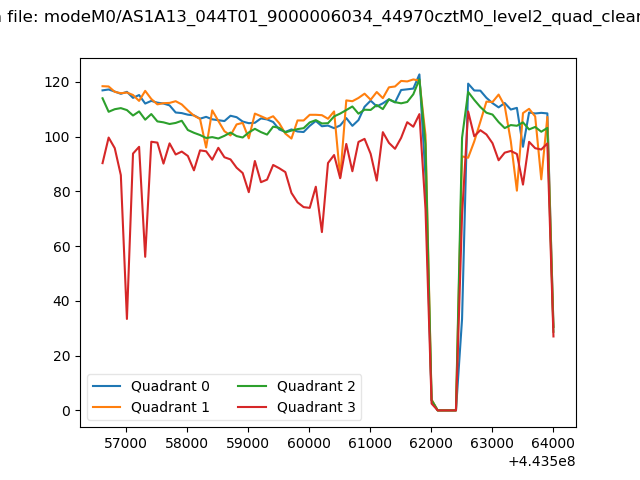

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

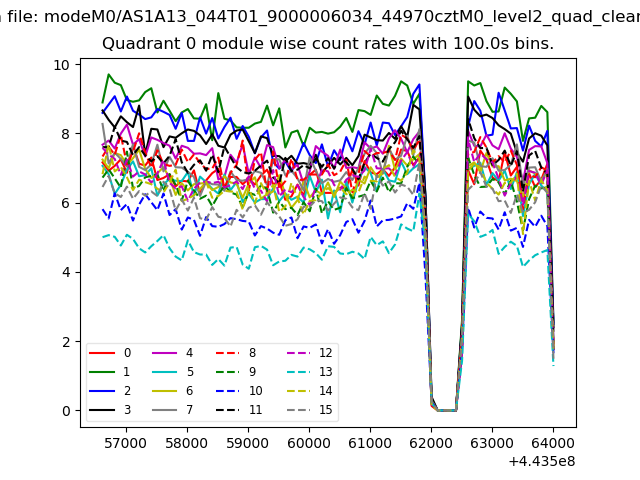

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

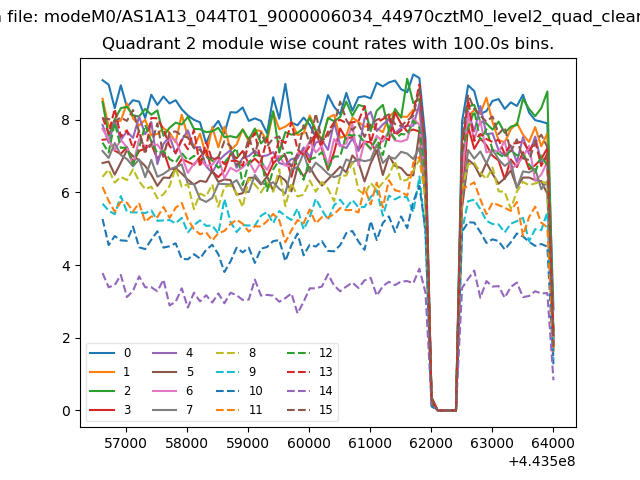

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

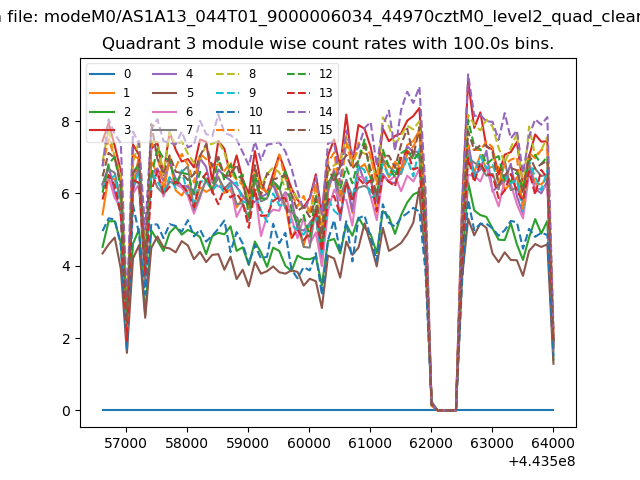

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

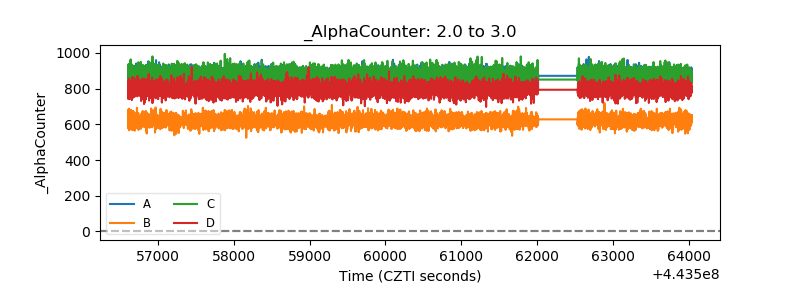

| Alpha Counter |  |

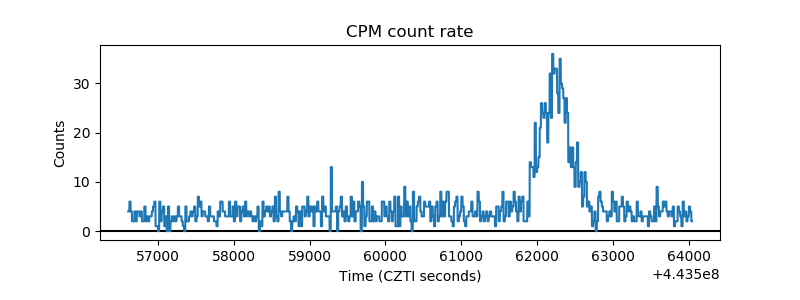

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

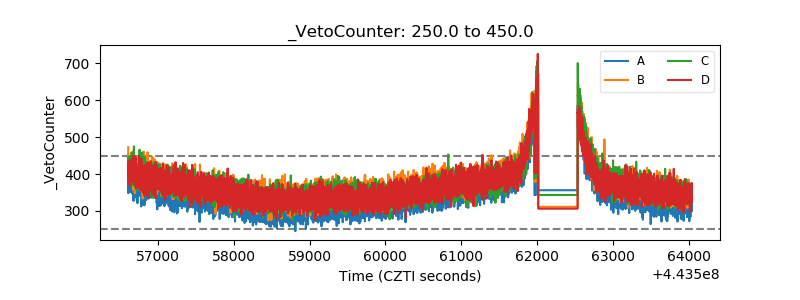

| Veto Counter |  |
