| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T07_9000006036_44982cztM0_level2.fits | modeM0/AS1A13_074T07_9000006036_44982cztM0_level2_quad_clean.evt |
| Size (bytes) | 182,450,880 | 31,089,600 |
| Size | 174.0 MB | 29.6 MB |
| Events in quadrant A | 1,769,922 | 211,198 |
| Events in quadrant B | 1,096,200 | 228,184 |
| Events in quadrant C | 989,656 | 222,199 |
| Events in quadrant D | 2,756,751 | 149,634 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6404 | 1 |
| B | 0 | 4347 | 1 |
| C | 0 | 3994 | 1 |
| D | 0 | 9420 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1788 | 190 | 10.626398% |
| B | 1788 | 101 | 5.648770% |
| C | 1788 | 45 | 2.516779% |
| D | 1788 | 629 | 35.178971% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3003 | 1789 | 5 | 5 | 0.17% | 0.28% |  |
| B | 3003 | 1789 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3003 | 1789 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3003 | 1789 | 399 | 399 | 13.29% | 22.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 784822 | 14306.22 | 252 | 247 | 54.8 |
| A | 13 | 31 | 6505 | 114.11 | 252 | 247 | 54.8 |
| A | 10 | 248 | 2893 | 48.25 | 252 | 247 | 54.8 |
| B | 4 | 171 | 62739 | 1183.0 | 253 | 245 | 52.8 |
| B | 5 | 255 | 14576 | 271.28 | 253 | 245 | 52.8 |
| B | 0 | 186 | 11675 | 216.37 | 253 | 245 | 52.8 |
| C | 3 | 233 | 5326 | 83.15 | 251 | 252 | 61.0 |
| C | 12 | 250 | 2850 | 42.57 | 251 | 252 | 61.0 |
| C | 13 | 61 | 1762 | 24.74 | 251 | 252 | 61.0 |
| D | 11 | 241 | 783877 | 13358.78 | 225 | 218 | 58.7 |
| D | 13 | 249 | 464996 | 7922.92 | 225 | 218 | 58.7 |
| D | 5 | 235 | 267352 | 4553.75 | 225 | 218 | 58.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

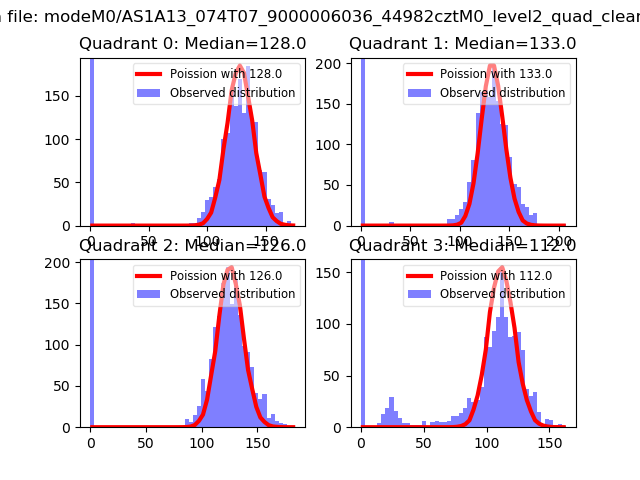

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

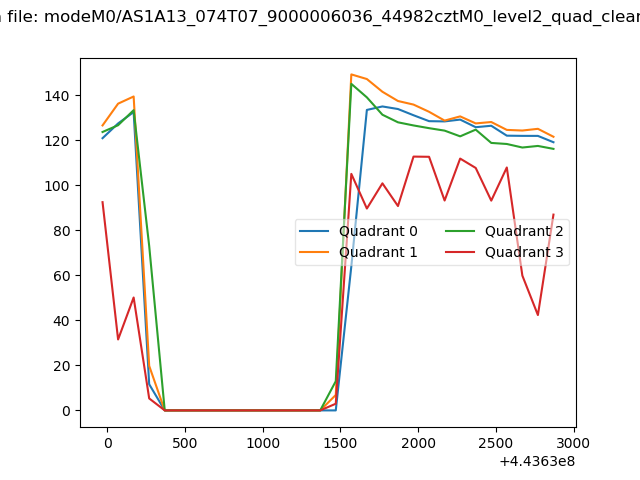

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

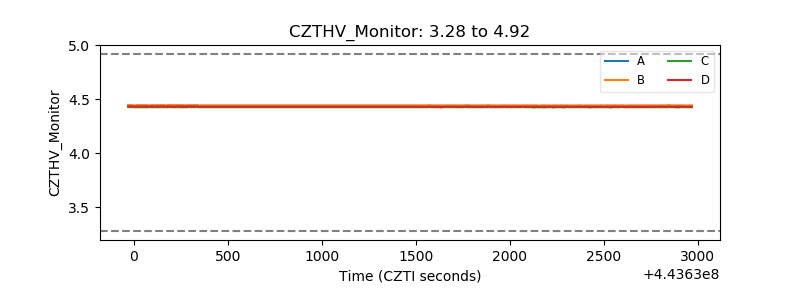

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

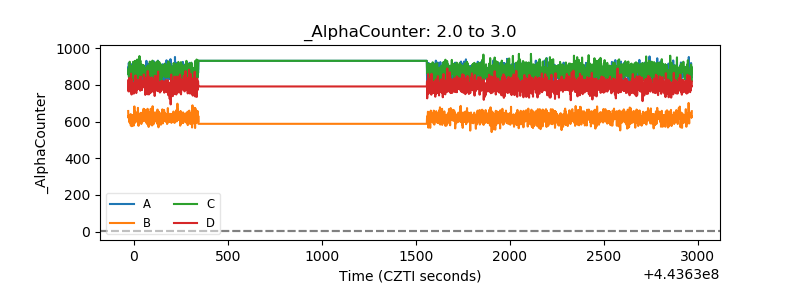

| Alpha Counter |  |

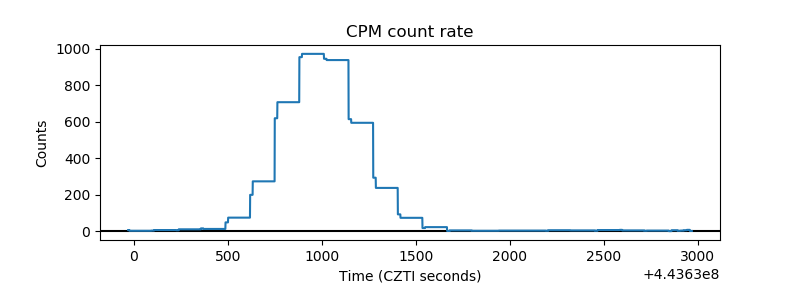

| _CPM_Rate |  |
| CZT Counter |  |

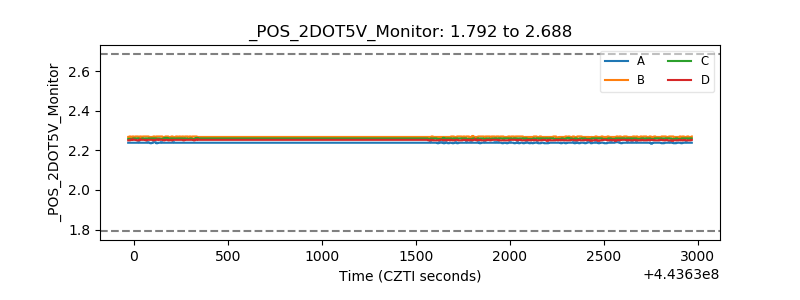

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

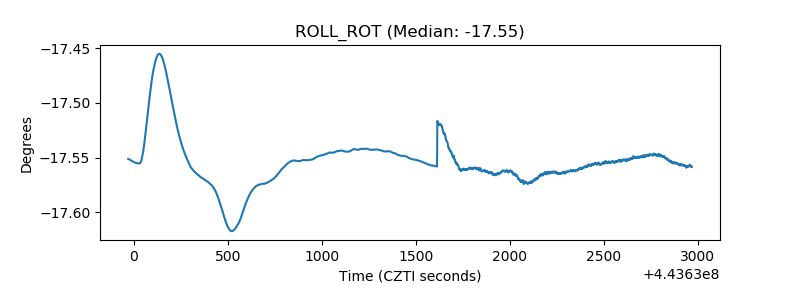

| _ROLL_ROT |  |

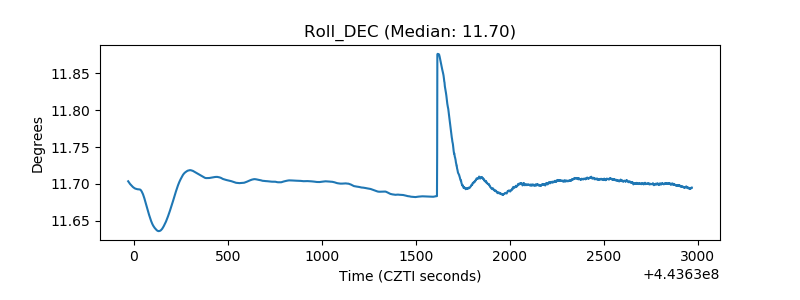

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
