| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_020T01_9000006040_44996cztM0_level2.fits | modeM0/AS1A13_020T01_9000006040_44996cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,763,840 | 114,111,360 |
| Size | 574.8 MB | 108.8 MB |
| Events in quadrant A | 6,317,336 | 793,325 |
| Events in quadrant B | 3,876,756 | 816,582 |
| Events in quadrant C | 3,169,699 | 792,093 |
| Events in quadrant D | 8,441,152 | 595,922 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23163 | 1 |
| B | 0 | 15609 | 1 |
| C | 0 | 13589 | 1 |
| D | 0 | 29782 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6554 | 217 | 3.310955% |
| B | 6554 | 182 | 2.776930% |
| C | 6554 | 70 | 1.068050% |
| D | 6555 | 1453 | 22.166285% |

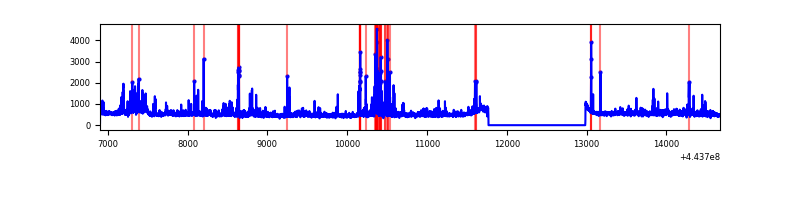

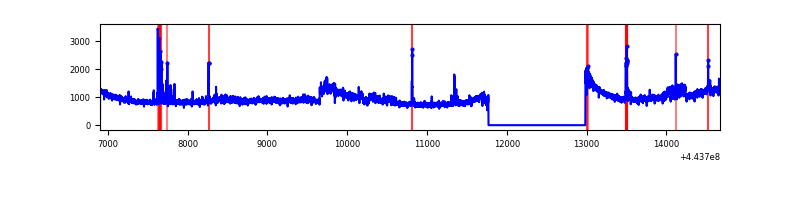

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 6555 | 28 | 28 | 0.36% | 0.43% |  |
| B | 7769 | 6555 | 55 | 55 | 0.71% | 0.84% |  |
| C | 7769 | 6555 | 5 | 5 | 0.06% | 0.08% |  |
| D | 7770 | 6555 | 1092 | 1092 | 14.05% | 16.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2473036 | 14999.21 | 801 | 786 | 164.8 |
| A | 0 | 247 | 579969 | 3513.92 | 801 | 786 | 164.8 |
| A | 13 | 248 | 119677 | 721.32 | 801 | 786 | 164.8 |
| B | 5 | 255 | 269548 | 1749.91 | 798 | 773 | 153.6 |
| B | 0 | 155 | 133549 | 864.46 | 798 | 773 | 153.6 |
| B | 3 | 112 | 121812 | 788.05 | 798 | 773 | 153.6 |
| C | 14 | 254 | 31026 | 163.66 | 791 | 797 | 184.7 |
| C | 12 | 2 | 24255 | 127.01 | 791 | 797 | 184.7 |
| C | 3 | 233 | 16754 | 86.39 | 791 | 797 | 184.7 |
| D | 13 | 249 | 2581139 | 14236.02 | 717 | 695 | 181.3 |
| D | 11 | 241 | 1907505 | 10519.66 | 717 | 695 | 181.3 |
| D | 1 | 52 | 379445 | 2089.52 | 717 | 695 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

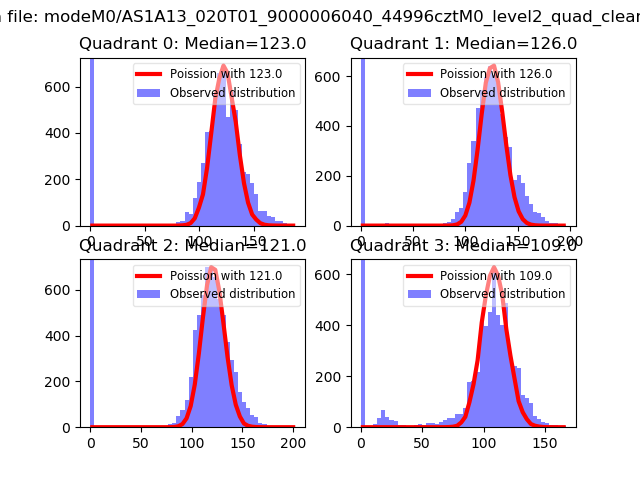

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

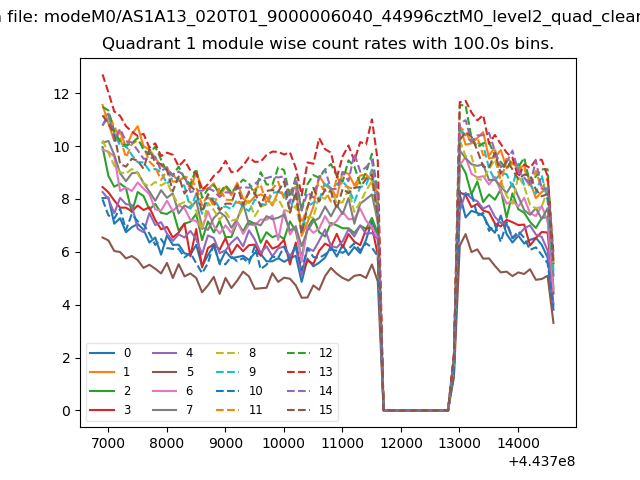

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

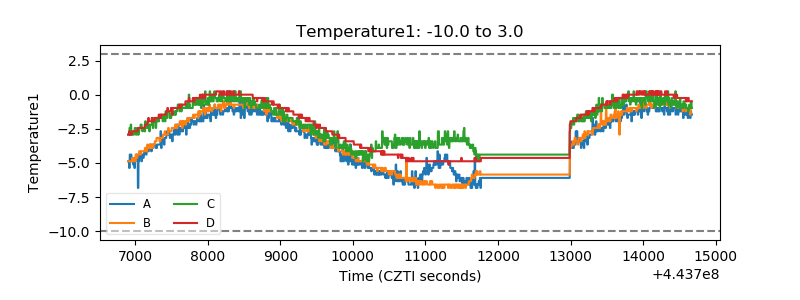

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

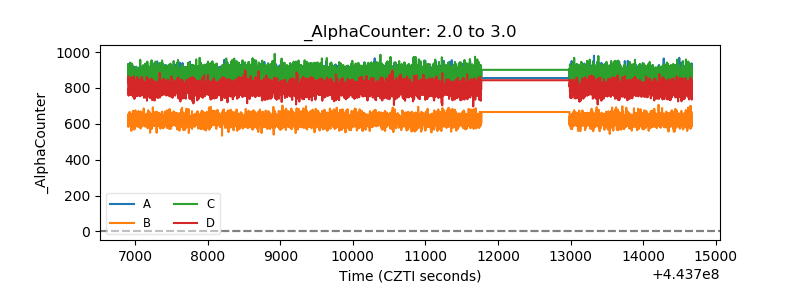

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

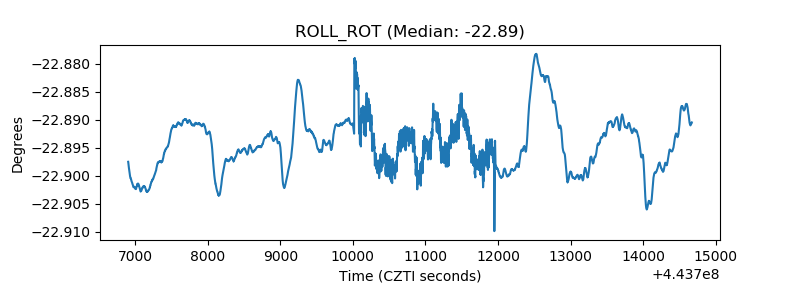

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
