| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_020T01_9000006040_45008cztM0_level2.fits | modeM0/AS1A13_020T01_9000006040_45008cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,749,120 | 102,669,120 |
| Size | 407.9 MB | 97.9 MB |
| Events in quadrant A | 5,219,115 | 676,566 |
| Events in quadrant B | 3,291,398 | 702,721 |
| Events in quadrant C | 2,762,762 | 687,882 |
| Events in quadrant D | 4,086,835 | 615,613 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19984 | 1 |
| B | 0 | 13730 | 2 |
| C | 0 | 12454 | 1 |
| D | 0 | 16176 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6100 | 191 | 3.131148% |
| B | 6100 | 93 | 1.524590% |
| C | 6100 | 27 | 0.442623% |
| D | 6100 | 197 | 3.229508% |

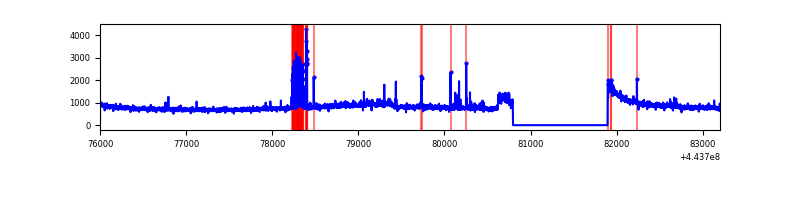

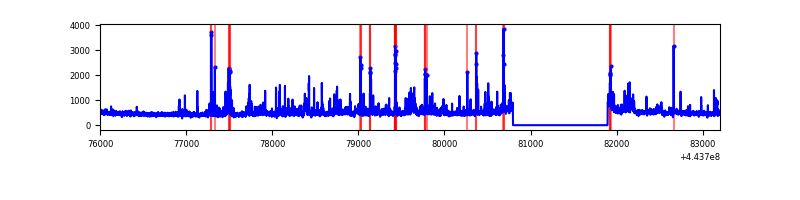

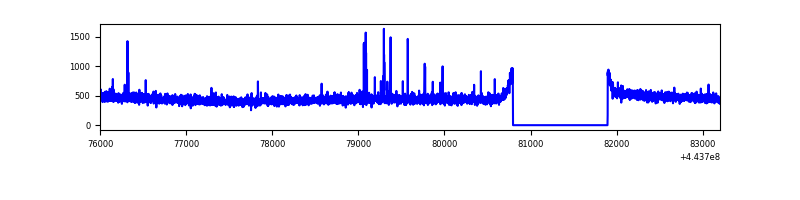

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

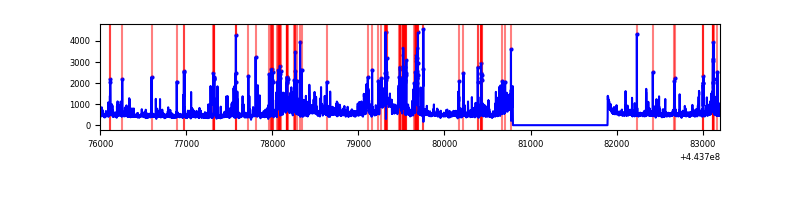

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7200 | 6101 | 55 | 55 | 0.76% | 0.90% |  |
| B | 7200 | 6101 | 36 | 36 | 0.50% | 0.59% |  |
| C | 7200 | 6101 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7200 | 6101 | 128 | 128 | 1.78% | 2.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2147744 | 14800.45 | 697 | 685 | 145.1 |
| A | 13 | 248 | 359040 | 2470.27 | 697 | 685 | 145.1 |
| A | 10 | 248 | 10922 | 70.57 | 697 | 685 | 145.1 |
| B | 5 | 255 | 117803 | 857.53 | 696 | 677 | 136.6 |
| B | 0 | 189 | 75174 | 545.43 | 696 | 677 | 136.6 |
| B | 5 | 172 | 73978 | 536.67 | 696 | 677 | 136.6 |
| C | 14 | 254 | 33099 | 198.82 | 697 | 702 | 162.9 |
| C | 1 | 3 | 5808 | 31.33 | 697 | 702 | 162.9 |
| C | 3 | 233 | 5368 | 28.63 | 697 | 702 | 162.9 |
| D | 1 | 52 | 348841 | 2025.17 | 687 | 667 | 171.9 |
| D | 13 | 249 | 186720 | 1082.18 | 687 | 667 | 171.9 |
| D | 13 | 29 | 121177 | 700.95 | 687 | 667 | 171.9 |

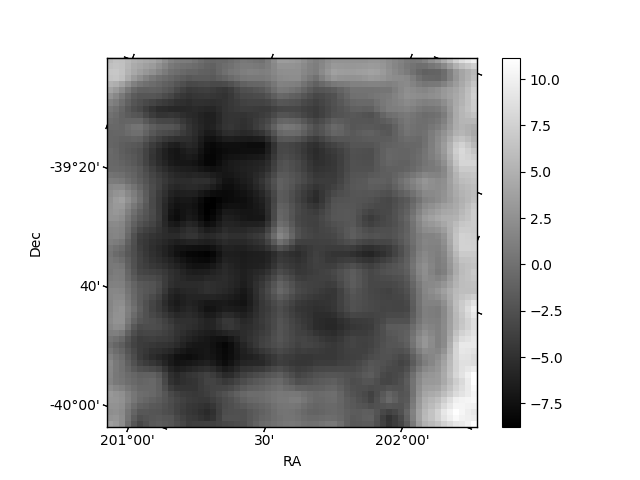

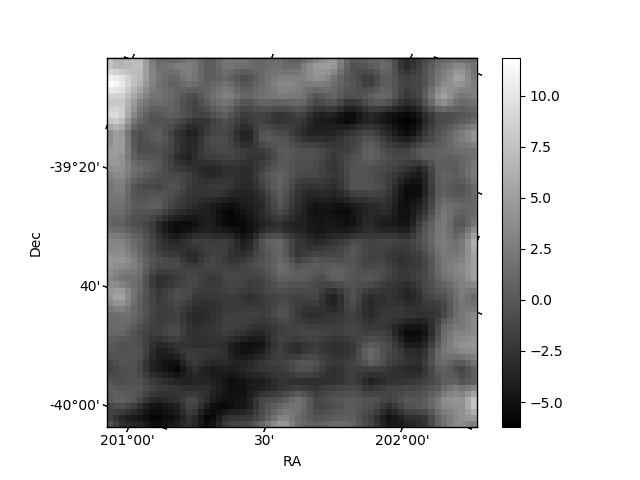

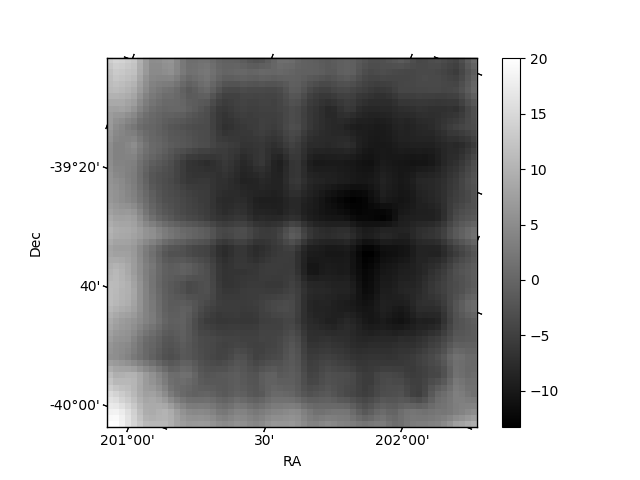

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

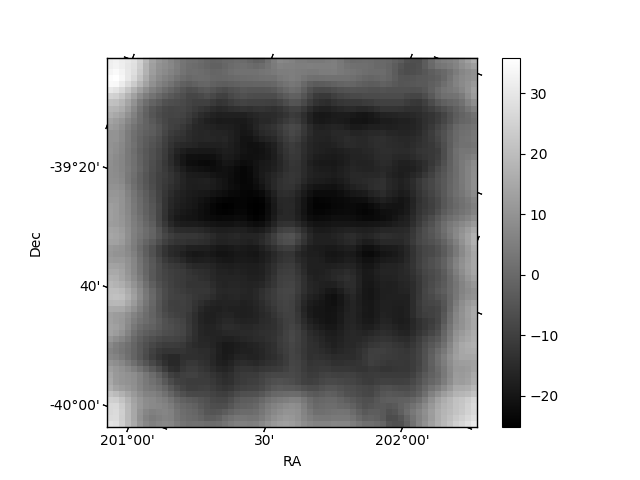

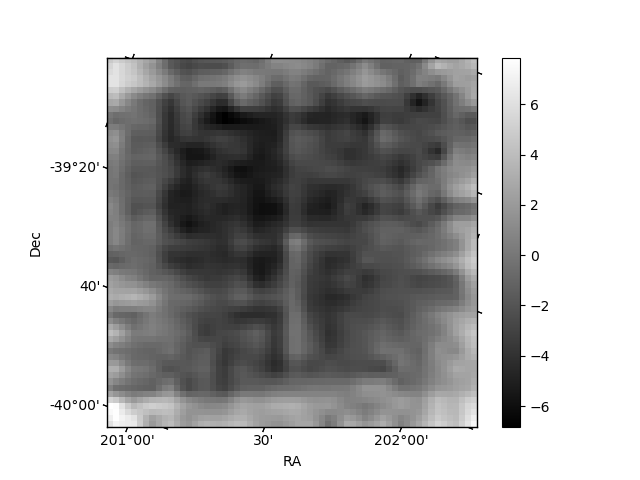

| Plot type | Count rate plots | Images |
|---|---|---|

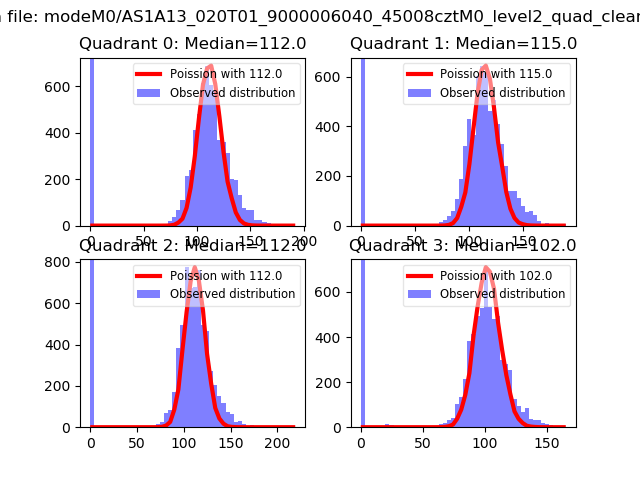

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

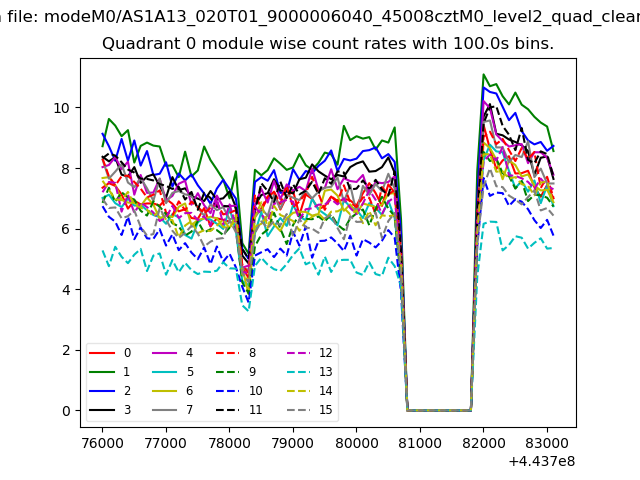

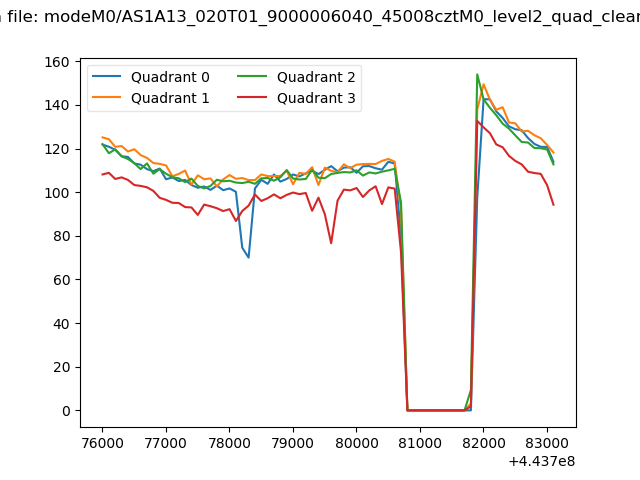

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

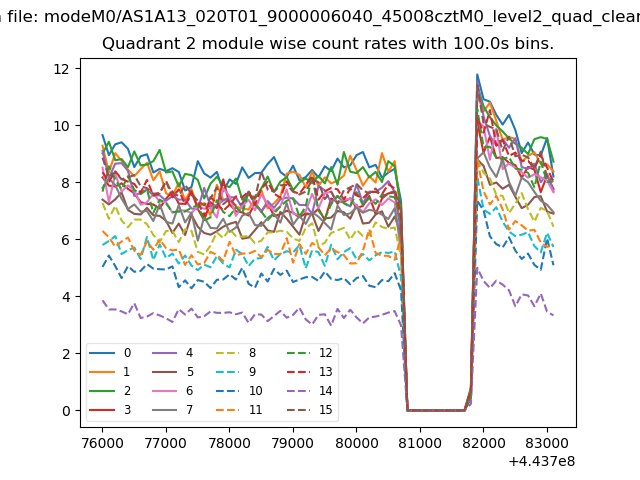

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

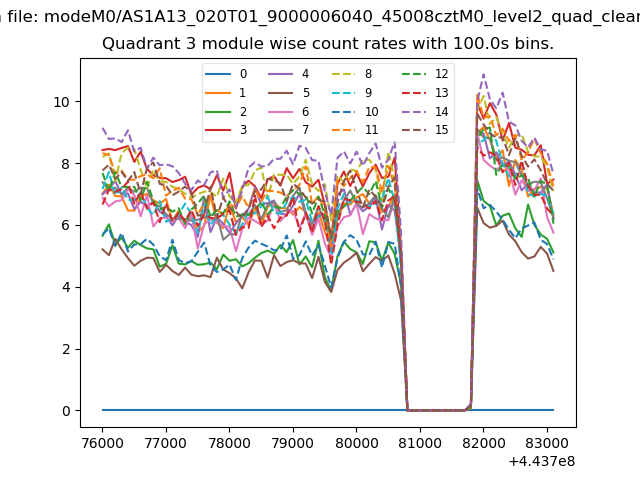

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

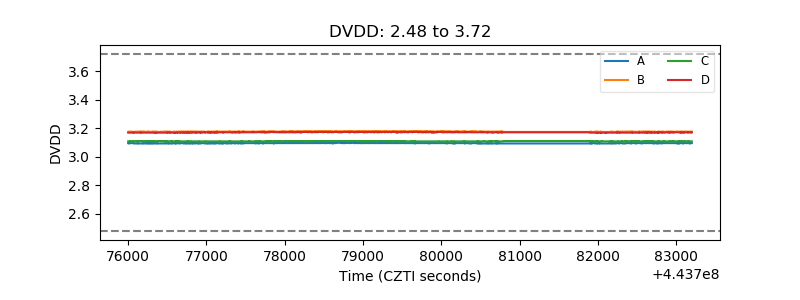

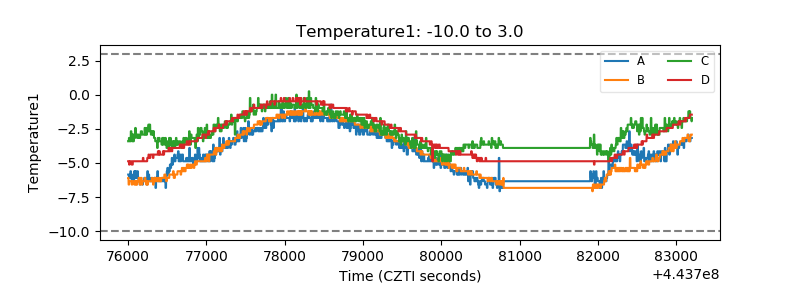

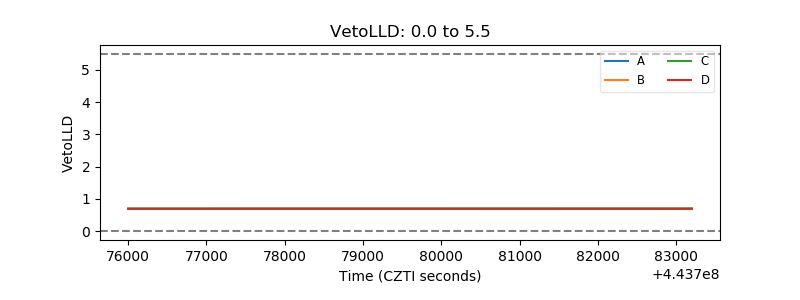

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

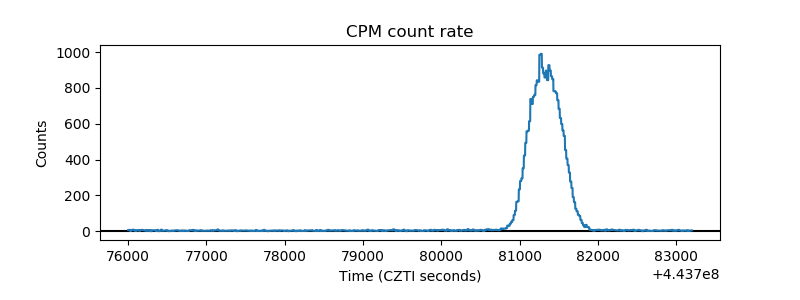

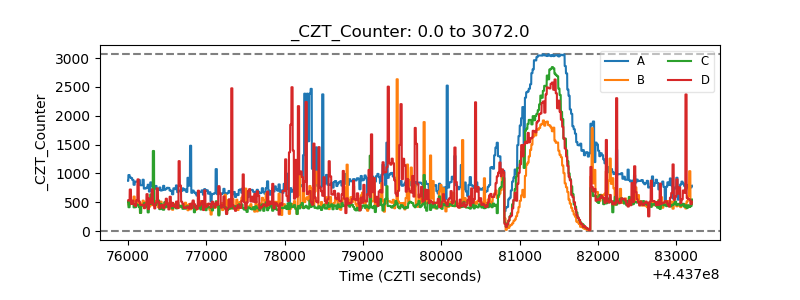

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

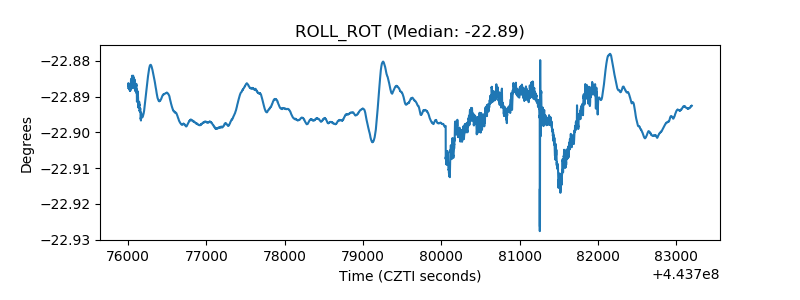

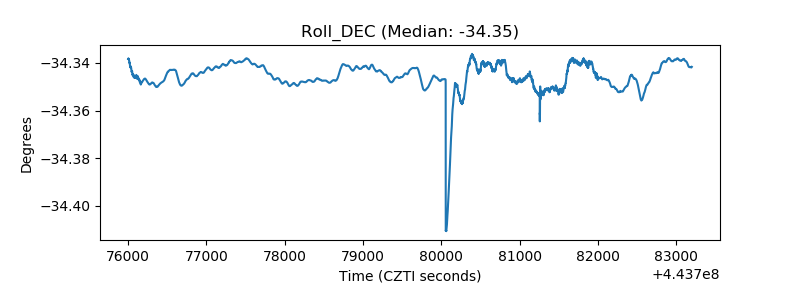

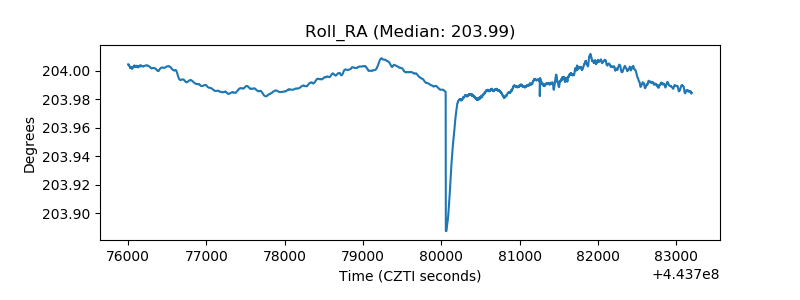

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

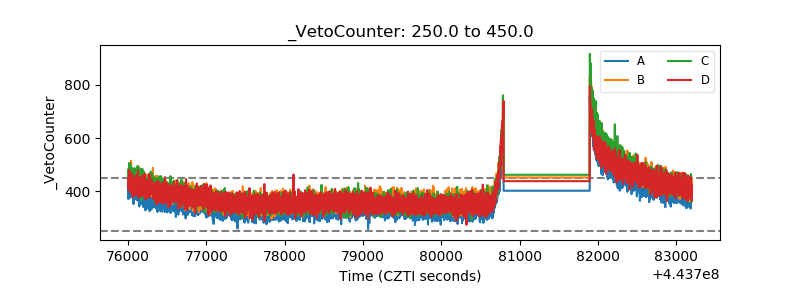

| Veto Counter |  |
