| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_020T01_9000006040_45013cztM0_level2.fits | modeM0/AS1A13_020T01_9000006040_45013cztM0_level2_quad_clean.evt |
| Size (bytes) | 662,256,000 | 104,567,040 |
| Size | 631.6 MB | 99.7 MB |
| Events in quadrant A | 6,174,384 | 716,575 |
| Events in quadrant B | 4,191,811 | 754,715 |
| Events in quadrant C | 3,400,382 | 741,980 |
| Events in quadrant D | 10,217,820 | 476,715 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23234 | 2 |
| B | 0 | 17108 | 1 |
| C | 0 | 14991 | 1 |
| D | 0 | 35130 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6841 | 464 | 6.782634% |
| B | 6841 | 260 | 3.800614% |
| C | 6841 | 145 | 2.119573% |
| D | 6842 | 2321 | 33.922830% |

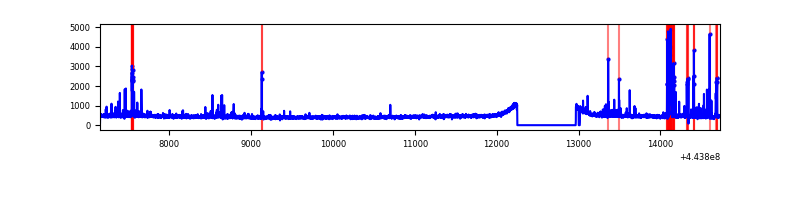

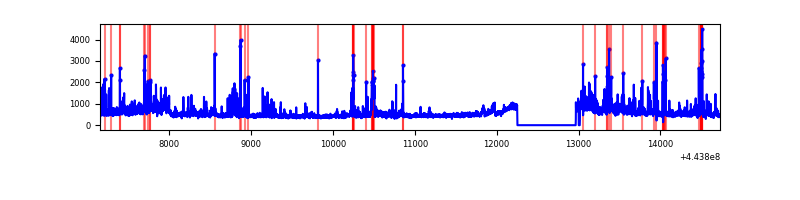

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7571 | 6843 | 191 | 191 | 2.52% | 2.79% |  |
| B | 7571 | 6843 | 59 | 59 | 0.78% | 0.86% |  |
| C | 7571 | 6843 | 57 | 57 | 0.75% | 0.83% |  |
| D | 7572 | 6844 | 2020 | 2020 | 26.68% | 29.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2543710 | 15551.07 | 788 | 770 | 163.5 |
| A | 13 | 248 | 505490 | 3086.56 | 788 | 770 | 163.5 |
| A | 0 | 243 | 32850 | 196.18 | 788 | 770 | 163.5 |
| B | 0 | 189 | 315971 | 2019.03 | 789 | 766 | 156.1 |
| B | 0 | 183 | 171263 | 1092.11 | 789 | 766 | 156.1 |
| B | 0 | 155 | 137300 | 874.56 | 789 | 766 | 156.1 |
| C | 12 | 2 | 267676 | 1457.18 | 780 | 784 | 183.2 |
| C | 15 | 208 | 55691 | 299.78 | 780 | 784 | 183.2 |
| C | 1 | 3 | 18580 | 97.16 | 780 | 784 | 183.2 |
| D | 13 | 187 | 2655694 | 16081.17 | 645 | 624 | 165.1 |
| D | 12 | 33 | 1277908 | 7736.23 | 645 | 624 | 165.1 |
| D | 1 | 52 | 915428 | 5540.77 | 645 | 624 | 165.1 |

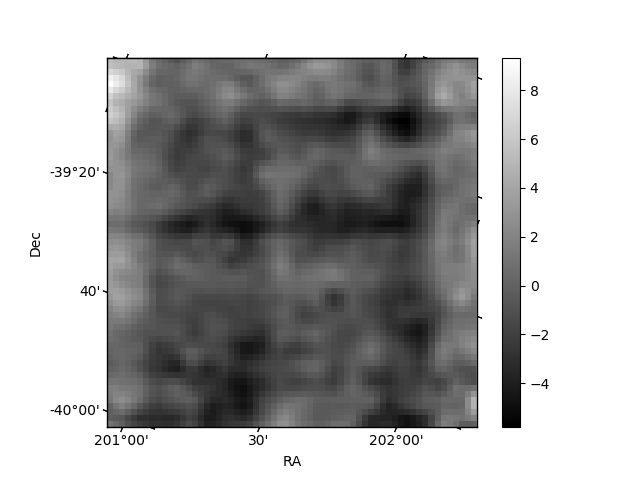

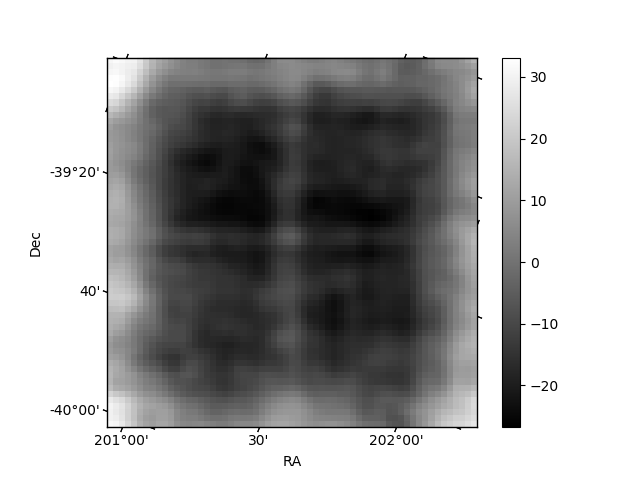

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

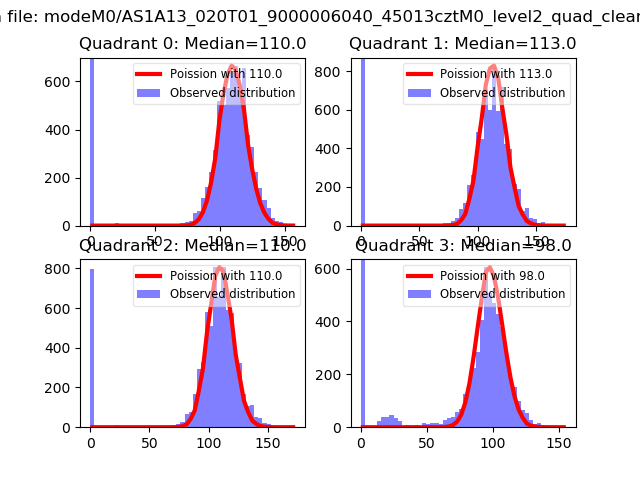

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

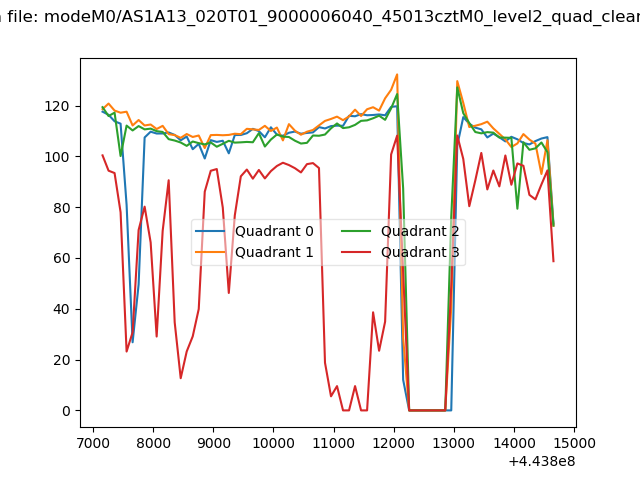

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

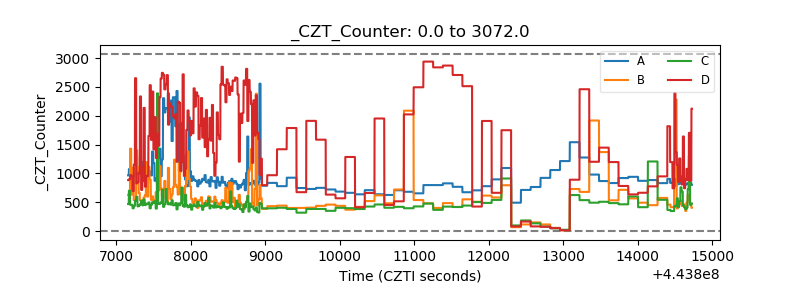

| CZT Counter |  |
