| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_020T01_9000006040_45058cztM0_level2.fits | modeM0/AS1A13_020T01_9000006040_45058cztM0_level2_quad_clean.evt |
| Size (bytes) | 796,115,520 | 111,983,040 |
| Size | 759.2 MB | 106.8 MB |
| Events in quadrant A | 6,215,503 | 818,377 |
| Events in quadrant B | 4,051,144 | 837,967 |
| Events in quadrant C | 3,747,024 | 819,465 |
| Events in quadrant D | 14,862,063 | 381,067 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24010 | 5 |
| B | 0 | 17317 | 0 |
| C | 0 | 16667 | 0 |
| D | 0 | 49430 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7666 | 258 | 3.365510% |
| B | 7669 | 225 | 2.933890% |
| C | 7669 | 89 | 1.160516% |
| D | 7667 | 4221 | 55.054128% |

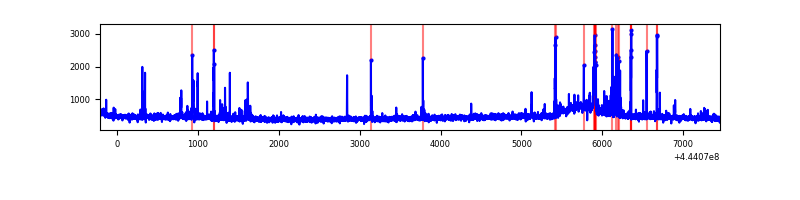

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7668 | 7667 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7669 | 7669 | 37 | 37 | 0.48% | 0.48% |  |
| C | 7669 | 7669 | 27 | 27 | 0.35% | 0.35% |  |
| D | 7668 | 7668 | 3617 | 3617 | 47.17% | 47.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2666915 | 14366.09 | 893 | 871 | 185.6 |
| A | 0 | 243 | 30695 | 160.71 | 893 | 871 | 185.6 |
| A | 7 | 3 | 22478 | 116.43 | 893 | 871 | 185.6 |
| B | 5 | 255 | 235403 | 1334.45 | 887 | 860 | 175.8 |
| B | 0 | 155 | 83315 | 469.13 | 887 | 860 | 175.8 |
| B | 0 | 168 | 65197 | 366.05 | 887 | 860 | 175.8 |
| C | 12 | 250 | 93708 | 448.97 | 876 | 881 | 206.8 |
| C | 14 | 254 | 88892 | 425.68 | 876 | 881 | 206.8 |
| C | 1 | 3 | 72583 | 346.8 | 876 | 881 | 206.8 |
| D | 13 | 174 | 4946221 | 25915.41 | 732 | 707 | 190.8 |
| D | 11 | 241 | 4230505 | 22164.93 | 732 | 707 | 190.8 |
| D | 12 | 33 | 572950 | 2998.66 | 732 | 707 | 190.8 |

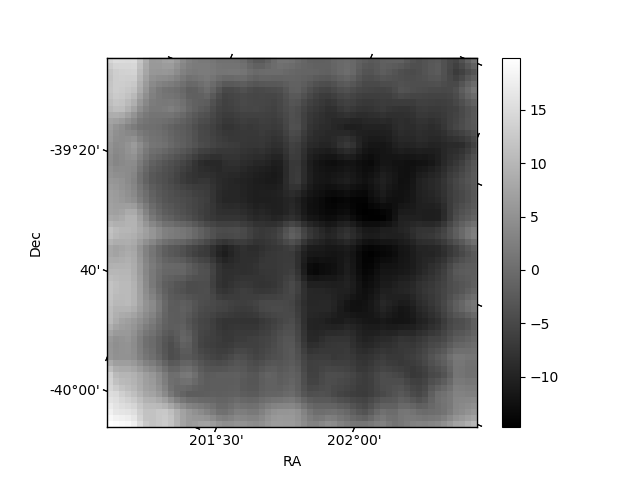

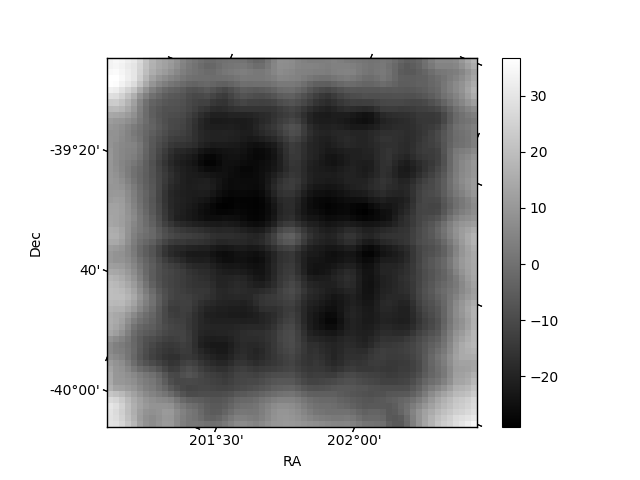

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

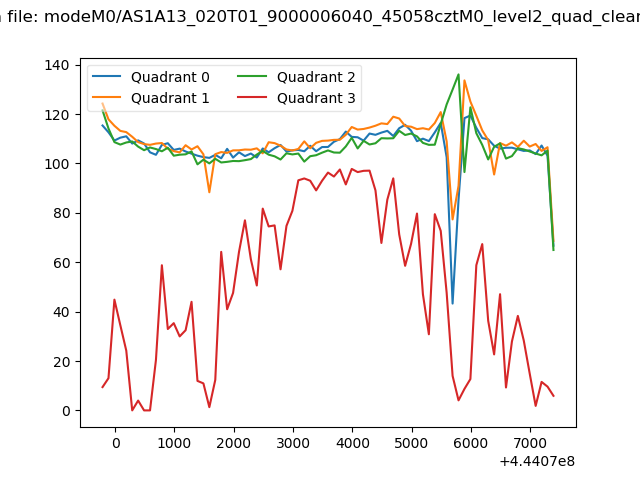

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

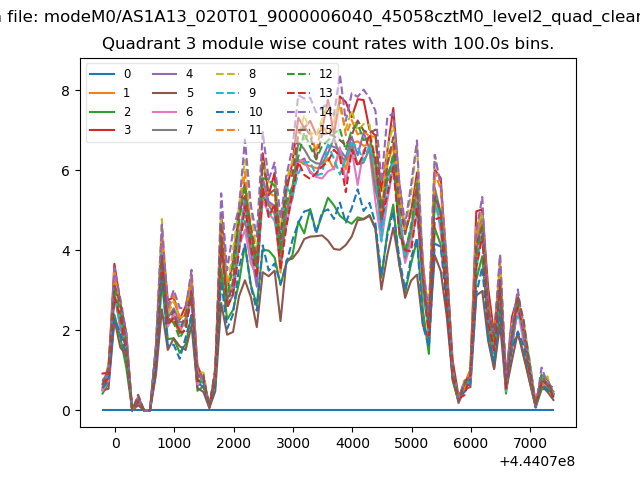

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

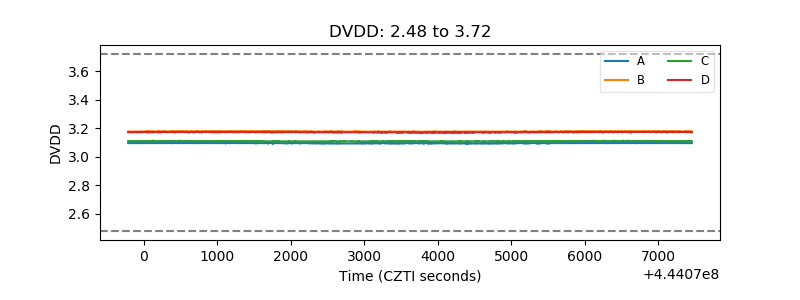

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

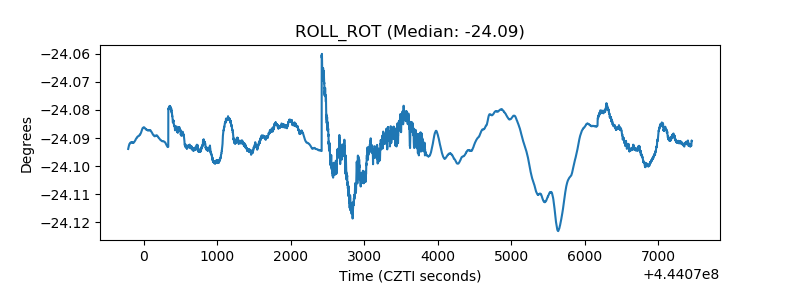

| _ROLL_ROT |  |

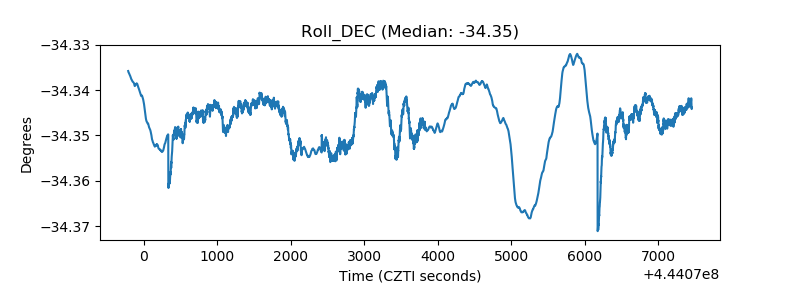

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
