| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_049T07_9000006056_45228cztM0_level2.fits | modeM0/AS1A13_049T07_9000006056_45228cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,945,920 | 112,654,080 |
| Size | 479.6 MB | 107.4 MB |
| Events in quadrant A | 5,480,445 | 750,565 |
| Events in quadrant B | 3,774,333 | 787,500 |
| Events in quadrant C | 3,535,064 | 766,909 |
| Events in quadrant D | 5,330,228 | 658,411 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20816 | 3 |
| B | 0 | 15339 | 2 |
| C | 0 | 14634 | 2 |
| D | 0 | 20170 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6412 | 192 | 2.994386% |
| B | 6412 | 198 | 3.087960% |
| C | 6412 | 143 | 2.230193% |
| D | 6412 | 477 | 7.439177% |

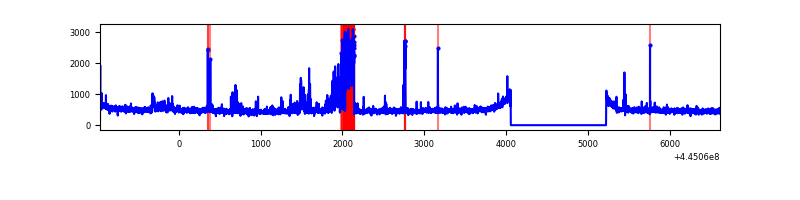

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 6413 | 18 | 18 | 0.24% | 0.28% |  |
| B | 7577 | 6412 | 99 | 99 | 1.31% | 1.54% |  |
| C | 7577 | 6413 | 91 | 91 | 1.20% | 1.42% |  |
| D | 7577 | 6413 | 417 | 417 | 5.50% | 6.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2489198 | 16097.79 | 754 | 737 | 154.6 |
| A | 13 | 248 | 40319 | 256.05 | 754 | 737 | 154.6 |
| A | 2 | 79 | 26967 | 169.68 | 754 | 737 | 154.6 |
| B | 5 | 32 | 394884 | 2695.97 | 759 | 736 | 146.2 |
| B | 3 | 112 | 174936 | 1191.53 | 759 | 736 | 146.2 |
| B | 5 | 172 | 149838 | 1019.86 | 759 | 736 | 146.2 |
| C | 12 | 2 | 472157 | 2630.37 | 766 | 773 | 179.2 |
| C | 3 | 233 | 24355 | 131.59 | 766 | 773 | 179.2 |
| C | 1 | 3 | 18713 | 100.11 | 766 | 773 | 179.2 |
| D | 13 | 249 | 1408151 | 7693.32 | 739 | 720 | 182.9 |
| D | 5 | 222 | 362965 | 1980.11 | 739 | 720 | 182.9 |
| D | 2 | 249 | 191862 | 1044.82 | 739 | 720 | 182.9 |

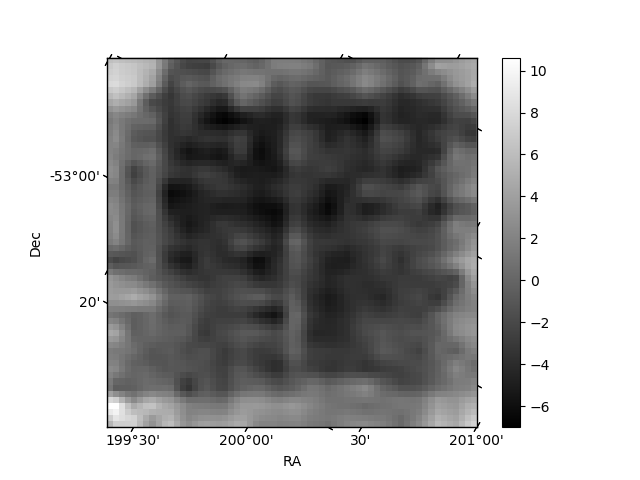

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

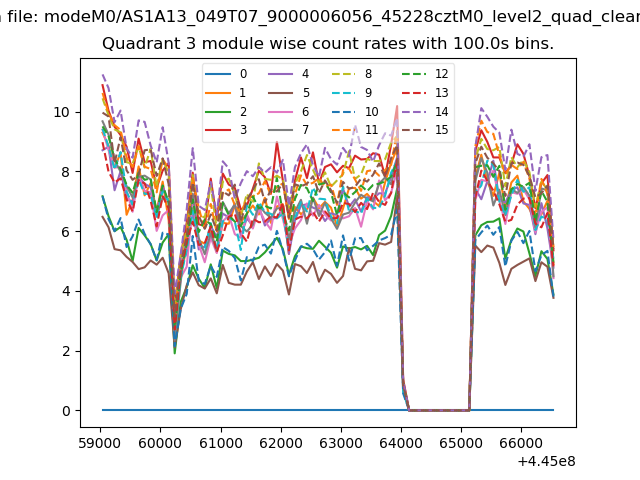

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

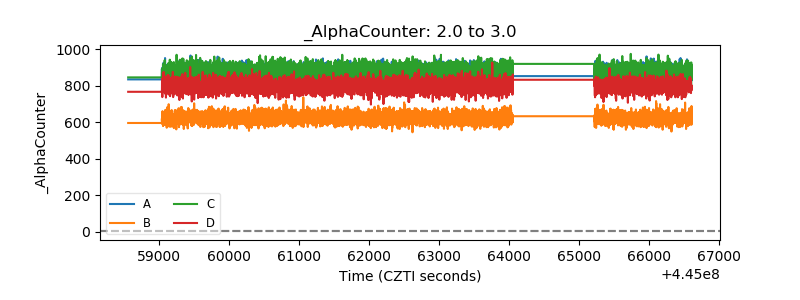

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

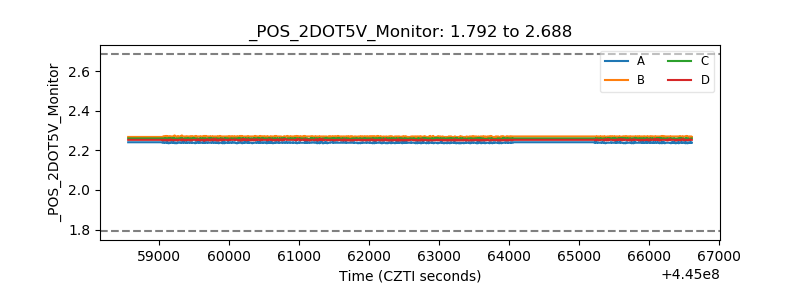

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

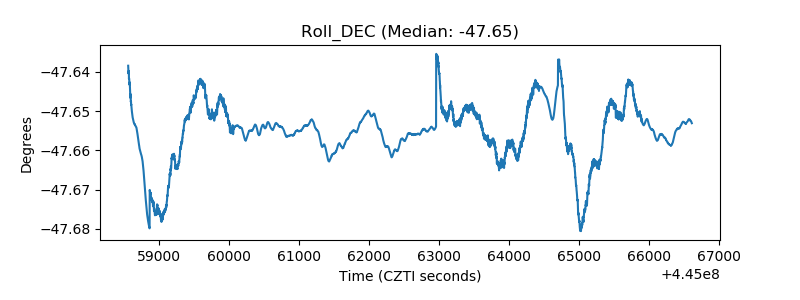

| _Roll_DEC |  |

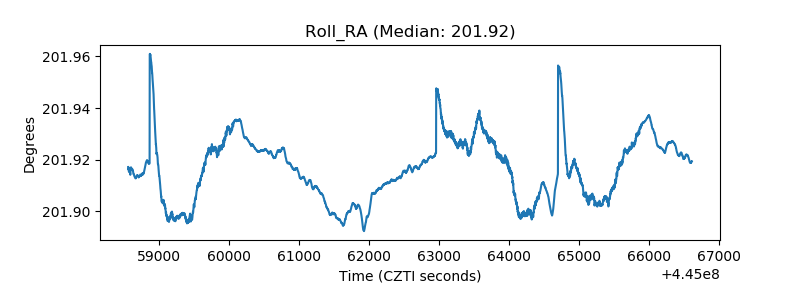

| _Roll_RA |  |

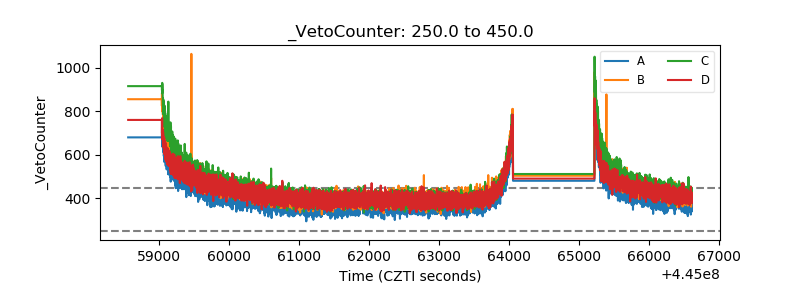

| Veto Counter |  |
