| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_038T03_9000006058_45243cztM0_level2.fits | modeM0/AS1A13_038T03_9000006058_45243cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,678,080 | 112,901,760 |
| Size | 445.1 MB | 107.7 MB |
| Events in quadrant A | 5,518,762 | 748,901 |
| Events in quadrant B | 3,205,322 | 792,833 |
| Events in quadrant C | 3,250,601 | 764,382 |
| Events in quadrant D | 4,798,689 | 661,852 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20985 | 2 |
| B | 0 | 13763 | 2 |
| C | 0 | 13944 | 2 |
| D | 0 | 18561 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6461 | 175 | 2.708559% |
| B | 6461 | 78 | 1.207243% |
| C | 6461 | 77 | 1.191766% |
| D | 6461 | 393 | 6.082650% |

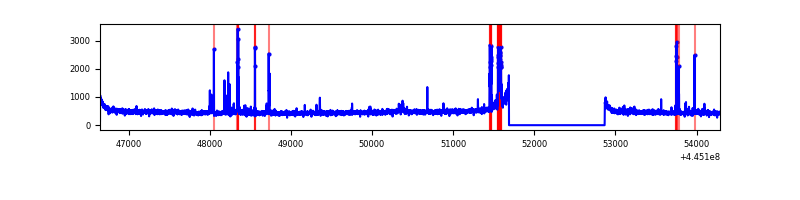

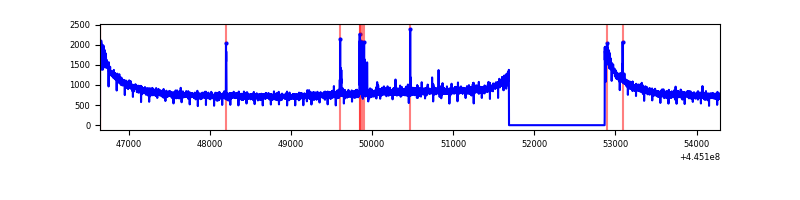

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7641 | 6462 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7641 | 6462 | 14 | 14 | 0.18% | 0.22% |  |
| C | 7641 | 6462 | 46 | 46 | 0.60% | 0.71% |  |
| D | 7641 | 6462 | 323 | 323 | 4.23% | 5.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2512638 | 15803.38 | 763 | 747 | 158.9 |
| A | 13 | 248 | 47952 | 296.99 | 763 | 747 | 158.9 |
| A | 7 | 16 | 9106 | 52.59 | 763 | 747 | 158.9 |
| B | 10 | 3 | 66924 | 436.13 | 770 | 746 | 151.7 |
| B | 5 | 172 | 36921 | 238.4 | 770 | 746 | 151.7 |
| B | 5 | 255 | 36491 | 235.57 | 770 | 746 | 151.7 |
| C | 14 | 254 | 214546 | 1194.55 | 764 | 771 | 179.0 |
| C | 12 | 249 | 19569 | 105.04 | 764 | 771 | 179.0 |
| C | 1 | 3 | 13259 | 69.78 | 764 | 771 | 179.0 |
| D | 13 | 249 | 963680 | 5146.53 | 742 | 723 | 187.1 |
| D | 11 | 241 | 218863 | 1165.85 | 742 | 723 | 187.1 |
| D | 12 | 17 | 195365 | 1040.26 | 742 | 723 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

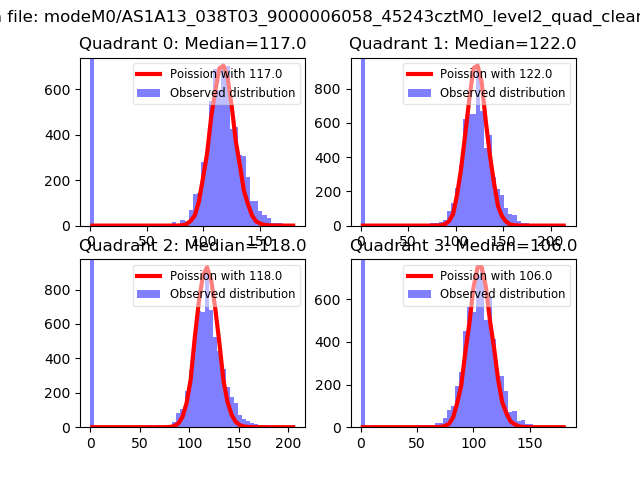

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

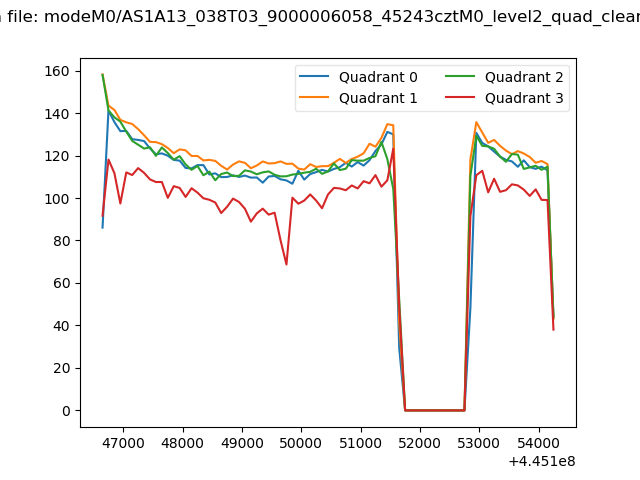

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

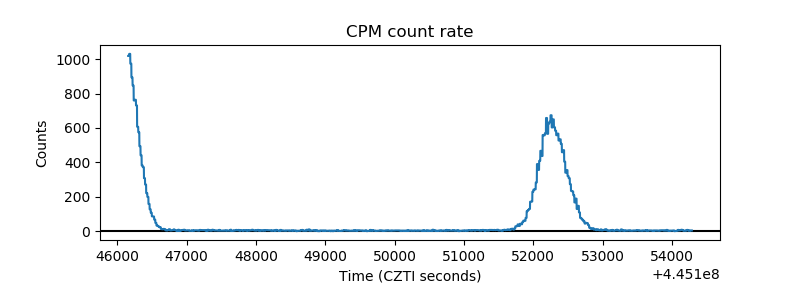

| _CPM_Rate |  |

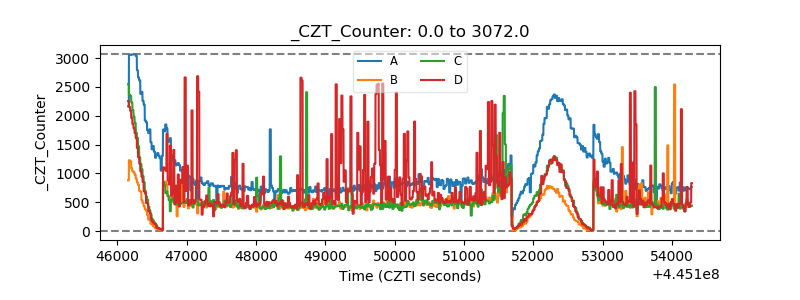

| CZT Counter |  |

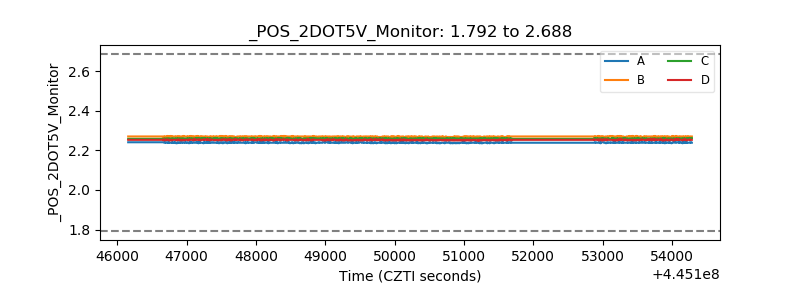

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
