| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_023T05_9000006062_45257cztM0_level2.fits | modeM0/AS1A13_023T05_9000006062_45257cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,542,720 | 114,520,320 |
| Size | 427.8 MB | 109.2 MB |
| Events in quadrant A | 5,390,758 | 757,706 |
| Events in quadrant B | 3,144,701 | 814,681 |
| Events in quadrant C | 3,220,122 | 773,418 |
| Events in quadrant D | 4,353,341 | 677,533 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20748 | 9 |
| B | 0 | 13351 | 2 |
| C | 0 | 13636 | 2 |
| D | 0 | 17174 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6369 | 176 | 2.763385% |
| B | 6371 | 55 | 0.863287% |
| C | 6371 | 64 | 1.004552% |
| D | 6371 | 302 | 4.740229% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 6371 | 36 | 36 | 0.47% | 0.57% |  |
| B | 7606 | 6371 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7606 | 6372 | 31 | 31 | 0.41% | 0.49% |  |
| D | 7606 | 6371 | 266 | 266 | 3.50% | 4.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2309909 | 14636.85 | 762 | 746 | 157.8 |
| A | 13 | 248 | 121681 | 766.56 | 762 | 746 | 157.8 |
| A | 3 | 137 | 8376 | 48.36 | 762 | 746 | 157.8 |
| B | 5 | 172 | 54132 | 357.58 | 772 | 748 | 149.3 |
| B | 0 | 246 | 20969 | 135.44 | 772 | 748 | 149.3 |
| B | 12 | 111 | 19177 | 123.44 | 772 | 748 | 149.3 |
| C | 1 | 3 | 156840 | 863.27 | 771 | 779 | 180.8 |
| C | 12 | 2 | 20872 | 111.15 | 771 | 779 | 180.8 |
| C | 3 | 233 | 14464 | 75.7 | 771 | 779 | 180.8 |
| D | 13 | 249 | 849709 | 4585.02 | 749 | 727 | 185.2 |
| D | 11 | 241 | 196753 | 1058.66 | 749 | 727 | 185.2 |
| D | 5 | 171 | 105540 | 566.05 | 749 | 727 | 185.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

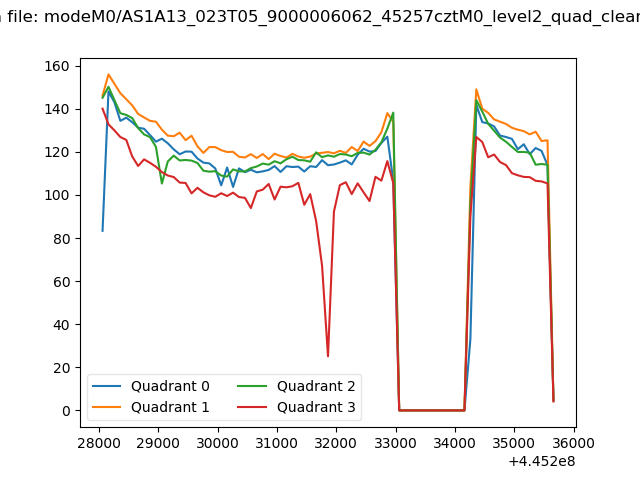

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

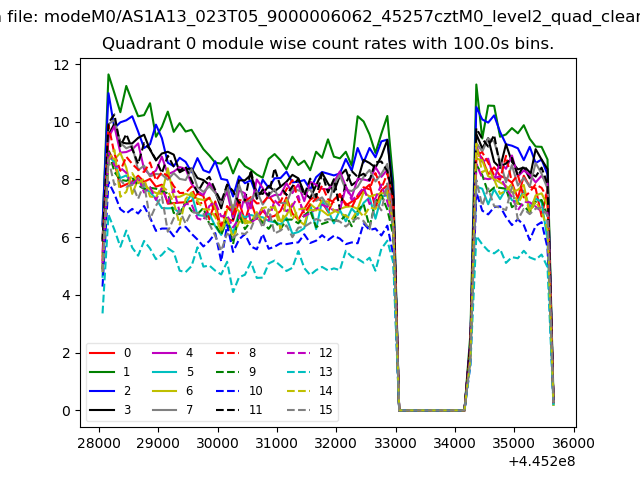

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

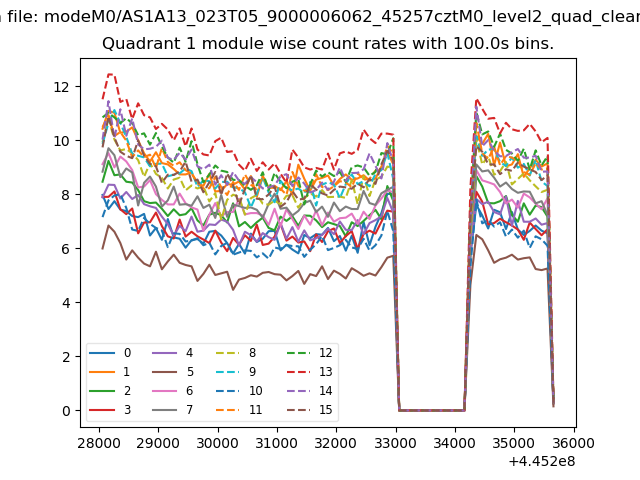

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

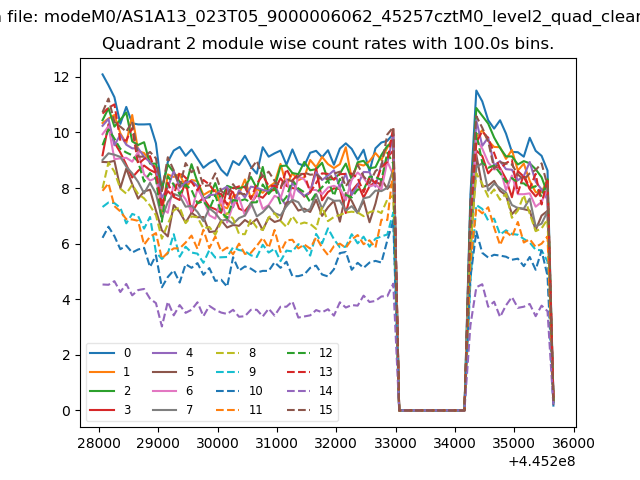

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

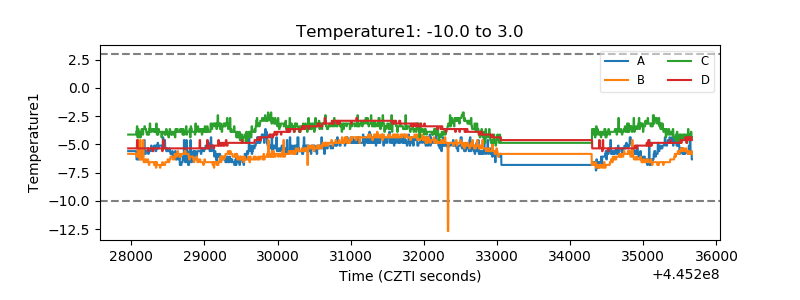

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

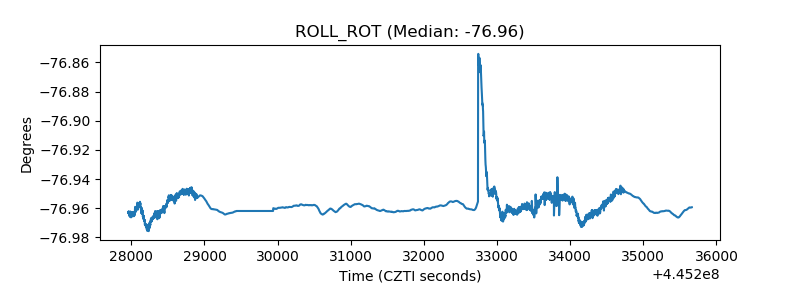

| _ROLL_ROT |  |
| _Roll_DEC |  |

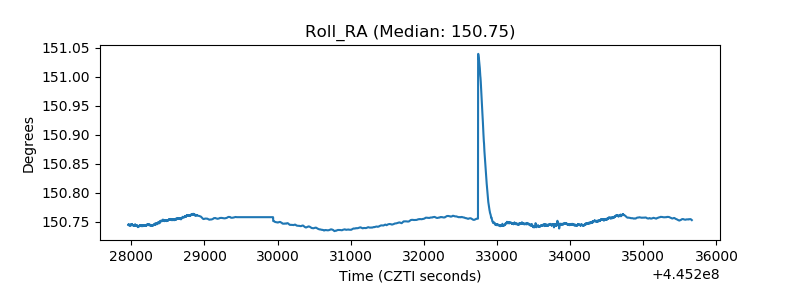

| _Roll_RA |  |
| Veto Counter |  |
