| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_024T03_9000006064_45294cztM0_level2.fits | modeM0/AS1A13_024T03_9000006064_45294cztM0_level2_quad_clean.evt |
| Size (bytes) | 263,615,040 | 55,725,120 |
| Size | 251.4 MB | 53.1 MB |
| Events in quadrant A | 2,911,091 | 378,339 |
| Events in quadrant B | 1,625,090 | 387,798 |
| Events in quadrant C | 1,740,846 | 364,187 |
| Events in quadrant D | 3,197,992 | 300,609 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10942 | 0 |
| B | 0 | 7400 | 0 |
| C | 0 | 7830 | 0 |
| D | 0 | 11957 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3624 | 4 | 0.110375% |
| B | 3624 | 5 | 0.137969% |
| C | 3624 | 30 | 0.827815% |
| D | 3625 | 447 | 12.331034% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3624 | 3624 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3624 | 3624 | 2 | 2 | 0.06% | 0.06% |  |
| C | 3624 | 3624 | 25 | 25 | 0.69% | 0.69% |  |
| D | 3625 | 3625 | 420 | 420 | 11.59% | 11.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1371934 | 16555.11 | 389 | 381 | 82.8 |
| A | 10 | 248 | 27536 | 327.77 | 389 | 381 | 82.8 |
| A | 13 | 254 | 4797 | 53.3 | 389 | 381 | 82.8 |
| B | 0 | 186 | 26386 | 337.93 | 386 | 375 | 77.0 |
| B | 3 | 112 | 19098 | 243.25 | 386 | 375 | 77.0 |
| B | 5 | 172 | 14589 | 184.67 | 386 | 375 | 77.0 |
| C | 14 | 254 | 176816 | 1935.02 | 380 | 381 | 91.2 |
| C | 3 | 233 | 46400 | 504.7 | 380 | 381 | 91.2 |
| C | 12 | 2 | 27592 | 298.43 | 380 | 381 | 91.2 |
| D | 2 | 249 | 824441 | 8924.13 | 358 | 347 | 92.3 |
| D | 13 | 249 | 596568 | 6456.49 | 358 | 347 | 92.3 |
| D | 13 | 29 | 105873 | 1142.74 | 358 | 347 | 92.3 |

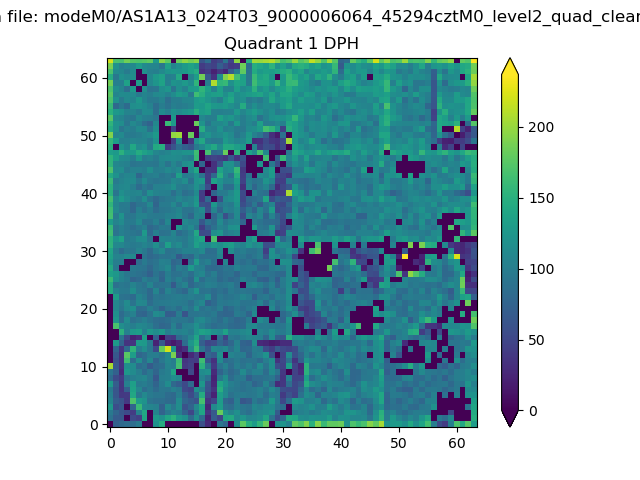

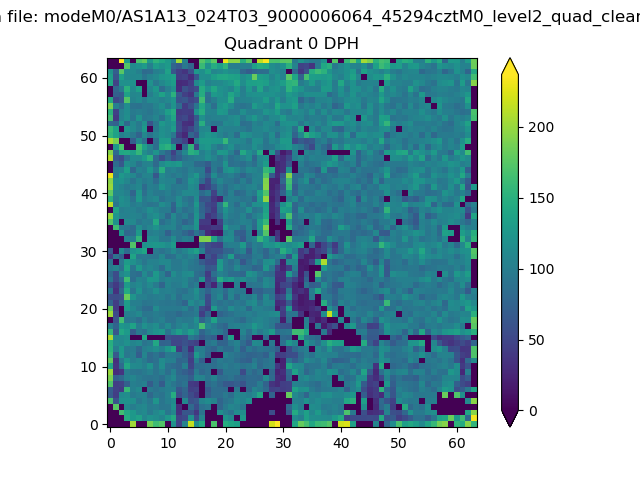

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

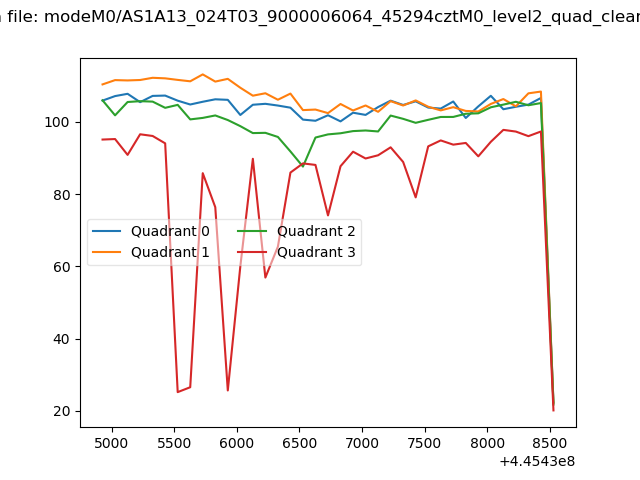

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

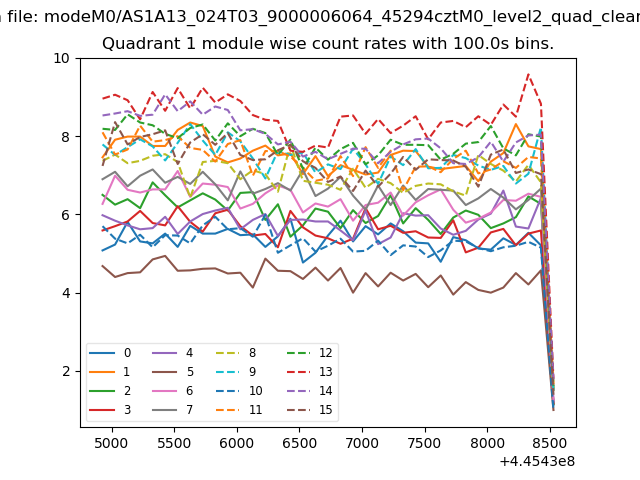

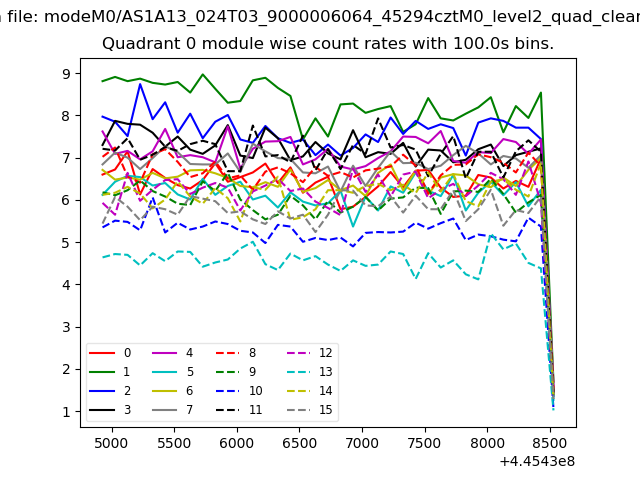

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

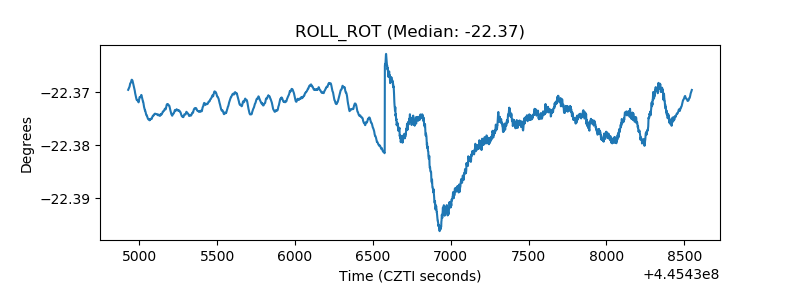

| _ROLL_ROT |  |

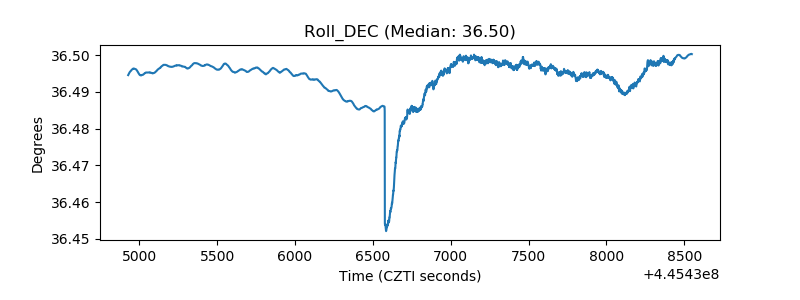

| _Roll_DEC |  |

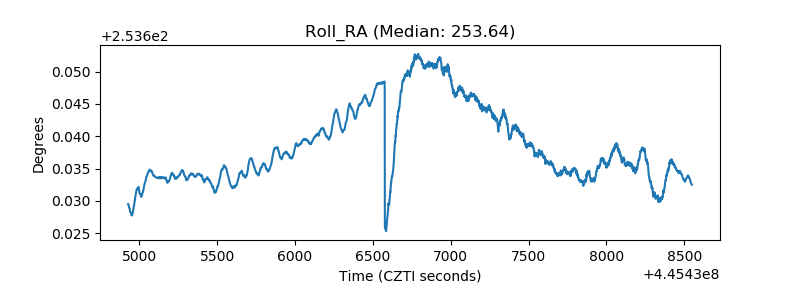

| _Roll_RA |  |
| Veto Counter |  |
