| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_047T01_9000006068_45315cztM0_level2.fits | modeM0/AS1A13_047T01_9000006068_45315cztM0_level2_quad_clean.evt |
| Size (bytes) | 279,656,640 | 66,107,520 |
| Size | 266.7 MB | 63.0 MB |
| Events in quadrant A | 3,164,243 | 445,626 |
| Events in quadrant B | 1,874,802 | 473,204 |
| Events in quadrant C | 2,796,737 | 419,984 |
| Events in quadrant D | 2,225,914 | 400,160 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 2 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11958 | 40 |
| B | 0 | 7905 | 14 |
| C | 0 | 10816 | 53 |
| D | 0 | 9116 | 35 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3720 | 60 | 1.612903% |
| B | 3725 | 14 | 0.375839% |
| C | 3720 | 249 | 6.693548% |
| D | 3722 | 70 | 1.880709% |

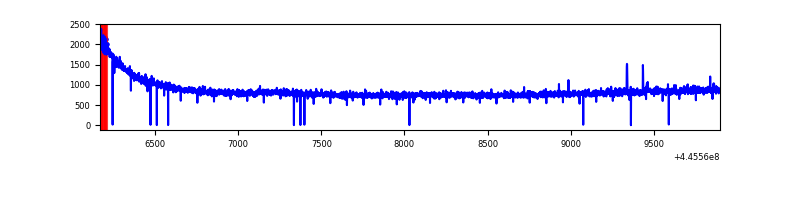

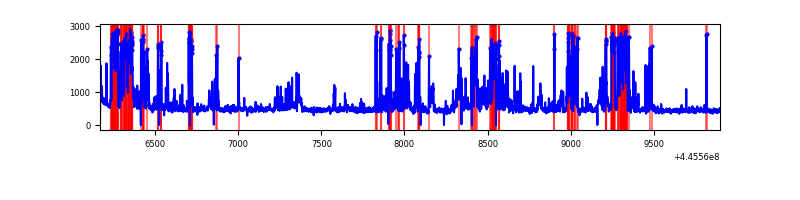

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3731 | 3731 | 26 | 26 | 0.70% | 0.70% |  |
| B | 3731 | 3731 | 12 | 12 | 0.32% | 0.32% |  |
| C | 3731 | 3728 | 250 | 250 | 6.70% | 6.71% |  |
| D | 3731 | 3729 | 69 | 69 | 1.85% | 1.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1457739 | 16183.85 | 437 | 429 | 90.0 |
| A | 0 | 243 | 9314 | 98.67 | 437 | 429 | 90.0 |
| A | 13 | 254 | 4927 | 49.95 | 437 | 429 | 90.0 |
| B | 5 | 32 | 55737 | 644.44 | 442 | 430 | 85.8 |
| B | 15 | 201 | 12908 | 145.39 | 442 | 430 | 85.8 |
| B | 0 | 189 | 11080 | 124.09 | 442 | 430 | 85.8 |
| C | 14 | 254 | 954364 | 9594.18 | 420 | 421 | 99.4 |
| C | 12 | 2 | 190356 | 1910.25 | 420 | 421 | 99.4 |
| C | 0 | 207 | 6075 | 56.86 | 420 | 421 | 99.4 |
| D | 13 | 249 | 244597 | 2267.49 | 428 | 416 | 107.7 |
| D | 11 | 224 | 115190 | 1065.8 | 428 | 416 | 107.7 |
| D | 13 | 171 | 79850 | 737.63 | 428 | 416 | 107.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

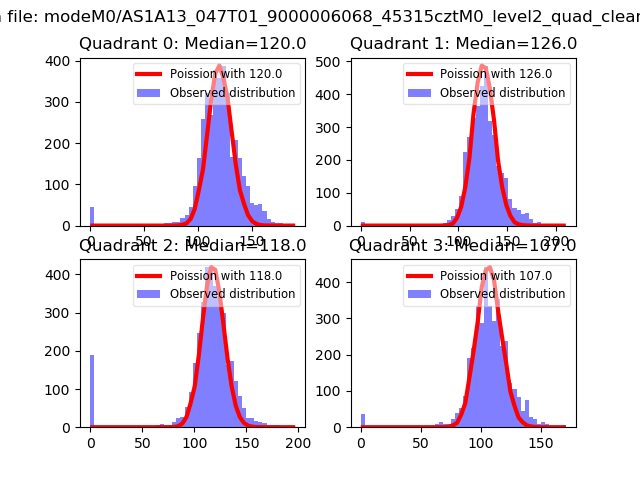

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

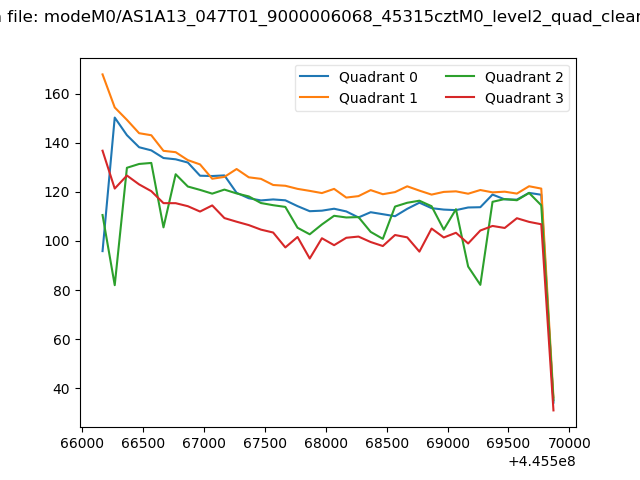

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

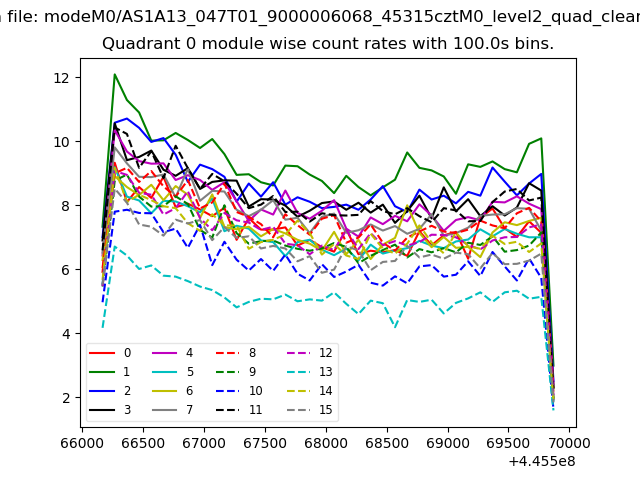

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

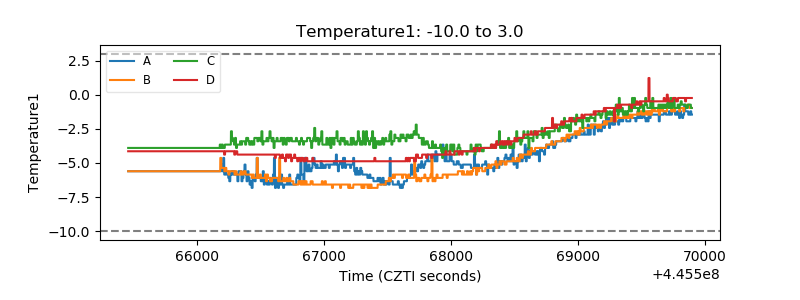

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

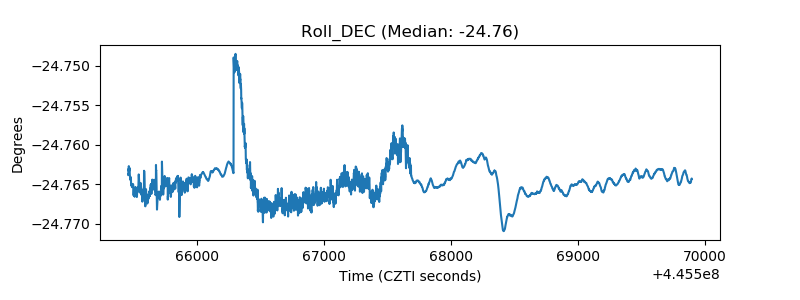

| _Roll_DEC |  |
| _Roll_RA |  |

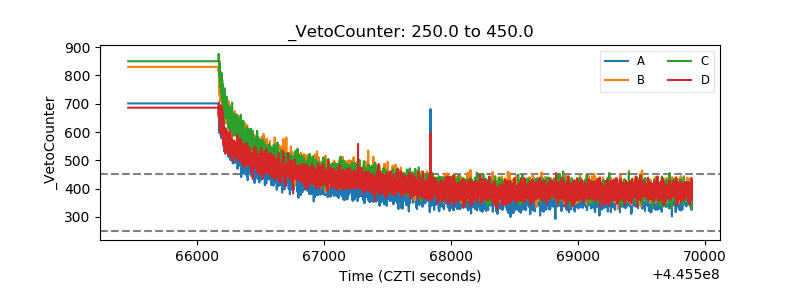

| Veto Counter |  |
