| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_038T04_9000006090_45463cztM0_level2.fits | modeM0/AS1A13_038T04_9000006090_45463cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,746,560 | 123,969,600 |
| Size | 489.0 MB | 118.2 MB |
| Events in quadrant A | 6,358,941 | 802,886 |
| Events in quadrant B | 3,898,753 | 848,769 |
| Events in quadrant C | 3,621,930 | 826,560 |
| Events in quadrant D | 4,498,437 | 736,599 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24731 | 4 |
| B | 0 | 16899 | 2 |
| C | 0 | 16680 | 4 |
| D | 0 | 19037 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 157 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7753 | 373 | 4.811041% |
| B | 7755 | 252 | 3.249516% |
| C | 7754 | 108 | 1.392830% |
| D | 7755 | 260 | 3.352676% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

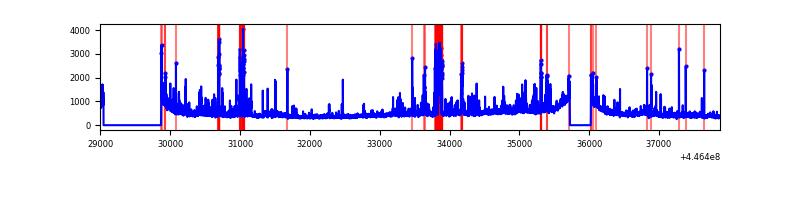

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8879 | 7756 | 8 | 8 | 0.09% | 0.10% |  |
| B | 8880 | 7757 | 6 | 6 | 0.07% | 0.08% |  |
| C | 8880 | 7757 | 12 | 12 | 0.14% | 0.15% |  |
| D | 8880 | 7757 | 133 | 133 | 1.50% | 1.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2901295 | 15824.42 | 880 | 864 | 183.3 |
| A | 13 | 248 | 48110 | 257.77 | 880 | 864 | 183.3 |
| A | 3 | 137 | 10530 | 52.74 | 880 | 864 | 183.3 |
| B | 15 | 201 | 119512 | 667.65 | 892 | 864 | 177.7 |
| B | 3 | 112 | 83213 | 463.39 | 892 | 864 | 177.7 |
| B | 5 | 172 | 47007 | 259.65 | 892 | 864 | 177.7 |
| C | 14 | 254 | 95263 | 451.29 | 880 | 885 | 209.1 |
| C | 1 | 3 | 55781 | 262.49 | 880 | 885 | 209.1 |
| C | 3 | 233 | 26338 | 121.71 | 880 | 885 | 209.1 |
| D | 1 | 52 | 565421 | 2575.84 | 862 | 834 | 219.2 |
| D | 13 | 249 | 331319 | 1507.78 | 862 | 834 | 219.2 |
| D | 11 | 241 | 149448 | 678.03 | 862 | 834 | 219.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

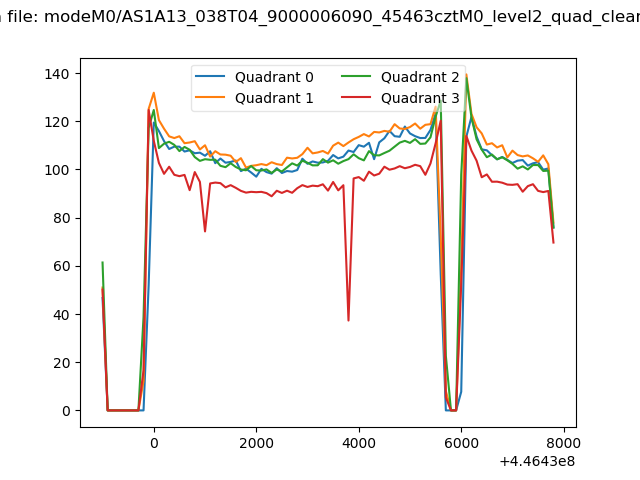

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

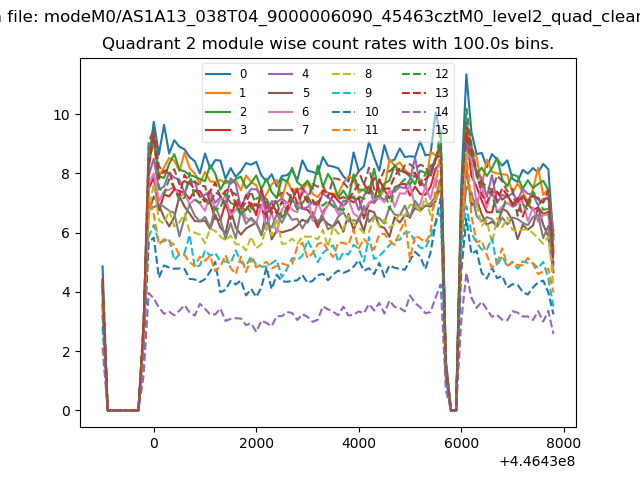

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

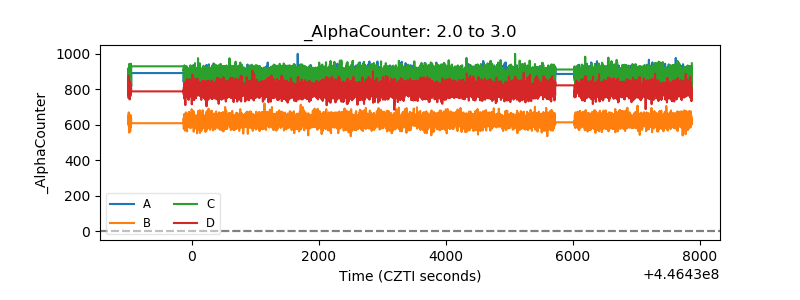

| Alpha Counter |  |

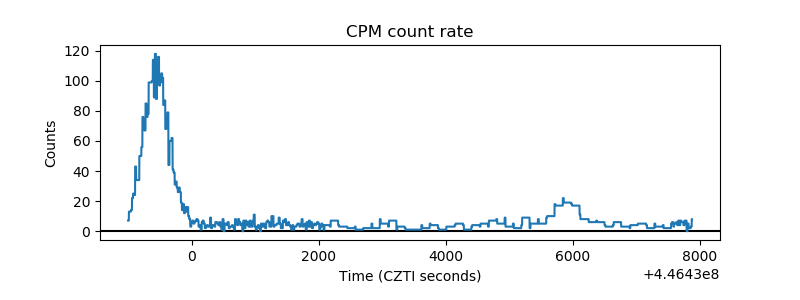

| _CPM_Rate |  |
| CZT Counter |  |

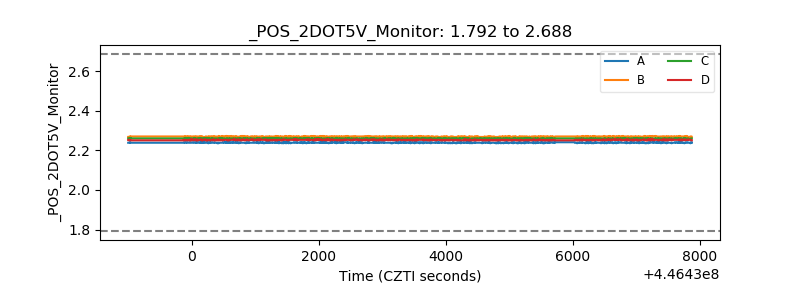

| +2.5 Volts monitor |  |

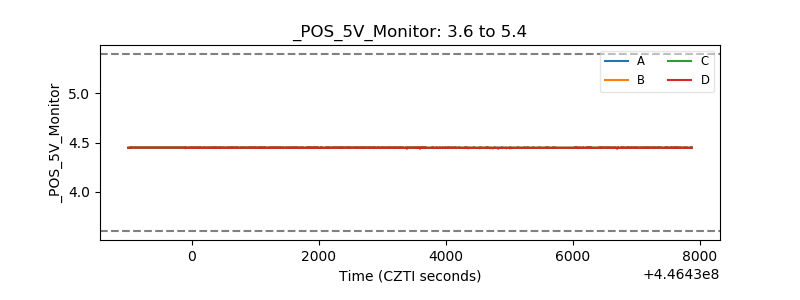

| +5 Volts monitor |  |
| _ROLL_ROT |  |

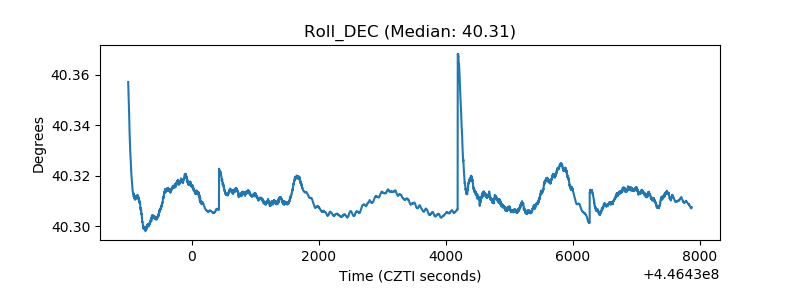

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
