| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006104_45529cztM0_level2.fits | modeM0/AS1A13_071T01_9000006104_45529cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,290,240 | 106,534,080 |
| Size | 507.6 MB | 101.6 MB |
| Events in quadrant A | 5,748,311 | 720,653 |
| Events in quadrant B | 5,265,440 | 686,091 |
| Events in quadrant C | 3,878,473 | 708,780 |
| Events in quadrant D | 4,290,777 | 642,704 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21901 | 2 |
| B | 0 | 20280 | 2 |
| C | 0 | 16335 | 2 |
| D | 0 | 17296 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6707 | 267 | 3.980915% |
| B | 6707 | 842 | 12.554048% |
| C | 6707 | 315 | 4.696586% |
| D | 6707 | 339 | 5.054421% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7677 | 6707 | 16 | 16 | 0.21% | 0.24% |  |
| B | 7677 | 6708 | 496 | 496 | 6.46% | 7.39% |  |
| C | 7677 | 6708 | 175 | 175 | 2.28% | 2.61% |  |
| D | 7677 | 6708 | 173 | 173 | 2.25% | 2.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2690265 | 16974.92 | 759 | 742 | 158.4 |
| A | 13 | 248 | 115768 | 725.99 | 759 | 742 | 158.4 |
| A | 7 | 3 | 12524 | 74.36 | 759 | 742 | 158.4 |
| B | 15 | 201 | 2041212 | 14288.56 | 722 | 698 | 142.8 |
| B | 5 | 172 | 291008 | 2032.88 | 722 | 698 | 142.8 |
| B | 0 | 155 | 57122 | 395.11 | 722 | 698 | 142.8 |
| C | 12 | 2 | 633776 | 3632.37 | 744 | 746 | 174.3 |
| C | 14 | 254 | 337024 | 1929.58 | 744 | 746 | 174.3 |
| C | 10 | 187 | 6325 | 32.01 | 744 | 746 | 174.3 |
| D | 13 | 249 | 735966 | 3964.91 | 742 | 719 | 185.4 |
| D | 1 | 52 | 311954 | 1678.37 | 742 | 719 | 185.4 |
| D | 8 | 48 | 126584 | 678.74 | 742 | 719 | 185.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

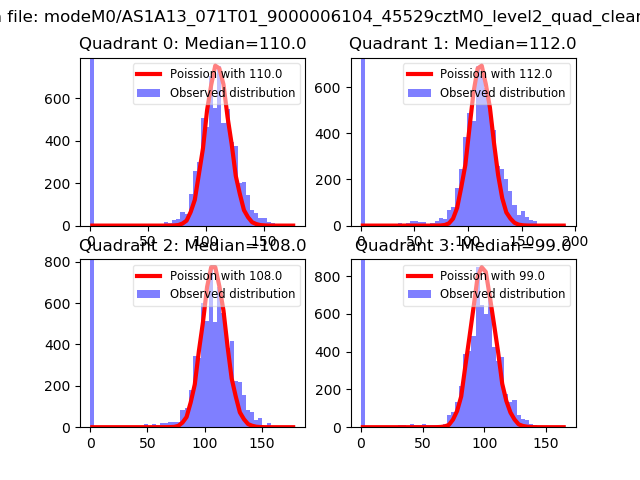

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

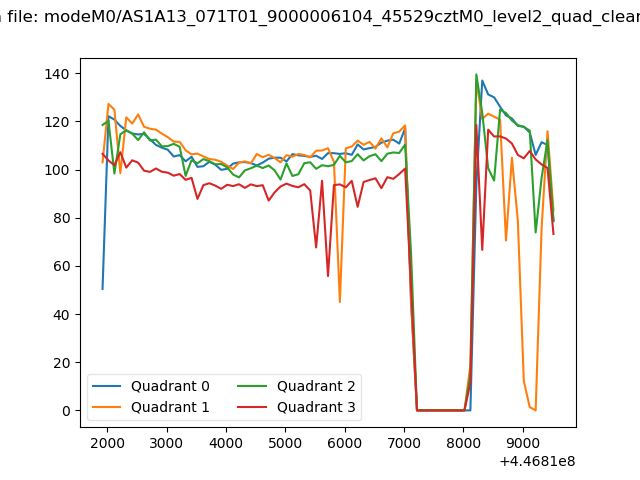

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

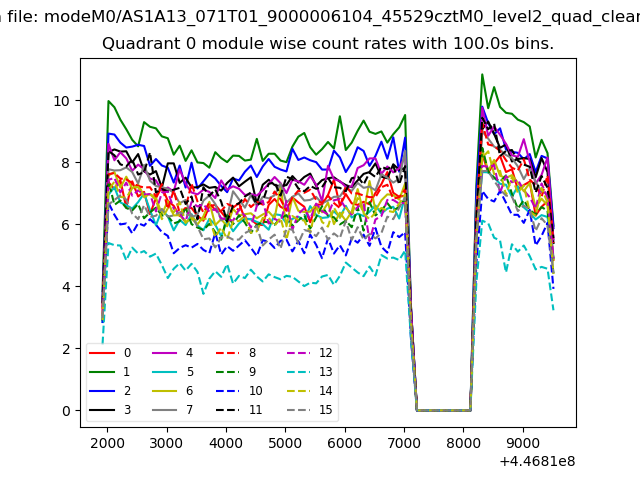

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

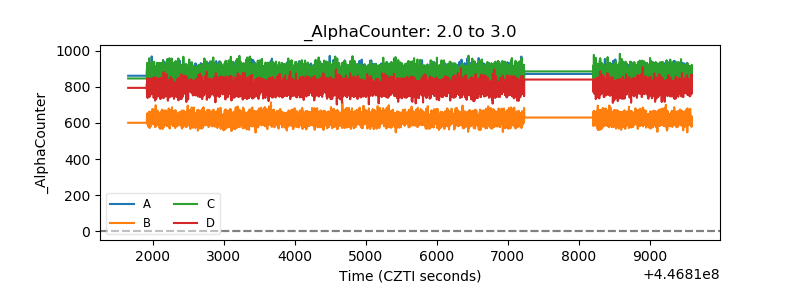

| Alpha Counter |  |

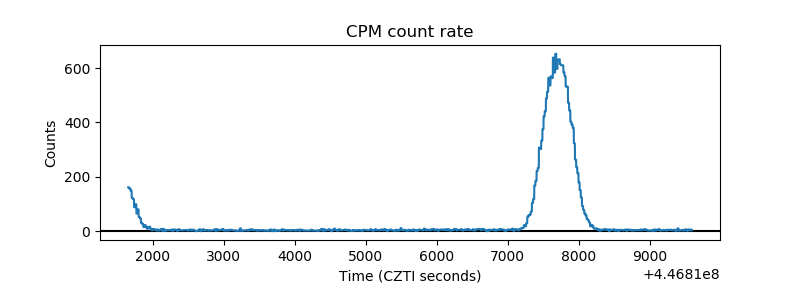

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

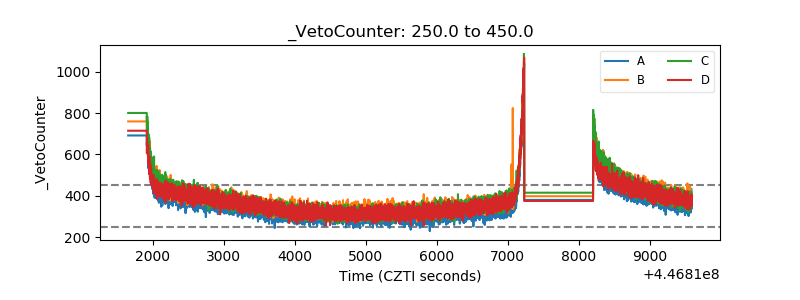

| Veto Counter |  |
