| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006104_45532cztM0_level2.fits | modeM0/AS1A13_071T01_9000006104_45532cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,403,840 | 106,295,040 |
| Size | 445.8 MB | 101.4 MB |
| Events in quadrant A | 5,479,355 | 716,590 |
| Events in quadrant B | 3,070,414 | 749,617 |
| Events in quadrant C | 3,254,167 | 696,426 |
| Events in quadrant D | 5,016,088 | 623,015 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20622 | 1 |
| B | 0 | 13295 | 1 |
| C | 0 | 14195 | 1 |
| D | 0 | 19305 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6205 | 258 | 4.157937% |
| B | 6205 | 141 | 2.272361% |
| C | 6205 | 182 | 2.933118% |
| D | 6206 | 324 | 5.220754% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7390 | 6206 | 58 | 58 | 0.78% | 0.93% |  |
| B | 7390 | 6206 | 37 | 37 | 0.50% | 0.60% |  |
| C | 7390 | 6206 | 100 | 100 | 1.35% | 1.61% |  |
| D | 7391 | 6207 | 243 | 243 | 3.29% | 3.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2408594 | 16553.19 | 707 | 694 | 145.5 |
| A | 13 | 248 | 335344 | 2300.56 | 707 | 694 | 145.5 |
| A | 3 | 137 | 7931 | 49.75 | 707 | 694 | 145.5 |
| B | 5 | 172 | 105188 | 760.43 | 716 | 695 | 137.4 |
| B | 15 | 201 | 84062 | 606.69 | 716 | 695 | 137.4 |
| B | 0 | 183 | 28424 | 201.79 | 716 | 695 | 137.4 |
| C | 12 | 2 | 554191 | 3474.97 | 684 | 687 | 159.3 |
| C | 2 | 14 | 19507 | 118.15 | 684 | 687 | 159.3 |
| C | 12 | 249 | 8423 | 48.57 | 684 | 687 | 159.3 |
| D | 13 | 249 | 886405 | 5218.93 | 674 | 650 | 169.7 |
| D | 1 | 52 | 787542 | 4636.42 | 674 | 650 | 169.7 |
| D | 5 | 171 | 447490 | 2632.81 | 674 | 650 | 169.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

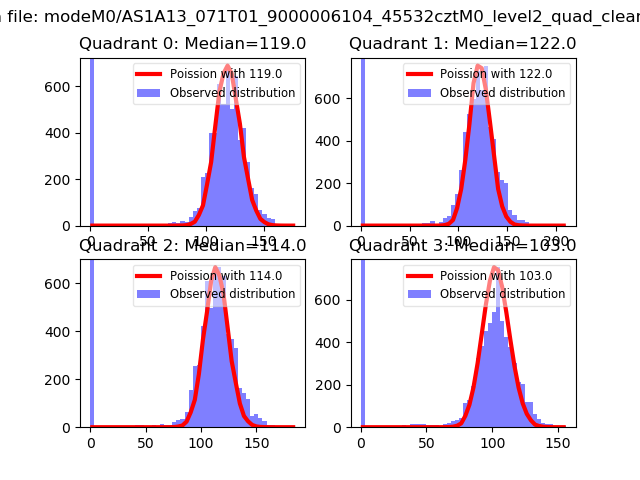

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

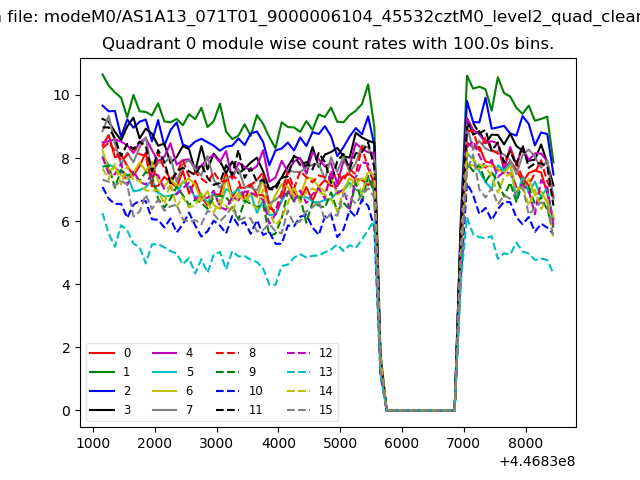

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

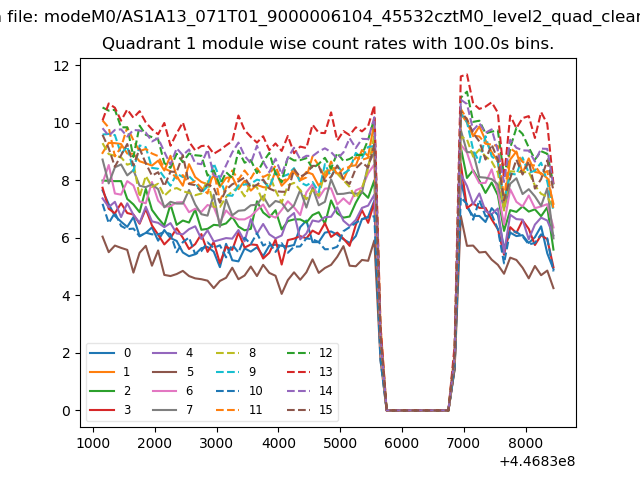

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

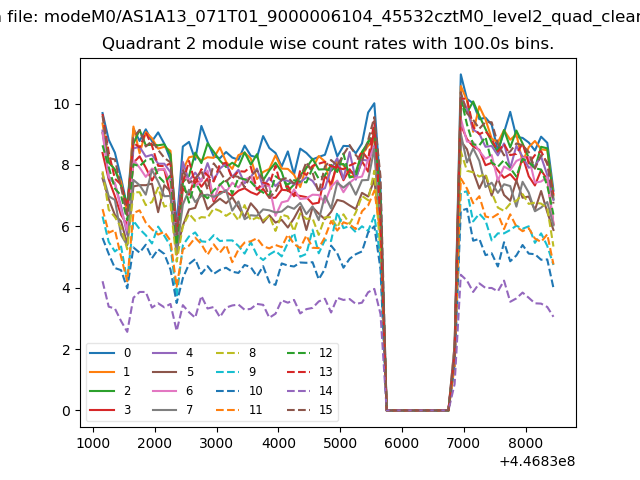

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

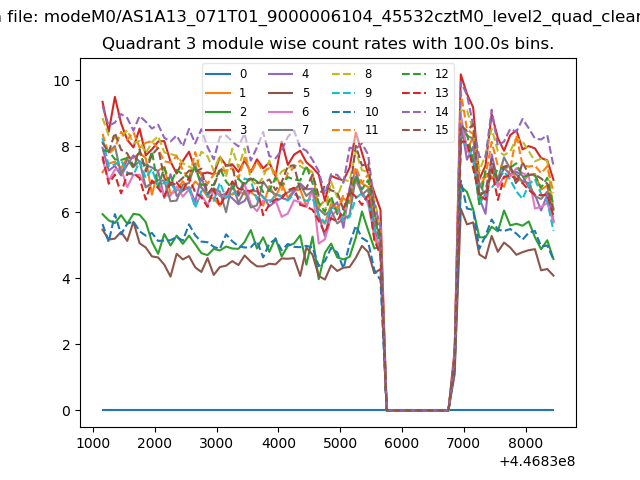

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

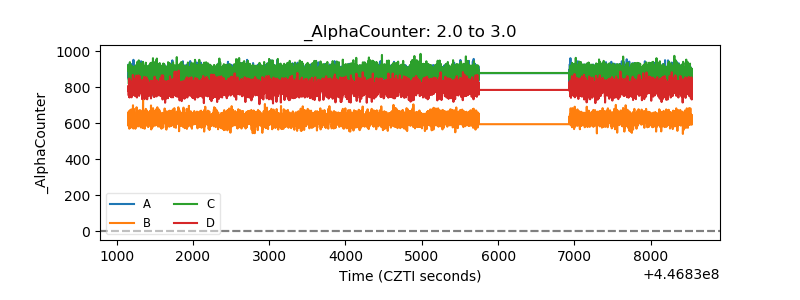

| Alpha Counter |  |

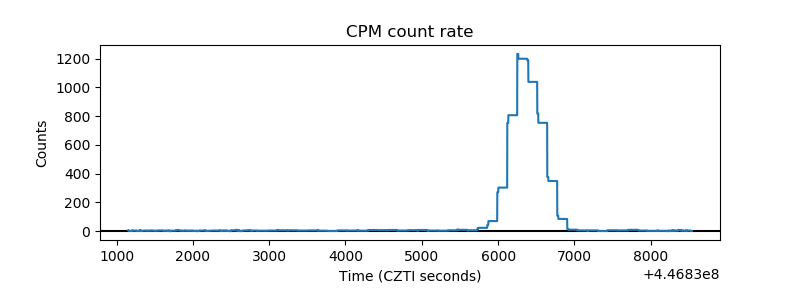

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

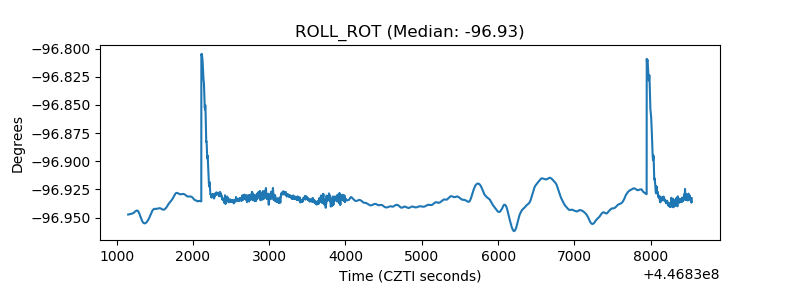

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
