| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45562cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45562cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,482,560 | 104,636,160 |
| Size | 414.4 MB | 99.8 MB |
| Events in quadrant A | 5,253,943 | 697,613 |
| Events in quadrant B | 3,439,321 | 719,961 |
| Events in quadrant C | 2,776,734 | 697,881 |
| Events in quadrant D | 4,141,059 | 628,997 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19712 | 2 |
| B | 0 | 14065 | 1 |
| C | 0 | 12581 | 1 |
| D | 0 | 16392 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6077 | 224 | 3.686029% |
| B | 6078 | 243 | 3.998026% |
| C | 6078 | 63 | 1.036525% |
| D | 6078 | 232 | 3.817045% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7212 | 6078 | 15 | 15 | 0.21% | 0.25% |  |
| B | 7213 | 6079 | 84 | 84 | 1.16% | 1.38% |  |
| C | 7213 | 6079 | 9 | 9 | 0.12% | 0.15% |  |
| D | 7213 | 6079 | 117 | 117 | 1.62% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2468136 | 17185.5 | 704 | 689 | 143.6 |
| A | 10 | 248 | 42849 | 293.64 | 704 | 689 | 143.6 |
| A | 13 | 248 | 18511 | 124.13 | 704 | 689 | 143.6 |
| B | 5 | 172 | 305874 | 2278.17 | 700 | 681 | 134.0 |
| B | 12 | 18 | 190054 | 1413.61 | 700 | 681 | 134.0 |
| B | 0 | 183 | 51839 | 381.88 | 700 | 681 | 134.0 |
| C | 12 | 2 | 29386 | 179.82 | 690 | 692 | 159.6 |
| C | 14 | 254 | 27466 | 167.79 | 690 | 692 | 159.6 |
| C | 0 | 207 | 20888 | 126.56 | 690 | 692 | 159.6 |
| D | 1 | 52 | 359110 | 2100.61 | 684 | 662 | 170.6 |
| D | 5 | 33 | 336337 | 1967.15 | 684 | 662 | 170.6 |
| D | 11 | 241 | 165895 | 968.31 | 684 | 662 | 170.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

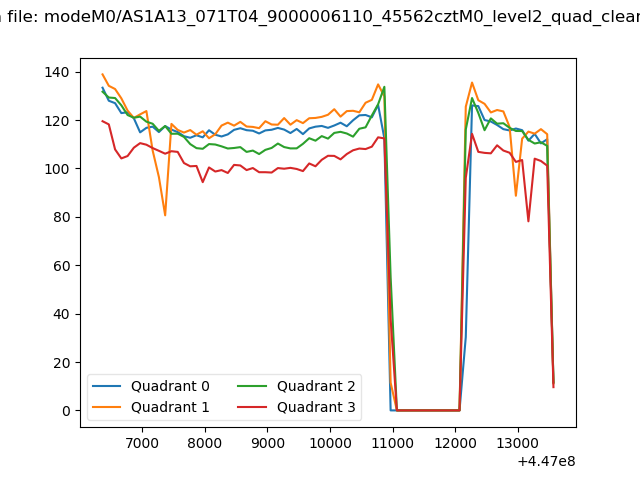

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

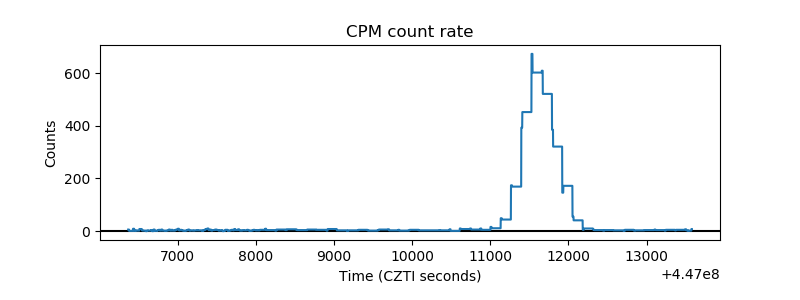

| _CPM_Rate |  |

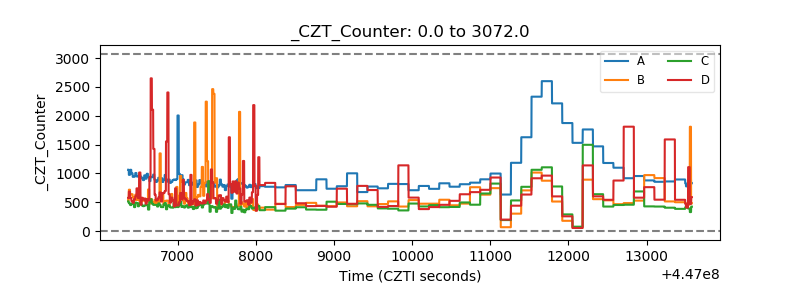

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

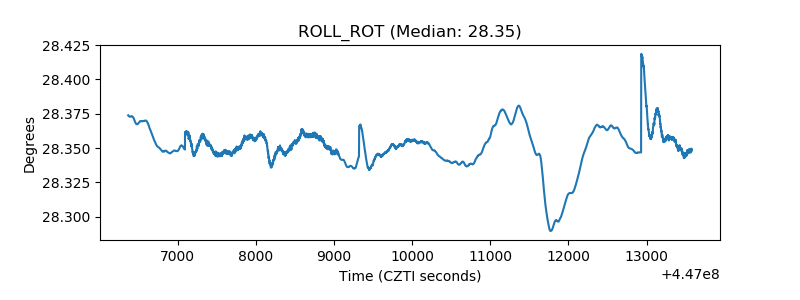

| _ROLL_ROT |  |
| _Roll_DEC |  |

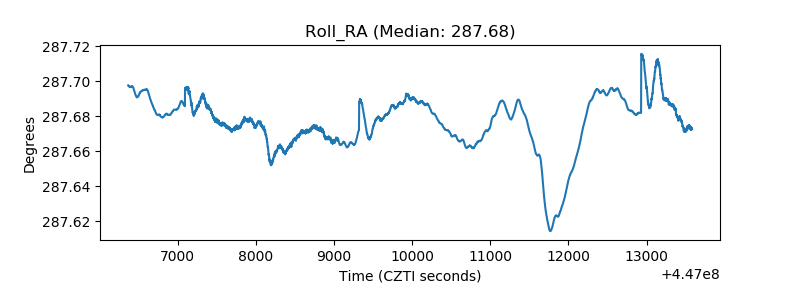

| _Roll_RA |  |
| Veto Counter |  |
