| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45566cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45566cztM0_level2_quad_clean.evt |
| Size (bytes) | 621,161,280 | 133,168,320 |
| Size | 592.4 MB | 127.0 MB |
| Events in quadrant A | 6,926,317 | 903,009 |
| Events in quadrant B | 5,145,167 | 884,997 |
| Events in quadrant C | 4,003,423 | 880,173 |
| Events in quadrant D | 6,270,521 | 783,261 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26458 | 0 |
| B | 0 | 21169 | 0 |
| C | 0 | 17995 | 0 |
| D | 0 | 24455 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8360 | 214 | 2.559809% |
| B | 8361 | 566 | 6.769525% |
| C | 8361 | 48 | 0.574094% |
| D | 8361 | 397 | 4.748236% |

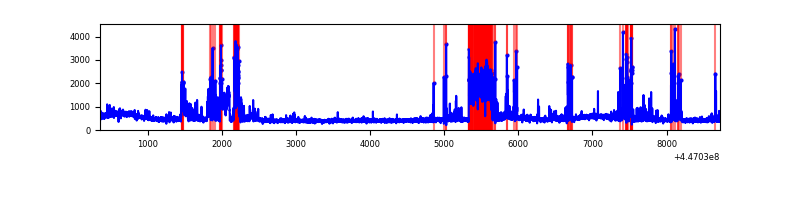

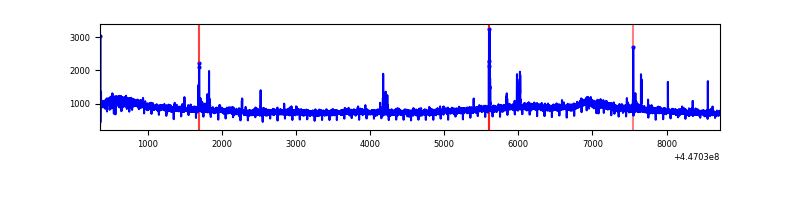

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8360 | 8360 | 7 | 7 | 0.08% | 0.08% |  |
| B | 8361 | 8361 | 230 | 230 | 2.75% | 2.75% |  |
| C | 8361 | 8361 | 29 | 29 | 0.35% | 0.35% |  |
| D | 8361 | 8361 | 280 | 280 | 3.35% | 3.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3158942 | 16063.66 | 946 | 923 | 196.6 |
| A | 10 | 248 | 35932 | 178.08 | 946 | 923 | 196.6 |
| A | 13 | 248 | 31510 | 155.58 | 946 | 923 | 196.6 |
| B | 12 | 18 | 482394 | 2607.89 | 932 | 903 | 184.6 |
| B | 15 | 201 | 354081 | 1912.91 | 932 | 903 | 184.6 |
| B | 5 | 172 | 296868 | 1603.03 | 932 | 903 | 184.6 |
| C | 14 | 254 | 202598 | 921.07 | 929 | 930 | 218.9 |
| C | 12 | 2 | 111594 | 505.43 | 929 | 930 | 218.9 |
| C | 1 | 3 | 24374 | 107.07 | 929 | 930 | 218.9 |
| D | 1 | 52 | 1086151 | 4644.31 | 918 | 887 | 233.7 |
| D | 5 | 171 | 630661 | 2695.07 | 918 | 887 | 233.7 |
| D | 11 | 241 | 260588 | 1111.37 | 918 | 887 | 233.7 |

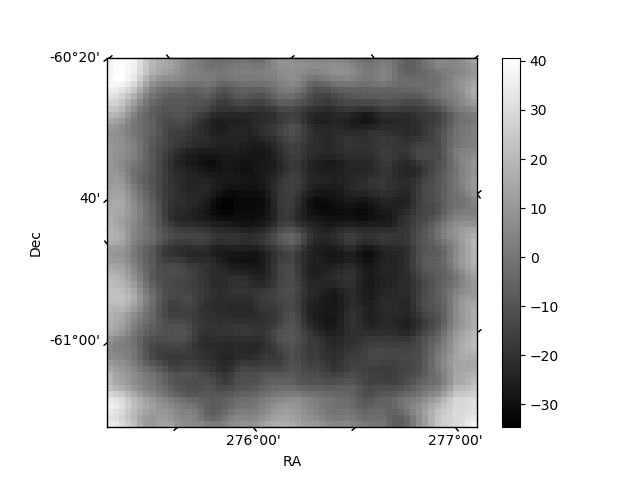

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

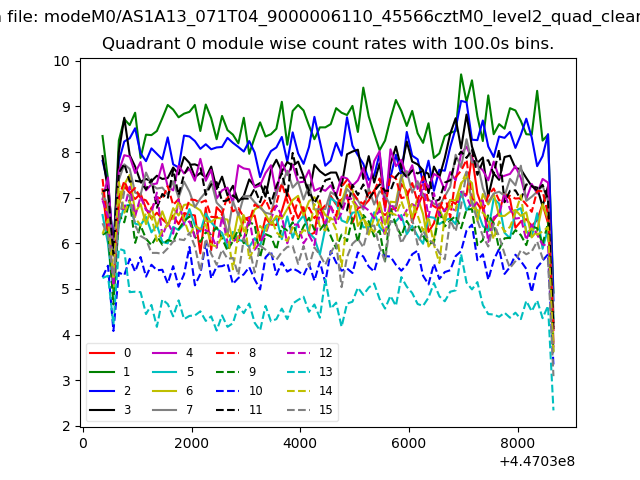

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

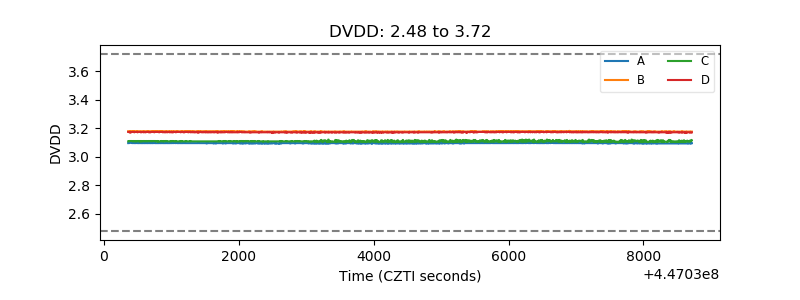

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

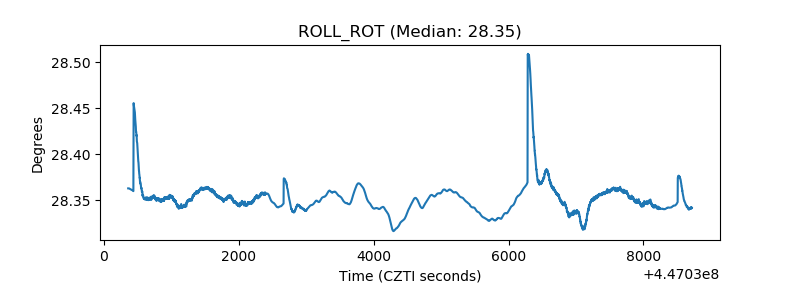

| _ROLL_ROT |  |

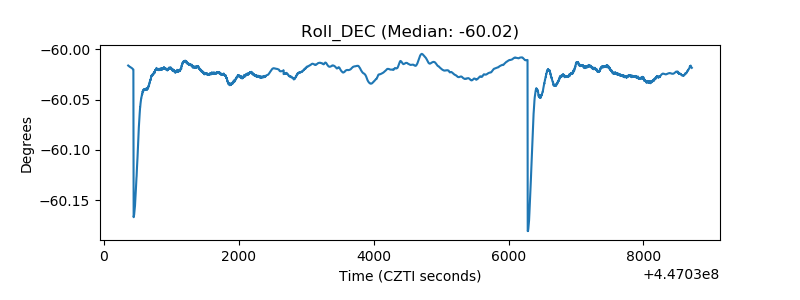

| _Roll_DEC |  |

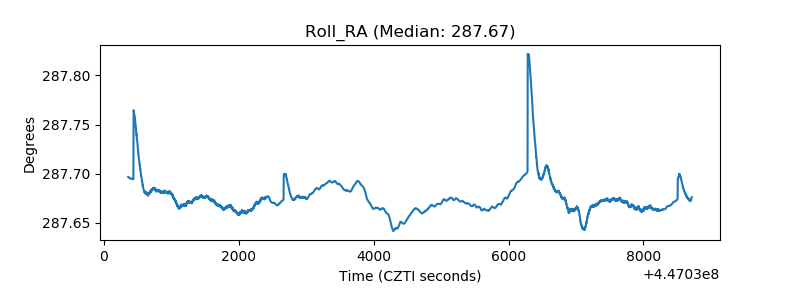

| _Roll_RA |  |
| Veto Counter |  |
