| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45573cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45573cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,958,720 | 104,912,640 |
| Size | 477.8 MB | 100.1 MB |
| Events in quadrant A | 5,435,456 | 707,327 |
| Events in quadrant B | 3,437,568 | 726,275 |
| Events in quadrant C | 3,478,092 | 696,213 |
| Events in quadrant D | 5,701,088 | 604,799 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20212 | 1 |
| B | 0 | 14367 | 1 |
| C | 0 | 14780 | 1 |
| D | 0 | 21106 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6336 | 140 | 2.209596% |
| B | 6336 | 156 | 2.462121% |
| C | 6337 | 136 | 2.146126% |
| D | 6337 | 591 | 9.326180% |

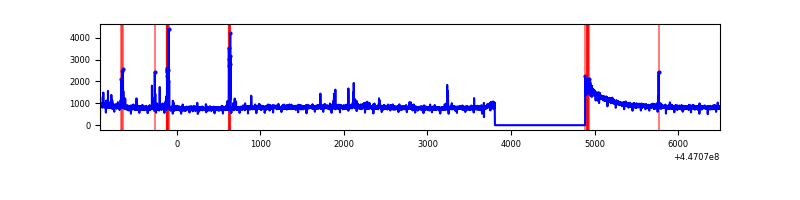

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7416 | 6337 | 27 | 27 | 0.36% | 0.43% |  |
| B | 7416 | 6337 | 95 | 95 | 1.28% | 1.50% |  |
| C | 7417 | 6338 | 89 | 89 | 1.20% | 1.40% |  |
| D | 7417 | 6338 | 435 | 435 | 5.86% | 6.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2511755 | 17082.34 | 717 | 701 | 147.0 |
| A | 10 | 248 | 81390 | 548.92 | 717 | 701 | 147.0 |
| A | 0 | 243 | 29413 | 195.32 | 717 | 701 | 147.0 |
| B | 4 | 171 | 225062 | 1612.74 | 708 | 688 | 139.1 |
| B | 10 | 3 | 187909 | 1345.69 | 708 | 688 | 139.1 |
| B | 5 | 172 | 125144 | 894.56 | 708 | 688 | 139.1 |
| C | 12 | 2 | 392138 | 2396.02 | 698 | 701 | 163.4 |
| C | 14 | 254 | 353423 | 2159.04 | 698 | 701 | 163.4 |
| C | 2 | 14 | 8163 | 45.68 | 698 | 701 | 163.4 |
| D | 1 | 52 | 1297145 | 7555.48 | 687 | 666 | 171.6 |
| D | 12 | 32 | 851521 | 4958.52 | 687 | 666 | 171.6 |
| D | 11 | 241 | 427069 | 2484.95 | 687 | 666 | 171.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

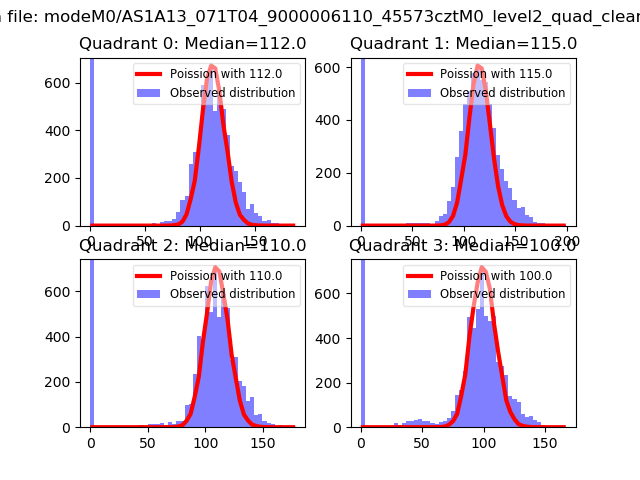

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

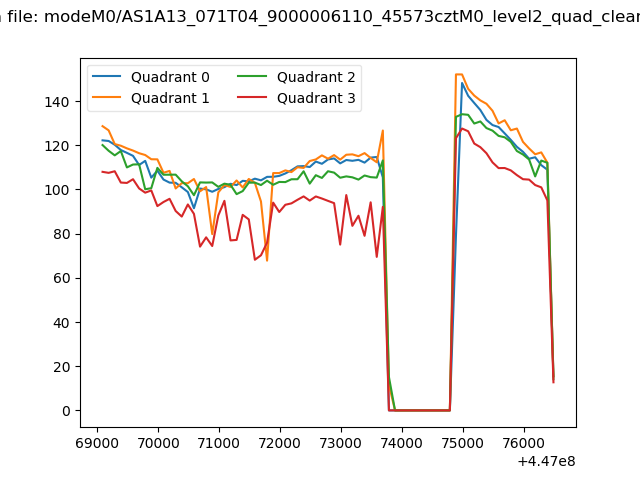

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

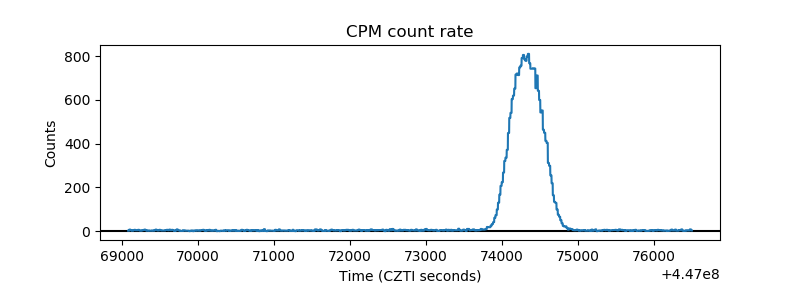

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

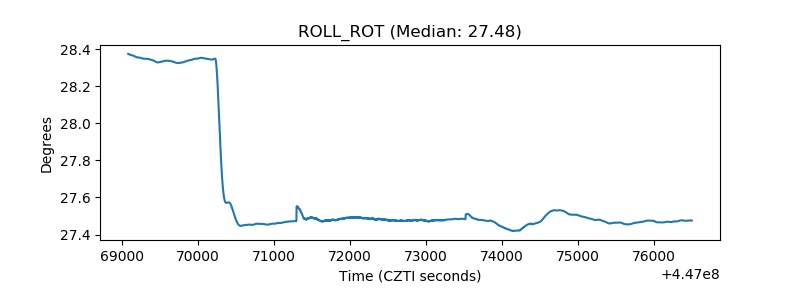

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
