| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45578cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45578cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,908,480 | 110,983,680 |
| Size | 496.8 MB | 105.8 MB |
| Events in quadrant A | 6,021,406 | 739,575 |
| Events in quadrant B | 3,453,743 | 774,580 |
| Events in quadrant C | 2,967,650 | 740,068 |
| Events in quadrant D | 6,313,513 | 633,973 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22526 | 2 |
| B | 0 | 14908 | 2 |
| C | 0 | 13888 | 2 |
| D | 0 | 23486 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6781 | 292 | 4.306150% |
| B | 6782 | 125 | 1.843114% |
| C | 6782 | 29 | 0.427602% |
| D | 6782 | 681 | 10.041286% |

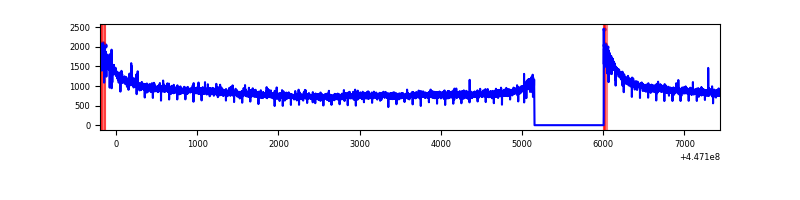

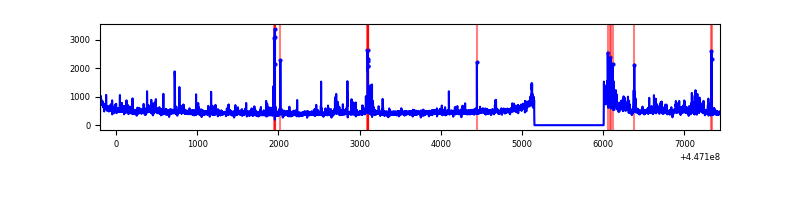

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7636 | 6782 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7637 | 6783 | 19 | 19 | 0.25% | 0.28% |  |
| C | 7637 | 6783 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7637 | 6783 | 478 | 478 | 6.26% | 7.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3026775 | 18963.18 | 766 | 749 | 159.6 |
| A | 0 | 243 | 26048 | 158.54 | 766 | 749 | 159.6 |
| A | 3 | 137 | 8682 | 49.71 | 766 | 749 | 159.6 |
| B | 15 | 201 | 105348 | 702.1 | 768 | 745 | 149.0 |
| B | 3 | 112 | 97126 | 646.91 | 768 | 745 | 149.0 |
| B | 5 | 255 | 68592 | 455.39 | 768 | 745 | 149.0 |
| C | 12 | 2 | 17395 | 93.82 | 753 | 755 | 177.4 |
| C | 2 | 14 | 8754 | 45.1 | 753 | 755 | 177.4 |
| C | 13 | 61 | 5235 | 25.26 | 753 | 755 | 177.4 |
| D | 1 | 52 | 1625241 | 8844.9 | 724 | 700 | 183.7 |
| D | 11 | 241 | 678366 | 3689.59 | 724 | 700 | 183.7 |
| D | 11 | 224 | 317685 | 1725.84 | 724 | 700 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

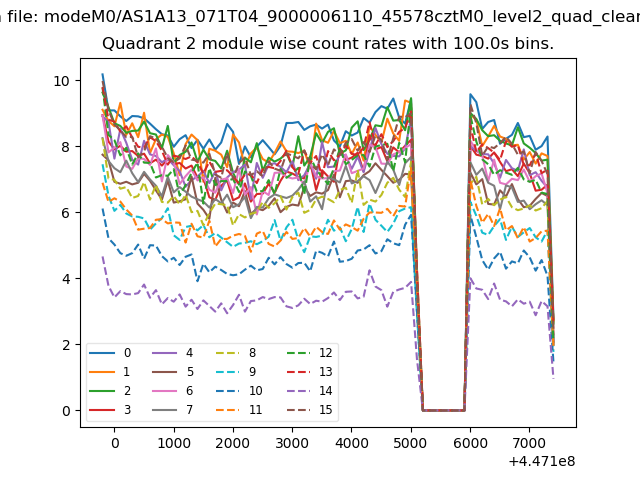

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

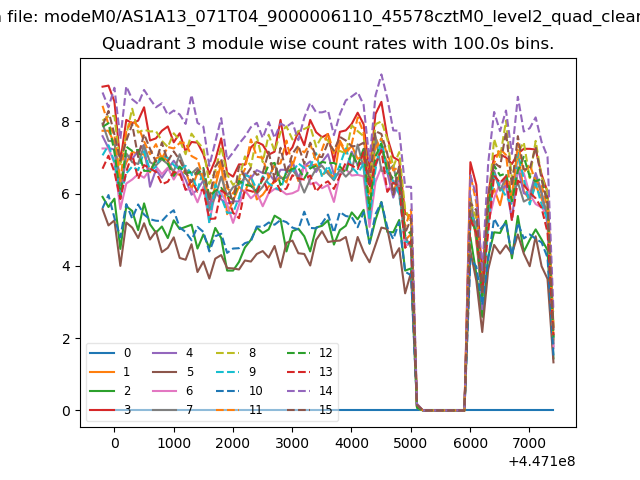

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

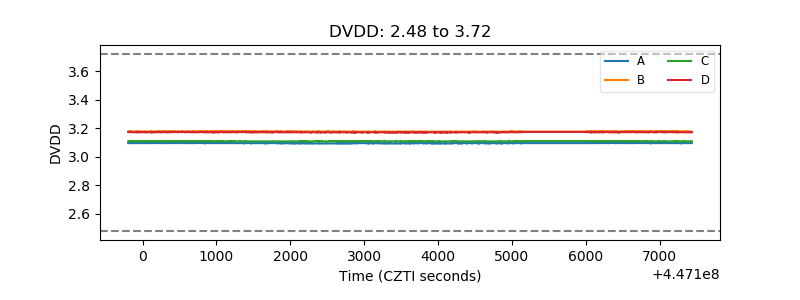

| D_VDD |  |

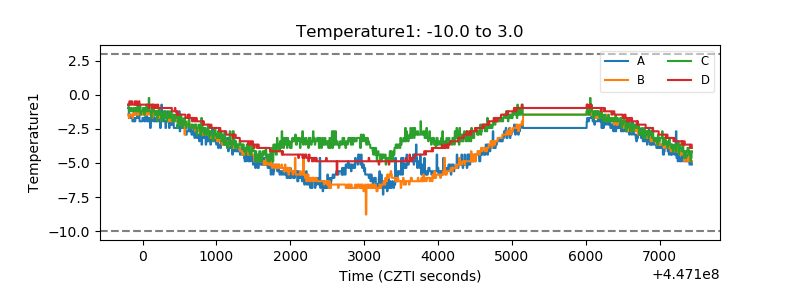

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

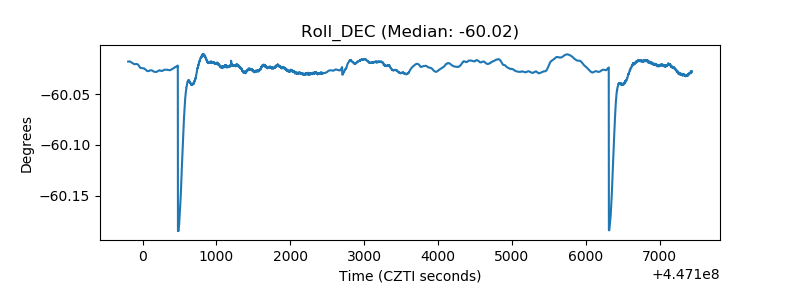

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

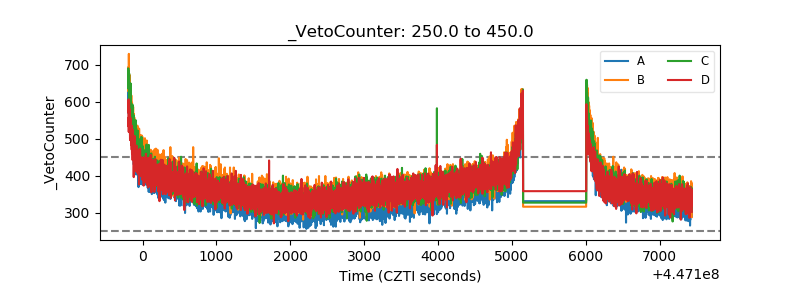

| Veto Counter |  |
