| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45579cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45579cztM0_level2_quad_clean.evt |
| Size (bytes) | 617,659,200 | 117,982,080 |
| Size | 589.0 MB | 112.5 MB |
| Events in quadrant A | 6,605,531 | 791,361 |
| Events in quadrant B | 4,476,011 | 807,608 |
| Events in quadrant C | 3,586,535 | 792,203 |
| Events in quadrant D | 7,615,693 | 660,023 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24783 | 2 |
| B | 0 | 18523 | 2 |
| C | 0 | 16301 | 2 |
| D | 0 | 27844 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7485 | 381 | 5.090180% |
| B | 7485 | 410 | 5.477622% |
| C | 7485 | 111 | 1.482966% |
| D | 7485 | 972 | 12.985972% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7810 | 7486 | 16 | 16 | 0.20% | 0.21% |  |
| B | 7810 | 7486 | 151 | 151 | 1.93% | 2.02% |  |
| C | 7810 | 7486 | 57 | 57 | 0.73% | 0.76% |  |
| D | 7810 | 7486 | 717 | 717 | 9.18% | 9.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3237421 | 18421.3 | 843 | 826 | 175.7 |
| A | 13 | 248 | 50876 | 284.86 | 843 | 826 | 175.7 |
| A | 0 | 243 | 39693 | 221.21 | 843 | 826 | 175.7 |
| B | 15 | 201 | 695723 | 4252.83 | 833 | 807 | 163.4 |
| B | 3 | 112 | 168330 | 1025.23 | 833 | 807 | 163.4 |
| B | 5 | 172 | 105774 | 642.39 | 833 | 807 | 163.4 |
| C | 14 | 254 | 345170 | 1770.3 | 821 | 823 | 194.5 |
| C | 12 | 2 | 22550 | 111.7 | 821 | 823 | 194.5 |
| C | 3 | 233 | 10485 | 49.67 | 821 | 823 | 194.5 |
| D | 1 | 52 | 2156933 | 10885.44 | 787 | 759 | 198.1 |
| D | 11 | 224 | 988118 | 4984.68 | 787 | 759 | 198.1 |
| D | 2 | 249 | 548345 | 2764.49 | 787 | 759 | 198.1 |

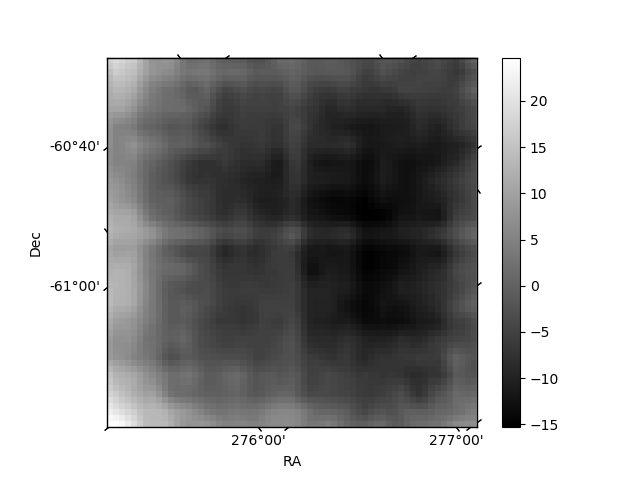

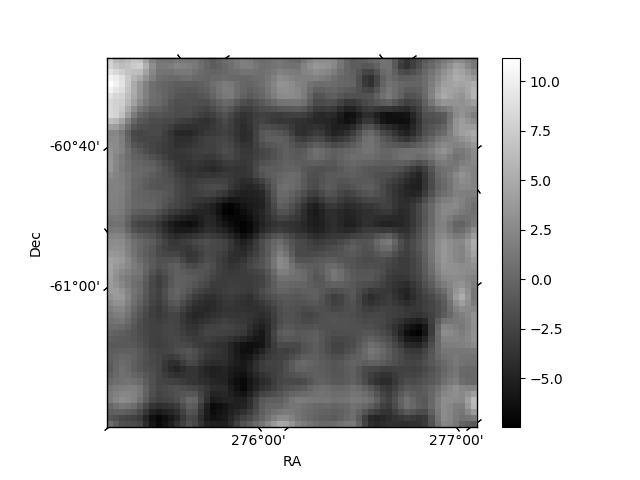

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

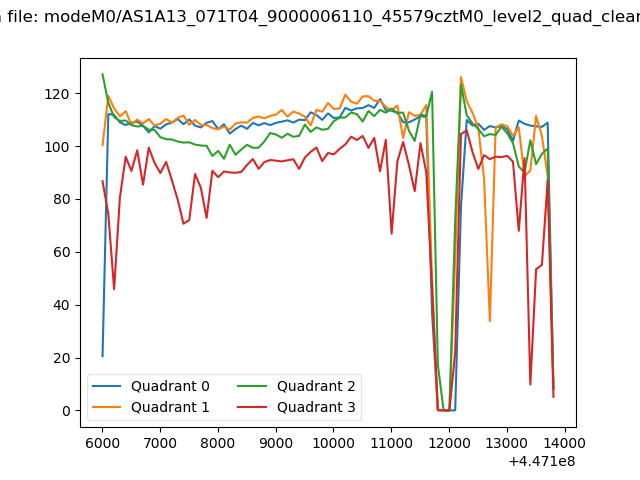

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

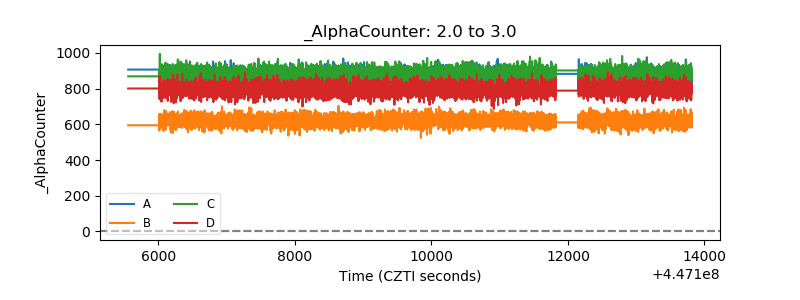

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

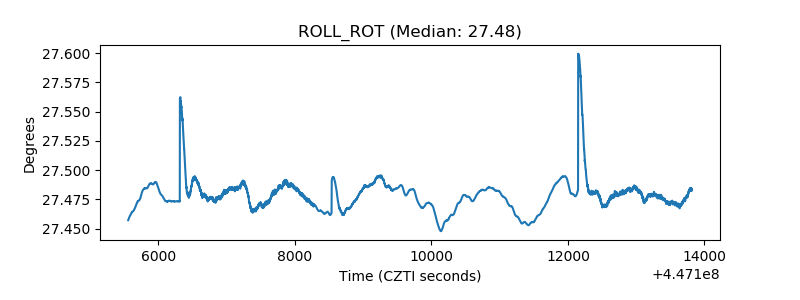

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

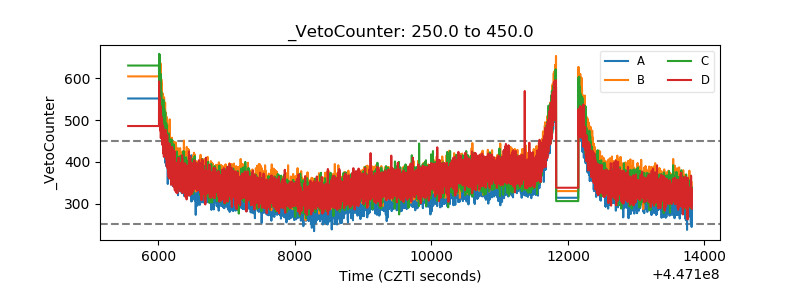

| Veto Counter |  |
