| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45588cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45588cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,404,160 | 99,264,960 |
| Size | 441.0 MB | 94.7 MB |
| Events in quadrant A | 5,133,287 | 671,778 |
| Events in quadrant B | 3,036,124 | 693,553 |
| Events in quadrant C | 2,772,892 | 667,187 |
| Events in quadrant D | 5,718,119 | 562,278 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18843 | 1 |
| B | 0 | 12934 | 1 |
| C | 0 | 12484 | 1 |
| D | 0 | 21153 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5880 | 144 | 2.448980% |
| B | 5881 | 97 | 1.649379% |
| C | 5881 | 61 | 1.037239% |
| D | 5878 | 660 | 11.228309% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

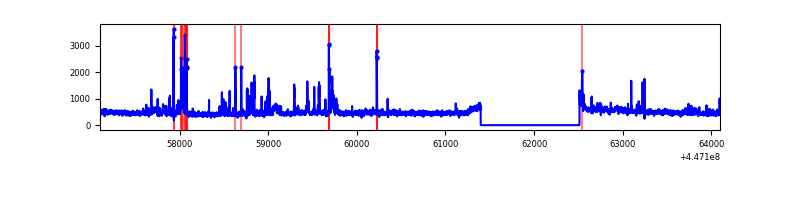

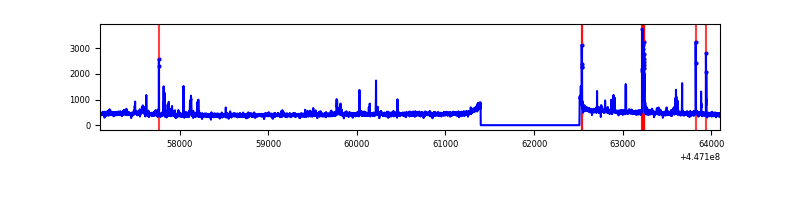

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6995 | 5881 | 5 | 5 | 0.07% | 0.09% |  |
| B | 6996 | 5882 | 21 | 21 | 0.30% | 0.36% |  |
| C | 6996 | 5882 | 29 | 29 | 0.41% | 0.49% |  |
| D | 6996 | 5880 | 478 | 478 | 6.83% | 8.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2415700 | 17373.11 | 675 | 661 | 139.0 |
| A | 0 | 243 | 43444 | 307.77 | 675 | 661 | 139.0 |
| A | 2 | 79 | 26115 | 183.11 | 675 | 661 | 139.0 |
| B | 15 | 201 | 172369 | 1290.5 | 670 | 649 | 133.1 |
| B | 0 | 183 | 76328 | 568.74 | 670 | 649 | 133.1 |
| B | 4 | 171 | 41317 | 305.62 | 670 | 649 | 133.1 |
| C | 14 | 254 | 189962 | 1225.78 | 658 | 660 | 154.4 |
| C | 12 | 2 | 10182 | 61.66 | 658 | 660 | 154.4 |
| C | 3 | 233 | 4514 | 24.96 | 658 | 660 | 154.4 |
| D | 2 | 249 | 1327974 | 8167.54 | 642 | 620 | 162.5 |
| D | 1 | 52 | 801810 | 4929.92 | 642 | 620 | 162.5 |
| D | 11 | 241 | 600501 | 3691.22 | 642 | 620 | 162.5 |

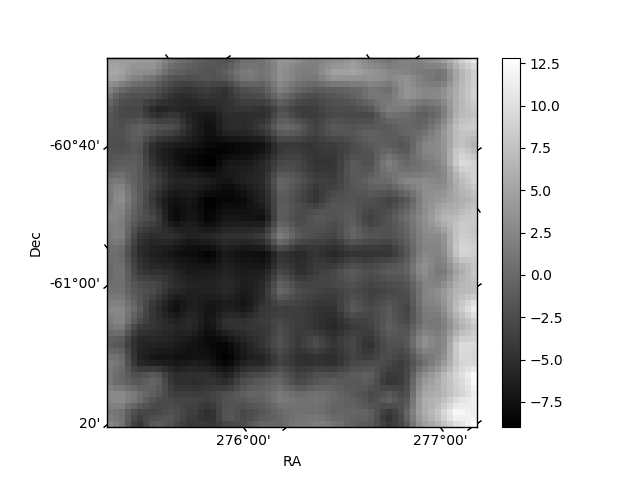

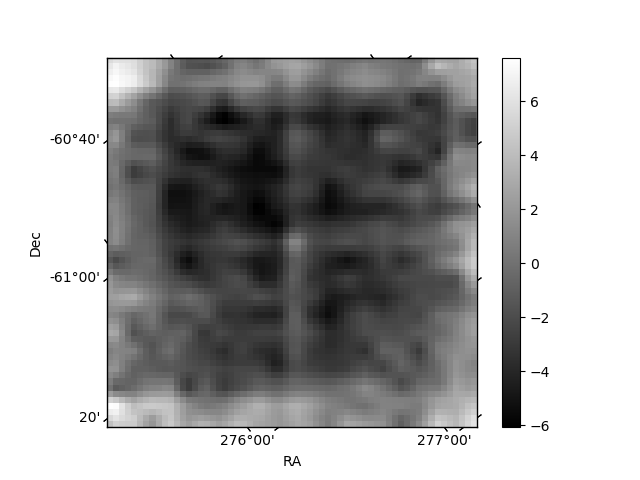

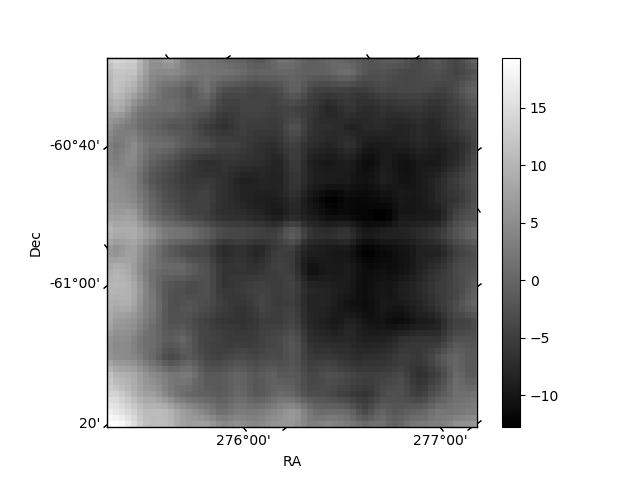

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

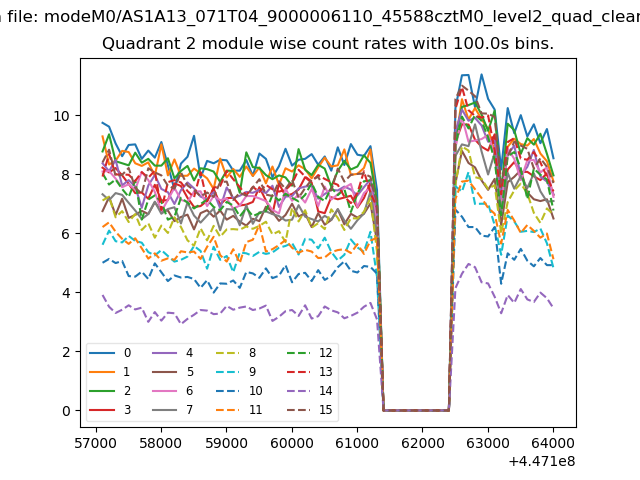

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

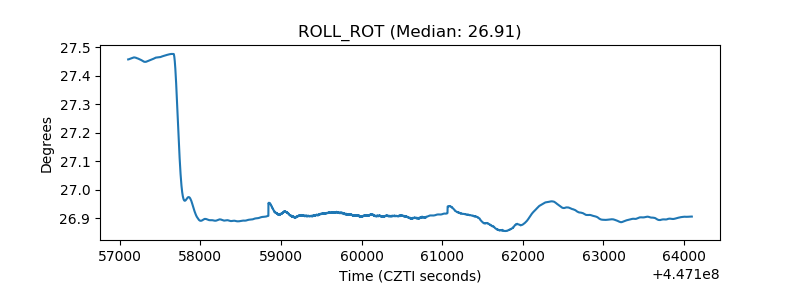

| _ROLL_ROT |  |

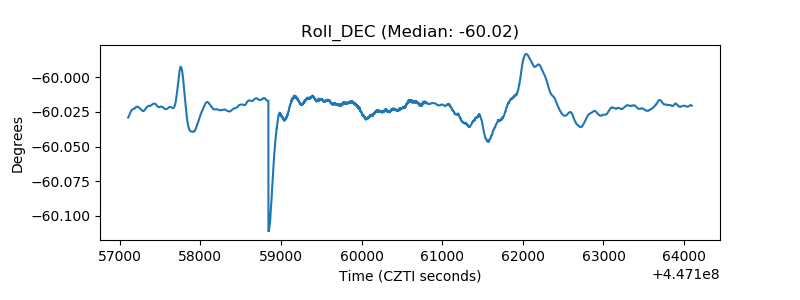

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
