| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T04_9000006110_45592cztM0_level2.fits | modeM0/AS1A13_071T04_9000006110_45592cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,832,000 | 106,954,560 |
| Size | 434.7 MB | 102.0 MB |
| Events in quadrant A | 5,580,065 | 714,307 |
| Events in quadrant B | 3,170,510 | 735,433 |
| Events in quadrant C | 2,807,389 | 705,150 |
| Events in quadrant D | 4,818,650 | 636,746 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20845 | 1 |
| B | 0 | 13632 | 1 |
| C | 0 | 13060 | 1 |
| D | 0 | 18622 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6399 | 209 | 3.266135% |
| B | 6399 | 131 | 2.047195% |
| C | 6400 | 32 | 0.500000% |
| D | 6398 | 262 | 4.095030% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7344 | 6400 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7344 | 6400 | 23 | 23 | 0.31% | 0.36% |  |
| C | 7345 | 6401 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7345 | 6400 | 192 | 192 | 2.61% | 3.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2724903 | 18014.18 | 731 | 715 | 151.2 |
| A | 0 | 243 | 16182 | 102.28 | 731 | 715 | 151.2 |
| A | 15 | 174 | 12830 | 80.11 | 731 | 715 | 151.2 |
| B | 5 | 172 | 111518 | 779.54 | 731 | 710 | 142.1 |
| B | 0 | 183 | 76791 | 535.23 | 731 | 710 | 142.1 |
| B | 15 | 201 | 56662 | 393.62 | 731 | 710 | 142.1 |
| C | 12 | 249 | 9759 | 54.13 | 715 | 717 | 167.1 |
| C | 12 | 2 | 6182 | 32.71 | 715 | 717 | 167.1 |
| C | 14 | 254 | 5964 | 31.41 | 715 | 717 | 167.1 |
| D | 11 | 224 | 639877 | 3610.13 | 709 | 686 | 177.1 |
| D | 1 | 52 | 617998 | 3486.56 | 709 | 686 | 177.1 |
| D | 13 | 249 | 347926 | 1961.2 | 709 | 686 | 177.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

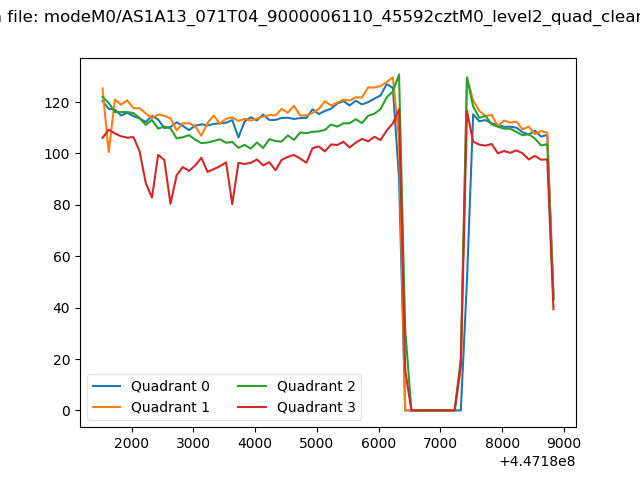

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

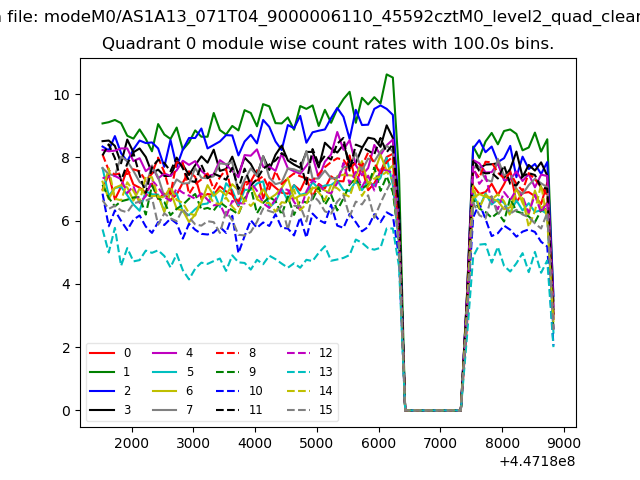

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

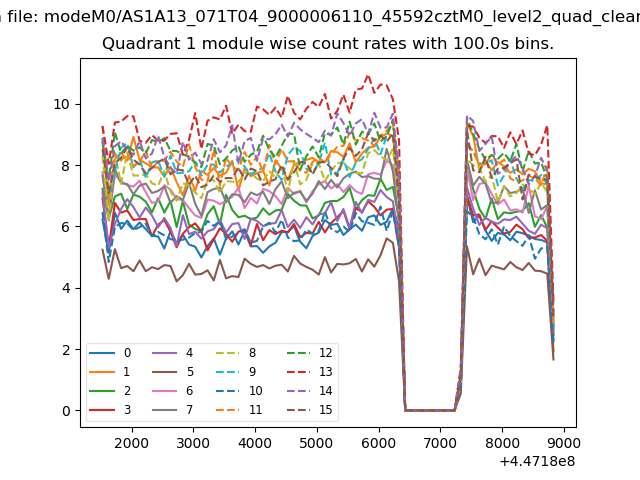

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

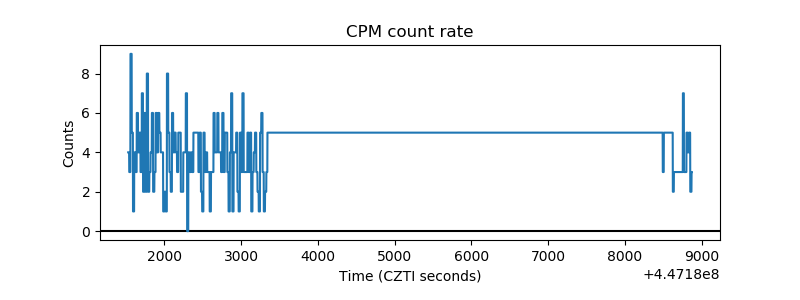

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

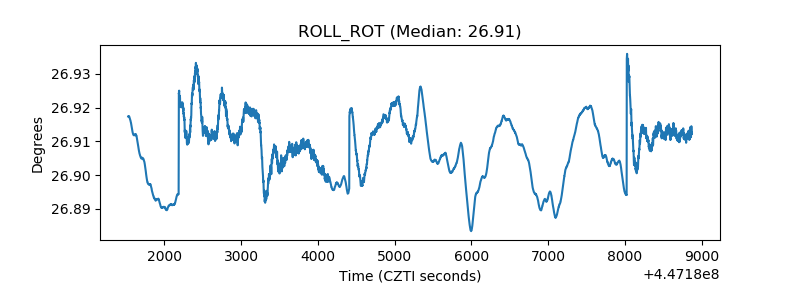

| _ROLL_ROT |  |
| _Roll_DEC |  |

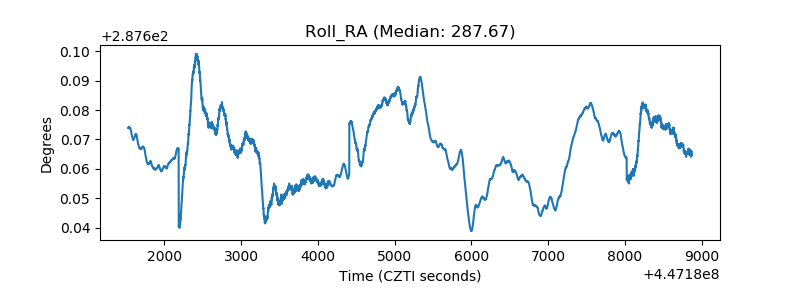

| _Roll_RA |  |
| Veto Counter |  |
