| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T02_9000006112_45607cztM0_level2.fits | modeM0/AS1A13_082T02_9000006112_45607cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,234,240 | 107,107,200 |
| Size | 415.1 MB | 102.1 MB |
| Events in quadrant A | 5,358,550 | 706,843 |
| Events in quadrant B | 3,491,730 | 728,169 |
| Events in quadrant C | 3,034,590 | 710,115 |
| Events in quadrant D | 3,719,624 | 643,502 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20663 | 1 |
| B | 0 | 14984 | 1 |
| C | 0 | 13902 | 2 |
| D | 0 | 15583 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6517 | 165 | 2.531840% |
| B | 6517 | 243 | 3.728710% |
| C | 6517 | 74 | 1.135492% |
| D | 6517 | 118 | 1.810649% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7297 | 6518 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7297 | 6518 | 108 | 108 | 1.48% | 1.66% |  |
| C | 7297 | 6518 | 26 | 26 | 0.36% | 0.40% |  |
| D | 7297 | 6518 | 61 | 61 | 0.84% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2579885 | 17332.52 | 714 | 698 | 148.8 |
| A | 0 | 243 | 18266 | 118.06 | 714 | 698 | 148.8 |
| A | 3 | 137 | 8205 | 50.45 | 714 | 698 | 148.8 |
| B | 5 | 172 | 249565 | 1785.02 | 713 | 692 | 139.4 |
| B | 7 | 221 | 167918 | 1199.42 | 713 | 692 | 139.4 |
| B | 15 | 201 | 142702 | 1018.56 | 713 | 692 | 139.4 |
| C | 14 | 254 | 177086 | 1050.39 | 717 | 722 | 167.9 |
| C | 12 | 2 | 53436 | 313.95 | 717 | 722 | 167.9 |
| C | 13 | 61 | 4839 | 24.52 | 717 | 722 | 167.9 |
| D | 11 | 241 | 249466 | 1379.27 | 712 | 689 | 180.4 |
| D | 11 | 224 | 170732 | 942.75 | 712 | 689 | 180.4 |
| D | 13 | 249 | 121649 | 670.63 | 712 | 689 | 180.4 |

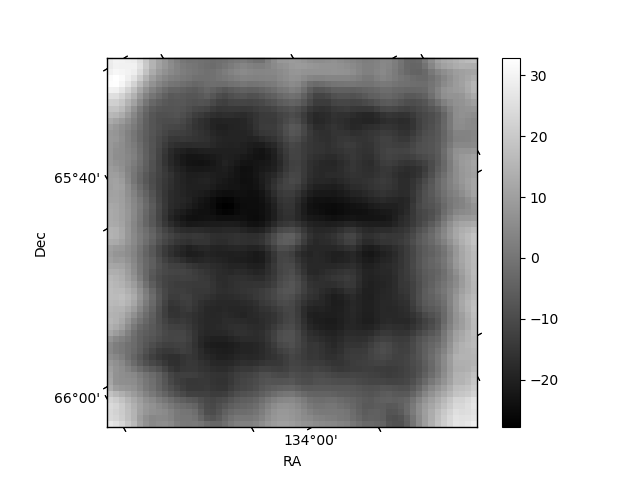

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

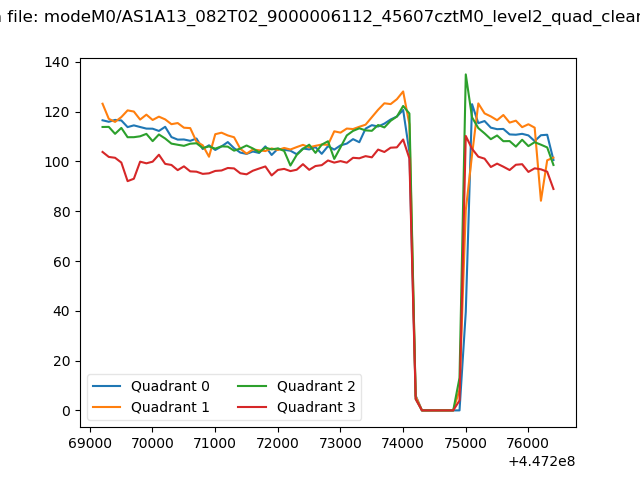

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

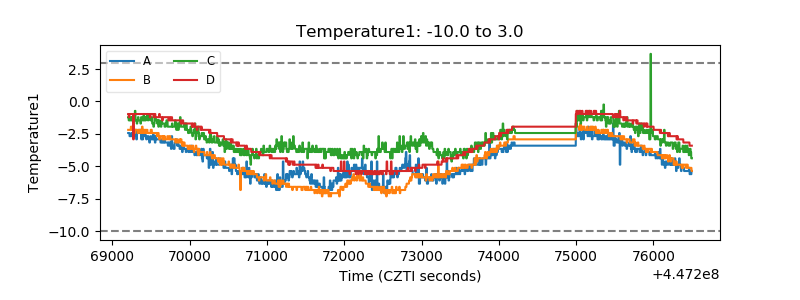

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

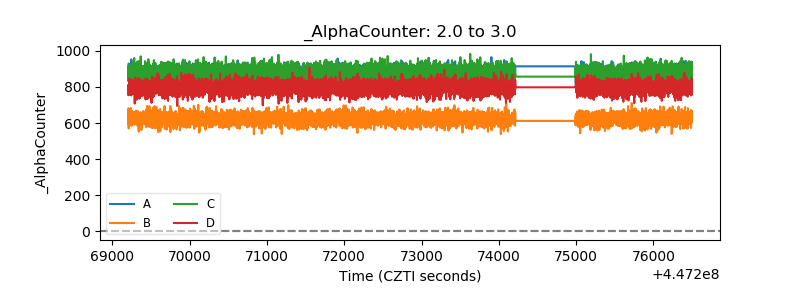

| Alpha Counter |  |

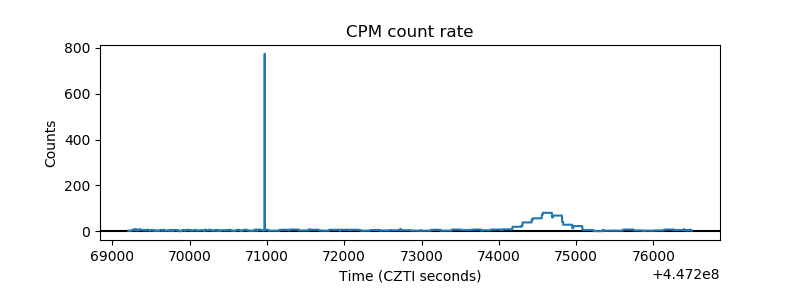

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

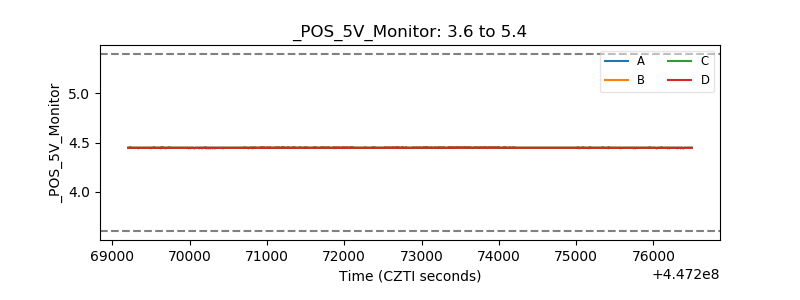

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
