| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006114_45610cztM0_level2.fits | modeM0/AS1A13_071T08_9000006114_45610cztM0_level2_quad_clean.evt |
| Size (bytes) | 711,109,440 | 131,633,280 |
| Size | 678.2 MB | 125.5 MB |
| Events in quadrant A | 7,327,026 | 907,916 |
| Events in quadrant B | 5,520,829 | 885,983 |
| Events in quadrant C | 3,766,334 | 886,804 |
| Events in quadrant D | 9,055,927 | 718,718 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27686 | 0 |
| B | 0 | 22285 | 0 |
| C | 0 | 17481 | 0 |
| D | 0 | 32845 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8437 | 140 | 1.659358% |
| B | 8438 | 500 | 5.925575% |
| C | 8438 | 20 | 0.237023% |
| D | 8438 | 1170 | 13.865845% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8437 | 8437 | 16 | 16 | 0.19% | 0.19% |  |
| B | 8438 | 8438 | 317 | 317 | 3.76% | 3.76% |  |
| C | 8438 | 8438 | 13 | 13 | 0.15% | 0.15% |  |
| D | 8438 | 8438 | 977 | 977 | 11.58% | 11.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3414348 | 17327.11 | 944 | 921 | 197.0 |
| A | 10 | 255 | 166016 | 838.05 | 944 | 921 | 197.0 |
| A | 0 | 243 | 46035 | 229.01 | 944 | 921 | 197.0 |
| B | 15 | 201 | 1049098 | 5701.11 | 928 | 897 | 183.9 |
| B | 5 | 172 | 501072 | 2720.42 | 928 | 897 | 183.9 |
| B | 3 | 112 | 144062 | 778.66 | 928 | 897 | 183.9 |
| C | 14 | 254 | 99615 | 451.29 | 926 | 931 | 218.7 |
| C | 2 | 14 | 31300 | 138.88 | 926 | 931 | 218.7 |
| C | 12 | 2 | 19207 | 83.58 | 926 | 931 | 218.7 |
| D | 11 | 241 | 2898541 | 12849.06 | 881 | 851 | 225.5 |
| D | 8 | 48 | 1332897 | 5906.62 | 881 | 851 | 225.5 |
| D | 13 | 249 | 760822 | 3369.9 | 881 | 851 | 225.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

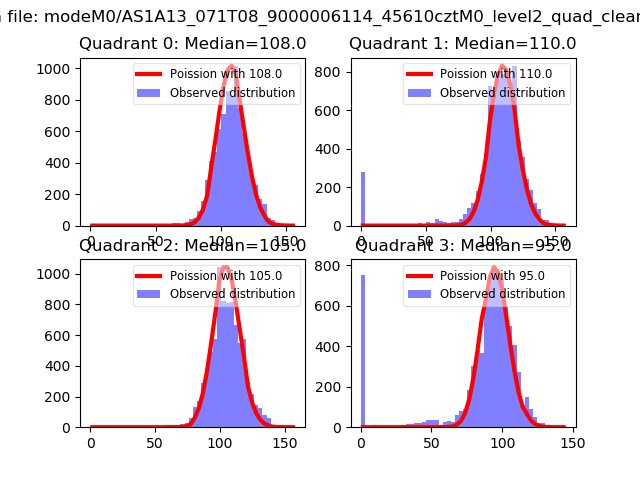

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

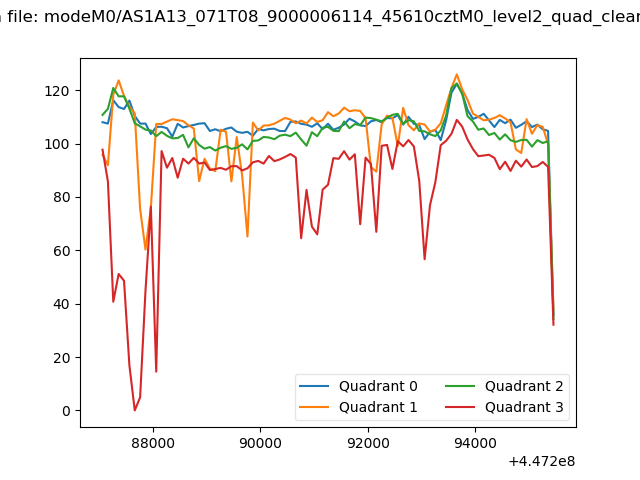

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

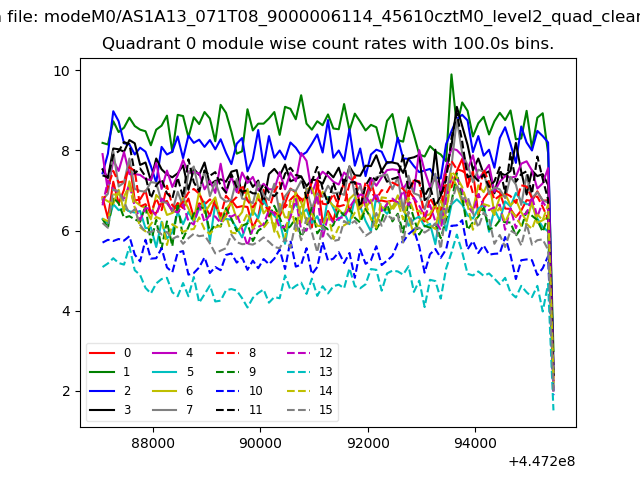

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

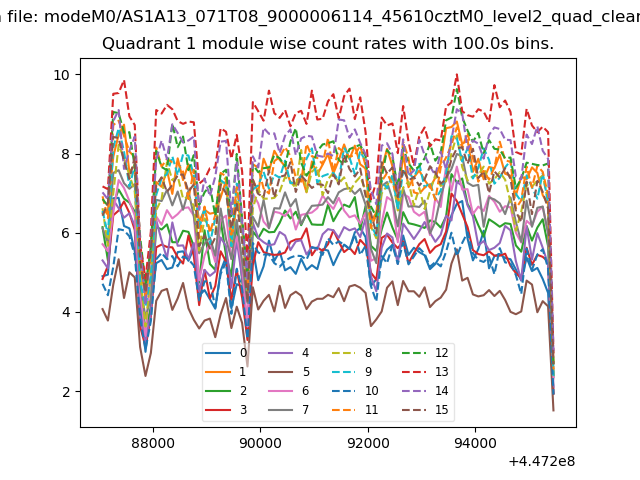

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

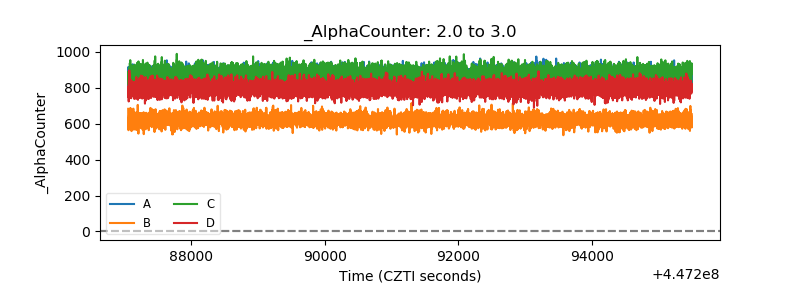

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

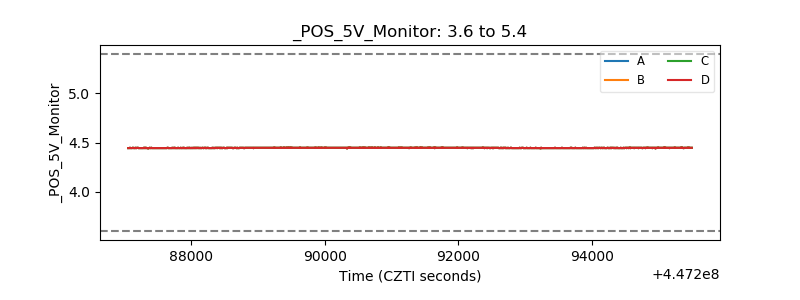

| +5 Volts monitor |  |

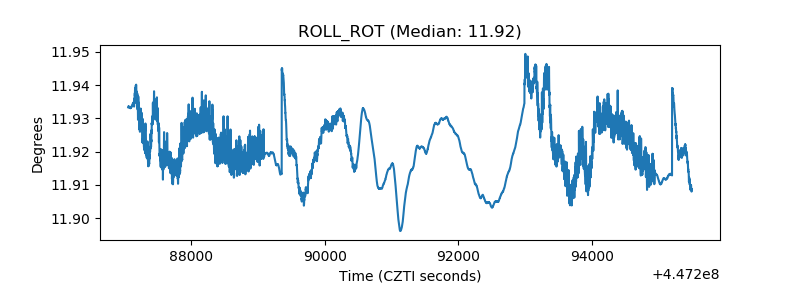

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
