| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006114_45616cztM0_level2.fits | modeM0/AS1A13_071T08_9000006114_45616cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,271,453,760 | 263,517,120 |
| Size | 1.2 GB | 251.3 MB |
| Events in quadrant A | 13,985,027 | 1,762,597 |
| Events in quadrant B | 9,211,245 | 1,805,766 |
| Events in quadrant C | 8,107,973 | 1,740,884 |
| Events in quadrant D | 14,452,689 | 1,500,996 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53368 | 2 |
| B | 0 | 39235 | 2 |
| C | 0 | 36753 | 2 |
| D | 0 | 54734 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 344 | 0 |
| B | 0 | 344 | 0 |
| C | 0 | 344 | 0 |
| D | 0 | 344 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16938 | 299 | 1.765262% |
| B | 16939 | 515 | 3.040321% |
| C | 16939 | 308 | 1.818289% |
| D | 16939 | 1032 | 6.092449% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17533 | 16941 | 7 | 7 | 0.04% | 0.04% |  |
| B | 17534 | 16942 | 263 | 263 | 1.50% | 1.55% |  |
| C | 17534 | 16942 | 167 | 167 | 0.95% | 0.99% |  |
| D | 17534 | 16942 | 671 | 671 | 3.83% | 3.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6616616 | 17097.35 | 1869 | 1830 | 386.9 |
| A | 10 | 255 | 45587 | 113.1 | 1869 | 1830 | 386.9 |
| A | 0 | 243 | 41596 | 102.78 | 1869 | 1830 | 386.9 |
| B | 5 | 172 | 808846 | 2221.38 | 1851 | 1794 | 363.3 |
| B | 15 | 201 | 485604 | 1331.67 | 1851 | 1794 | 363.3 |
| B | 5 | 32 | 174291 | 474.79 | 1851 | 1794 | 363.3 |
| C | 14 | 254 | 597057 | 1381.31 | 1839 | 1851 | 430.9 |
| C | 12 | 2 | 277900 | 640.63 | 1839 | 1851 | 430.9 |
| C | 3 | 233 | 33978 | 74.56 | 1839 | 1851 | 430.9 |
| D | 11 | 241 | 5154230 | 11242.65 | 1810 | 1756 | 458.3 |
| D | 8 | 48 | 509772 | 1108.49 | 1810 | 1756 | 458.3 |
| D | 11 | 224 | 381637 | 828.9 | 1810 | 1756 | 458.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

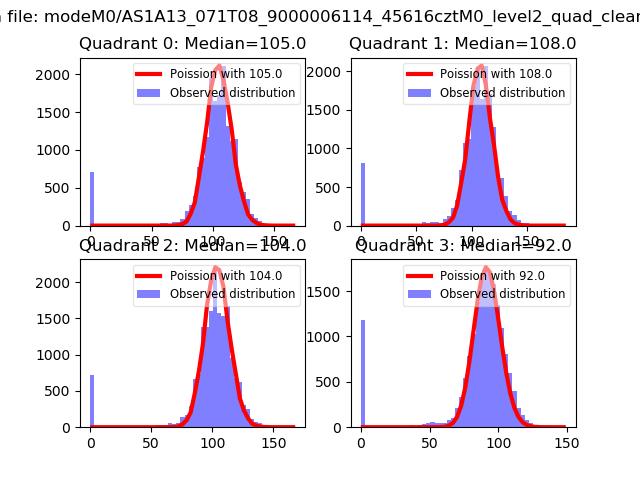

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

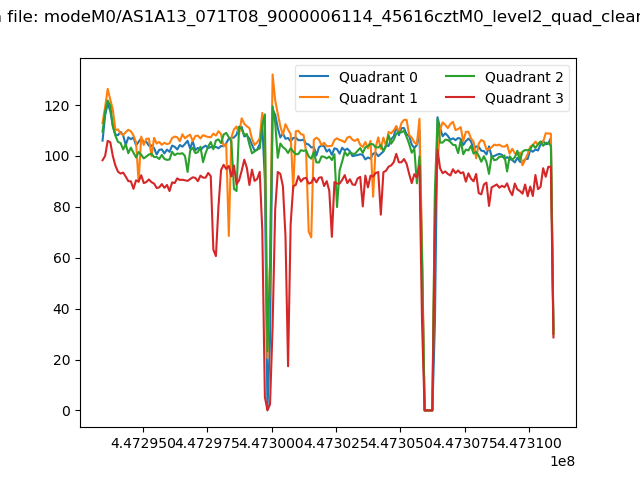

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

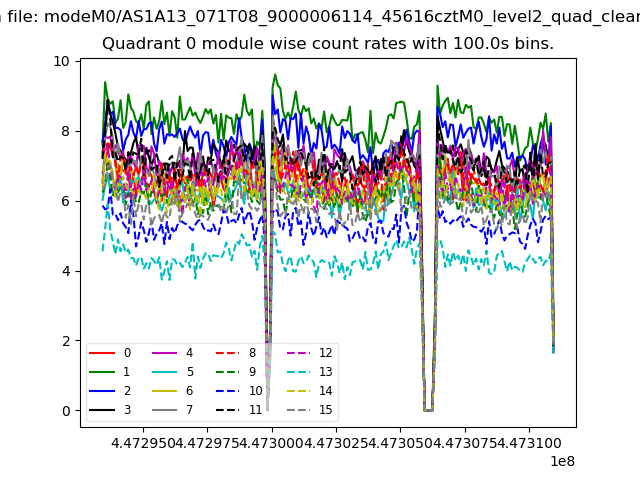

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

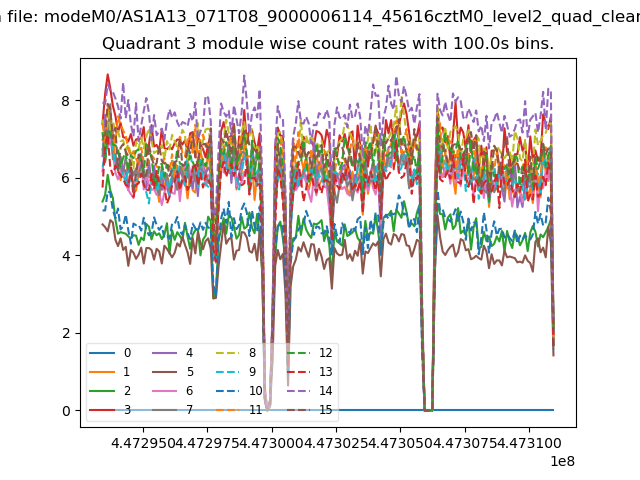

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

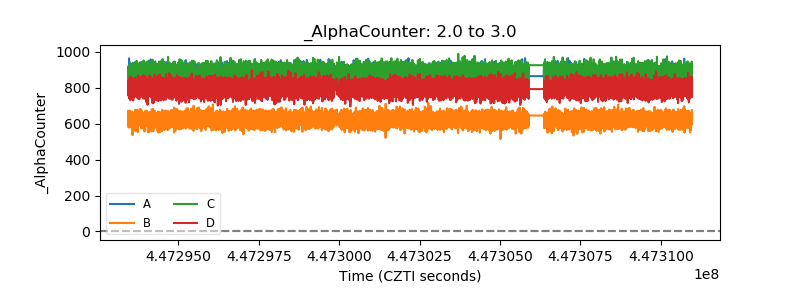

| Alpha Counter |  |

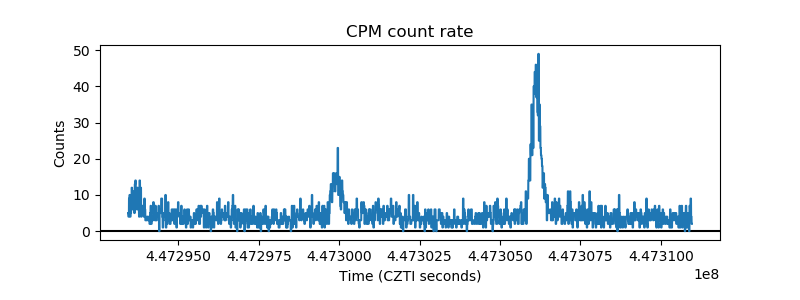

| _CPM_Rate |  |
| CZT Counter |  |

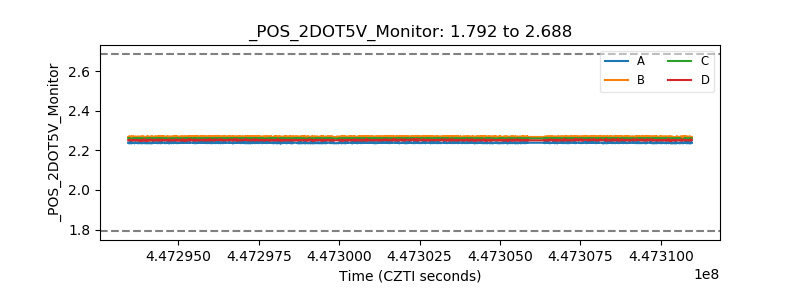

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

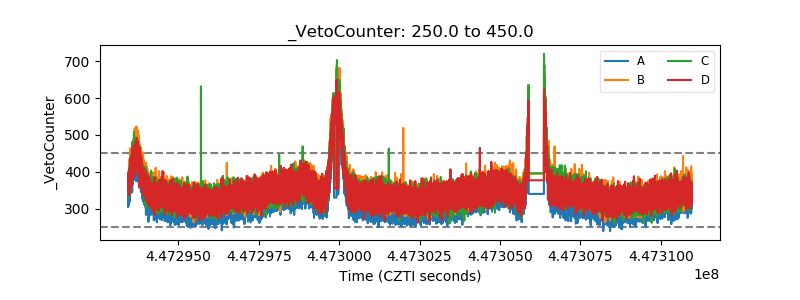

| Veto Counter |  |
