| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006114_45617cztM0_level2.fits | modeM0/AS1A13_071T08_9000006114_45617cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,492,853,760 | 298,814,400 |
| Size | 1.4 GB | 285.0 MB |
| Events in quadrant A | 16,330,237 | 1,996,504 |
| Events in quadrant B | 11,129,967 | 2,051,013 |
| Events in quadrant C | 9,414,640 | 1,991,476 |
| Events in quadrant D | 16,935,988 | 1,713,556 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60605 | 4 |
| B | 0 | 45645 | 4 |
| C | 0 | 41313 | 4 |
| D | 0 | 63699 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18789 | 503 | 2.677098% |
| B | 18789 | 737 | 3.922508% |
| C | 18790 | 349 | 1.857371% |
| D | 18790 | 1465 | 7.796700% |

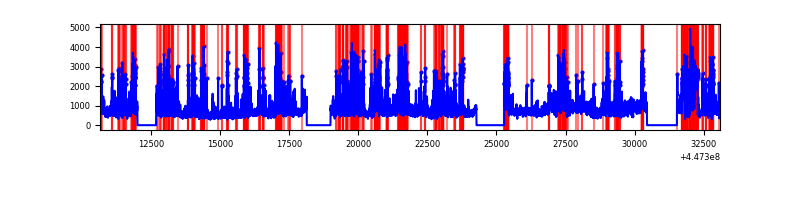

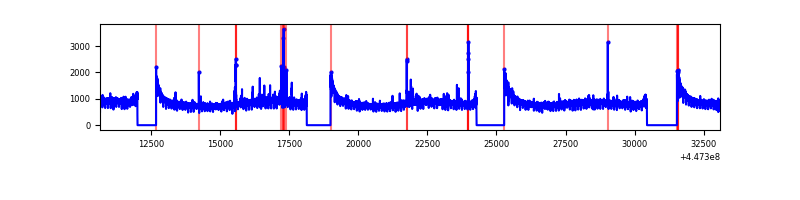

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22414 | 18792 | 24 | 24 | 0.11% | 0.13% |  |
| B | 22414 | 18792 | 383 | 383 | 1.71% | 2.04% |  |
| C | 22415 | 18794 | 135 | 135 | 0.60% | 0.72% |  |
| D | 22415 | 18793 | 1099 | 1099 | 4.90% | 5.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7915193 | 18089.24 | 2126 | 2080 | 437.4 |
| A | 0 | 243 | 102019 | 228.46 | 2126 | 2080 | 437.4 |
| A | 13 | 248 | 53030 | 116.47 | 2126 | 2080 | 437.4 |
| B | 5 | 172 | 1103696 | 2721.92 | 2092 | 2025 | 404.7 |
| B | 15 | 201 | 592759 | 1459.54 | 2092 | 2025 | 404.7 |
| B | 3 | 112 | 452517 | 1113.04 | 2092 | 2025 | 404.7 |
| C | 12 | 2 | 827049 | 1694.65 | 2085 | 2096 | 486.8 |
| C | 14 | 254 | 285963 | 583.13 | 2085 | 2096 | 486.8 |
| C | 0 | 207 | 104974 | 211.34 | 2085 | 2096 | 486.8 |
| D | 11 | 241 | 3259818 | 6365.75 | 2042 | 1978 | 511.8 |
| D | 8 | 129 | 2828173 | 5522.33 | 2042 | 1978 | 511.8 |
| D | 11 | 224 | 742888 | 1447.72 | 2042 | 1978 | 511.8 |

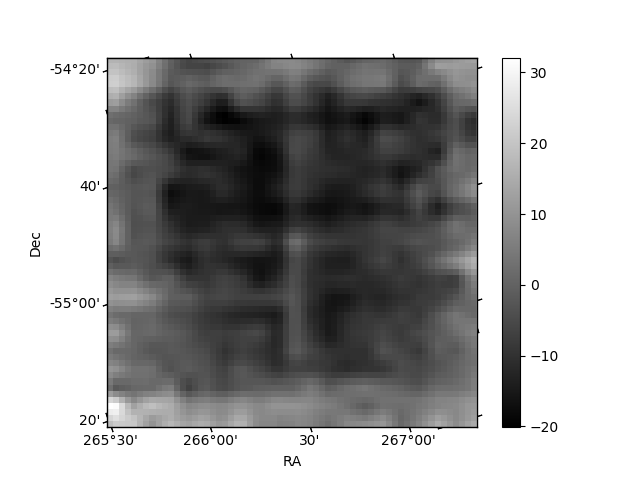

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

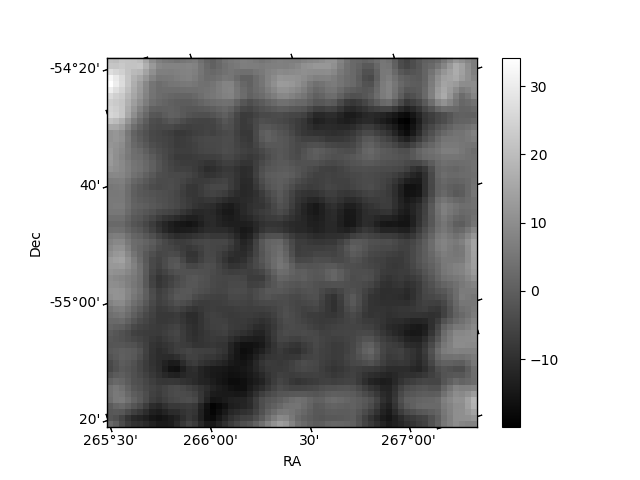

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

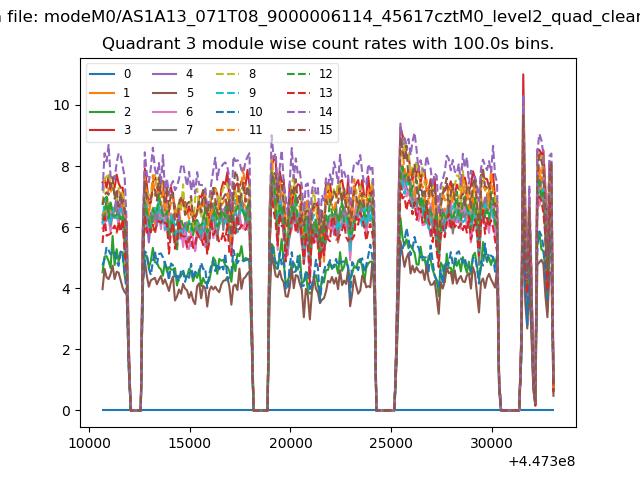

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

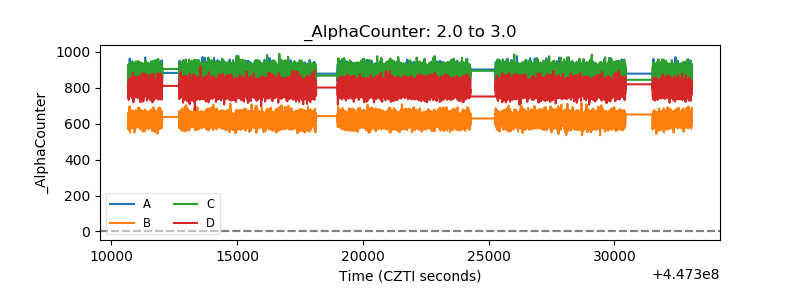

| Alpha Counter |  |

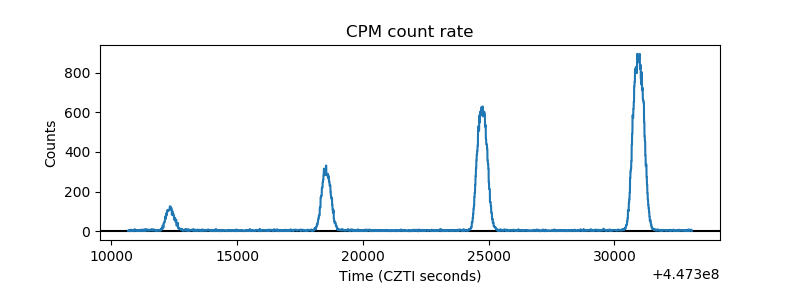

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

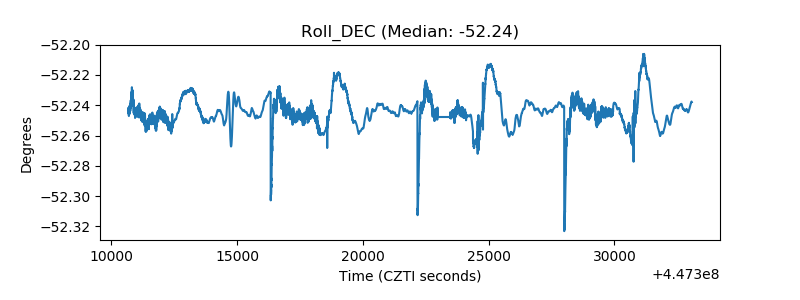

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
