| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006114_45621cztM0_level2.fits | modeM0/AS1A13_071T08_9000006114_45621cztM0_level2_quad_clean.evt |
| Size (bytes) | 689,172,480 | 90,774,720 |
| Size | 657.2 MB | 86.6 MB |
| Events in quadrant A | 5,455,725 | 679,164 |
| Events in quadrant B | 4,037,671 | 682,243 |
| Events in quadrant C | 2,978,741 | 677,957 |
| Events in quadrant D | 12,561,415 | 279,445 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20253 | 1 |
| B | 0 | 16141 | 1 |
| C | 0 | 13313 | 1 |
| D | 0 | 41582 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6157 | 238 | 3.865519% |
| B | 6158 | 391 | 6.349464% |
| C | 6158 | 81 | 1.315362% |
| D | 6157 | 3667 | 59.558226% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7112 | 6158 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7113 | 6159 | 119 | 119 | 1.67% | 1.93% |  |
| C | 7113 | 6159 | 28 | 28 | 0.39% | 0.45% |  |
| D | 7111 | 6157 | 3452 | 3452 | 48.54% | 56.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2672487 | 18123.62 | 704 | 688 | 147.4 |
| A | 0 | 243 | 19890 | 130.25 | 704 | 688 | 147.4 |
| A | 10 | 255 | 19839 | 129.91 | 704 | 688 | 147.4 |
| B | 15 | 201 | 584222 | 4246.18 | 698 | 676 | 137.4 |
| B | 5 | 172 | 301226 | 2186.96 | 698 | 676 | 137.4 |
| B | 4 | 171 | 221093 | 1603.87 | 698 | 676 | 137.4 |
| C | 14 | 254 | 198136 | 1211.71 | 691 | 693 | 162.9 |
| C | 0 | 207 | 64856 | 393.77 | 691 | 693 | 162.9 |
| C | 2 | 14 | 18089 | 106.76 | 691 | 693 | 162.9 |
| D | 11 | 241 | 6845183 | 51835.43 | 527 | 509 | 132.0 |
| D | 2 | 249 | 2581433 | 19545.61 | 527 | 509 | 132.0 |
| D | 8 | 129 | 764192 | 5783.45 | 527 | 509 | 132.0 |

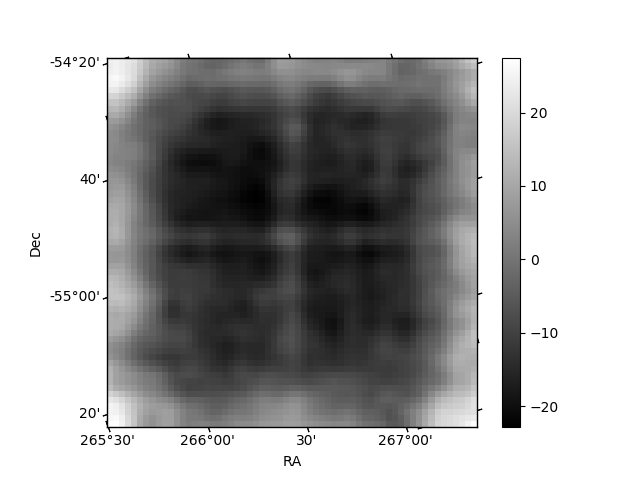

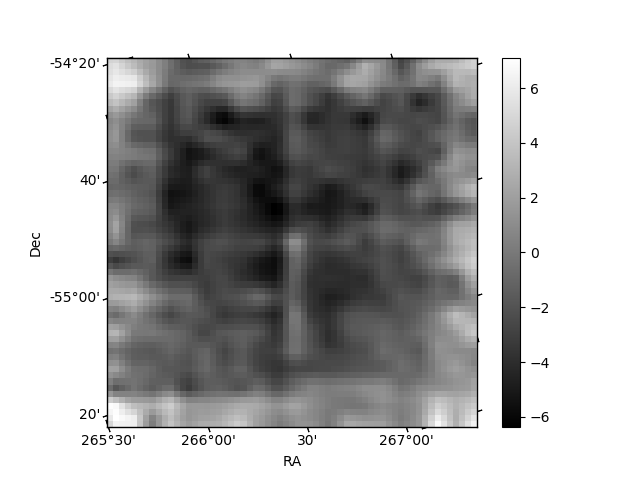

Histogram calculated using DETX and DETY for each event in the final _common_clean file

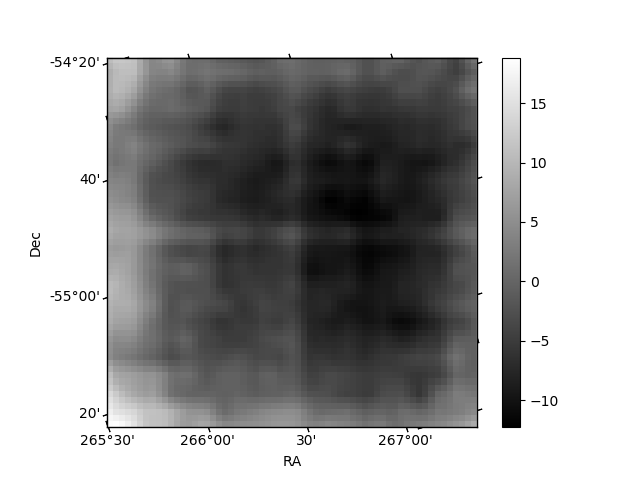

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

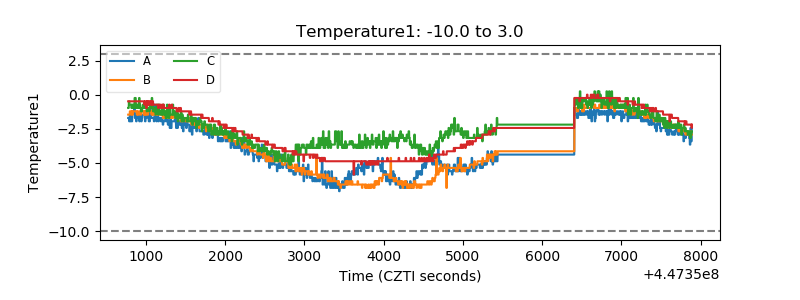

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

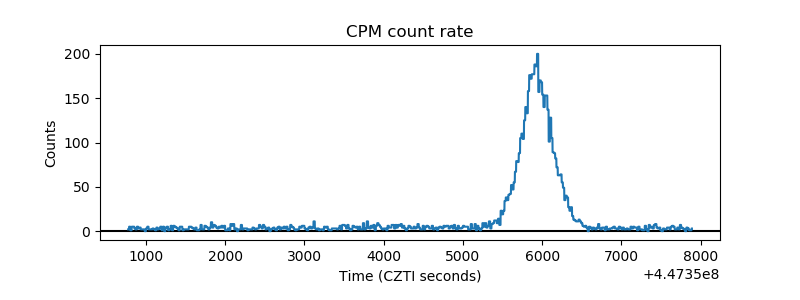

| _CPM_Rate |  |

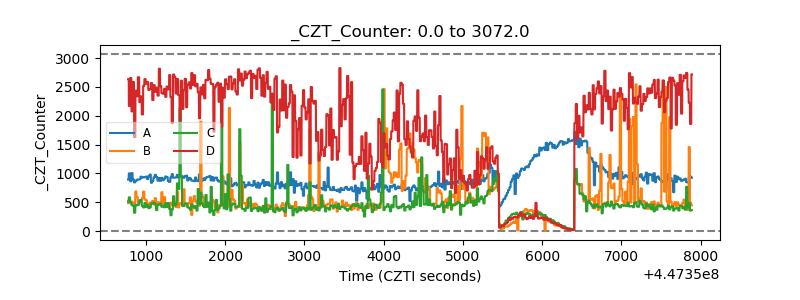

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

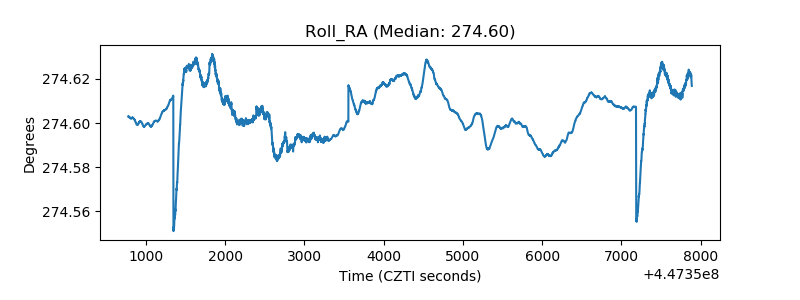

| _Roll_RA |  |

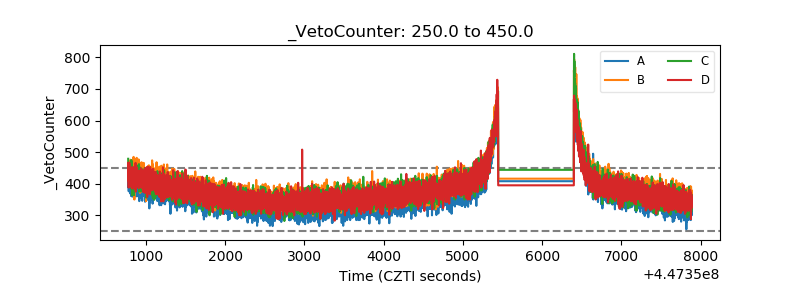

| Veto Counter |  |
